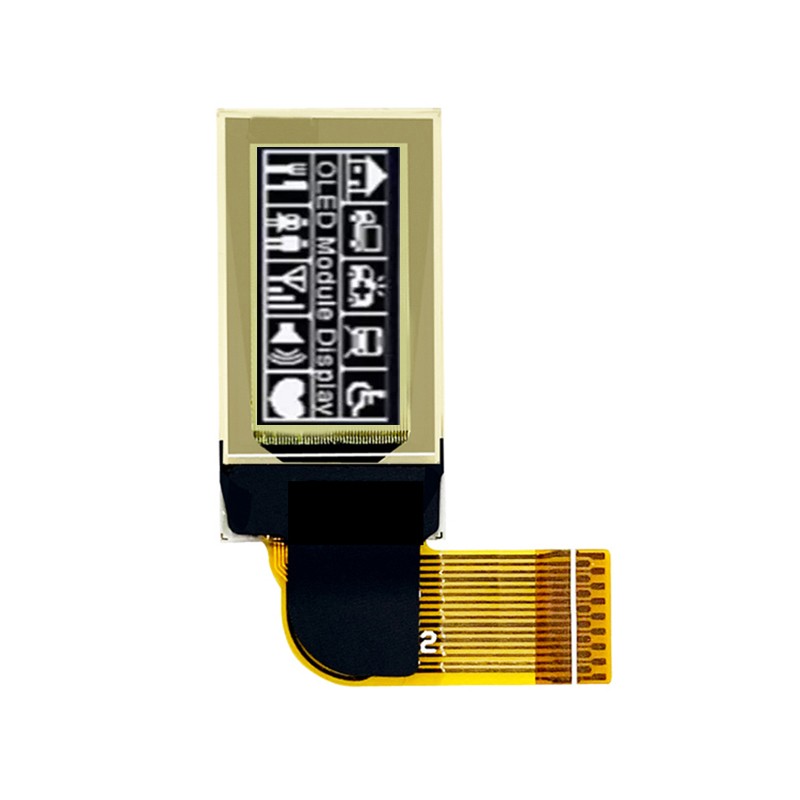

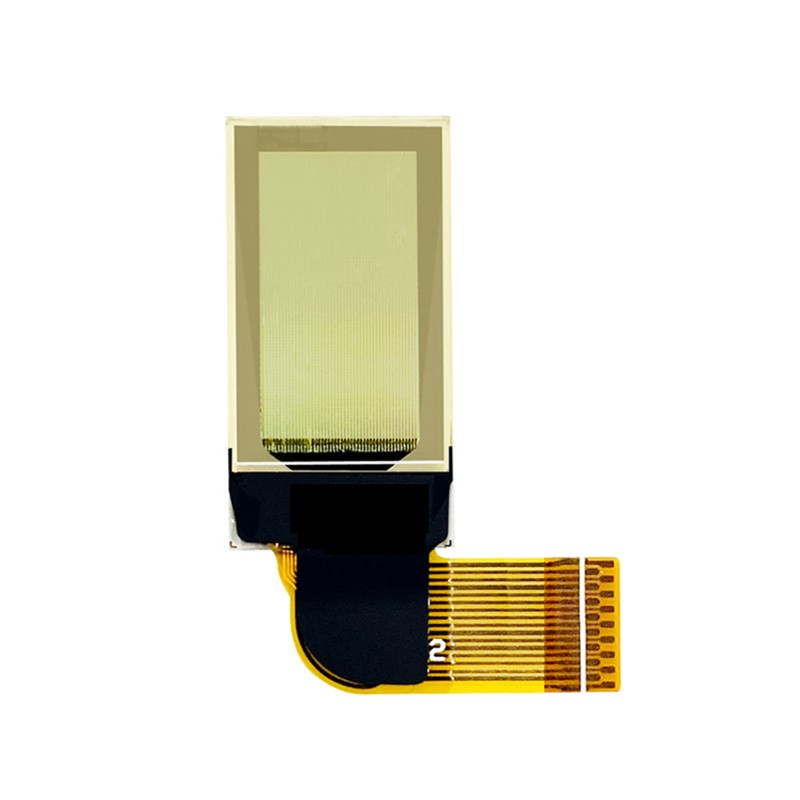

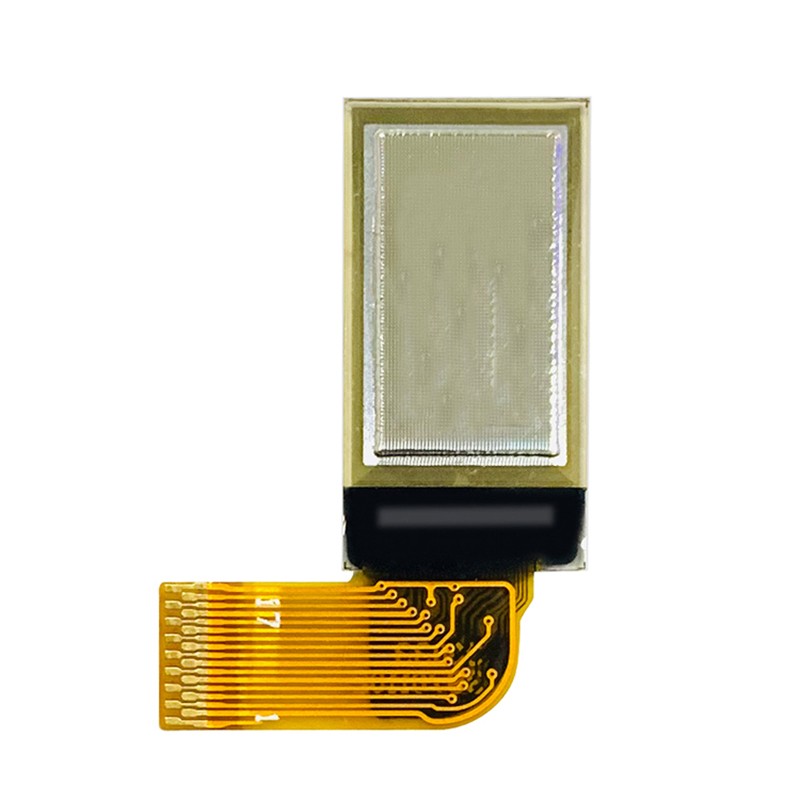

0.5" 48x88 Graphic Micro OLED Display

Description

This OLED 0.50 is a  passive matrix micro OLED display module which is made of 48x88 dots. It has the module dimension of 8.928x17.1x1.227mm and Active Area size 6.124X11.244mm.This OLED micro display is built in with CH1115 IC, it supports I2C interface, 3.5V power supply. It is a COG structure OLED display which is ultra thin and no need of backlight (self emitting); it's lightweight and low power consumption. This 0.50 inch small sized OLED module is suitable for wearable device, mp3, portable device, personal care appliance, voice recorder pen, health device, etc.  the module can be operating at temperatures from -40℃ to +70℃; its storage temperatures range from -40℃ to +85℃.

Specifications

• Resolution : 48x88 Dot Matrix OLED
• Display Mode : Passive Matrix
• Viewing Angles: IPS
• Display Color : Monochrome (White)
• Module Dimension : 8.928x17.1x1.227 mm
• Viewing Area : 6.124X11.244 mm
• Power Supply :1.65-3.5 V
• Interface : 4 line SPI
• Controller IC : CH1115
• Pin No: 17P Connector
• Operation Temperature : -40℃~70℃
• Storage Temperature : -40℃~85℃

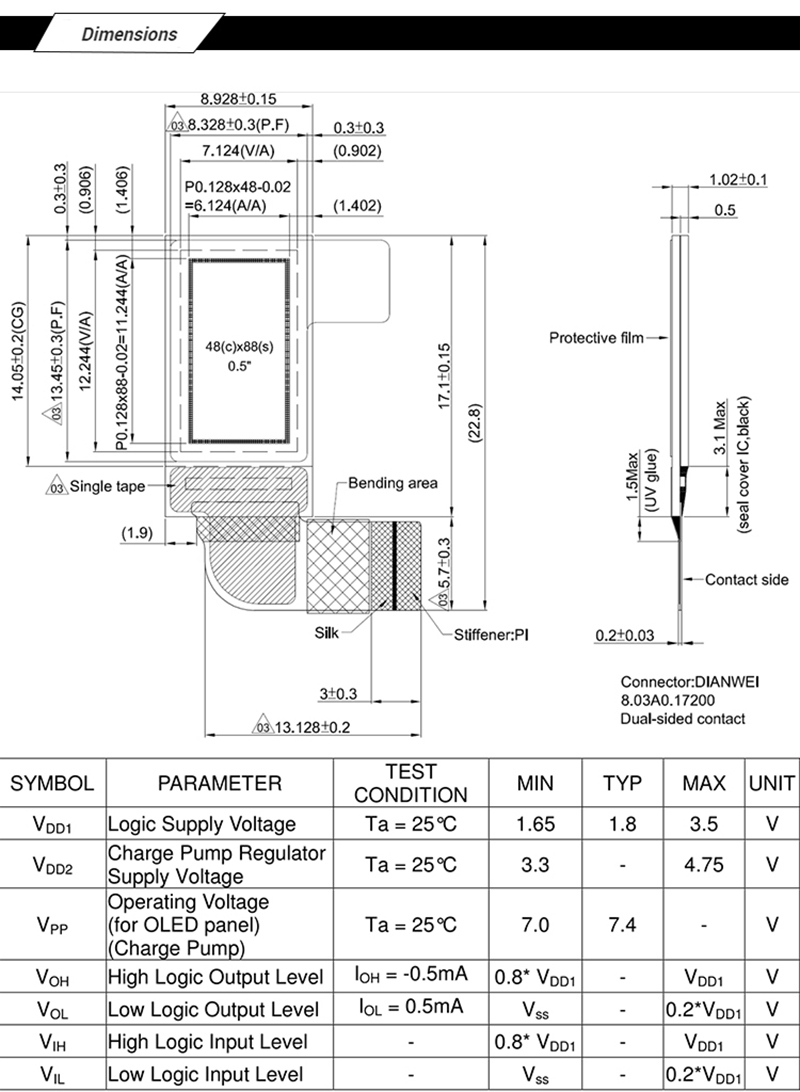

Dimensions

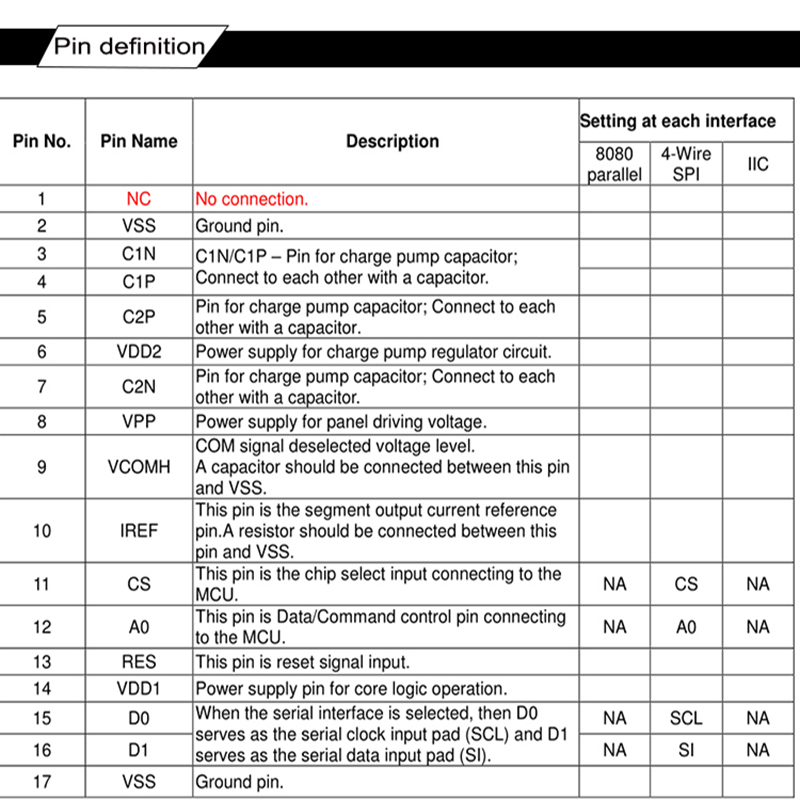

Pin Definitions
