lcos Display 0.38 inch 1280x720 Micro head-mounted display

Category： AR/VR Display
Size:0.38 inch COS Display
Resolution:1280(RGB)X720
Brightness:200 cd/m2 Min
Interface: YCbCr(4:2:2)-parallel (16 data, Hd, Vd, Clock)
INQUIRY EMAIL

LCOS Screen 0.38 inch high-resolution1280x720 Micro display

Overview

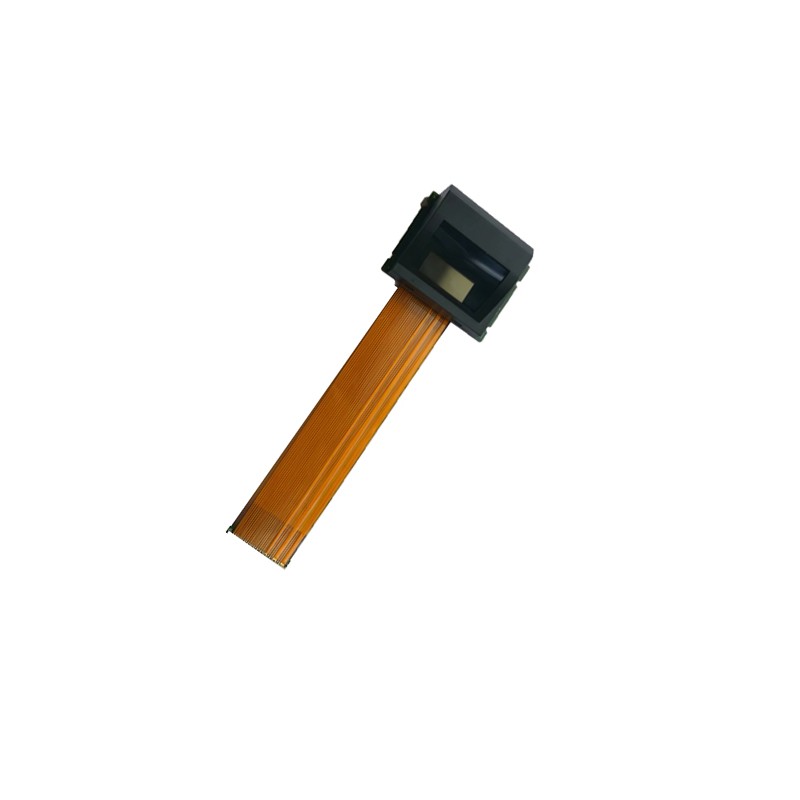

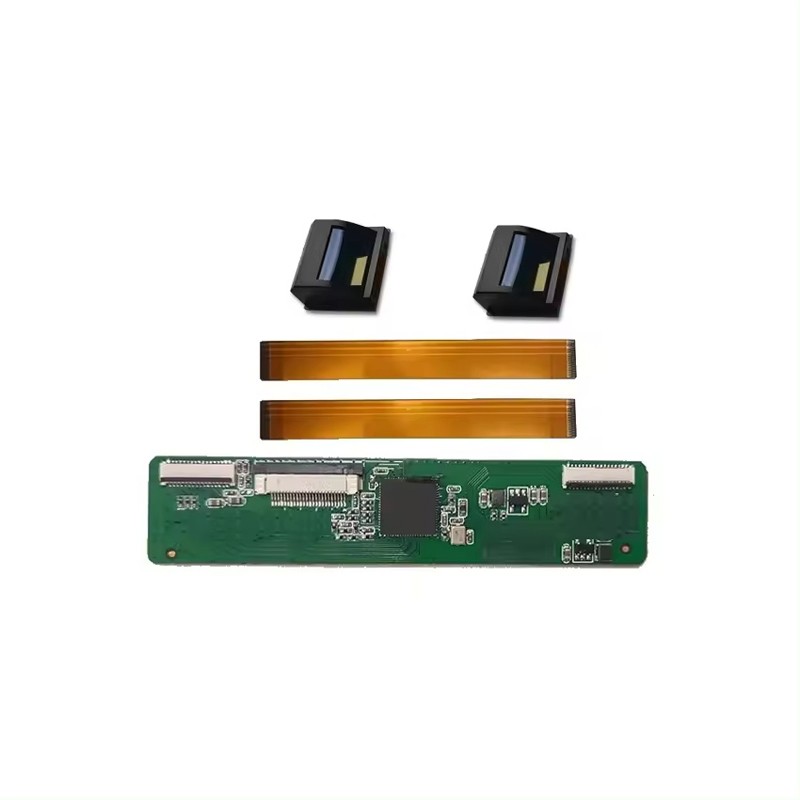

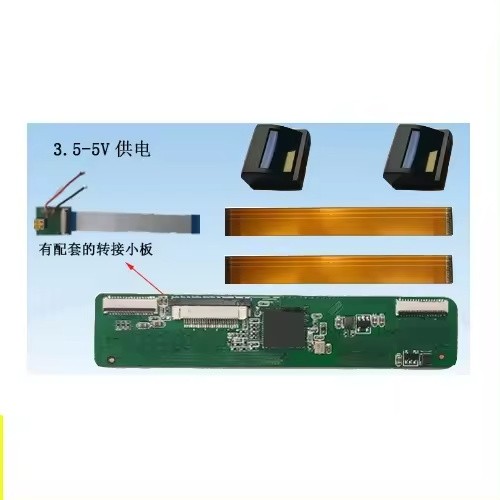

This lcos display module is composed of a LCOS display screen and a controller board. It is with a diagonal 0.38 inch size and a high resolution of 1280 X720 , this 0.38 inch lcos display can be powered directly via HDMI-A if current from HDMI-A is not enough, it can also be powered by additional external supply.This hdmi driver board can controll two displays

0.38" lcos screen 1280x720 parameter

◆Display Technology: Ferroelectric Liquid Crystal (FLC) on reflective CMOS
◆Display Mode:Field sequential color
◆Display Format:720p : 1280(H) x 720(V)

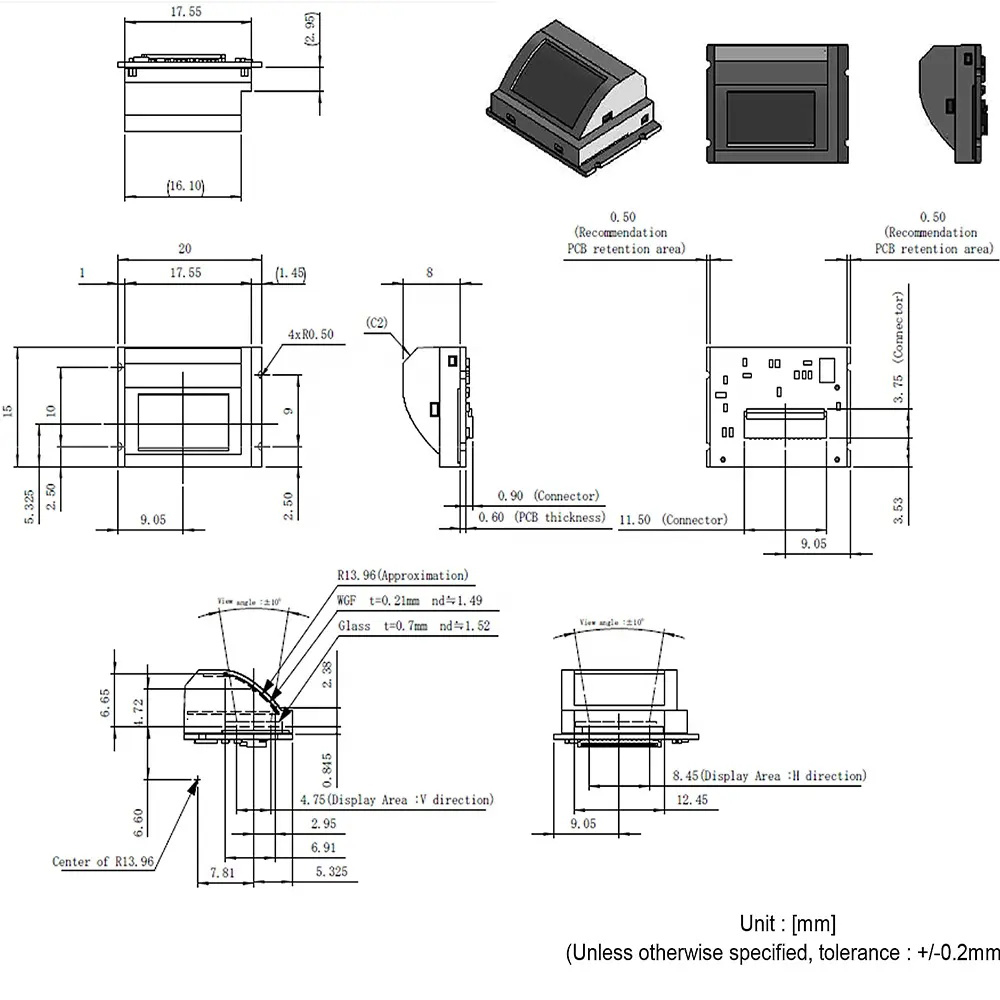

◆Display Panel Active Area:8.448 x 4.752mm
◆Display Area diagonal:9.693mm (0.38'')
◆Input Grayscale:256 levels
◆Color Depth:4.2Million unique colors (YCrCb video interface)
◆Display Pixel Pitch:6.6um
◆Display Frame Rate:60 Hz/360Hz (NTSC), 50/300 Hz (PAL)
◆Brightness:200 cd/m2 Min.
◆Contrast Ratio:150:1 (Typical)
◆Digital Display Interface:YCbCr(4:2:2)-parallel (16 data, Hd, Vd, Clock)
◆Storage Temperature:-30℃ ~ 83℃

0.38" lcos display microdisplay 1280x720 Features:

◆The display module can reduce customer development time and cost. It has small volume and can be easily applied to customer product development and design.
◆It uses LCOS (Ferroelectric Liquid Crystal on Silicon) Display technology.
◆Nice display color, high contrast ratio, low power consumption, low cost, clearer and more realistic display effect.
◆Weight: About 5g (screen)
◆Mode of work: Digital
