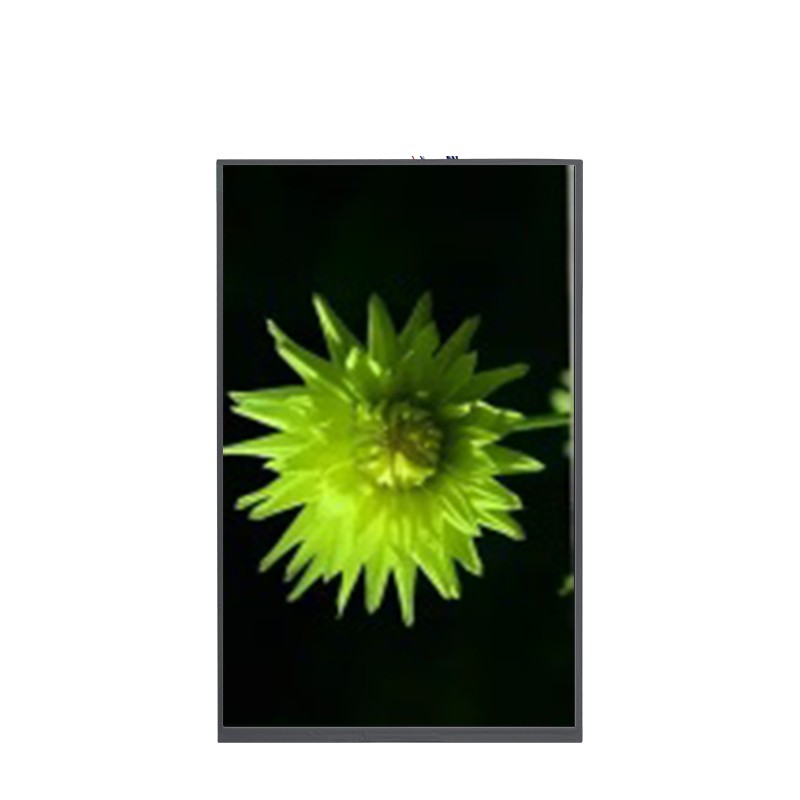

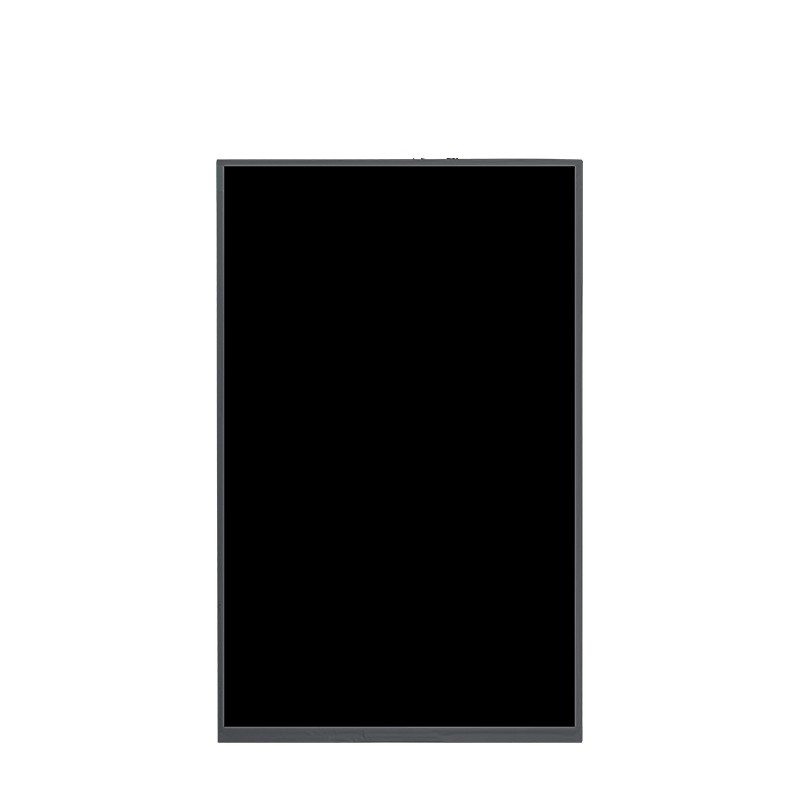

10.1 inch 800X1280 TFT LCD Display Module touch screen

Description

This 10.1"TFT is a IPS Mini color TFT LCD display module is made of resolution 800x RGBx1280pixels,with outline dimension of 143.1(H) × 228.55(V) × 2.50(D) mm and AA size 135.36(H) ×216.58(V) mm.this 10.1" TFT display supports LVDS interface,with full viewing angle and wide range of operating Temperature,it is ideal to be used in industrial device,any embedded systems,medical equipment,wearable devices,security and hand-held devices which requests TFT display with high quality and colorful images.

• Resolution:800x(RGB)x1280
• View Direction:ALL O'clock
• Display Color : RGB 16.7M
• Power Supply :3.0-3.6V
• Interface :LVDS
• Pin No: 20P
• Dot pitch:0.1692(H) ×0.1692(V) mm

• Backlight: White LEDs

• LCD Type: TFT,Normally Black,Transmissive
• Panel Dimension:143.1(H) × 228.55(V) × 2.50(D) mm
• Viewing Area :135.36(H) ×216.58(V)mm
• Touch Screen:with or without
• Operation Temperature : -20℃~55℃
• Storage Temperature : -20℃~60℃

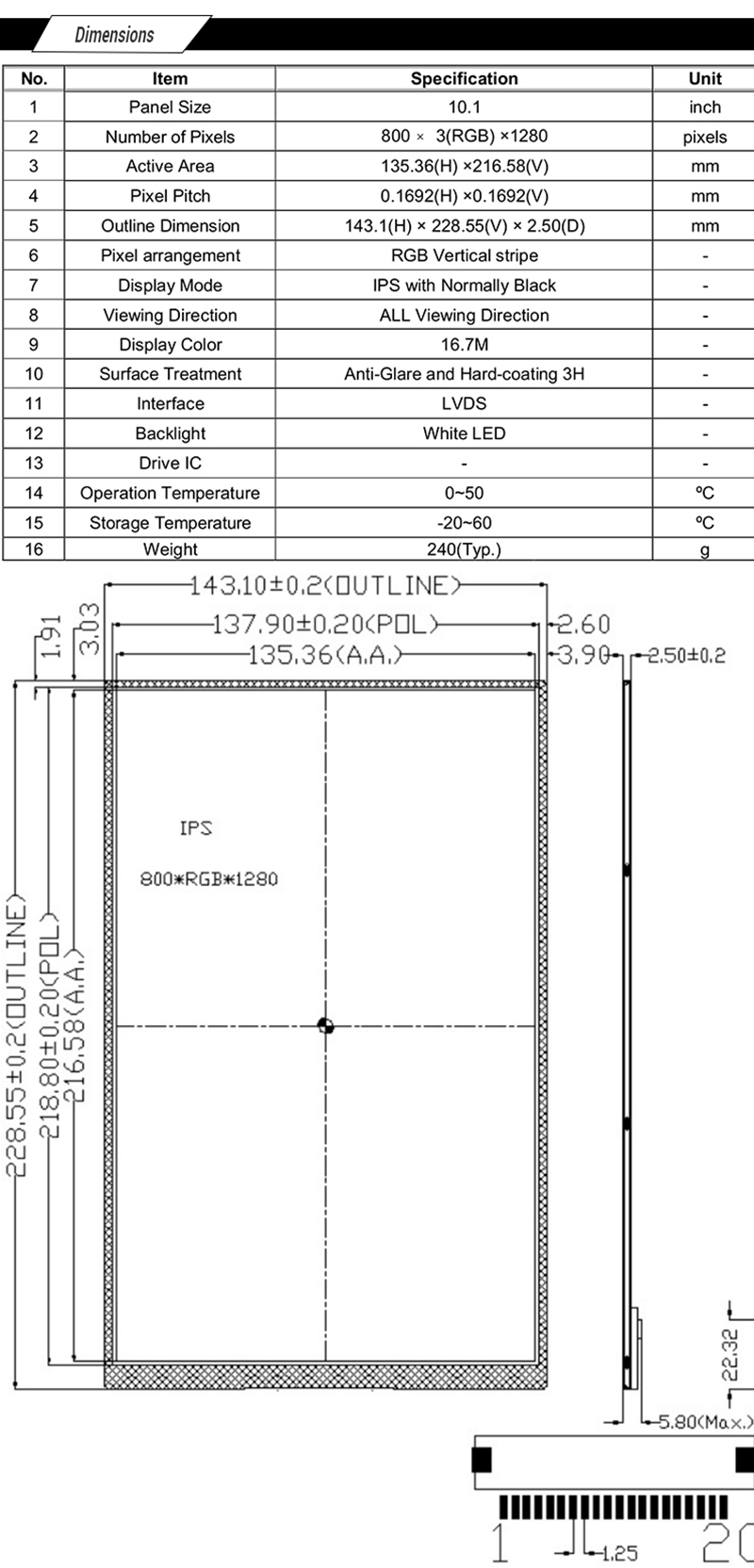

Dimensions

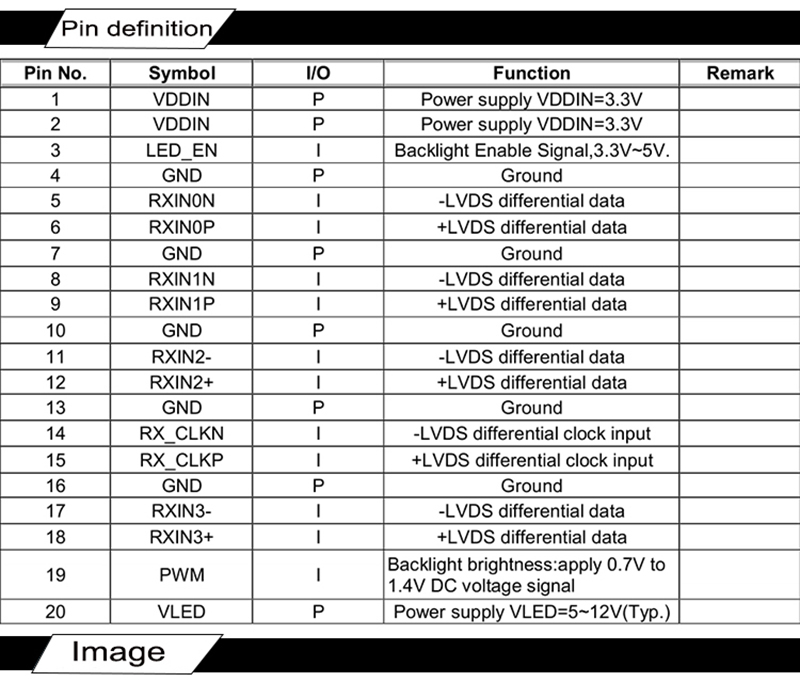

Pin Definitions
