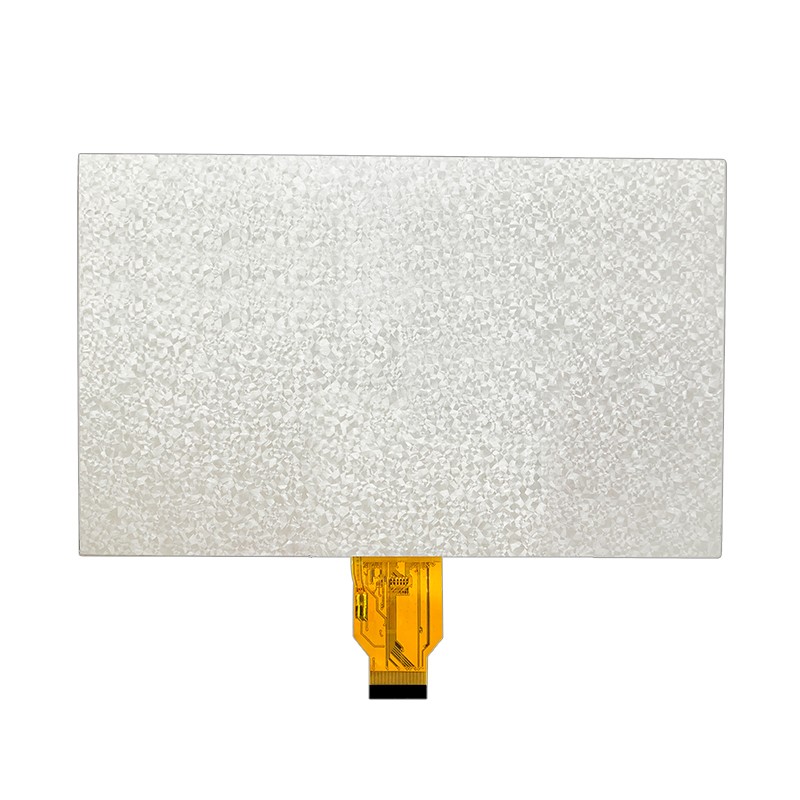

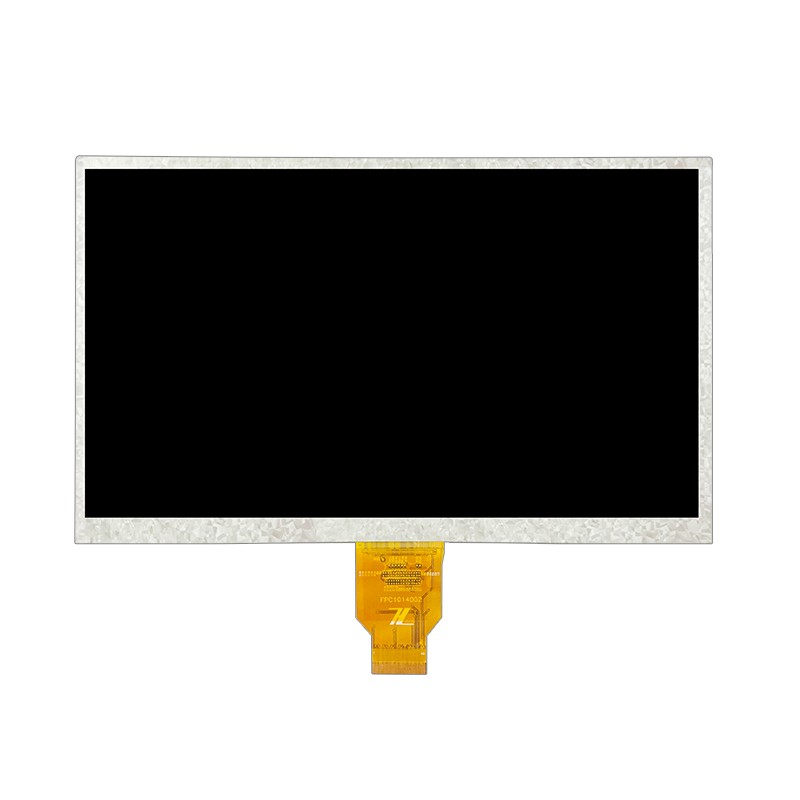

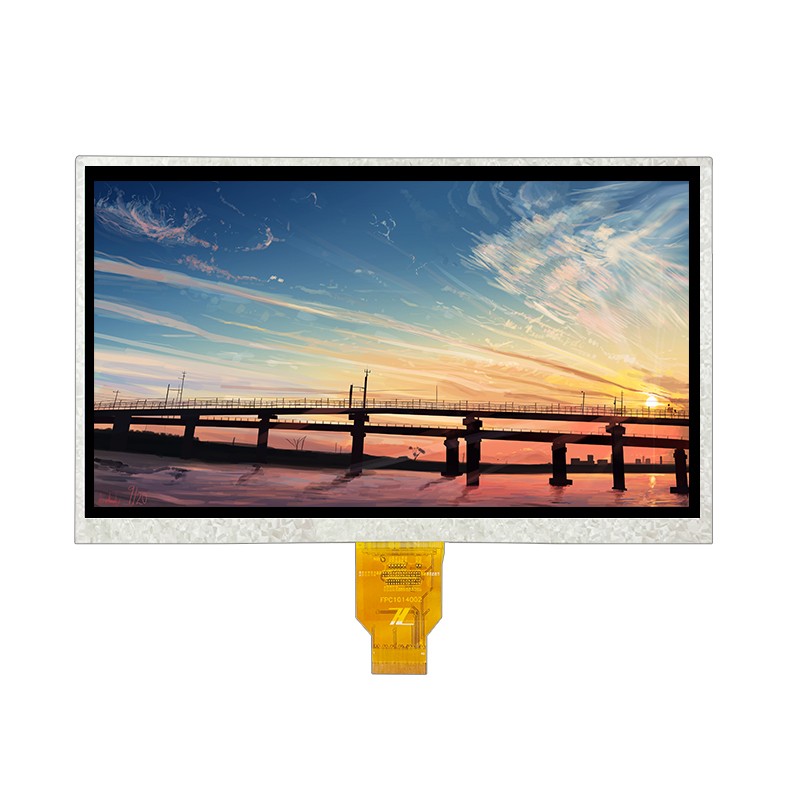

10.1 TFT LCD Display Module 1024X600

Description

This 10.1"TFT is a IPS Mini color TFT LCD display module is made of resolution 1024x RGBx600 pixels,with outline dimension of 235.00(W)×143.00(H)×2.80(D) mm and AA size 222.72(H)X125.78(V) mm.this 10.1" TFT display supports LVDS interface,with full viewing angle and wide range of operating Temperature,it is ideal to be used in industrial device,any embedded systems,medical equipment,wearable devices,security and hand-held devices which requests TFT display with high quality and colorful images.

• Resolution:1024x(RGB)x600
• View Direction:6 O'clock
• Display Color : RGB 16.7M
• Power Supply :3.0-3.6V
• Interface :LVDS
• Pin No: 40P
• Dot pitch:0.2175(H) x 0.2188(V) mm
• Backlight: White LEDs

• LCD Type: TFT,Normally Black,Transmissive
• Panel Dimension:235.00(W)×143.00(H)×2.80(D) mm
• Viewing Area :222.72(H)X125.78(V) mm
• Touch Screen:with or without
• Operation Temperature : -20℃~55℃
• Storage Temperature : -20℃~60℃

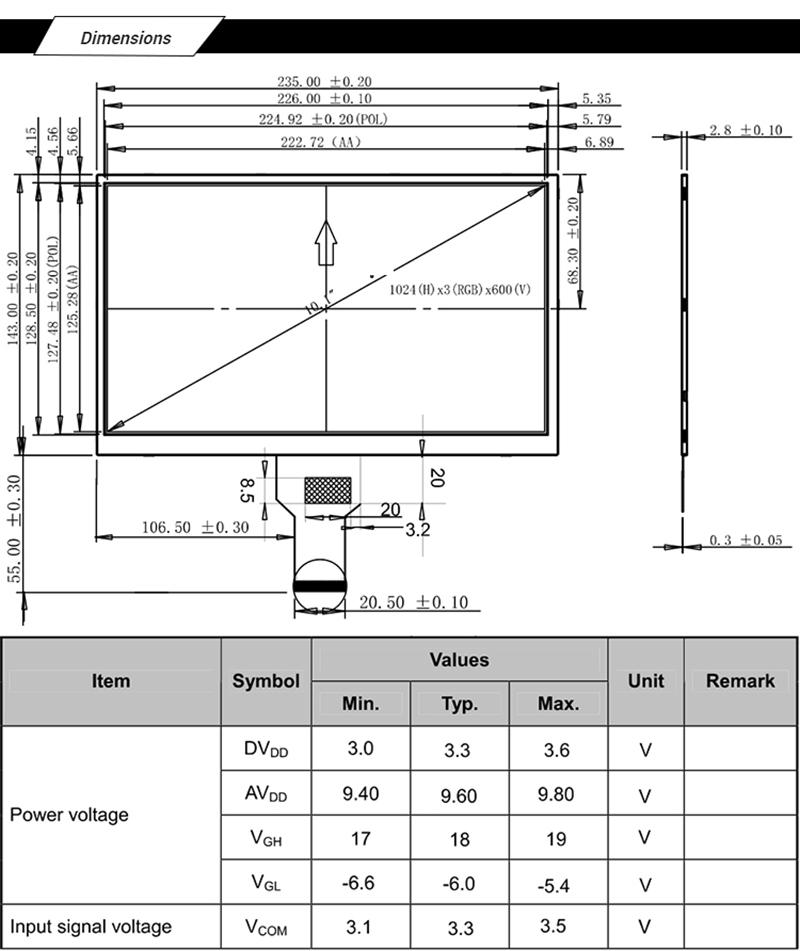

Dimensions

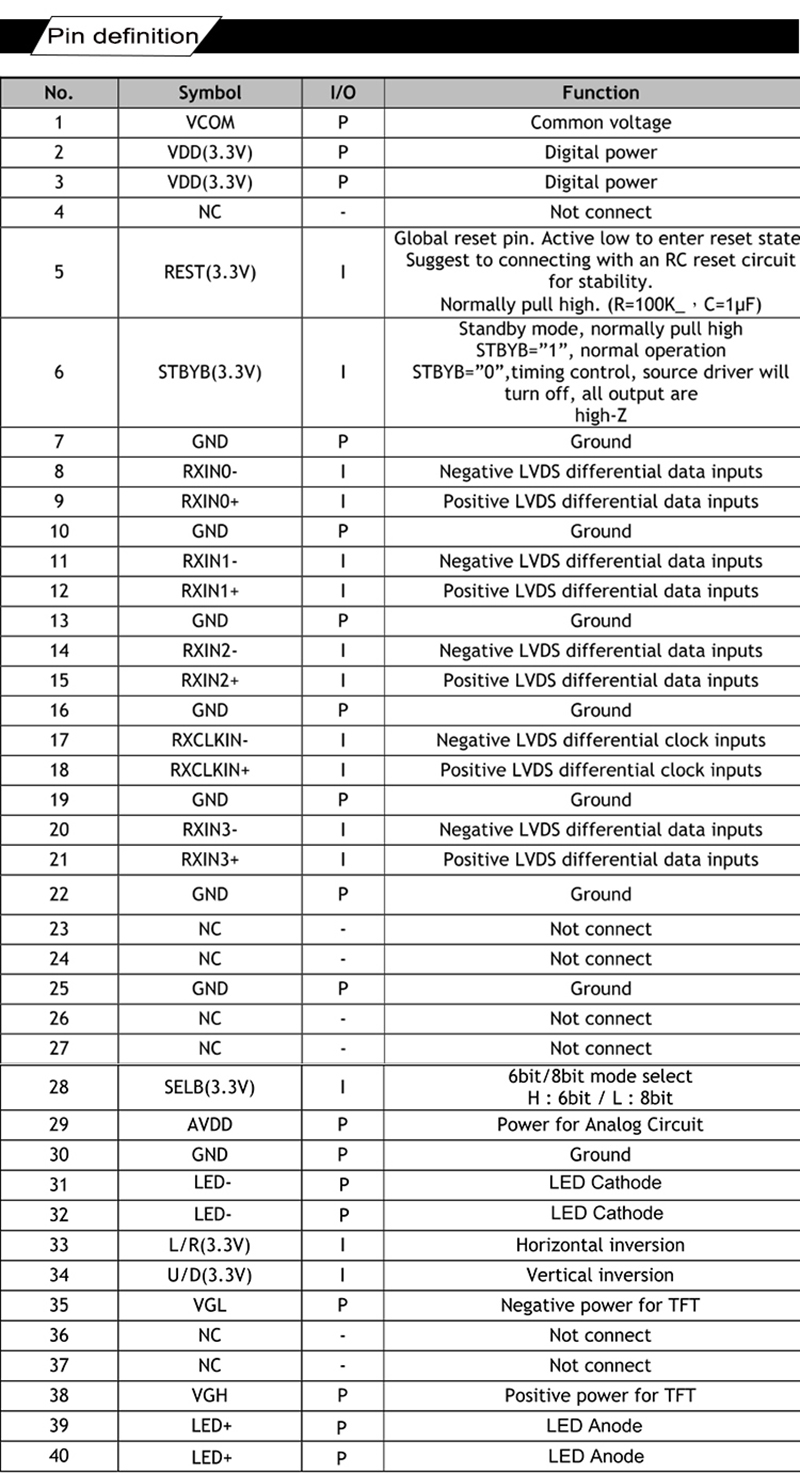

Pin Definitions
