9 inch TFT LCD Display Module 800x480

Description

This 9"TFT is a IPS Mini color TFT LCD display module is made of resolution 800x RGBx480 pixels,with outline dimension of 211.10 x 126.50X5.8 (typ) mm and AA size 198.00(H) x 111.70(V) mm.this 9" TFT display  supports RGB interface,with full viewing angle and wide range of operating Temperature,it is ideal to be used in industrial device,any embedded systems,medical equipment,wearable devices,security and hand-held devices which requests TFT display with high quality and colorful images.

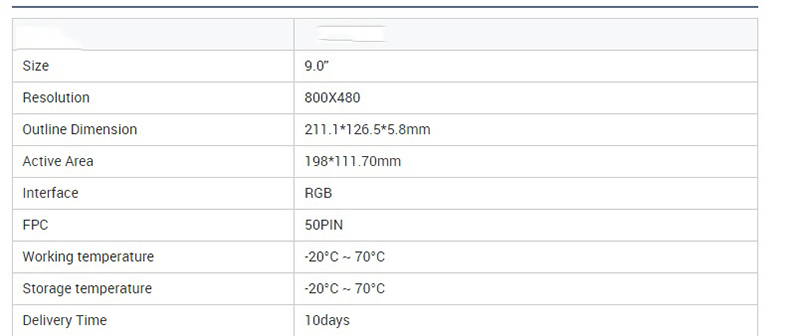

• Resolution:800x(RGB)x480
• View Direction:ALL O'clock
• Display Color : RGB 16.7M
• Power Supply :3-3.6 V
• Interface :RGB
• Pin No: 50P
• Backlight:White LEDs

• LCD Type: TFT,Normally Black,Transmissive
• Panel Dimension: 211.10 x 126.50X5.8 mm
• Viewing Area :198.00(H) x 111.70(V) mm
• Touch Screen:with or without
• Operation Temperature : -20℃~70℃
• Storage Temperature : -20℃~70℃

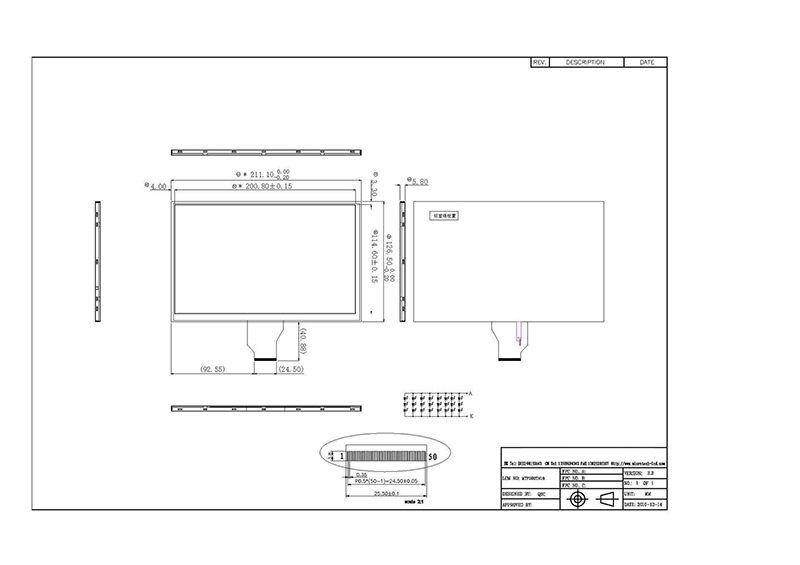

Dimensions
