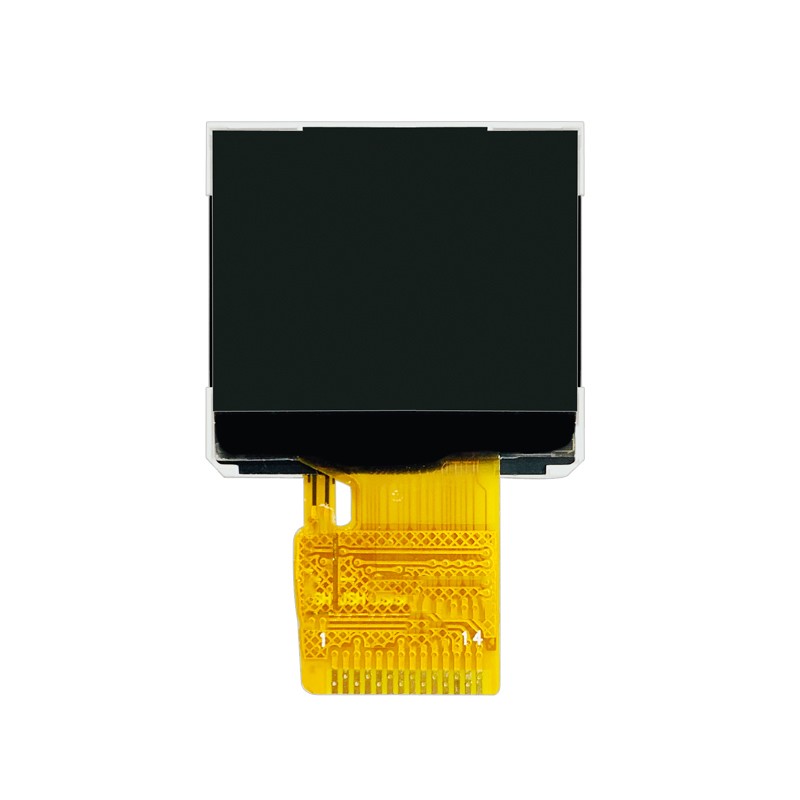

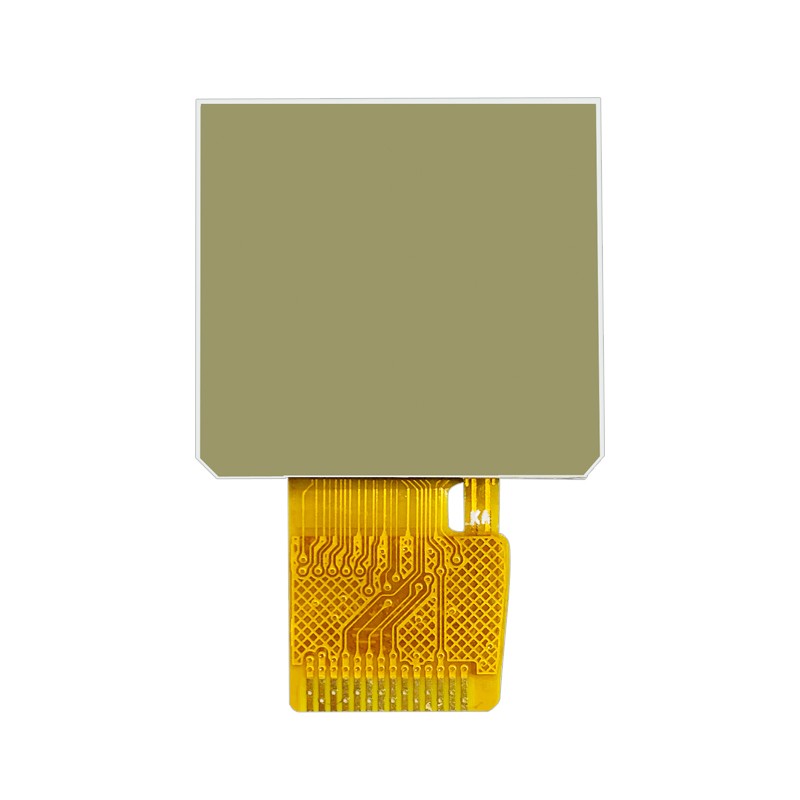

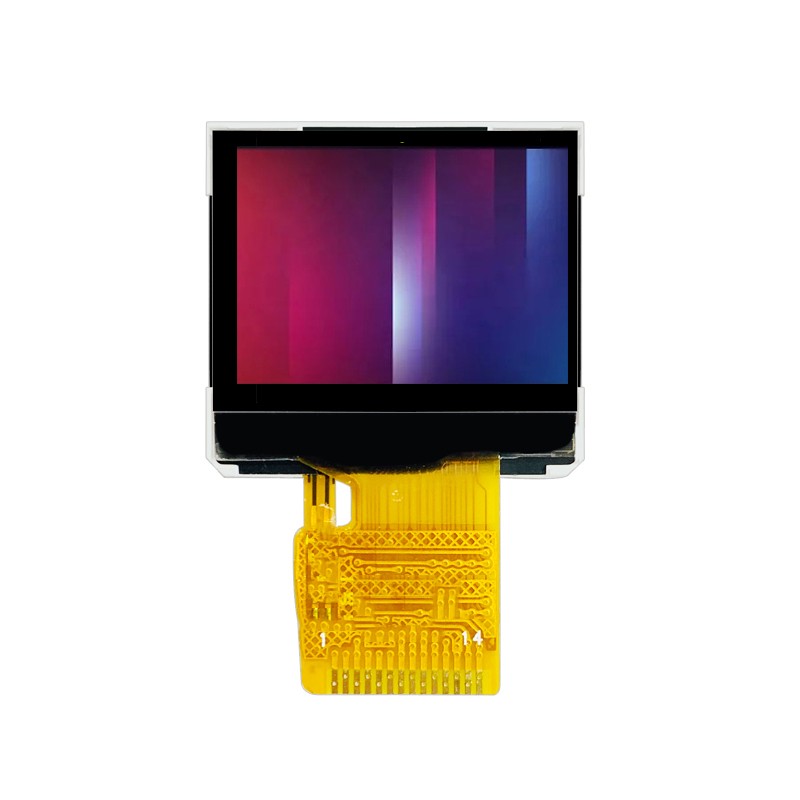

1 inch 128x96 mini Color TFT LCD Display

Description

This 1"TFT is a IPS Mini color TFT LCD display module is made of resolution 128X96 pixels,with outline dimension of 23.75(H) x 22.06(V) x 1.75(D) mm and AA size 20.35 x 15.26 mm.this 1" TFT display builts in ST7735S Driver IC and supports 4-wire SPI interface,with full viewing angle and wide range of operating Temperature,it is ideal to be used in industrial device,any embedded systems,medical equipment,wearable devices,security and hand-held devices which requests TFT display with high quality and colorful images.

This TFT Display is with FPC-Soldering is easily to assemble or remove!

• Resolution:128X96 dots
• View Direction:12 o`clock
• Display Color : RGB 262K
• Power Supply :2.4-3.3 V
• Interface :  4-Wire SPI
• Controller IC :ST7735S
• Pin No: 14P Soldering
• Dot pitch:0.159X0.159 mm
• Luminance(cd/m2):250(TYP)

• Backlight:1 White LED

• LCD Type: TFT,Normally Black,Transmissive
• Panel Dimension :23.75(H) x 22.06(V) x 1.75(D)mm
• Viewing Area :20.35 x 15.26 mm
• Touch Screen:without
• Operation Temperature : -20℃~70℃
• Storage Temperature : -30℃~80℃

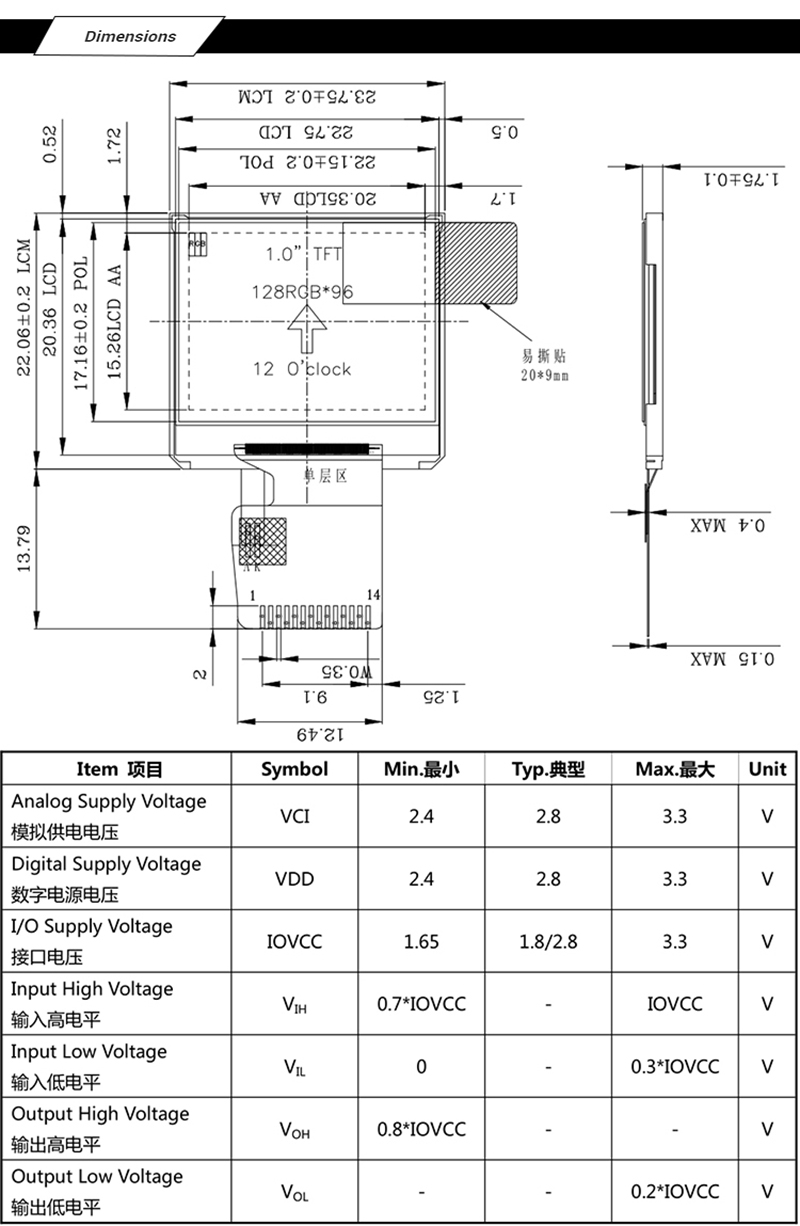

Dimensions

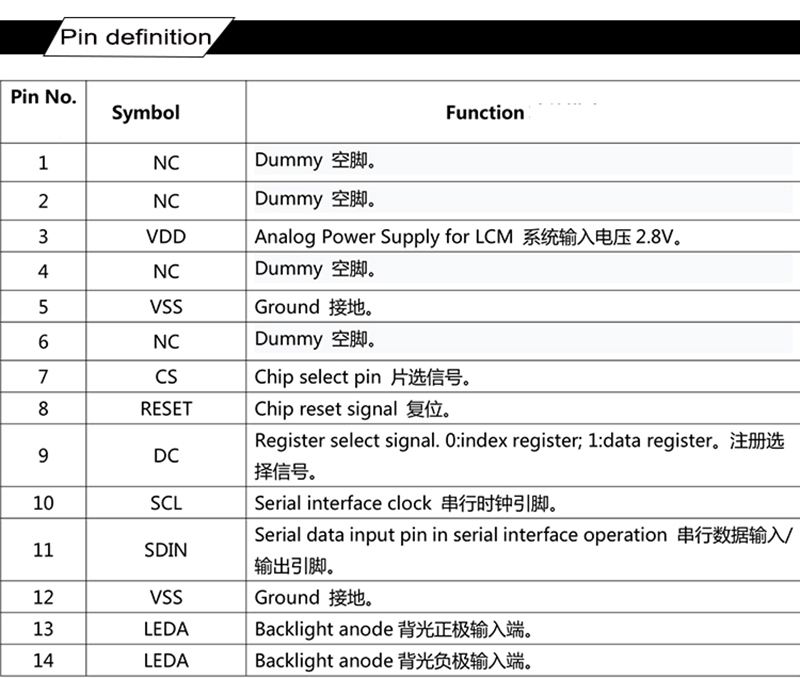

Pin Definitions
