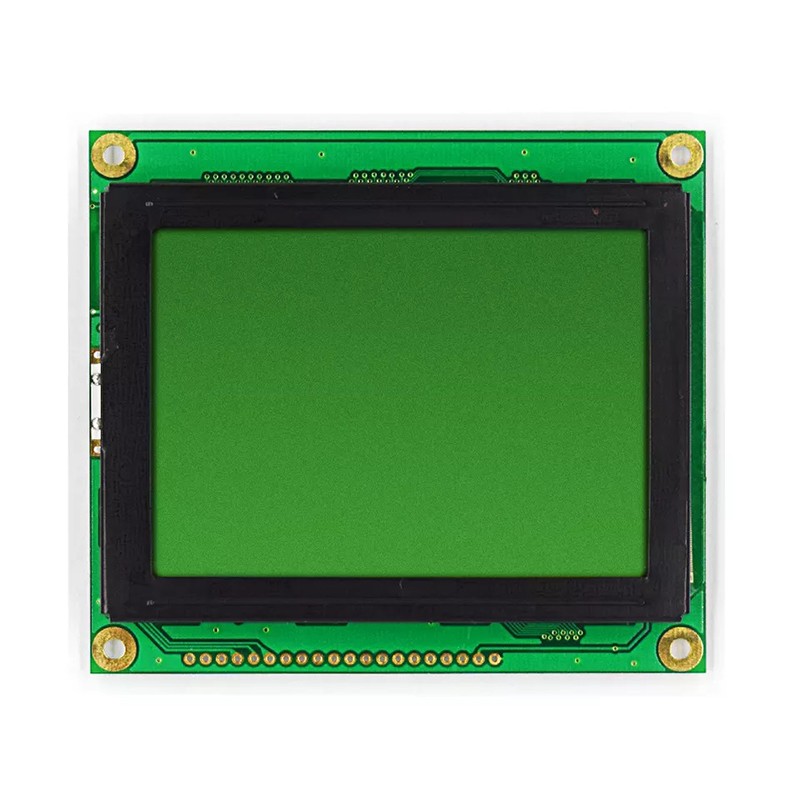

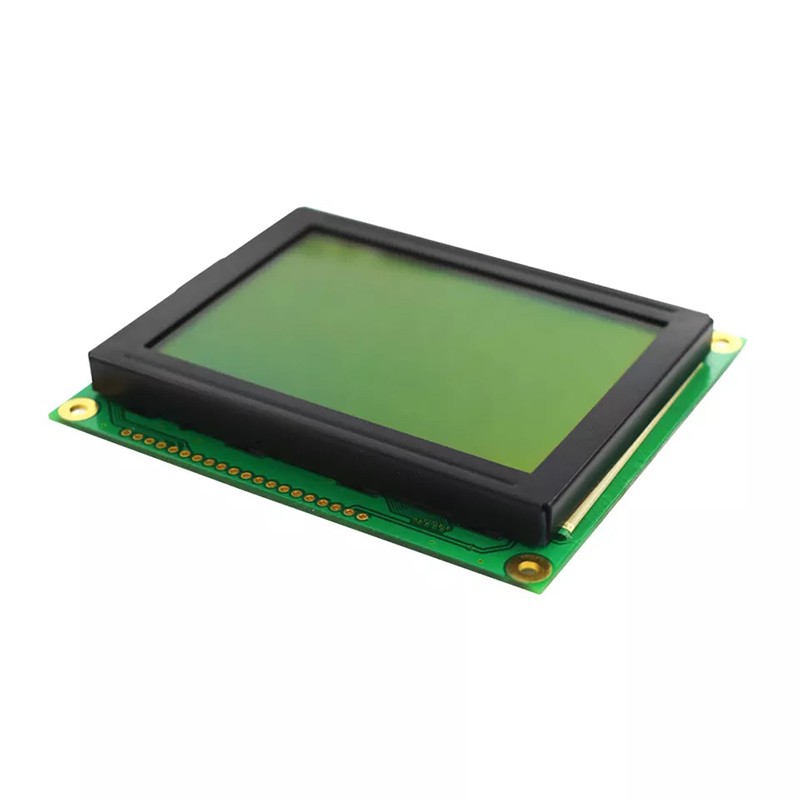

192x128 LCD Graphical Display Module

Description

This 192x128 LCD Display is the graphic LCD display module which is made of 192x128 resolution,with the outline size 98 x 86x12.8 mm and active area size of 77.5 x 53.99 mm.This 1192x128 graphic LCD display builts in with S1D13305 controller IC or compatible controller. It supports 8 bit Parallel and 5V power supply,it also Negative
Voltage Generator 3V optional,wide operating temperature range,rohs compliant.

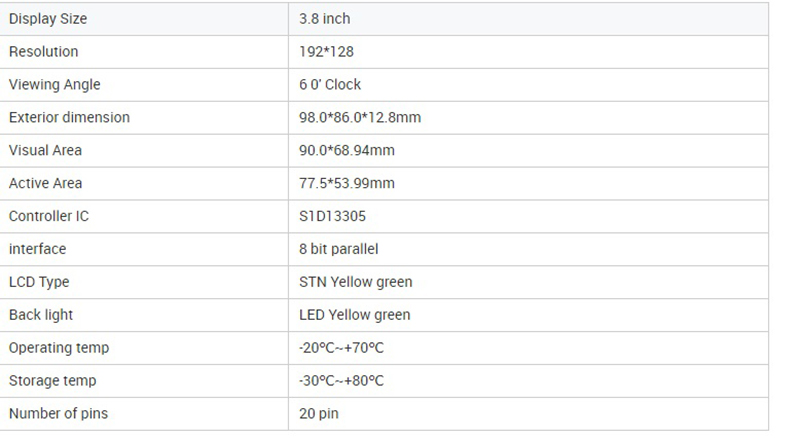

• Resolution : 192x128dots
• Display Mode : STN
• Viewing Angles:6 O'clock
• Display Color : Yellow-Green
• Module Dimension :98 x 86x12.8 mm
• Viewing Area :77.5 x 53.99 mm
• Power Supply :3.3 /5 V
• Interface : 8 bit Parallel
• Controller IC :S1D13305
• Pin No: 20P
• Operation Temperature : -20℃~70℃
• Storage Temperature : -30℃~80℃

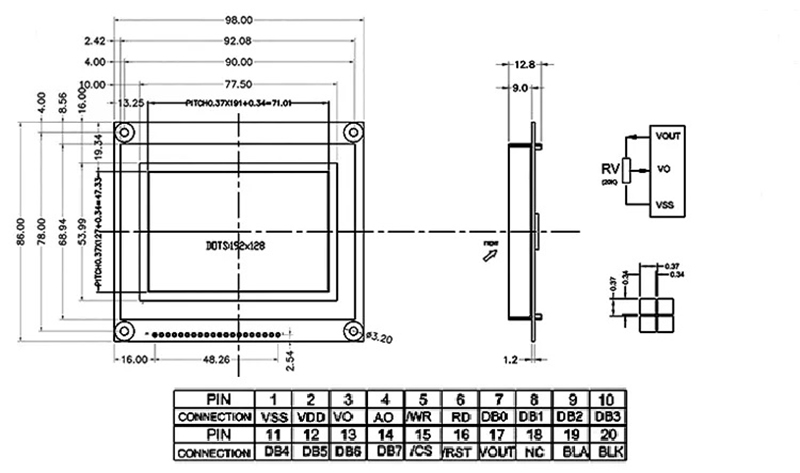

Dimensions
