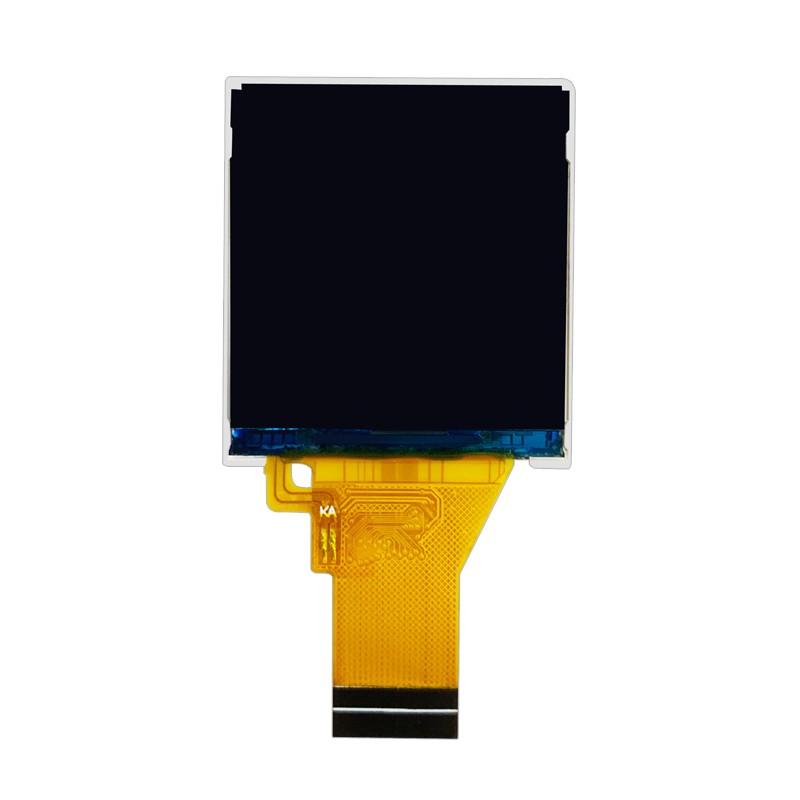

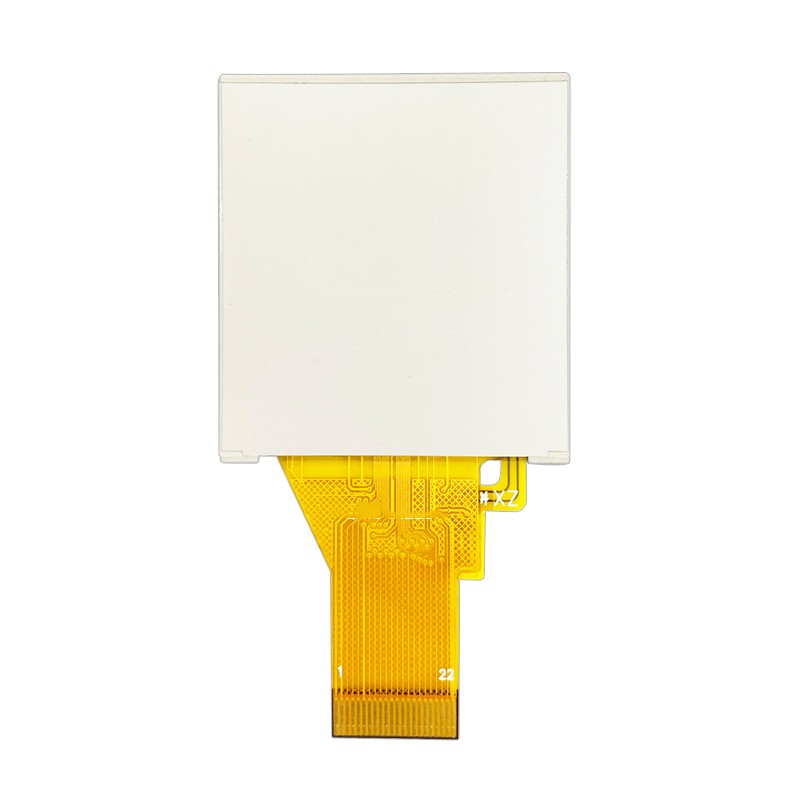

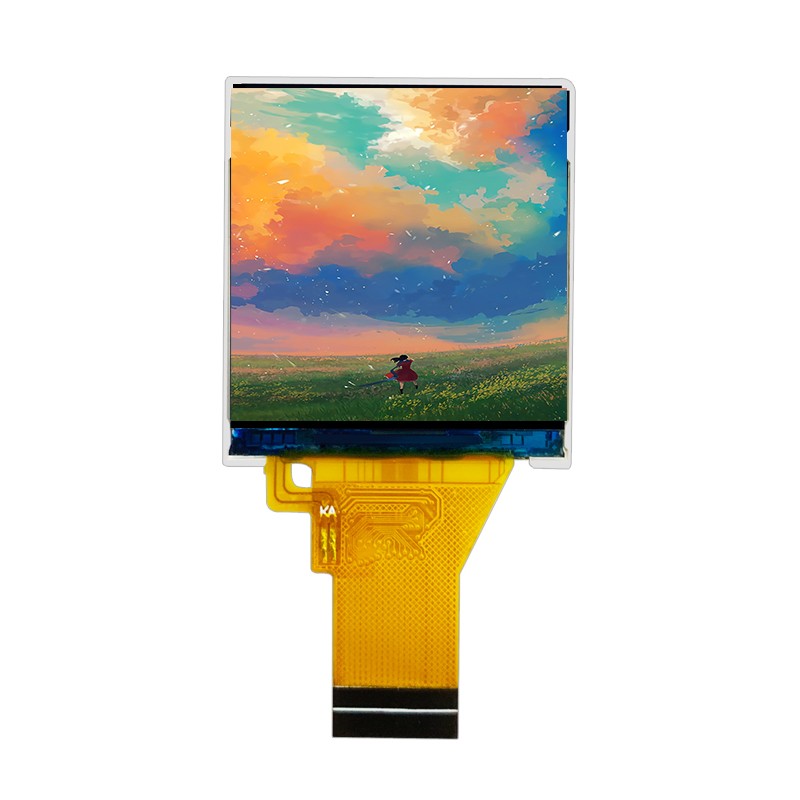

1.54 inch 240x240 Square TFT LCD Display

Description

This 1.54"TFT is a IPS Mini color TFT LCD display module is made of resolution 240 x RGBx240 pixels,with outline dimension of  31.52(W)x35.1(L)x1.72(T) mm and AA size 27.72×27.72 mm.this 1.54" TFT display builts in ST7789V Driver IC and supports SPI interface,with full viewing angle and wide range of operating Temperature,it is ideal to be used in industrial device,any embedded systems,medical equipment,wearable devices,security and hand-held devices which requests TFT display with high quality and colorful images.

• Resolution:240x(RGB)x240
• View Direction:ALL O'clock
• Display Color : RGB 262K
• Power Supply :1.65-3.3 V
• Interface :8 Bit MCU/4L SPI
• Controller IC :ST7789V
• Pin No: 22P Connector
• Backlight:3 White LED in Parallel

• LCD Type: TFT,Normally Black,Transmissive
• Panel Dimension : 31.52(W)x35.1(L)x1.72(T) mm
• Viewing Area :27.72×27.72 mm
• Touch Screen:without or with
• Operation Temperature : -20℃~70℃
• Storage Temperature : -30℃~80℃

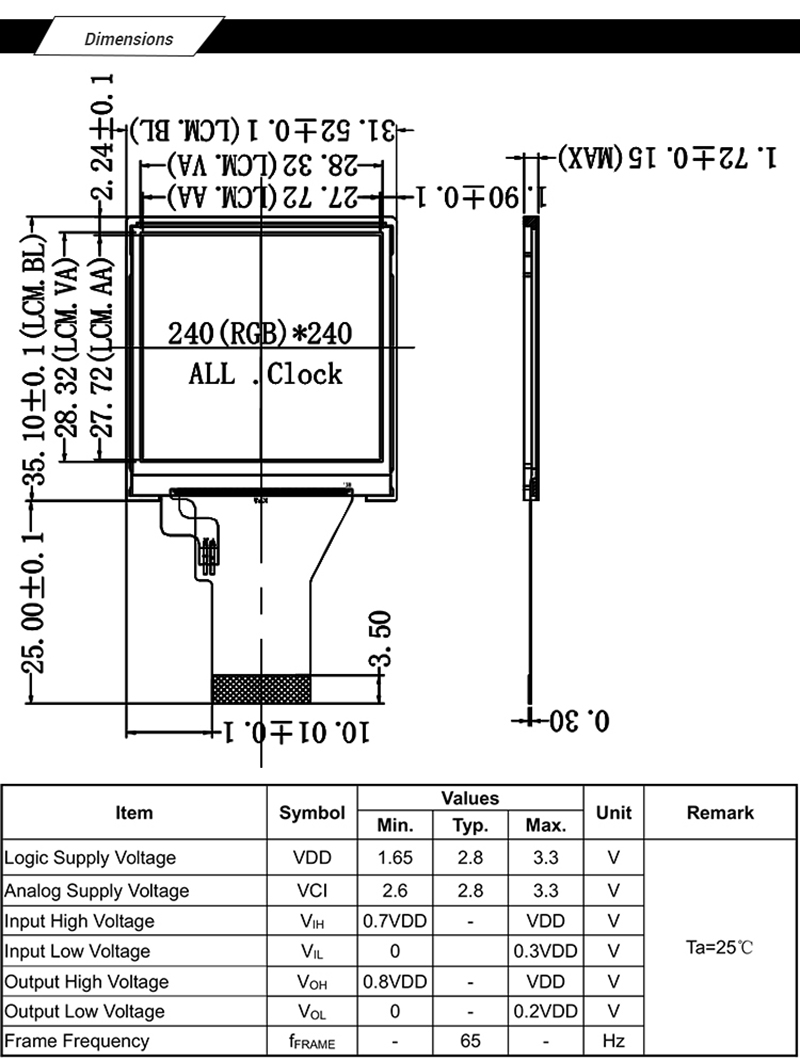

Dimensions

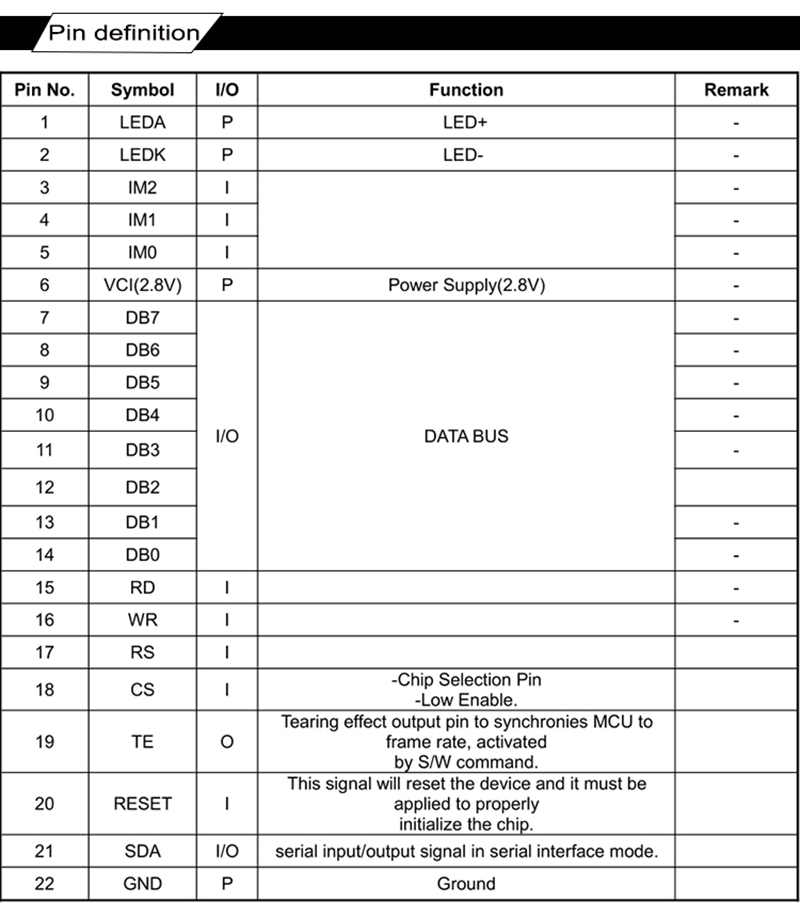

Pin Definitions
