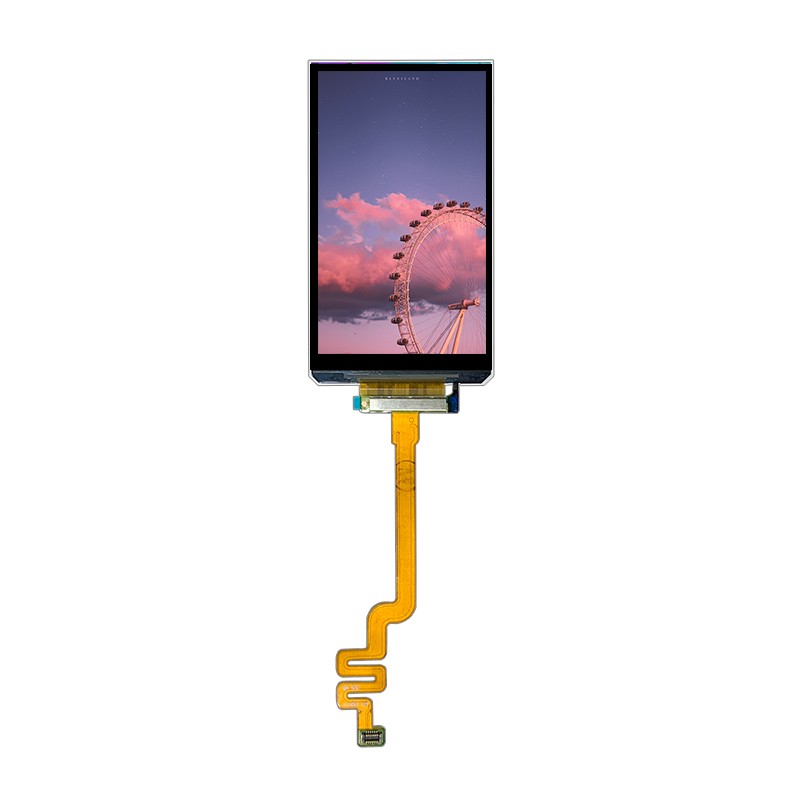

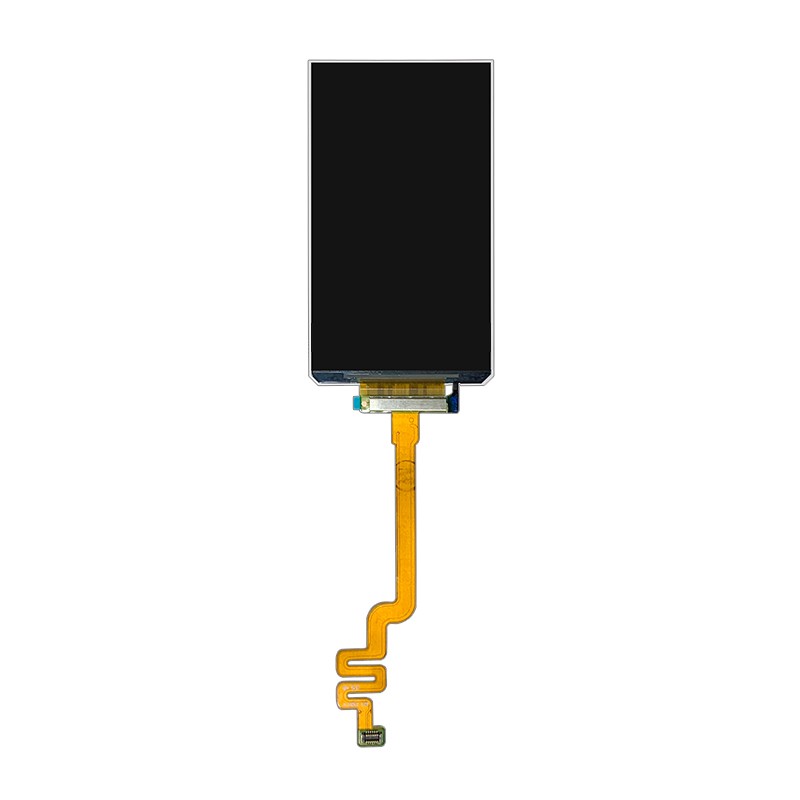

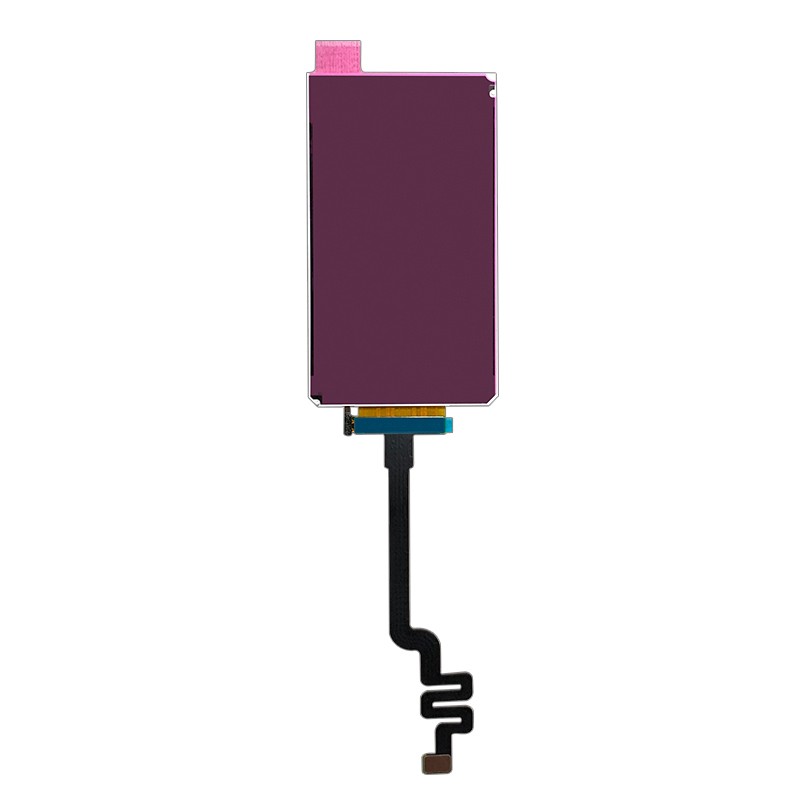

2.45 inch 240x432 TFT LCD Display Module

Description

This 2.45"TFT is a IPS Mini color TFT LCD display module is made of resolution 240x RGBx430 pixels,with outline dimension of 31.82(H) × 33.72(V) × 1.242(T) mm and AA size 30.24(H)×54.432(V) mm.this 2.45" TFT display supports MIPI interface,with full viewing angle and wide range of operating Temperature,it is ideal to be used in industrial device,any embedded systems,medical equipment,wearable devices,security and hand-held devices which requests TFT display with high quality and colorful images.

This TFT Display is with FPC-Soldering is easily to assemble or remove!

• Resolution:240x(RGB)x432
• View Direction:ALL O'clock
• Display Color : RGB 262K
• Power Supply :3.0-3.3 V
• Interface : MIPI
• Pin No: 12P Connector
• Backlight:  White LED

• LCD Type: TFT,Normally Black,Transmissive
• Panel Dimension:31.82(H) × 33.72(V) × 1.242(T) mm
• Viewing Area :30.24(H)×54.432(V) mm
• Touch Screen:without or with
• Operation Temperature : -20℃~70℃
• Storage Temperature : -30℃~80℃

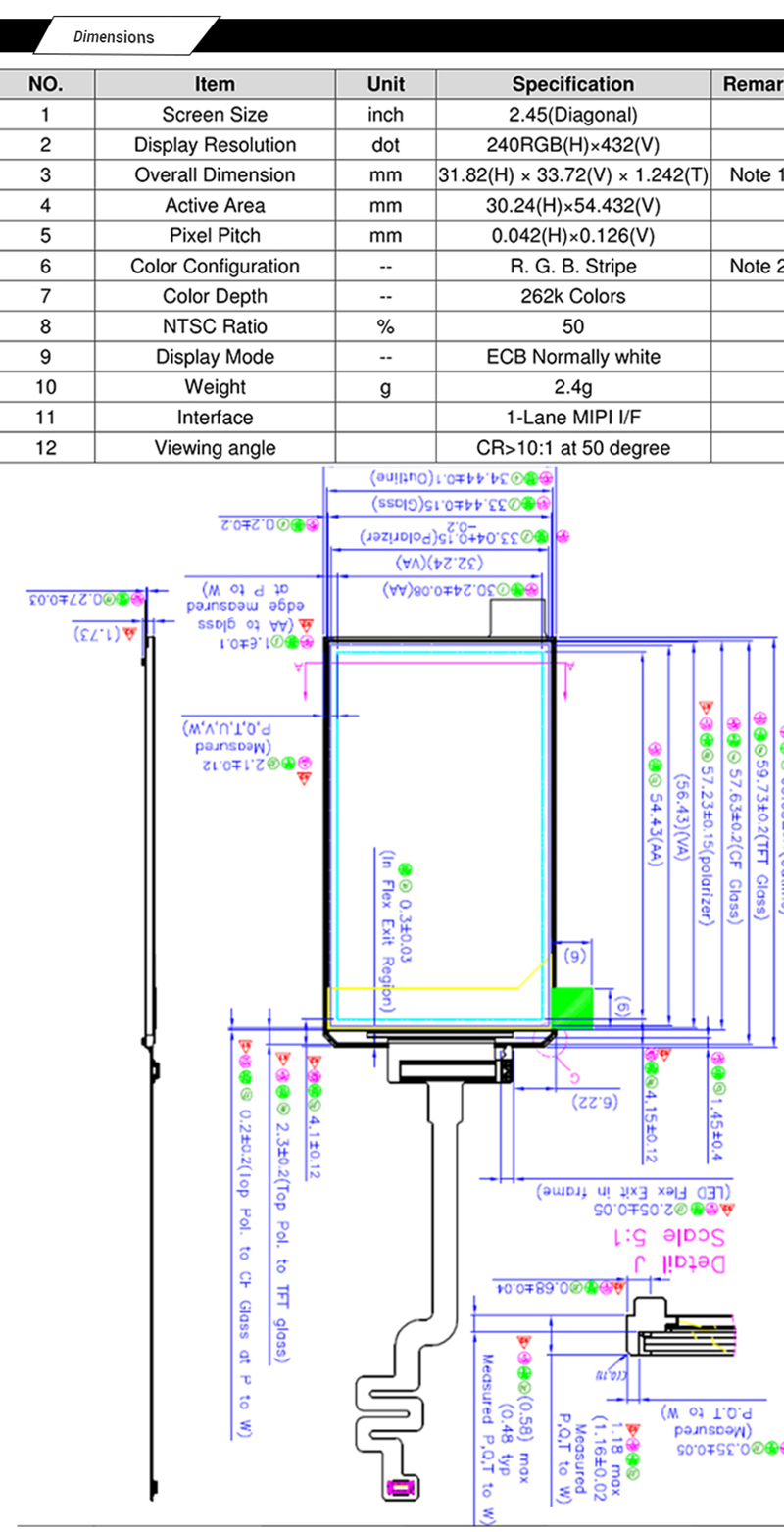

Dimensions

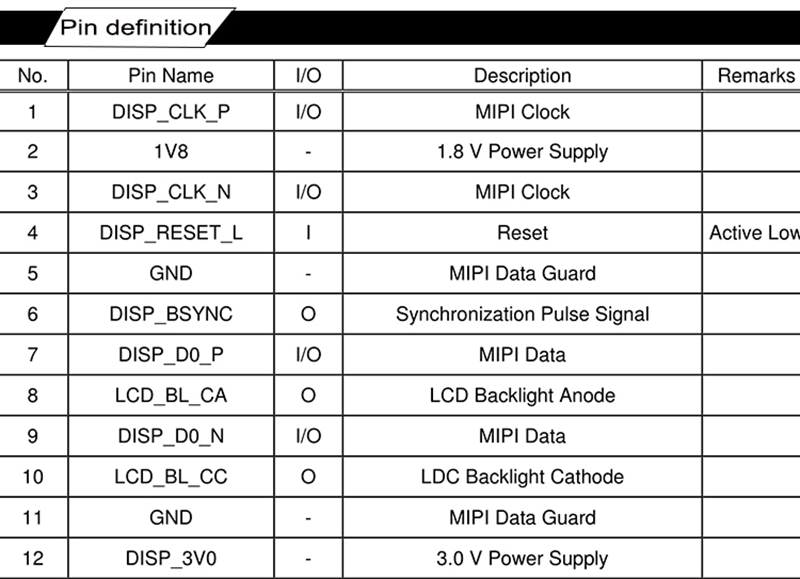

Pin Definitions
