CVBS to HDMI Converter board
Supporting Resolution:1080P or 720P
Input signal: CVBS/AV
Output signal: HDMI
INQUIRY EMAIL

ADAPTER BOARD FOR CVBS/AV TO HDMI Converter board

Overview

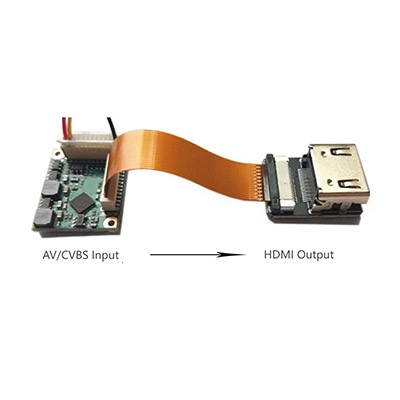

The Converter board for CVBS to HDMI display adapter, with CVBS composite analog video signal input, converted to standard HDMI signal output, supporting 1080P and 720P resolution output; this adapter enables seamless and reliable connectivity between CVBS-enabled devices and MIPI DSI displays, which makes the display adapter an ideal solution for various application such as industrial, automotive, and consumer applications.

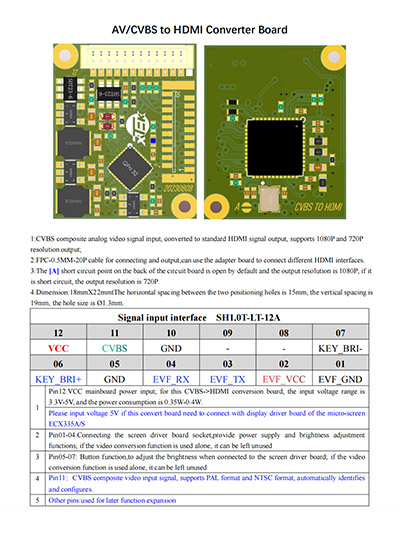

Specifications:

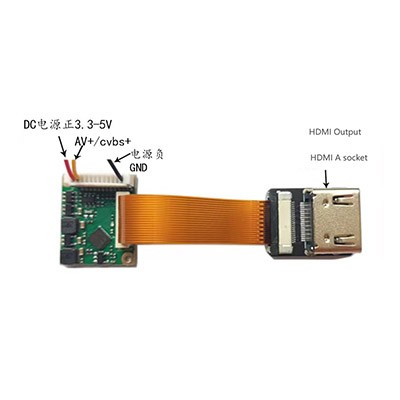

1:CVBS composite analog video signal input, converted to standard HDMI signal output, supports 1080P and 720P resolution output;

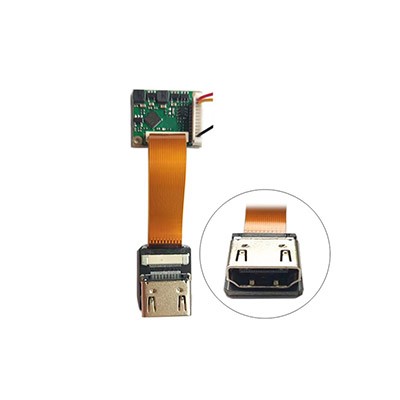

2:FPC-0.5MM-20P cable for connecting and output, can use the adapter board to connect different HDMI interfaces.
3:The [A] short circuit point on the back of the circuit board is open by default and the output resolution is 1080P; if it is short circuit, the output resolution is 720P.
4:Dimension: 18 mm X 22 mm; The horizontal spacing between the two positioning holes is 15mm, the vertical spacing is 19mm, the hole size is Ø1.3mm.

Converter board for CVBS TO HDMI
