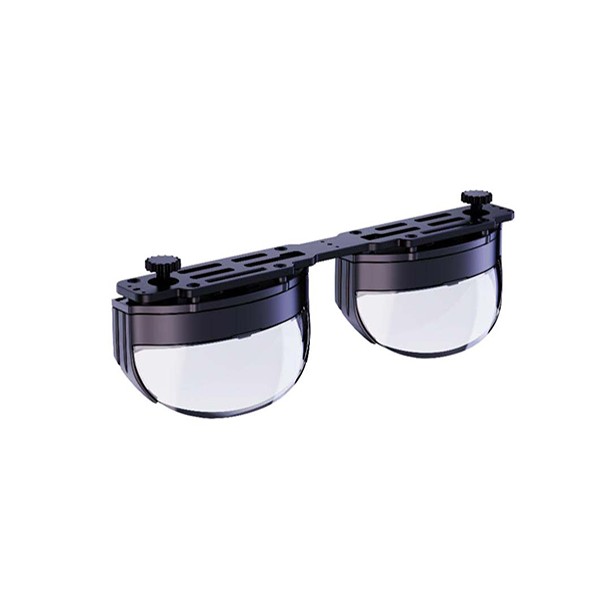

Micro AR Birdbath Optics 0.49 inch seeya Micro OLED Display FHD 1920x1080 1800nits Optical Module for AR VR smart glasses
Description
This Optical Module is composed of the Birdbath optics, Micro OLED 1080P FHD seeya oled microdisplay, and HDMI demo Driver board, which are designed and used for Augmented Reality (AR) glasses and Virtual Reality (VR) Headsets. this Micro Screen provides a high resolution 1920x1080 pixels (3692PPI),high brightness 1800nits and high contrast ratio 50000:1, which bring a immersive experience for users even in ambient light environments.
Birdbath optics Parameter
-
FOV:38-39°
-
Display panel:0.49 inch Micro-OLED
-
Technology:Birdbath
-
Resolution:1920*1080（16:9）
-
Luminance:1800 nits/3000 nits
-
display pixels：5.62 μm
-
Interface:LVDS
-
Eye relief:12mm
-
Eye box :10*6~10*5.4
-
TV distortion:<1%
-
MTF:27% @30 lp/mm
-
Diopter:-0.33D~-6D
-
virtual image:0.166~3 m
-
Monocular Weight:10g
-
-
Parameter of 0.49 inch Micro OLED
-
Diagonal Size:0.49"
-
Panel Type:Micro OLED, Micro Si-OLED
-
Resolution：1920(H)x1080(V)，FHD
-
Number of dots：1920x1080x2(2/3 SPR)
-
Pixel Size：5.616µm x 5.616µm
-
Outline Size:15.68(W)×9.09(H) ×1.6(D) mm
-
Useable Display Area ：10.783mm x 6.065mm / 0.49" diagonal
-
Luminance：1800cd/m² typical
-
Contrast Ratio：50000:1
-
Power Consumption :468mW
-
Gray Levels：256 or 1024
-
Interface：MIPI
-
Frame Rate：60Hz~90Hz
-
Weight:~1g
-
Operating Temperature：-20℃~70℃
-
Storage Temperature：-40℃~80℃

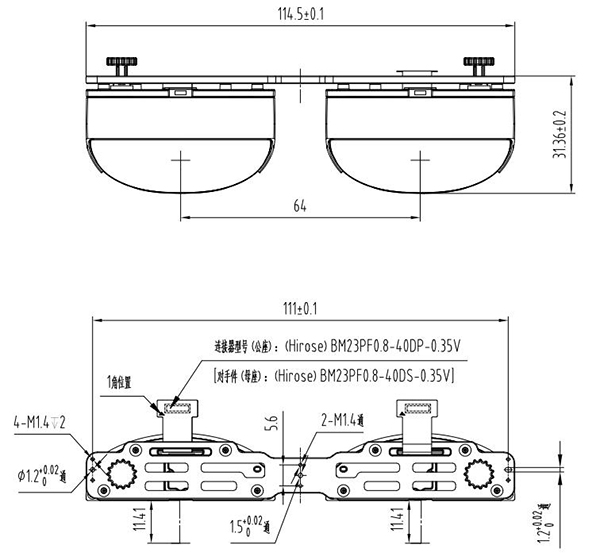

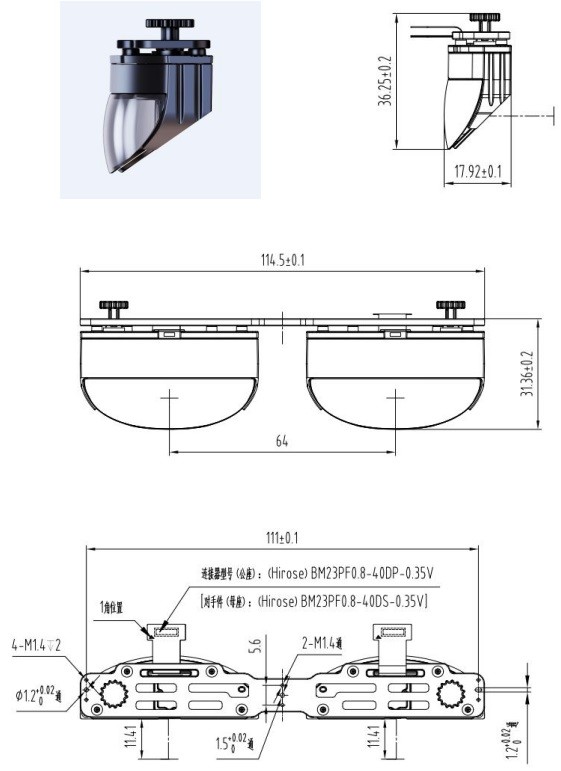

Dimension
