Birdbath optics binocular AR Glasses 3000nits 51° FOV Optical Module-1920x1080

Micro AR Display with Birdbath optics 1920x1080 Optical Module for Smart Glasses VR headset

Description

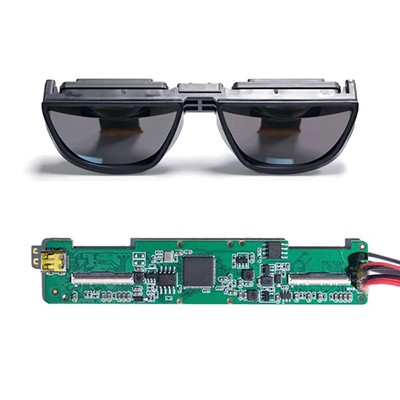

This Birdbath optics module consists of Birdbath optics, Micro OLED display 1920x1080 (SONY micro-oled ECX335SN),binocular HDMI Driver Board and connectors, the birdbath optics composed of a curved mirror that reflects light from the display into the user's eye, due to its advantage of being low-cost and lightweight, excellent display performance and supports diopter adjustment, which makes it very friendly to myopic people and commonly used for smart video glasses, augmented reality glasses,and smart glass.

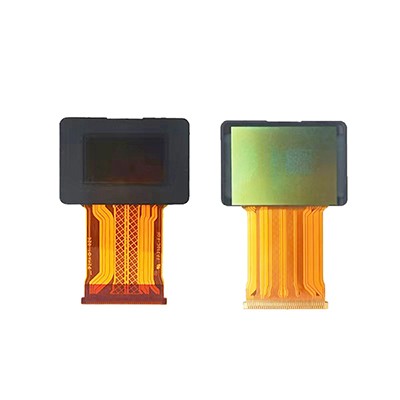

Parameter of Micro OLED

Diagonal Dimension: 0.7 inch
Resolution: 1920RGBx1080 pixel
Luminance: Max 3000 cd/m2
Typical Contrast Ratio: 100,000:1
Refresh: 60fps
Interface: LVDS
Power consumption:820mW@1500nits/1280mW@3000nits
Micro Display | Sony Micro OLED, ECX335SN

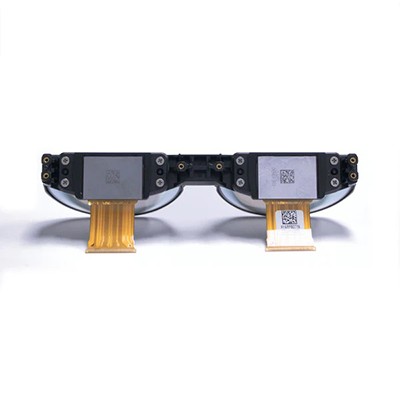

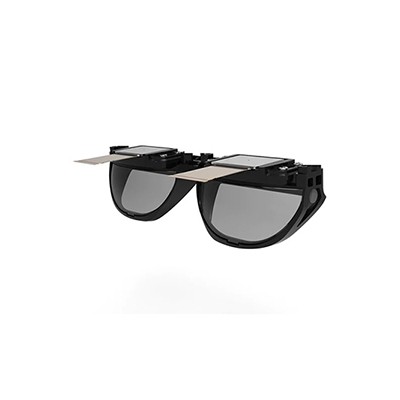

Parameter of Birdbath optics

FOV:50°

Display panel:0.71 inch Micro-OLED

Technology:Birdbath

Resolution:1920x1080

Interface:LVDS

Eye box @ Eye relief:8*8mm@14mm

TV distortion:≤0.7%

MTF:MTF≥0.23@2PPL

Monocular Weight:23.2g

Light efficiency:~20% (Adjustable value)

Transmissivity:~20% (Adjustable value)

IPD: (63mm)
