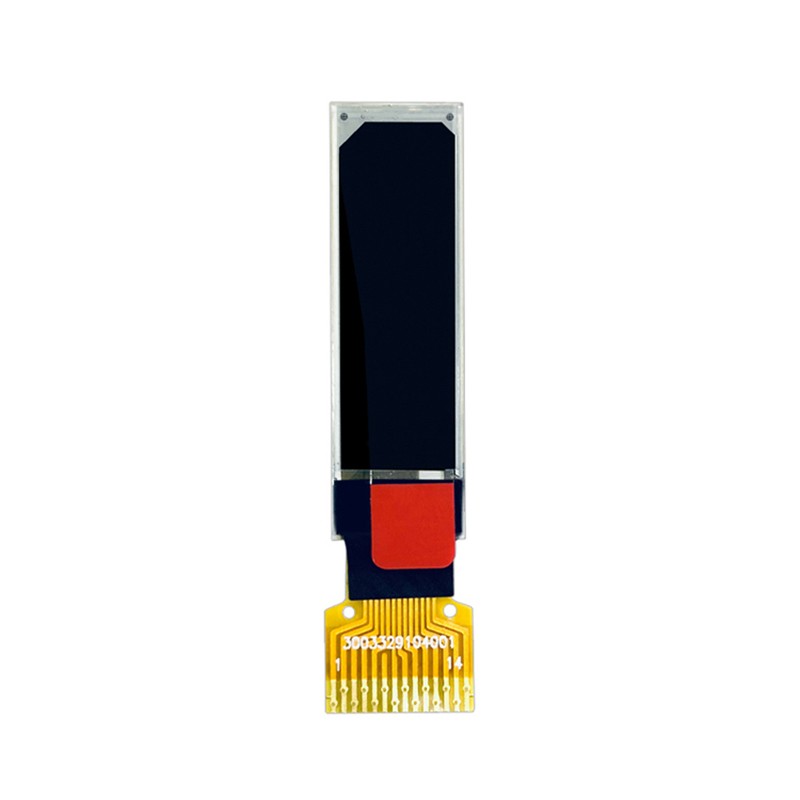

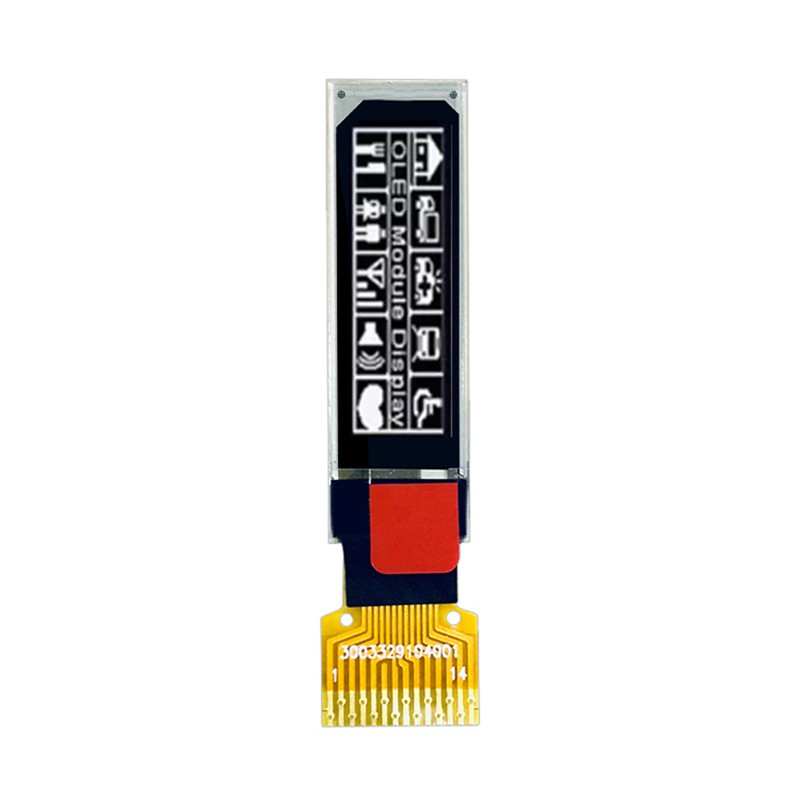

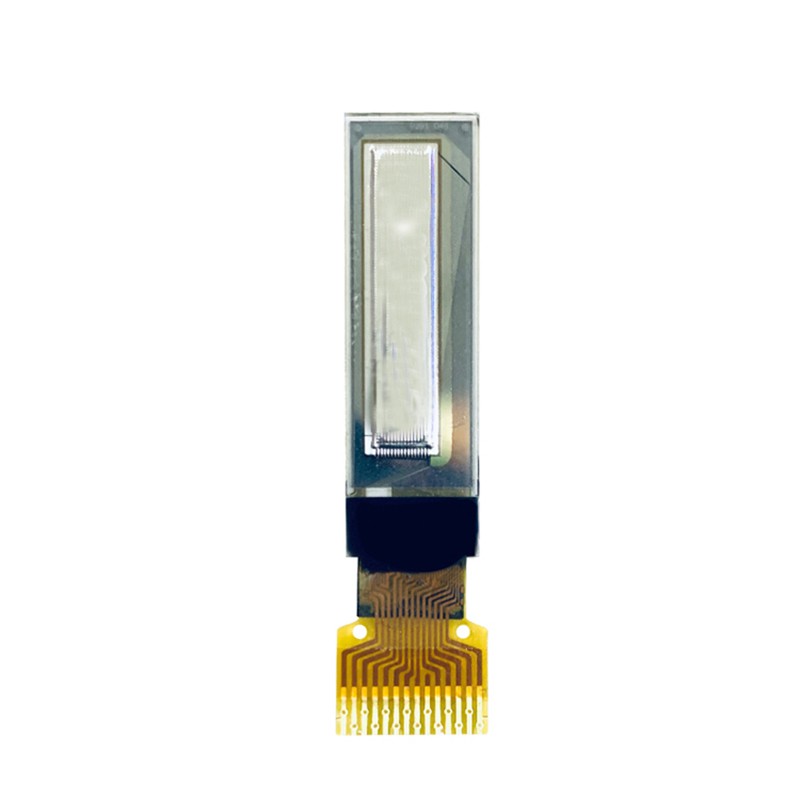

0.69 inch white OLED Display Module 96x16

Description

This 0.69" OLED is a Mini graphic OLED display module which is made of 96x16 pixels white OLED,it is with outline dimension of 26.3× 8.0 mm and AA size 17.26 × 3.18 mm, it builts in SSD1306 controller ic,communicates via I2C/4-wire serial interface.this mini COG OLED display is very thin,lightweight and low power consumption since no backlight is needed;so it has such high contrast,extremely operating temperature,applied for any embedded systems,wearable device,industrial devices,medical and hand-held devices,personal care appliance, voice recorder pen and securit,mp3,etc.

The FFC is the soldering types,no need connectors.Just soldering the FPC on your own PCB directly.

Specifications

• Resolution : 96x16 Dot Matrix OLED
• Display Mode : Passive Matrix
• Viewing Angles: IPS
• Display Color : Monochrome (White)
• Module Dimension : 26.30 x 8.0 x 1.2 mm
• Viewing Area : 17.26 X 3.18 mm
• Power Supply :1.65-3.5 V
• Interface :I2C
• Controller IC : SSD1306
• Pin No: 14P Sodering
• Operation Temperature : -40℃~85℃
• Storage Temperature : -40℃~85℃

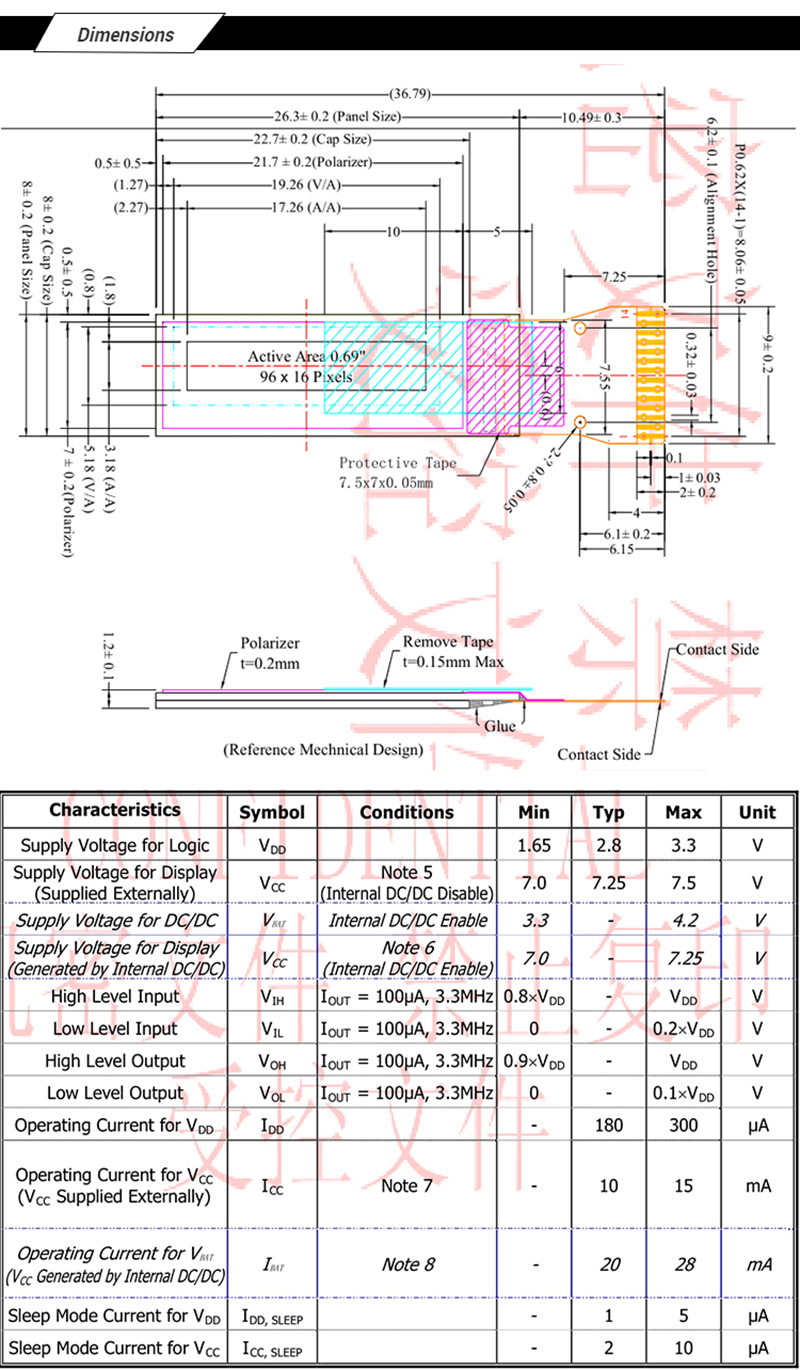

Dimensions

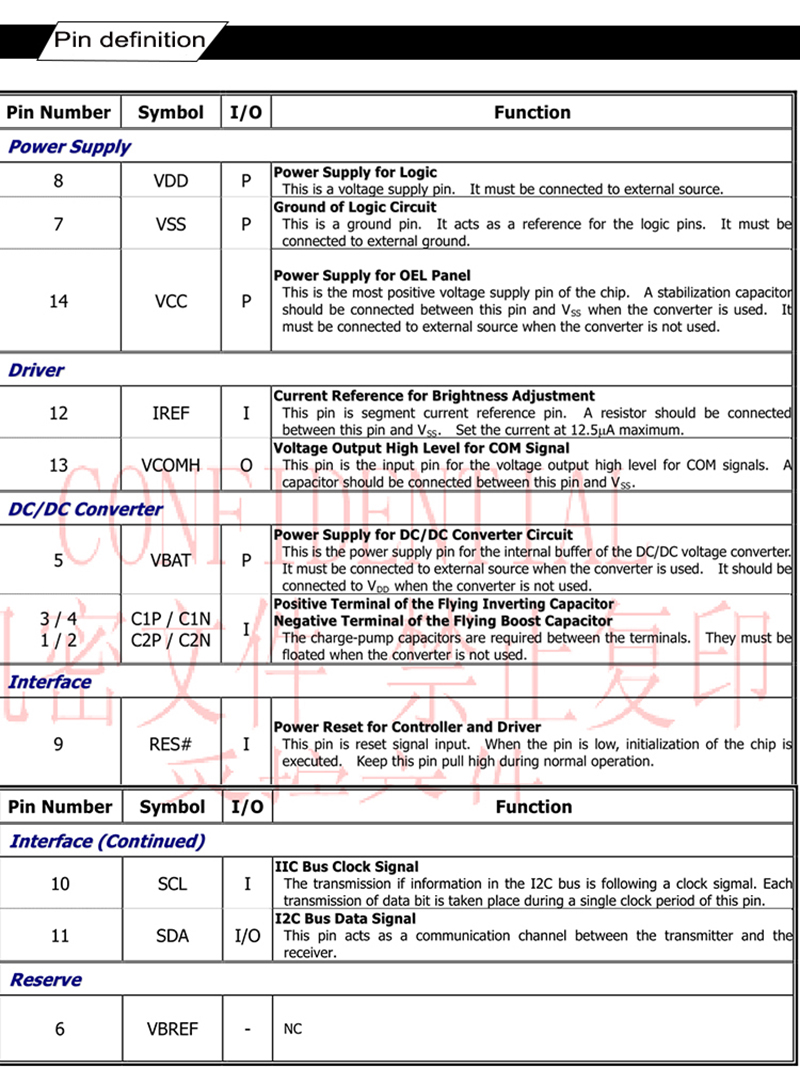

Pin Definitions
