Monochrome Character LCD Module Display 16x2

Category： Character LCD
Size: 16x2 Character LCD
Resolution:16 Characters × 2 Lines
Driver IC:S6A0069
Interface:8 bit Parallel
INQUIRY EMAIL

Description

The monochrome 16x2 LCD Module is the Character COB LCD display and made of 16 Characters ×2 Lines,It is with Module Dimension of 122.00(W) x 44.00(H) x 10.5 (T) mm,AA size 94.84 (W) x 20.00 (H) mm.it builts in S6A0069 controller ic,communicates via 8 bit Parallel interface,The LCD panels are available in STN, FSTN, FFSTN types and also with polarizer positive mode and negative mode options.There are different LED backlights are available in various colors including Blue,yellow/green, white...

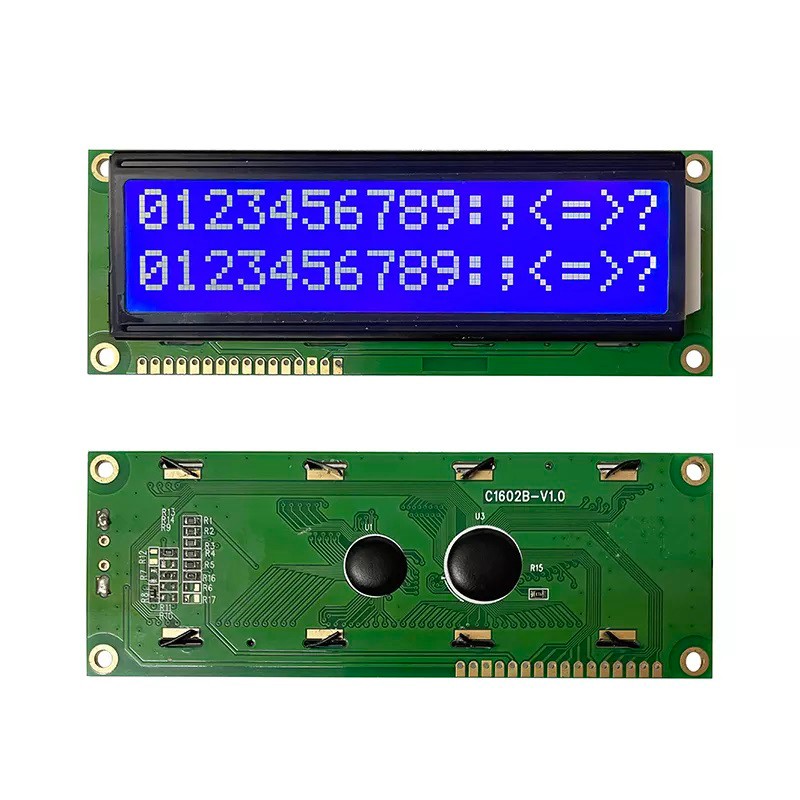

It's pin headers connected by defaults,so it is easy to fix the modules on your applications since it is with PCB Board on it!

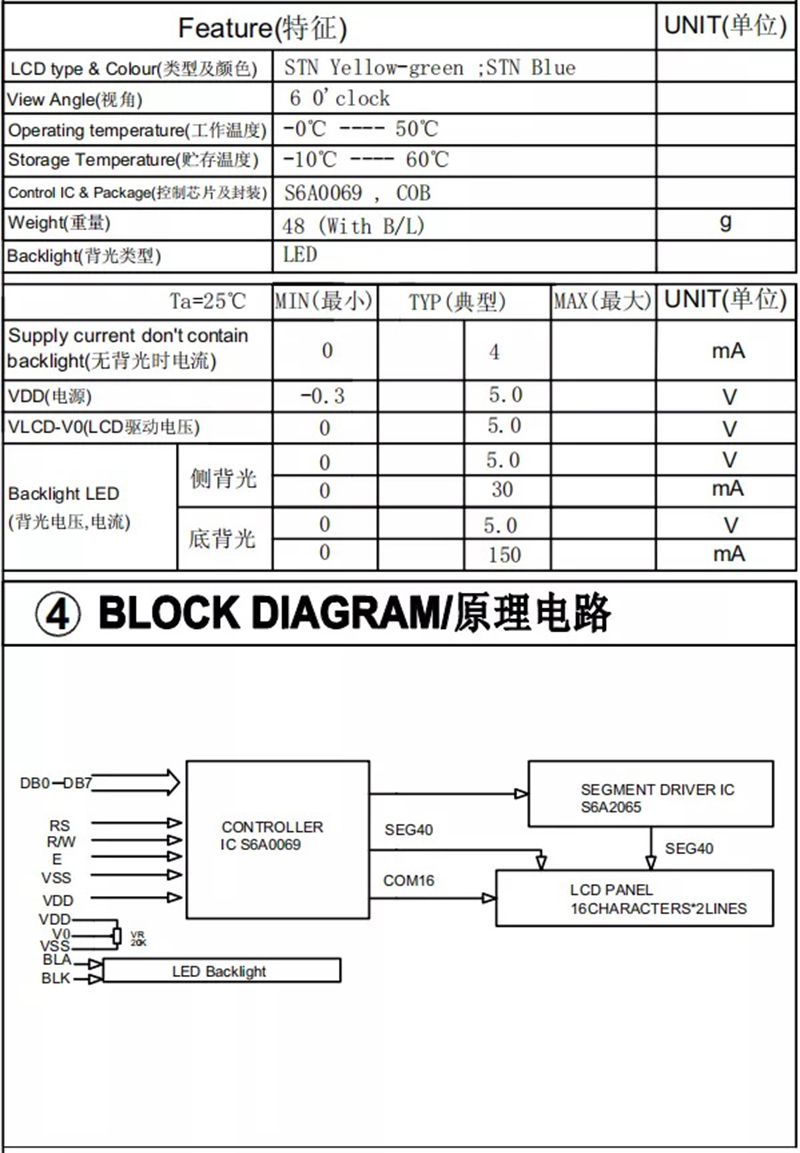

Specifications

Resolution : 16 Characters × 2 Lines
Display Mode : STN /Blue/ Yellow-green
Viewing Angles:6 O'clock
Display Color : Monochrome (blue /Yellow-Green )

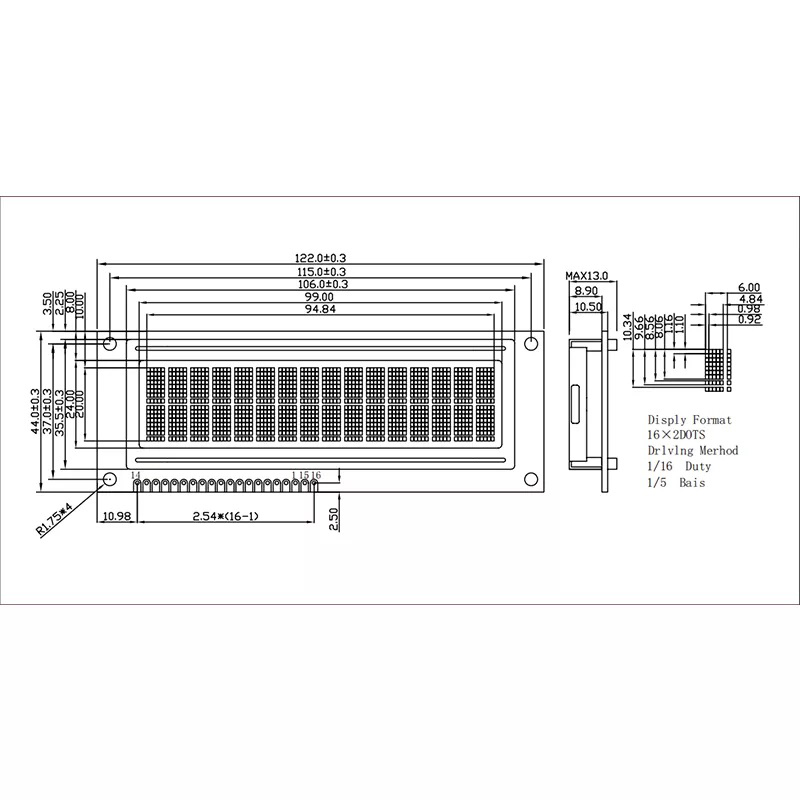

Module Dimension :122.00(W) x 44.00(H) x 10.5 (T) mm
Viewing Area :94.84 (W) x 20.00 (H) mm
Power Supply :3.3 /5 V
Interface : 8 bit Parallel
Controller IC :S6A0069
Pin No: 16P
Operation Temperature : 0℃~50℃
Storage Temperature : -10℃~60℃
