LCD Display Module 20x4

Category： Character LCD
Size: 40x2 Character LCD
Resolution:40 Characters × 2 Lines
Driver IC:AIP31006/ST7066
Interface: 8 bit Parallel
INQUIRY EMAIL

Description

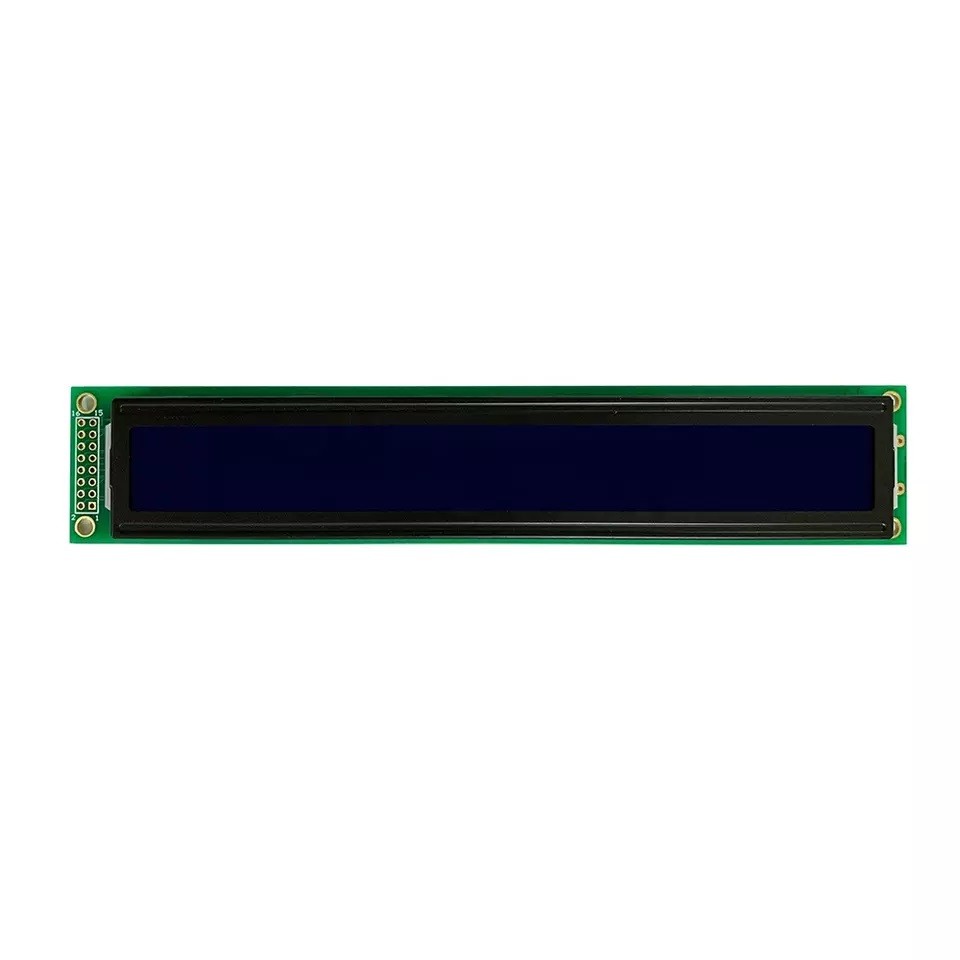

The monochrome 40X2 LCD Module is the Character COB LCD display and made of 40 Characters ×2 Lines,It is with Module Dimension of 182.00(W) x 33.50(H) x 13.5 (T) mm,AA size 147.36 (W) x 11.40 (H) mm.it builts in AIP31006/ST7066 controller ic,communicates via 8 bit Parallel interface,The LCD panels are available in STN, FSTN, FFSTN types and also with polarizer positive mode and negative mode options.There are different LED backlights are available in various colors including Blue,yellow/green, white...

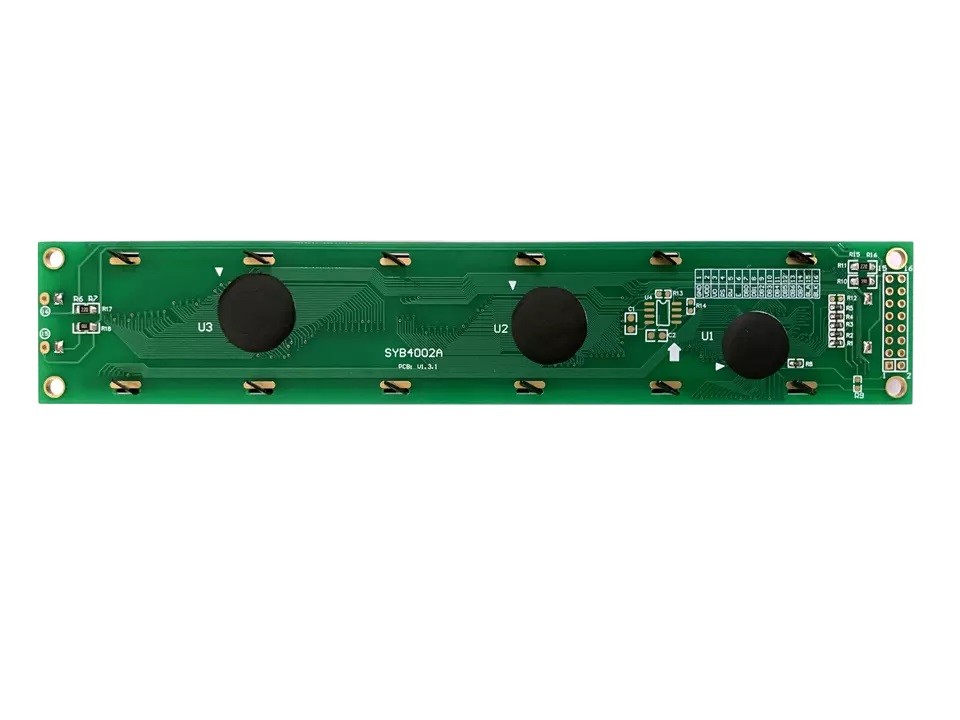

It's pin headers connected by defaults,so it is easy to fix the modules on your applications since it is with PCB Board on it!

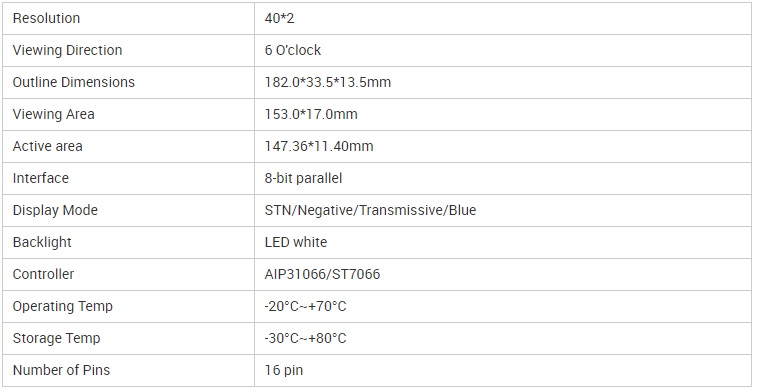

Specifications

Resolution : 16 Characters × 2 Lines

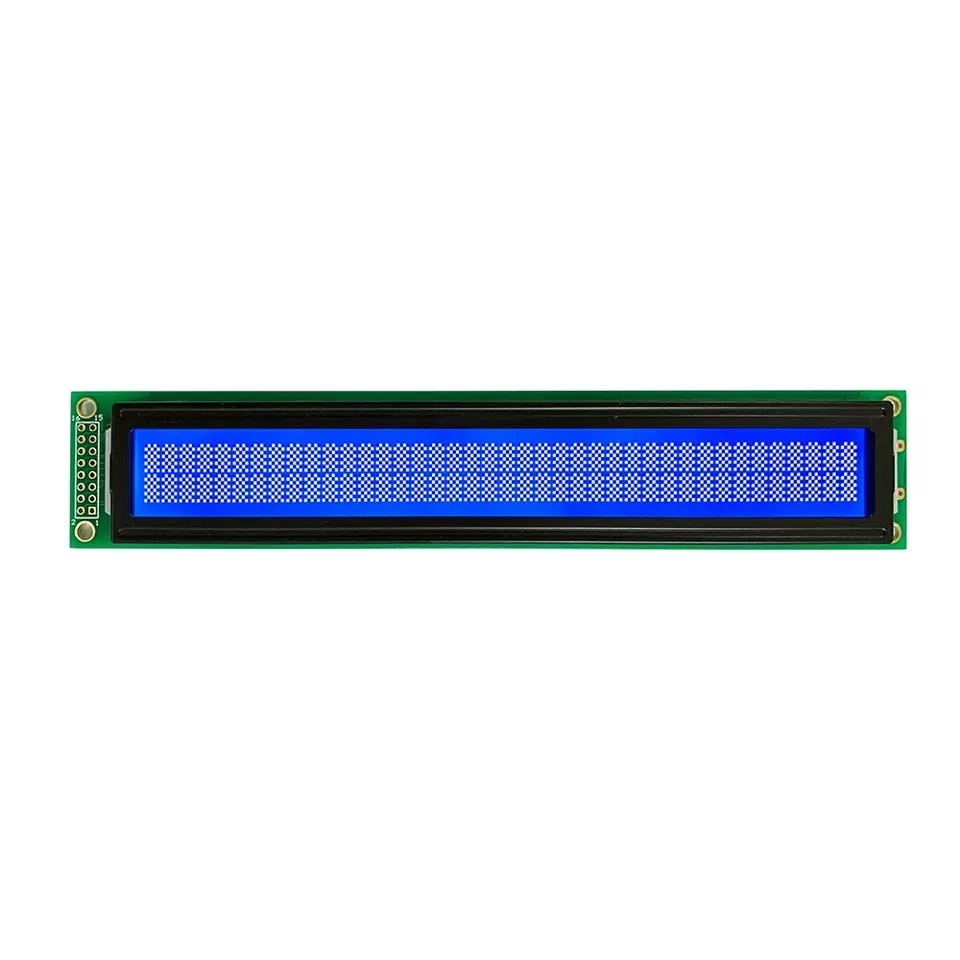

Display Mode : STN /negative/ Transmissive/Blue
Viewing Angles:6 O'clock
Display Color : Monochrome (blue /Yellow-Green )

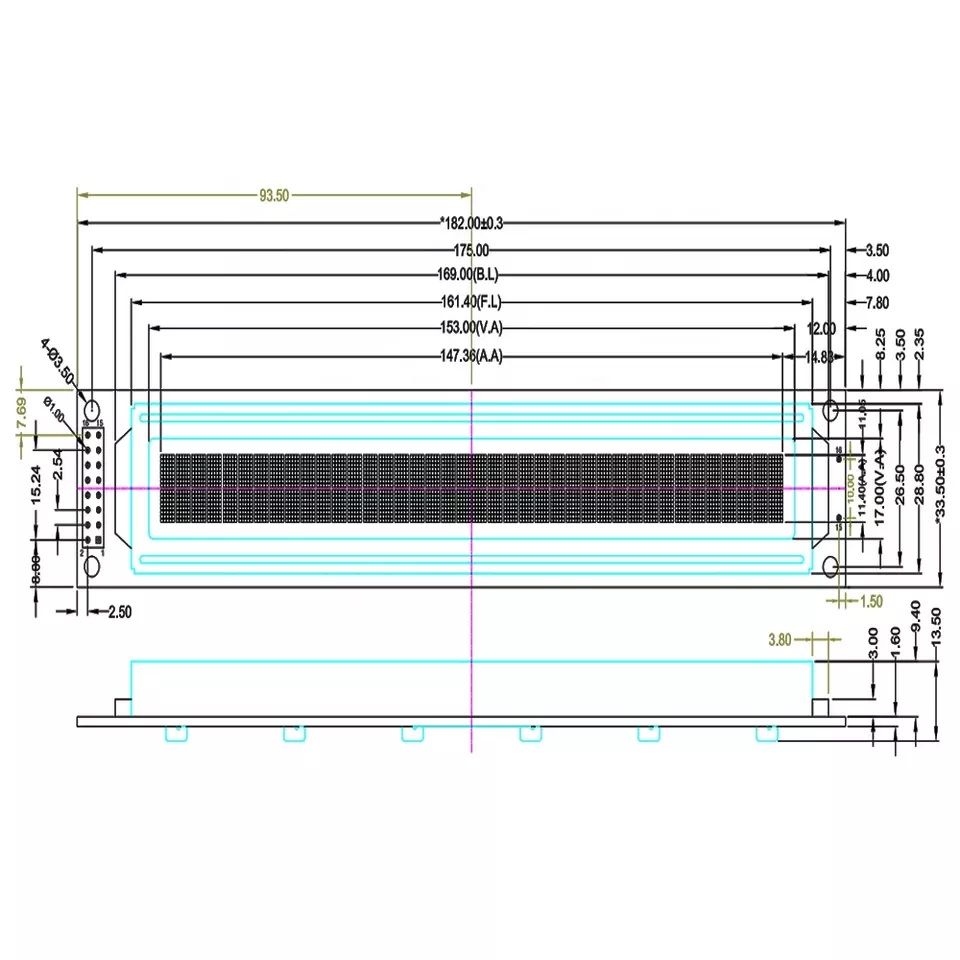

Module Dimension :182.00(W) x 33.50(H) x 13.5 (T) mm
Viewing Area :147.36 (W) x 11.40 (H) mm
Power Supply :3.3 /5 V
Interface : 8 bit Parallel
Controller IC :AIP31006/ST7066
Pin No: 16P
Operation Temperature : 0℃~50℃
Storage Temperature : -10℃~60℃
