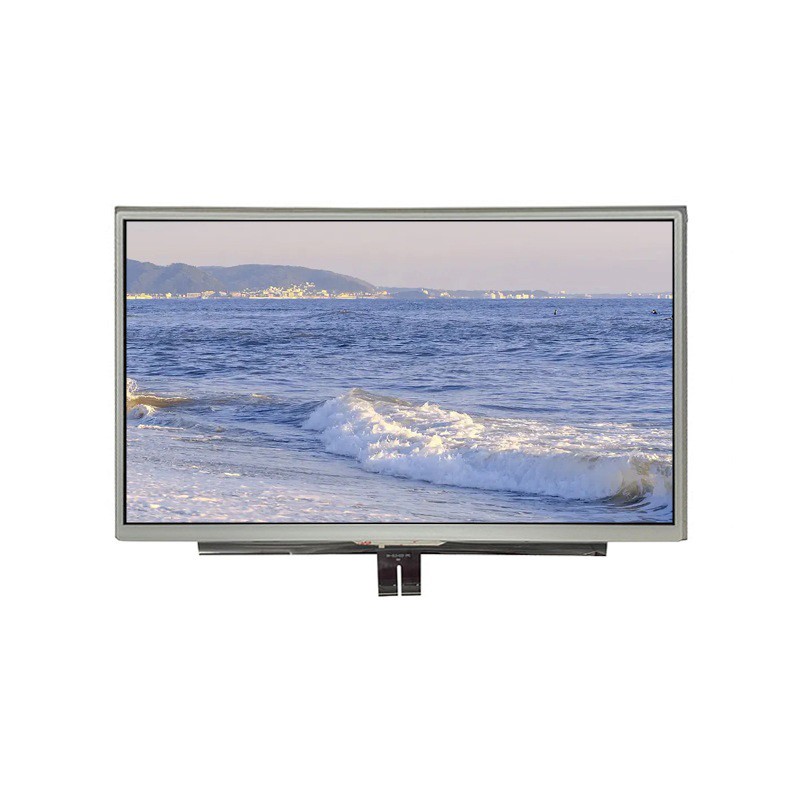

15.6 IPS TFT LCD Display 1920x1080 15.6 Inch IPS TFT LCD

Description

This 15.6"TFT is a IPS Mini color TFT LCD display module is made of resolution 1920x RGBx1080 pixels,with outline dimension of 212.30(H)x360.0(V)x5.70(T)(max) mm and AA size 193.59(H) × 344.16(V) mm.this 15.6" TFT display supports EDP interface,with full viewing angle and wide range of operating Temperature,it is ideal to be used in industrial device,any embedded systems,medical equipment,wearable devices,security and hand-held devices which requests TFT display with high quality and colorful images.

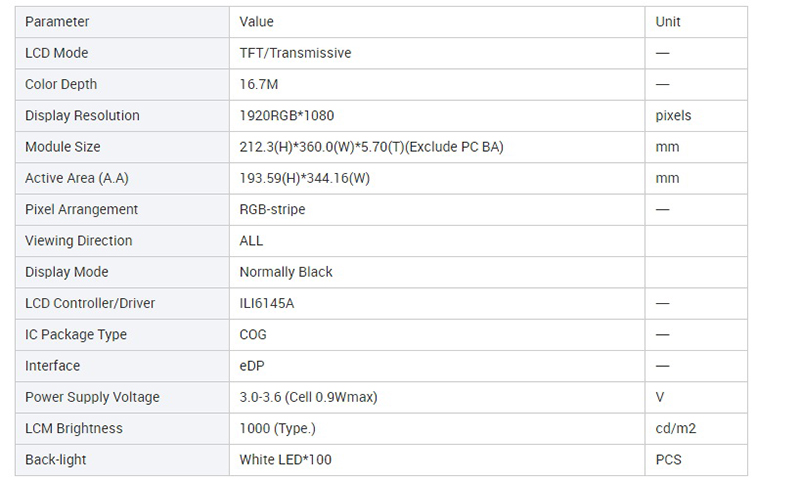

• Resolution:1920x(RGB)x1080
• View Direction:ALL O'clock
• Display Color : RGB 16.7M
• Power Supply :3.0-3.6V
• Driver IC:ILI6145A

• Interface :EDP
• Pin No: 30P
• Luminance(cd/m2):1000(TYP)

• Backlight: White LEDs

• LCD Type: TFT,Normally Black,Transmissive
• Panel Dimension:212.30(H)x360.0(V)x5.70(T) mm
• Viewing Area :193.59(H) × 344.16(V) mm
• Touch Screen:with
• Operation Temperature : -20℃~55℃
• Storage Temperature : -20℃~60℃

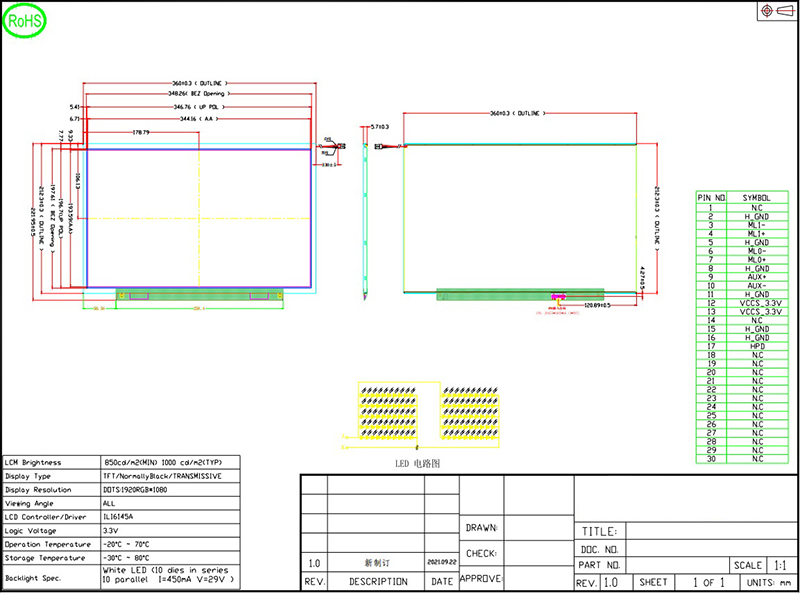

Dimensions
