13.3 inch 1920X1080 TFT LCD Display EDP

Description

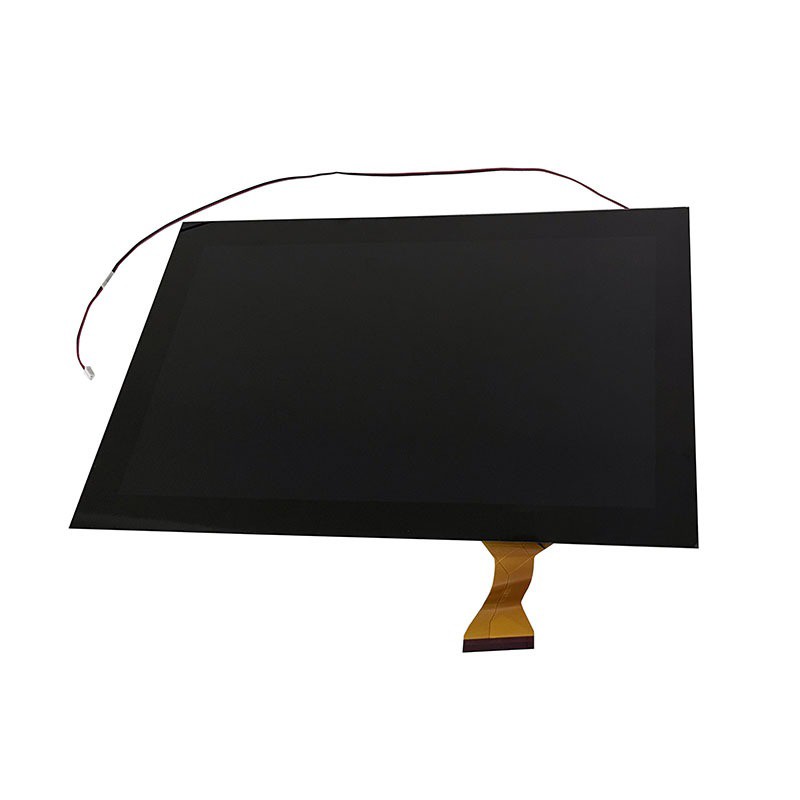

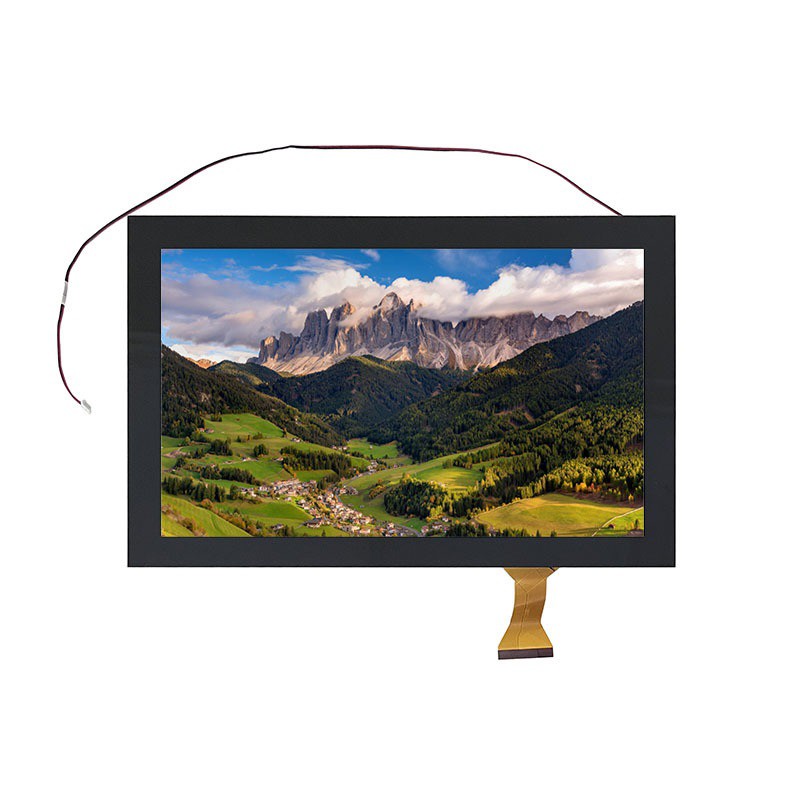

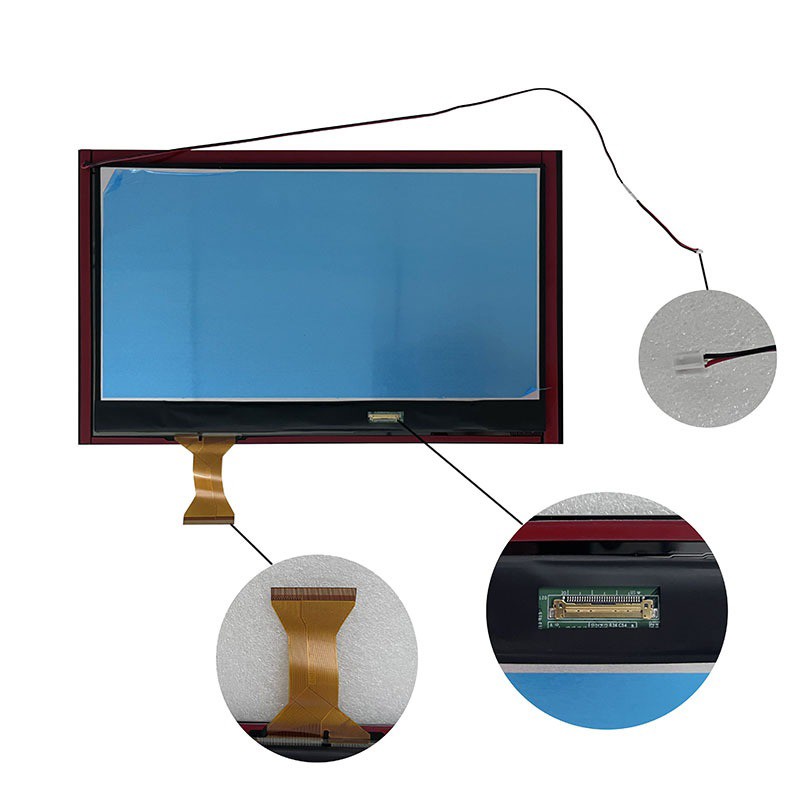

This 13.3"TFT is a IPS Mini color TFT LCD display module is made of resolution 1920x RGBx1080 pixels,with outline dimension of 335.00(H)x203.20(V)x2.0(T)(max) mm and AA size 293.4168(H) × 165.24(V) mm.this 13.3" TFT display supports EDP interface,with full viewing angle and wide range of operating Temperature,it is ideal to be used in industrial device,any embedded systems,medical equipment,wearable devices,security and hand-held devices which requests TFT display with high quality and colorful images.

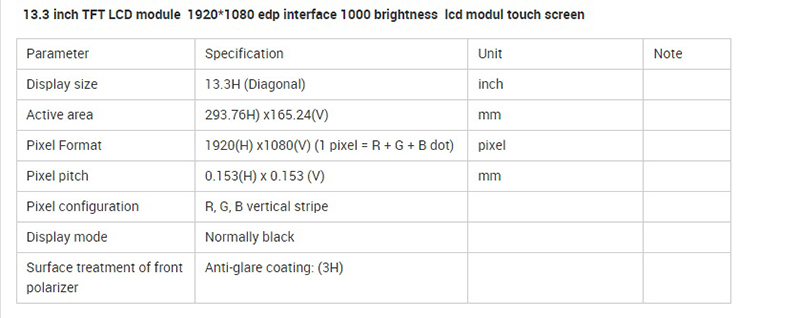

• Resolution:1920x(RGB)x1080
• View Direction:ALL O'clock
• Display Color : RGB 16.7M
• Power Supply :3.0-3.6V
• Interface :EDP
• Backlight: White LEDs

• LCD Type: TFT,Normally Black,Transmissive
• Panel Dimension:335.00(H)x203.20(V)x2.0(T) mm
• Viewing Area :293.4168(H) × 165.24(V)  mm
• Touch Screen:with
• Operation Temperature : -20℃~55℃
• Storage Temperature : -20℃~60℃

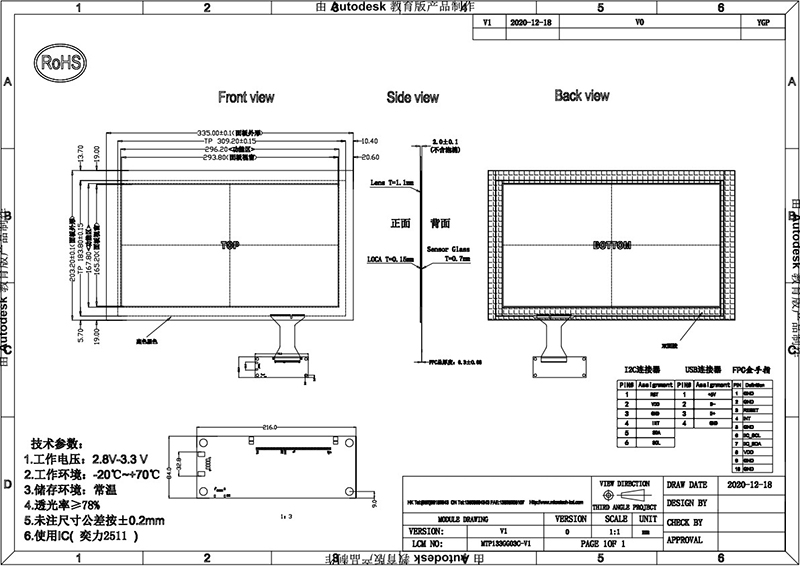

Dimensions
