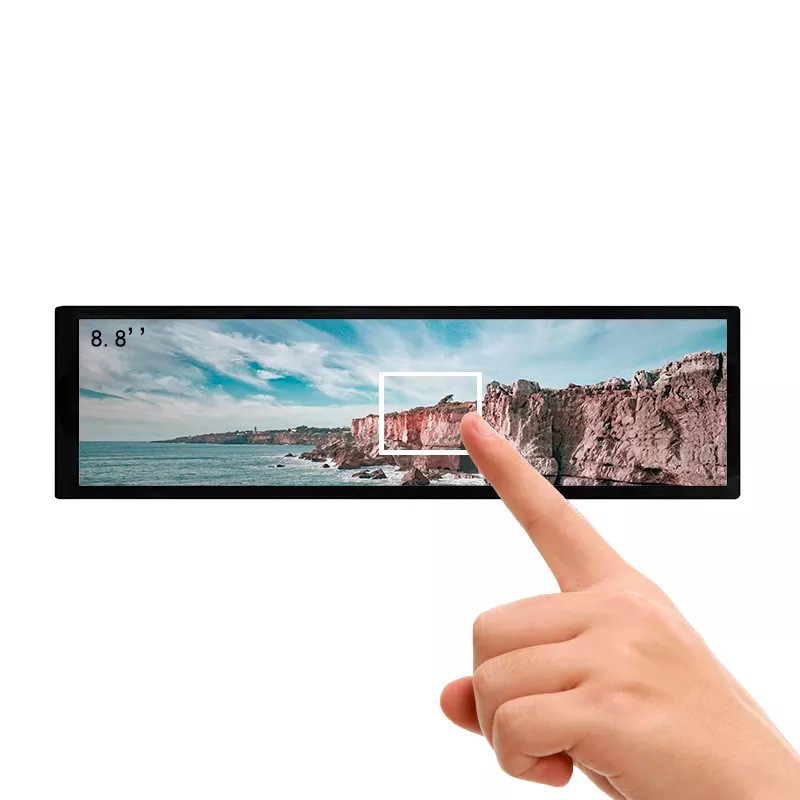

8.8 inch 480x1920 IPS TFT LCD Display Module

Description

This 8.8"TFT is a IPS Mini color TFT LCD display module is made of resolution 480x RGBx1280 pixels,with outline dimension of 64.3 x 231.3 (typ) mm and AA size 54.72(H) x 218.88(V) mm.this 8.8" TFT display builts in ILI6482B Driver IC and supports MIPI interface,with full viewing angle and wide range of operating Temperature,it is ideal to be used in industrial device,any embedded systems,medical equipment,wearable devices,security and hand-held devices which requests TFT display with high quality and colorful images.

• Resolution:480x(RGB)x1280
• View Direction:ALL O'clock
• Display Color : RGB 16.7M
• Power Supply :3-3.6 V
• Interface :MIPI
• Driver IC: ILI6482B
• Pin No: 40P
• Dot pitch:0.114(H) x 0.114(V) mm
• Contrast Ratio:800
• Luminance(cd/m2):600(TYP)

• Backlight:White LEDs

• LCD Type: TFT,Normally Black,Transmissive
• Panel Dimension:64.3 x 231.3 (typ)mm
• Viewing Area :54.72(H) x 218.88(V) mm
• Touch Screen:with or without
• Operation Temperature : -20℃~70℃
• Storage Temperature : -30℃~80℃

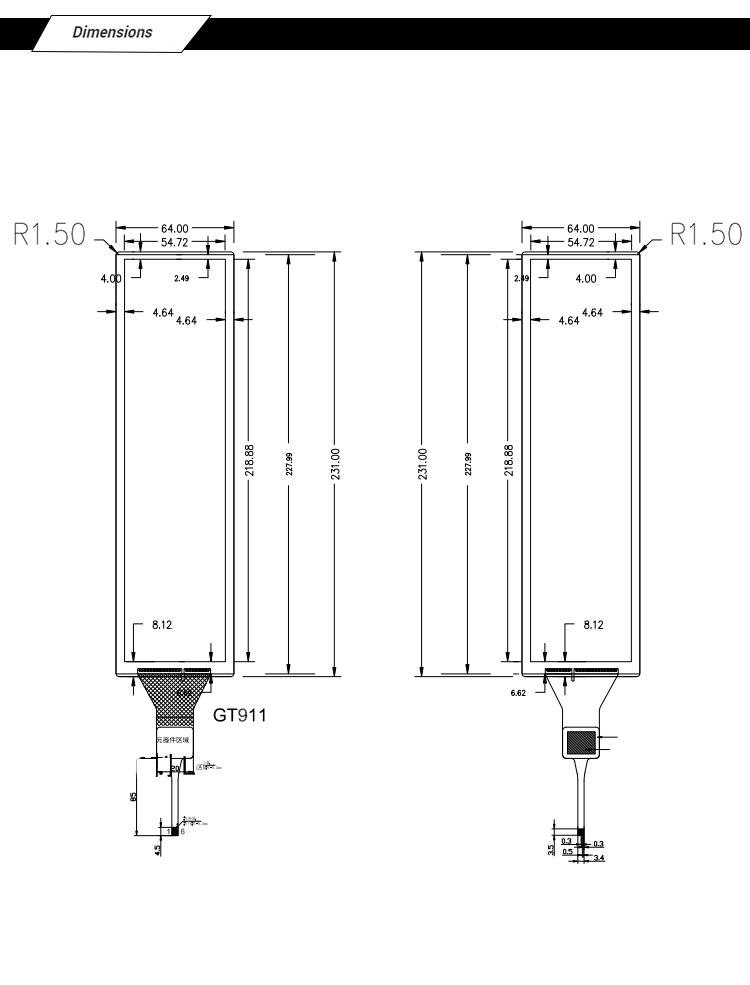

Dimensions

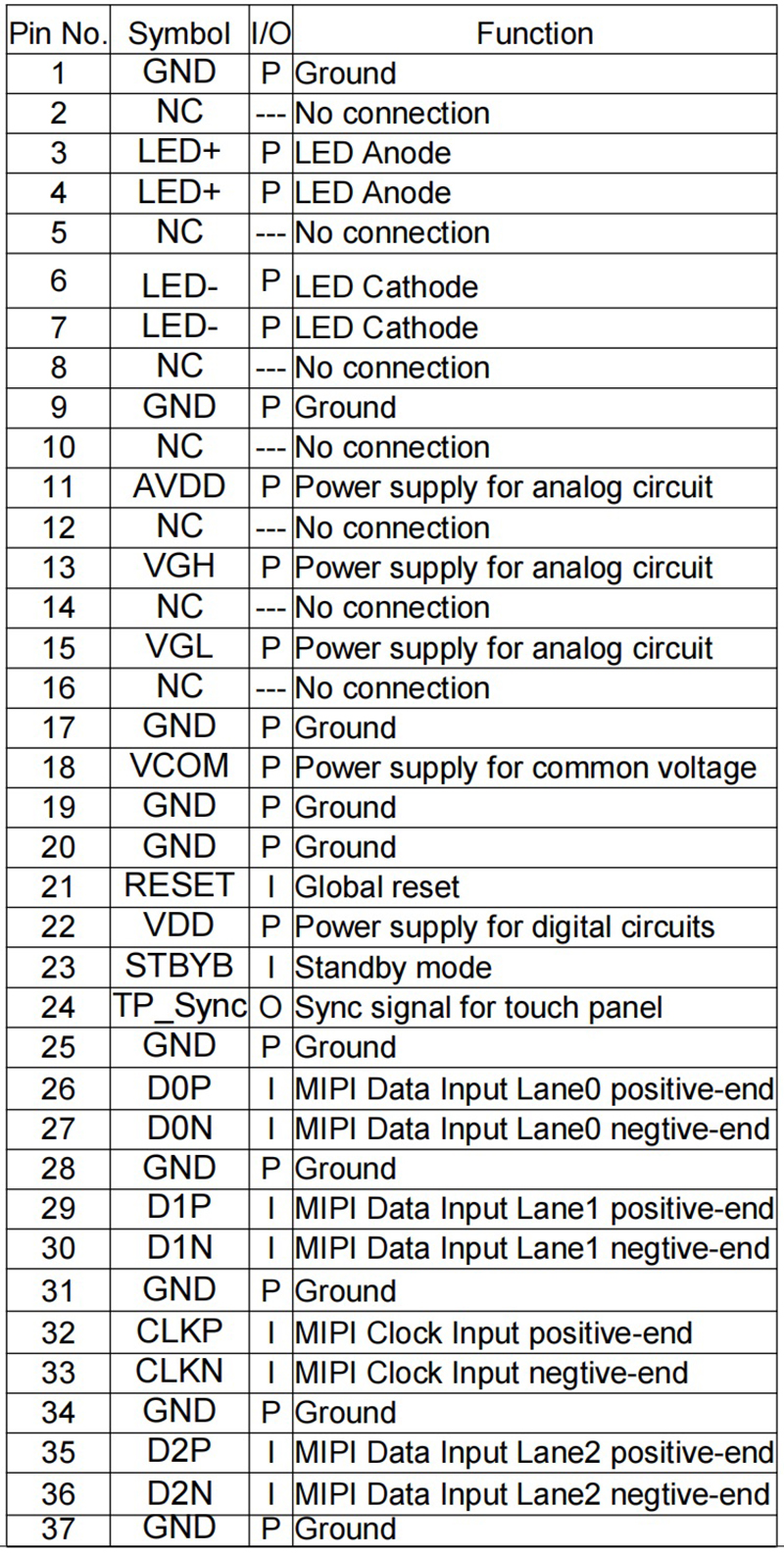

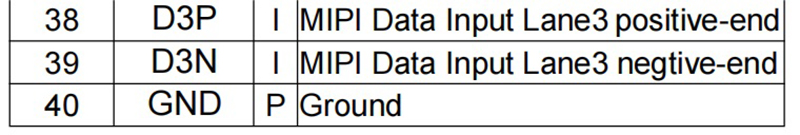

Pin Definitions
