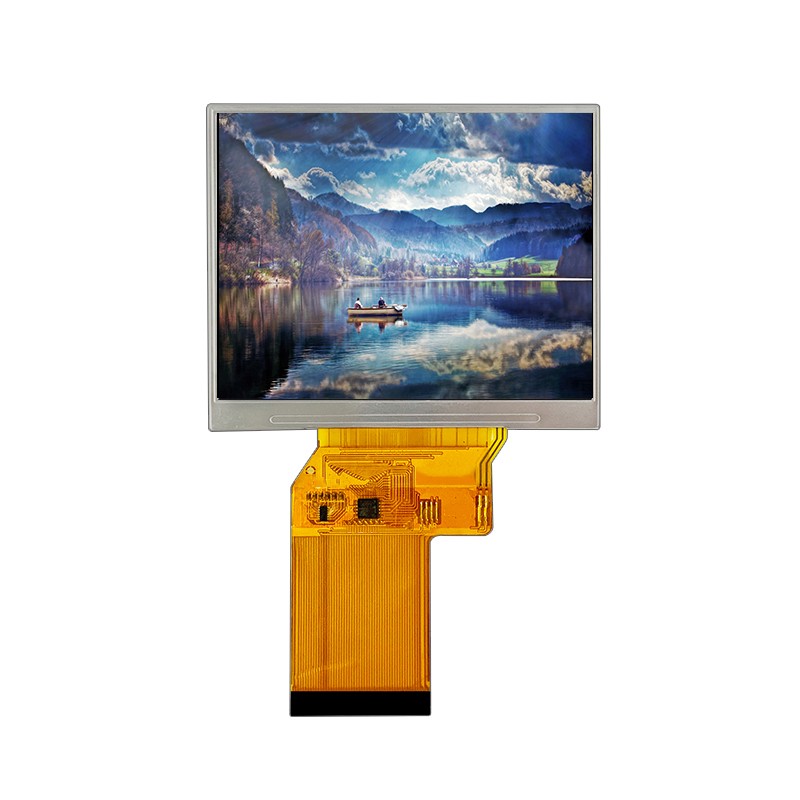

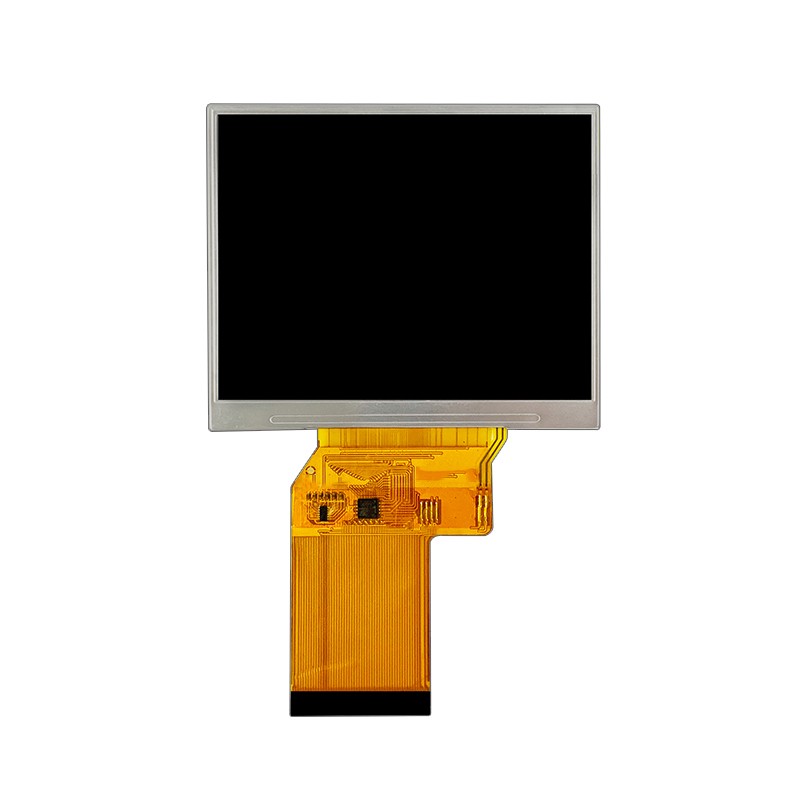

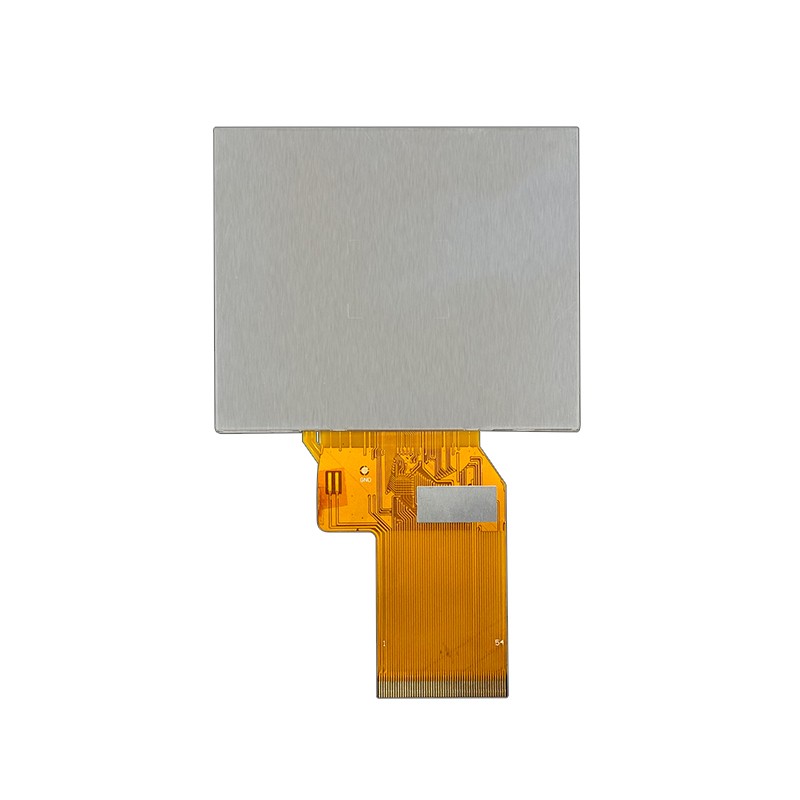

RGB 3.5 inch 640X480 TFT LCD Touch Screen

Description

This 3.5"TFT is a IPS Mini color TFT LCD display module is made of resolution 320x RGBx480 pixels,with outline dimension of 76.90(H) × 63.90(V) × 3.2(T) mm and AA size 70.08(W)X52.56(H) mm.this 3.5" TFT display supports RGB interface,with full viewing angle and wide range of operating Temperature,it is ideal to be used in industrial device,any embedded systems,medical equipment,wearable devices,security and hand-held devices which requests TFT display with high quality and colorful images.

• Resolution:640x(RGB)x480
• View Direction:ALL O'clock
• Display Color : RGB
• Power Supply :3.3V
• Interface :RGB
• Pin No: 54P Connector
• Backlight:  4x White LEDs

• LCD Type: TFT,Normally Black,Transmissive
• Panel Dimension:76.90(H) × 63.90(V) × 3.2(T) mm
• Viewing Area :70.08(W)X52.56(H) mm
• Touch Screen:with or without
• Operation Temperature : -20℃~70℃
• Storage Temperature : -30℃~80℃

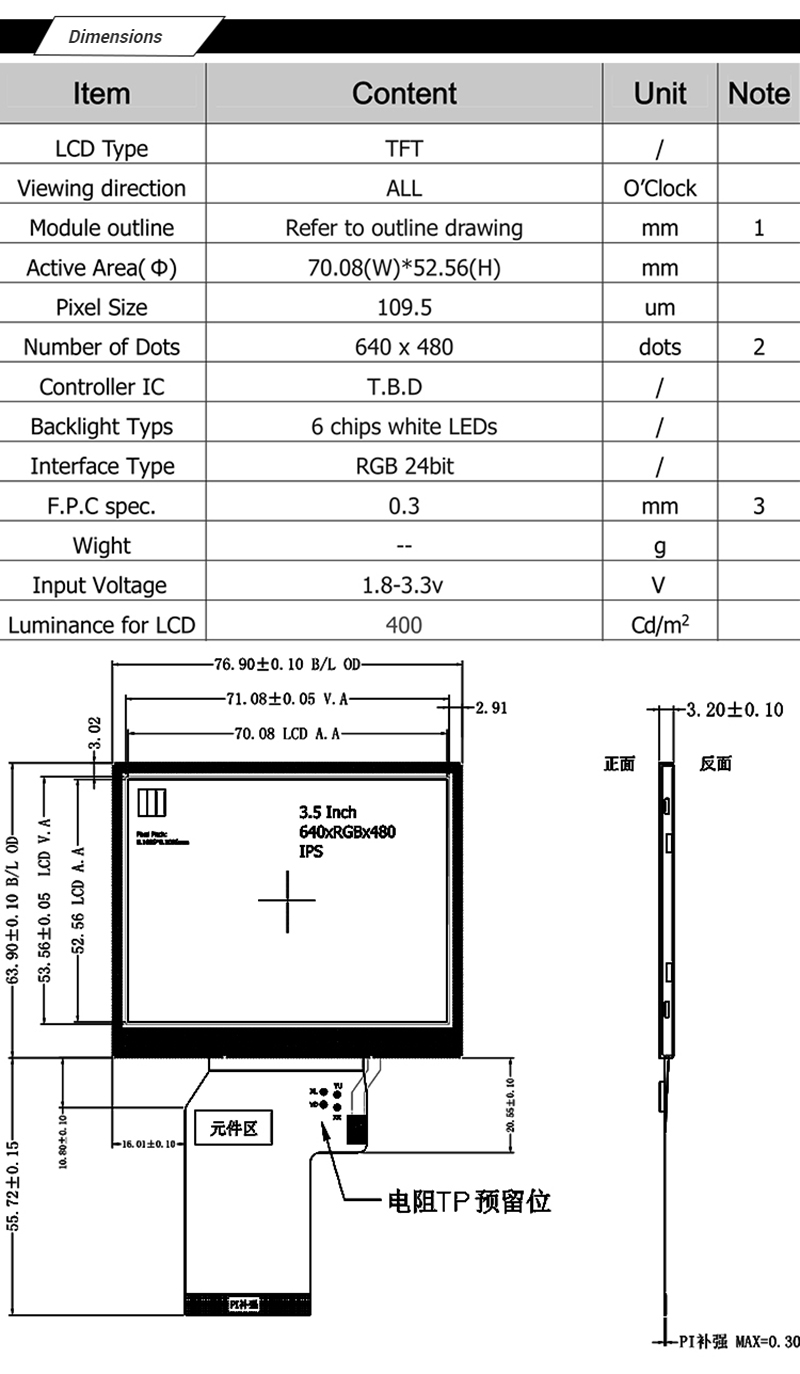

Dimensions

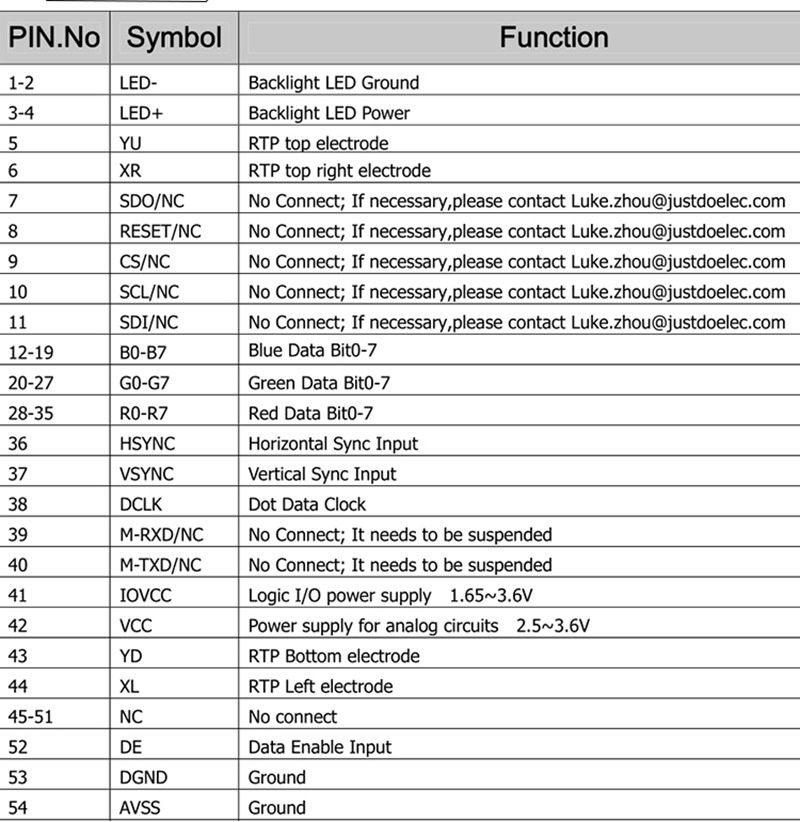

Pin Definitions
