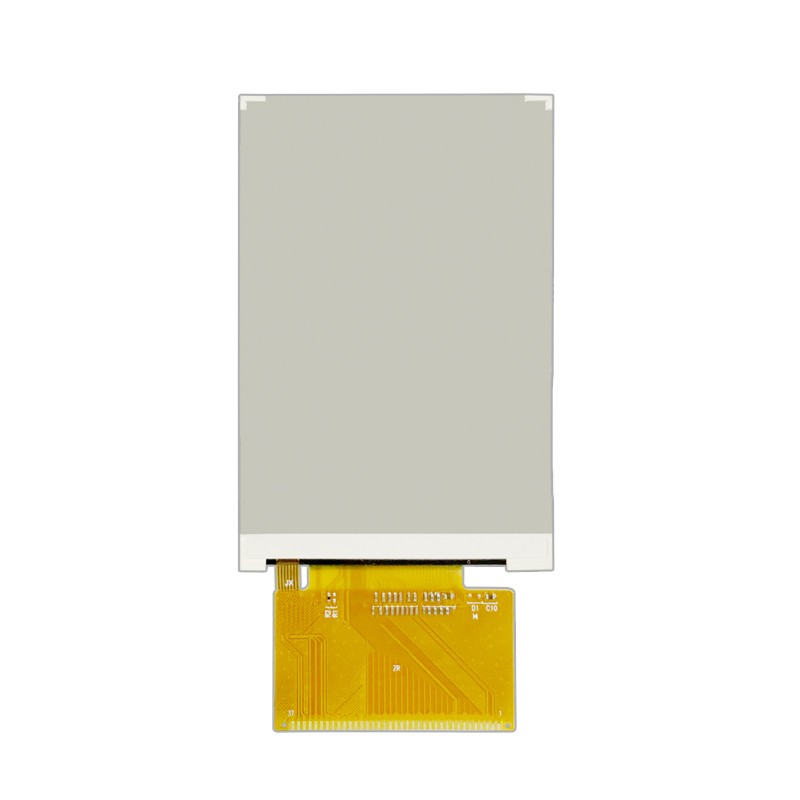

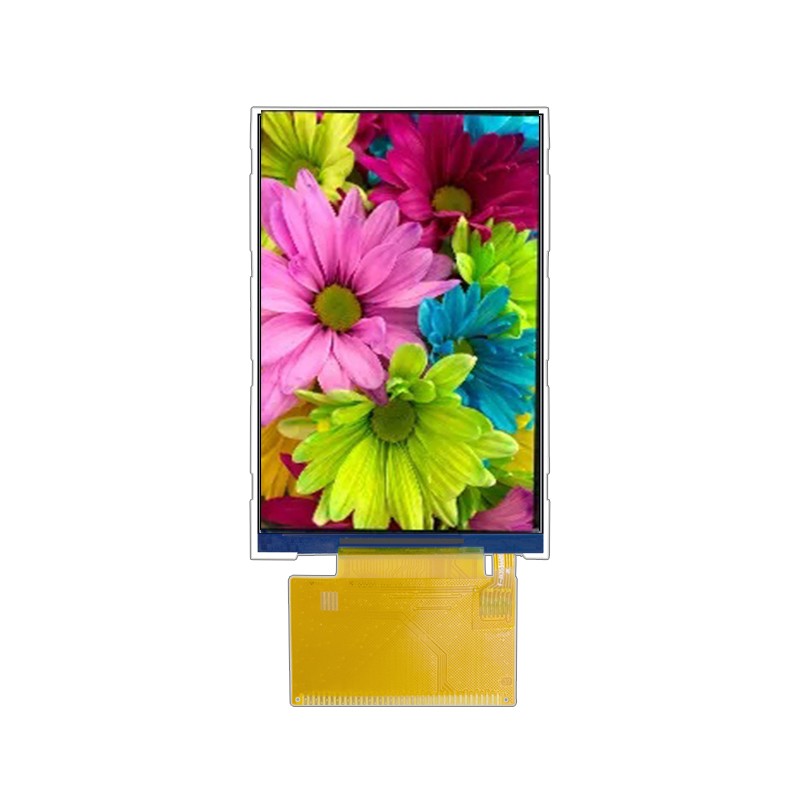

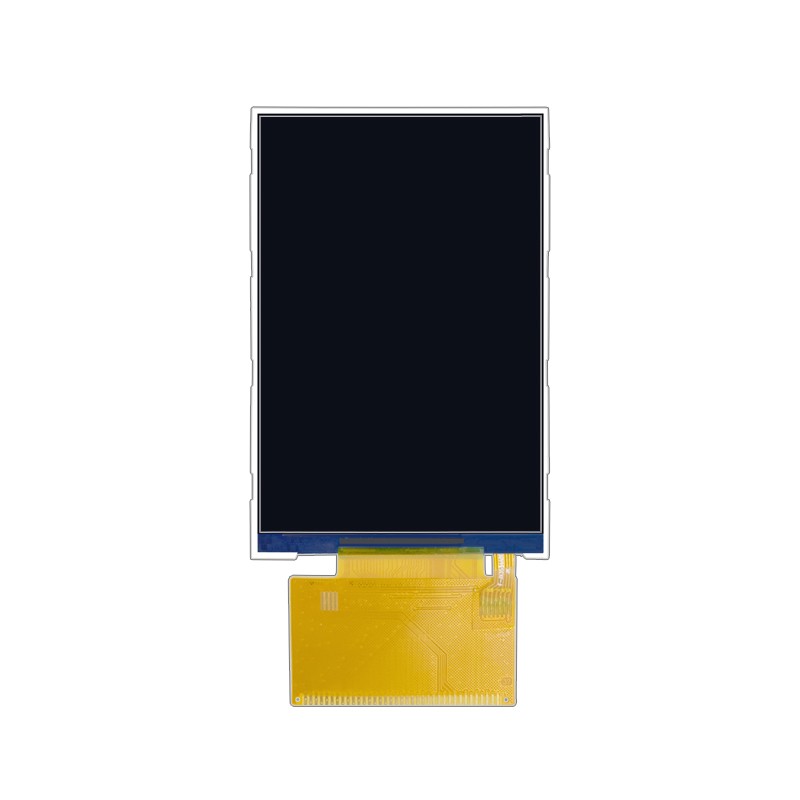

3.5 inch TFT LCD Screen Display 320x480

Description

This 3.5"TFT is a IPS Mini color TFT LCD display module is made of resolution 320x RGBx480 pixels,with outline dimension of 31.82(H) × 33.72(V) × 1.242(T) mm and AA size 48.96(W) x 73.44(H) mm.this 3.5" TFT display builts in ILI9488 Driver IC and supports 8080 8/16 bit paralle interface,with full viewing angle and wide range of operating Temperature,it is ideal to be used in industrial device,any embedded systems,medical equipment,wearable devices,security and hand-held devices which requests TFT display with high quality and colorful images.

This TFT Display is with FPC-Soldering is easily to assemble or remove!

• Resolution:320x(RGB)x480
• View Direction:ALL O'clock
• Display Color : RGB 262K
• Power Supply :2.7-2.9 V
• Interface :8080 8/16 bit paralle
• Controller IC :ili9488
• Pin No: 37P
• Backlight:  White LEDs

• LCD Type: TFT,Normally Black,Transmissive
• Panel Dimension:31.82(H) × 33.72(V) × 1.242(T) mm
• Viewing Area :48.96(W) x 73.44(H) mm
• Touch Screen:with or wiithout
• Operation Temperature : -20℃~70℃
• Storage Temperature : -30℃~80℃

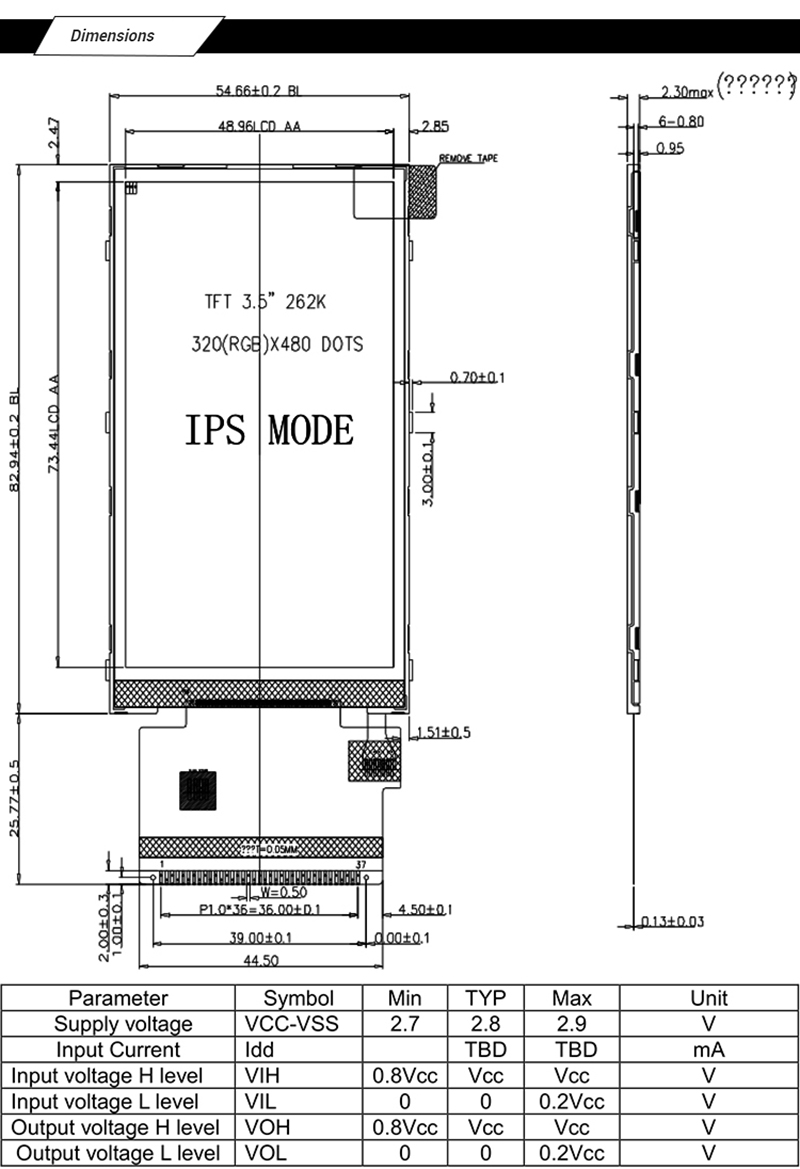

Dimensions

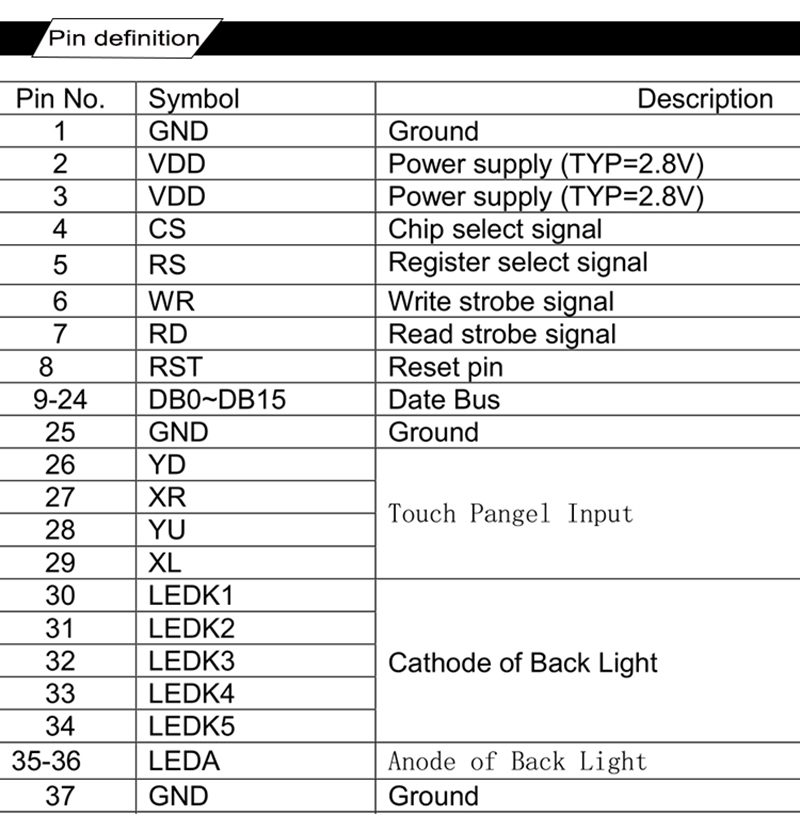

Pin Definitions
