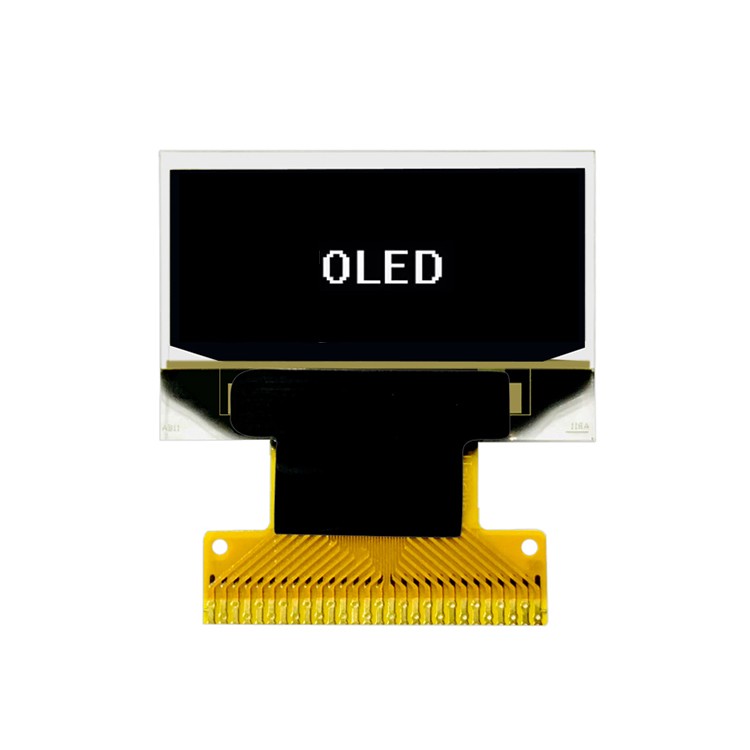

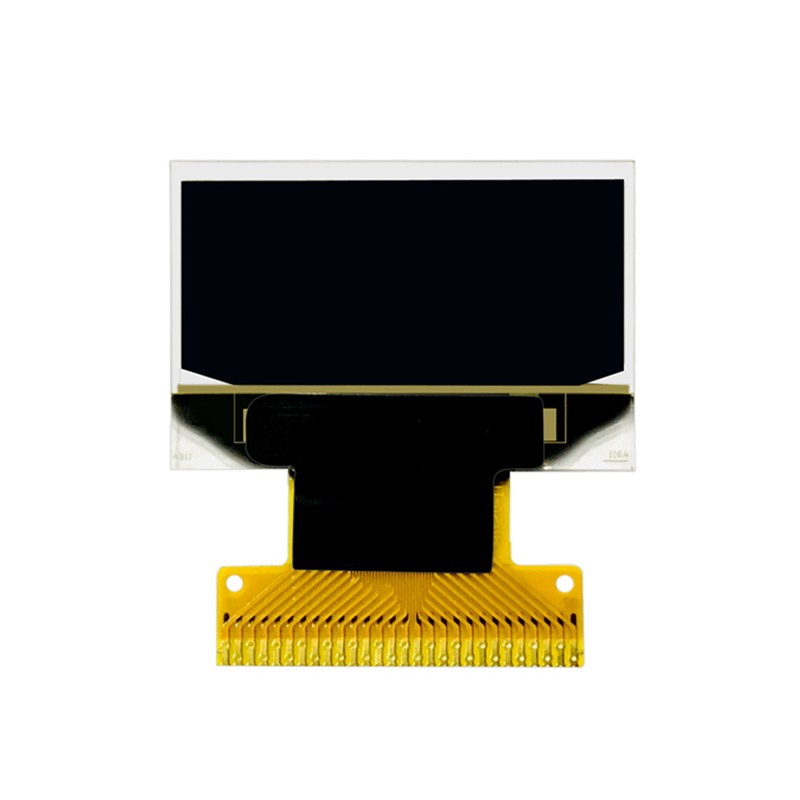

0.83 inch 96x39 Graphic OLED Display Module

Description

This 0.83" OLED is a Mini graphic OLED display module which is made of 96X39 pixels white OLED,it is with outline dimension of 23.8× 16.2 mm and AA size 19.372 × 7.858 mm, it builts in SSD1306 controller ic,communicates via I2C/8-wire SPI serial interface.this mini COG OLED display is very thin,lightweight and low power consumption since no backlight is needed;so it has such high contrast,extremely operating temperature,applied for any embedded systems,wearable device,industrial devices,medical and hand-held devices,personal care appliance, voice recorder pen and securit,mp3,etc.

The FFC is the soldering types,no need connectors.Just soldering the FPC on your own PCB directly.

Specifications

• Resolution : 96X39 Dot Matrix OLED
• Display Mode : Passive Matrix
• Viewing Angles: IPS
• Display Color : Monochrome (White/Blue)
• Module Dimension : 23.80 x 16.20 x 1.3 mm
• Viewing Area : 19.372 X 7.858 mm
• Power Supply :1.65-3.3 V
• Interface :I2C
• Controller IC : SSD1306
• Pin No: 28P Sodering
• Operation Temperature : -40℃~70℃
• Storage Temperature : -40℃~85℃

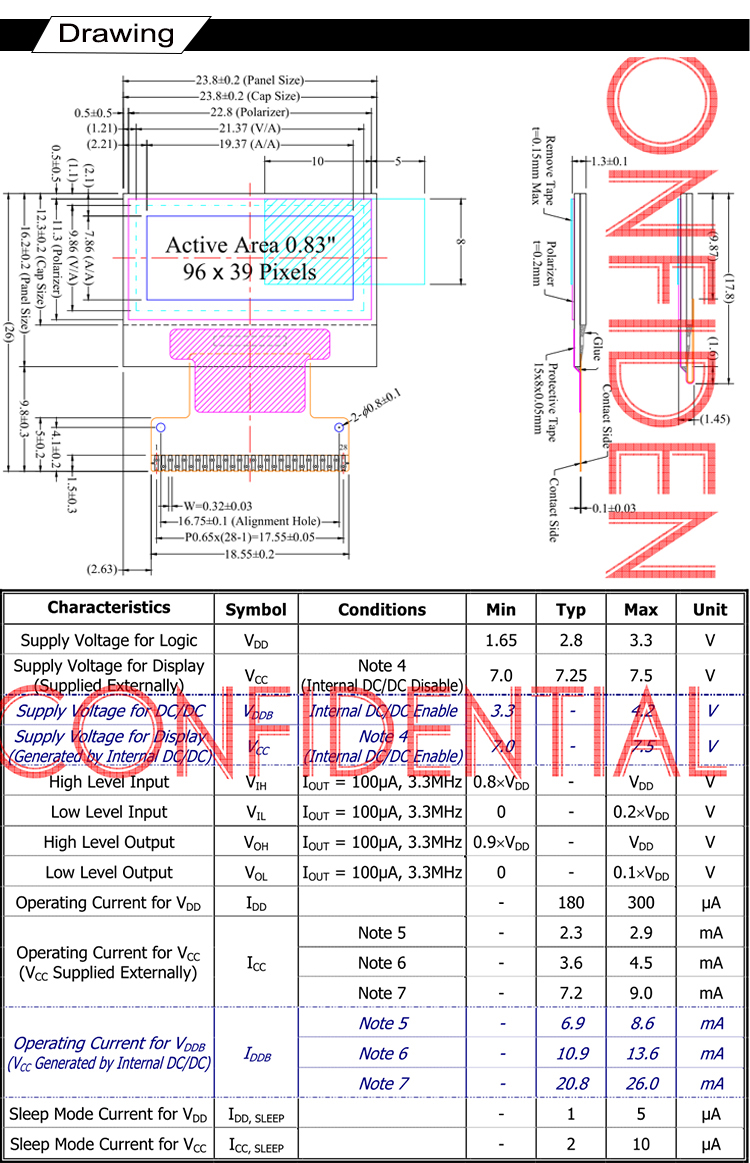

Dimensions

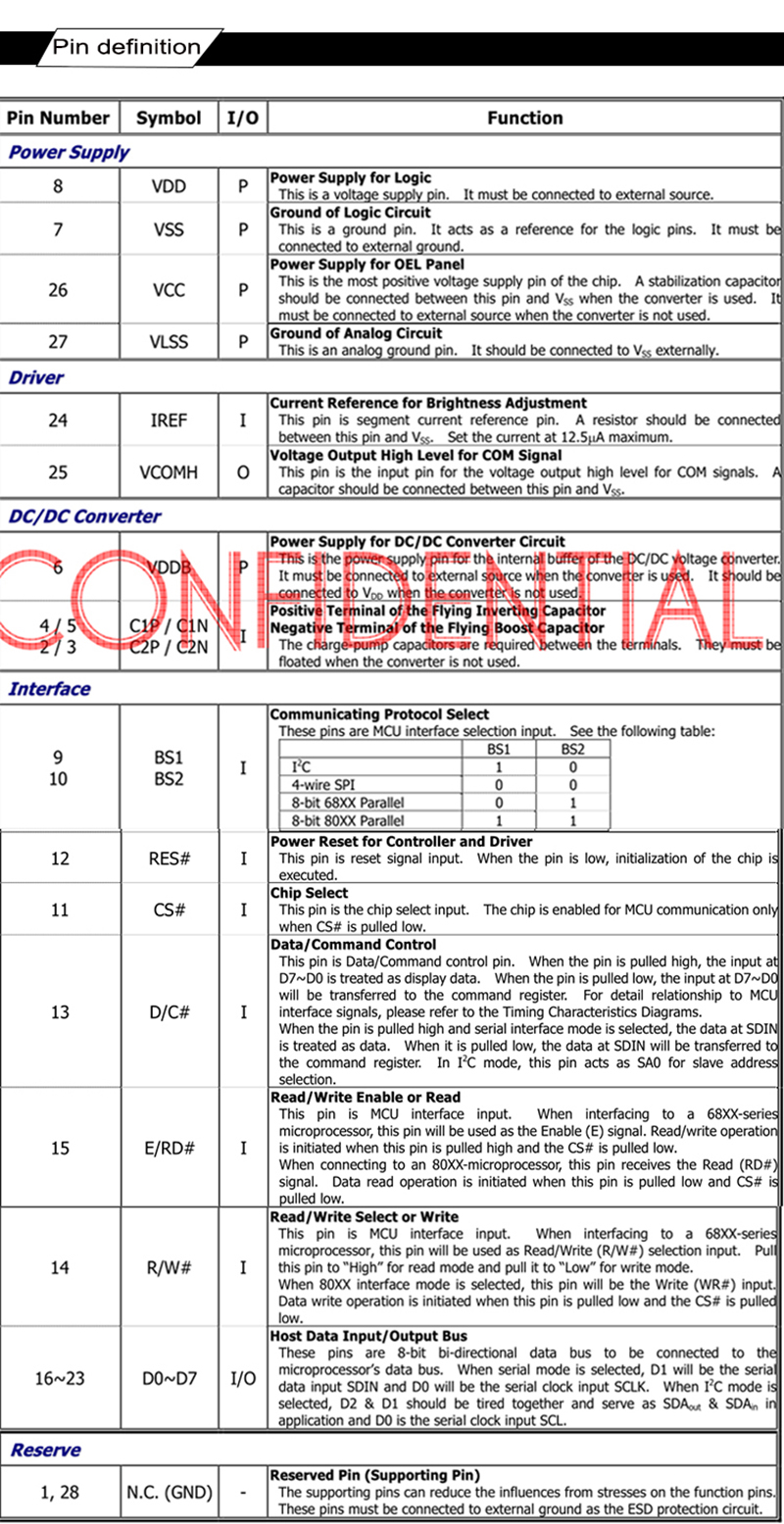

Pin Definitions
