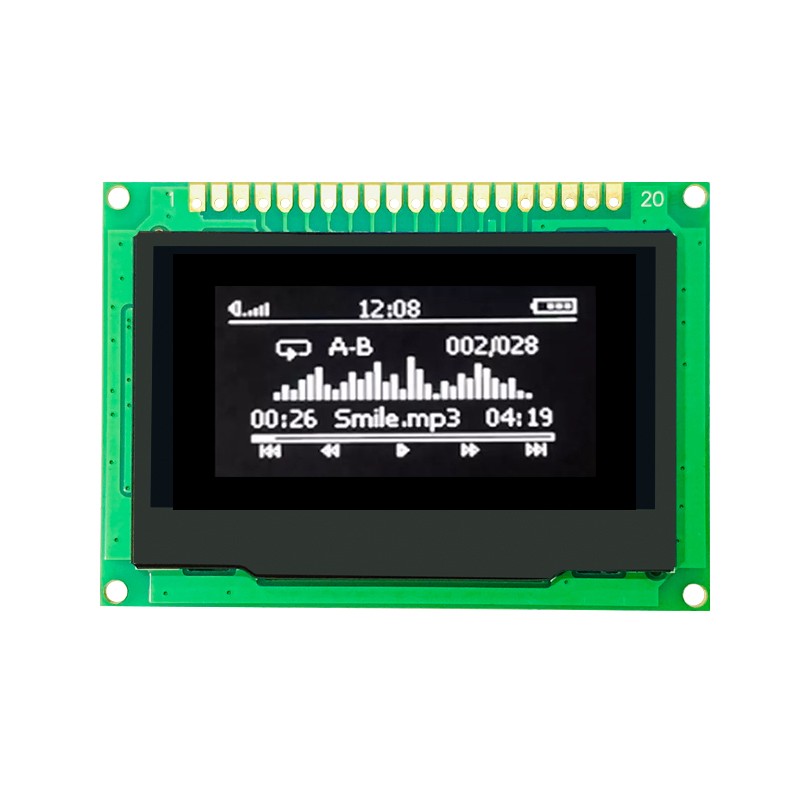

2.42 inch OLED Module 128x64 OLED Screen

Description

The monochrome 2.42" OLED Module is the graphic COB OLED display and made of 128X64 white OLED pixels, it is with it is with Module Dimension of 70.50 (W) x 49.60(H) x5.9 mm,AA size 57.00 (W) x 29.50  (H) mm.it builts in SSD1309 controller ic,communicates via  6800/8080/SPI/I2C serial interface. this OLED Module is Small,lightweight, low power consumption since it only powers the pixels that is necessary,suitable for industrial equipments,any embedded systems,medical and hand-held devices,securities.

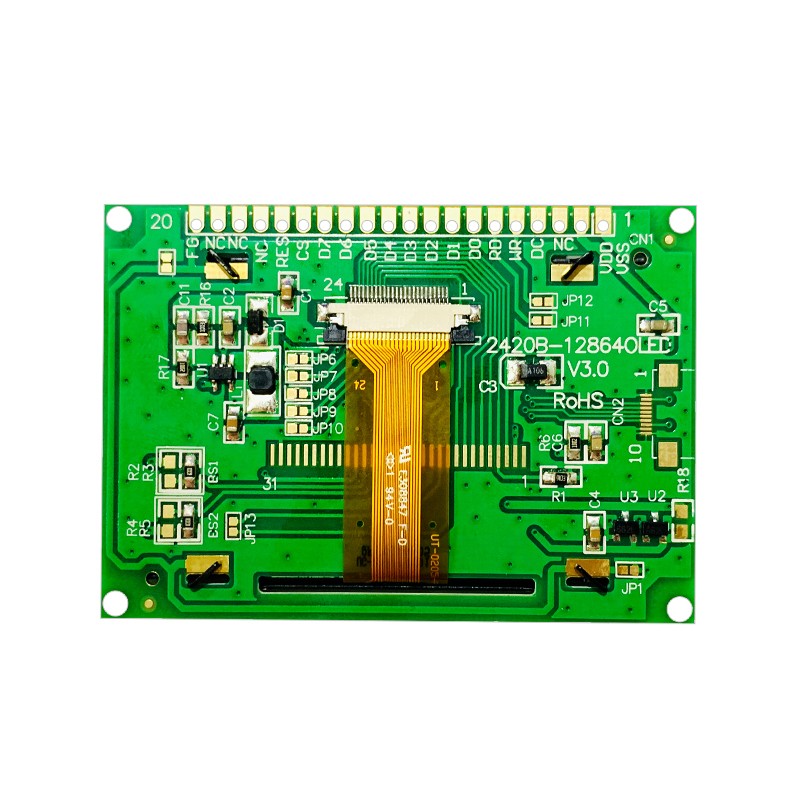

It's pin headers connected by defaults,so it is easy to fix the modules on your applications since it is with PCB Board on it!




Specifications

• Resolution :128x64 Dot Matrix COB OLED
• Display Mode : Passive Matrix
• Viewing Angles: IPS

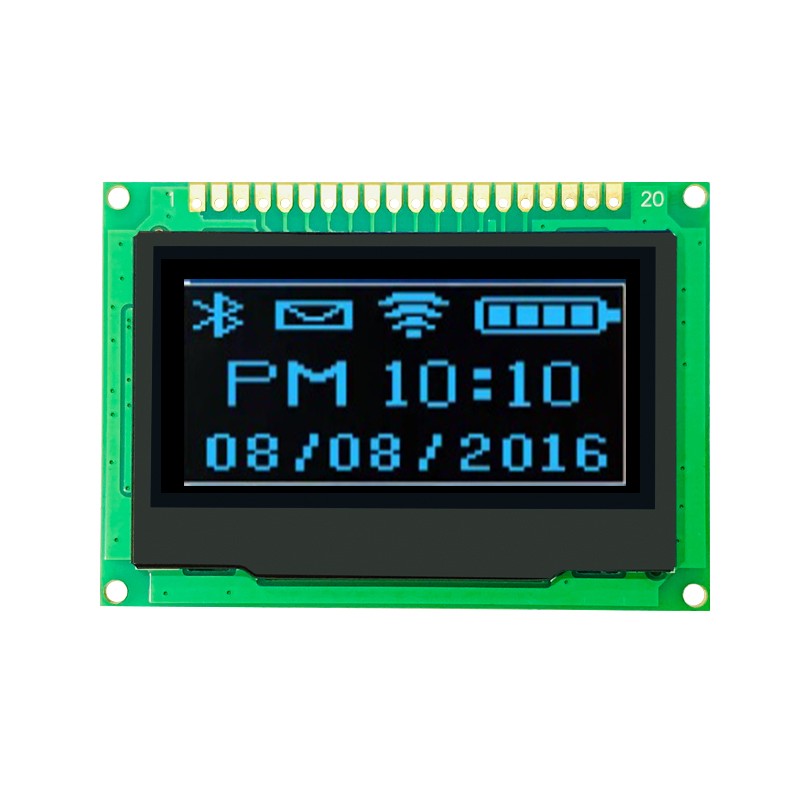

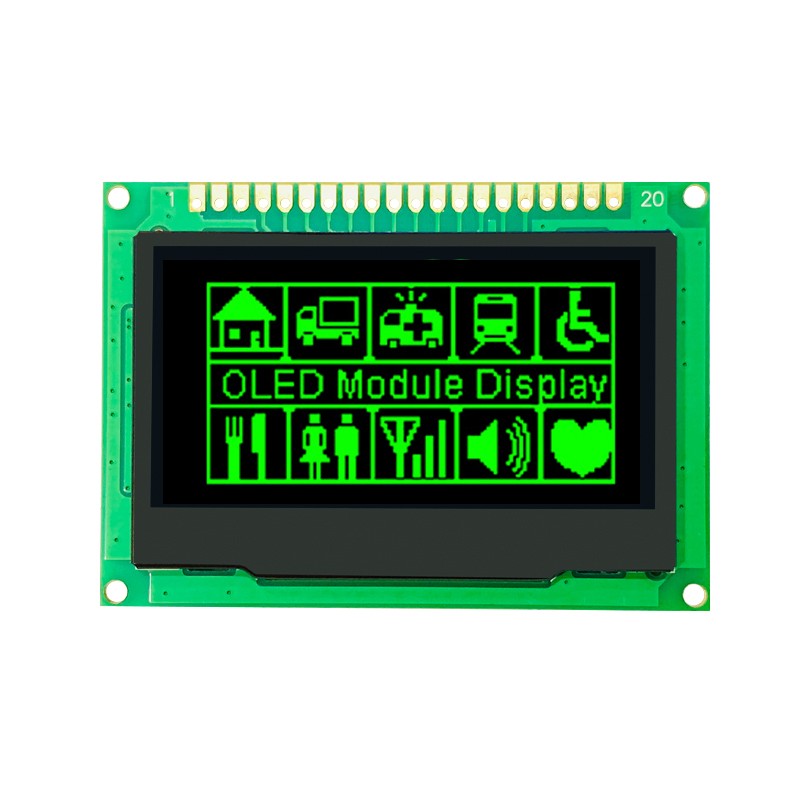

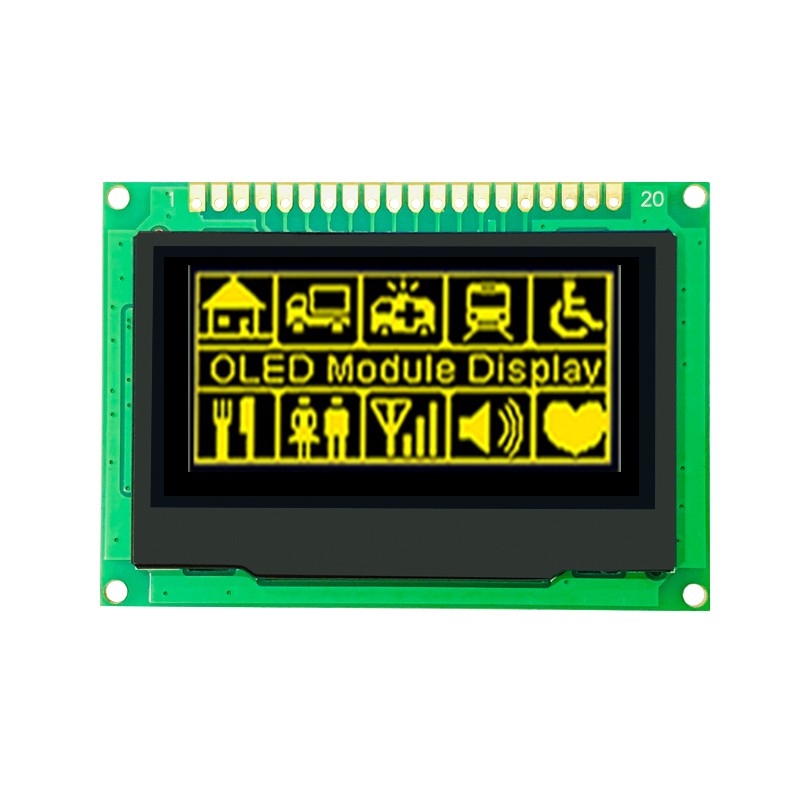

• Display Color : Monochrome (White/Blue/Yellow/Green)
• Module Dimension :70.50 (W) x 49.60(H) x5.9 mm
• Viewing Area :57.00 (W) x 29.50  (H) mm
• Power Supply :2.4-3.6 V
• Interface : I2C / 4-WIRES SPI6800/8080/SPI/I2C
• Controller IC :SSD1309
• Dot (Pixel) Size:0.39x 0.39

• Dot (Pixel) Pitch:0.43 x 0.43 mm
• Pin No: 20 P
• Operation Temperature : -30℃~85℃
• Storage Temperature : -40℃~90℃

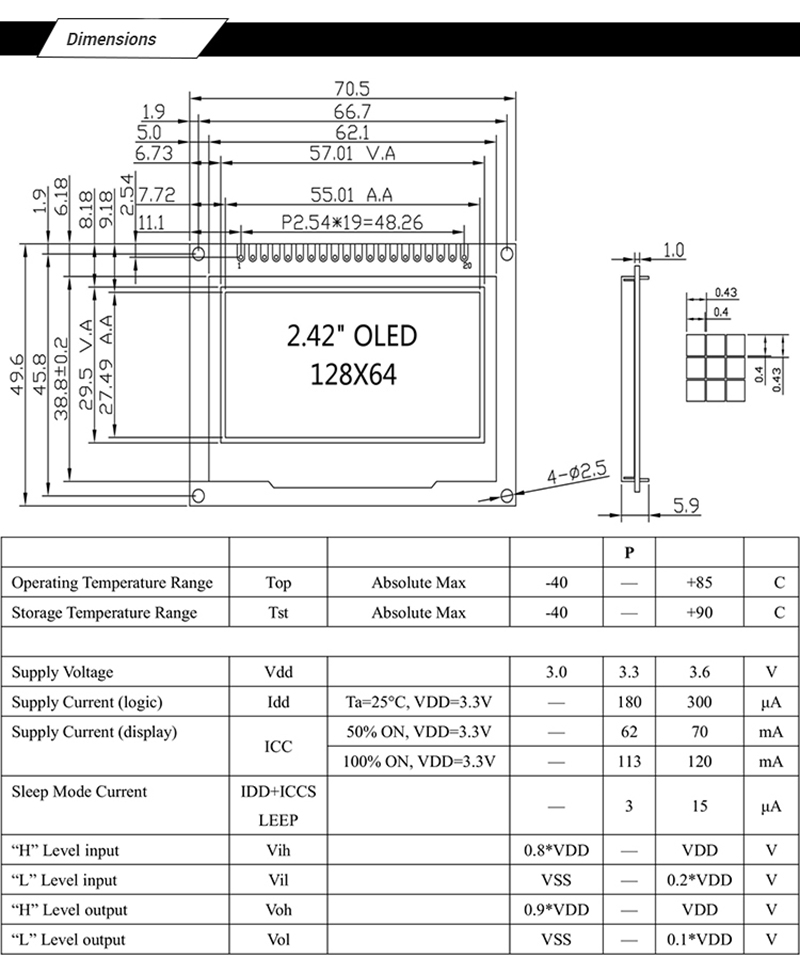

Dimensions

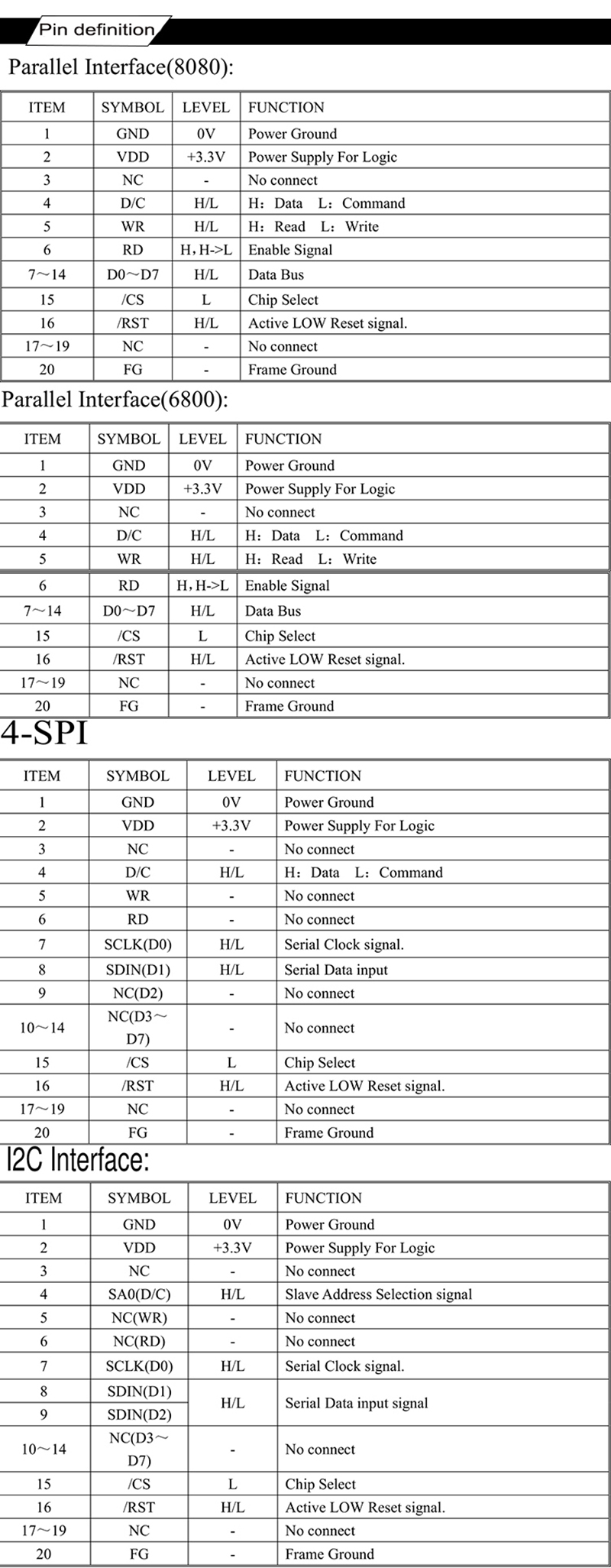

Pin Definitions
