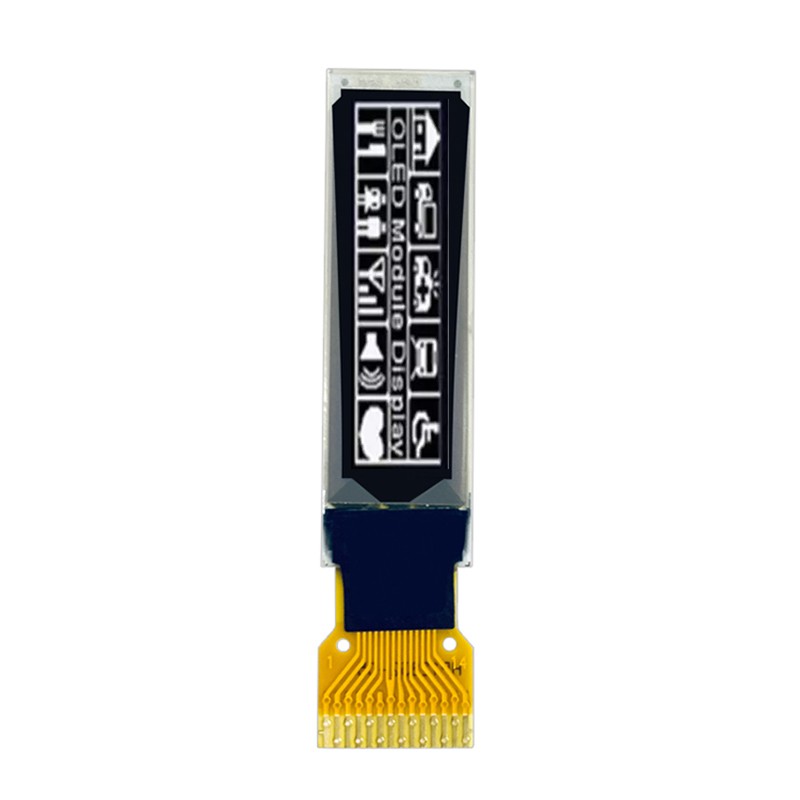

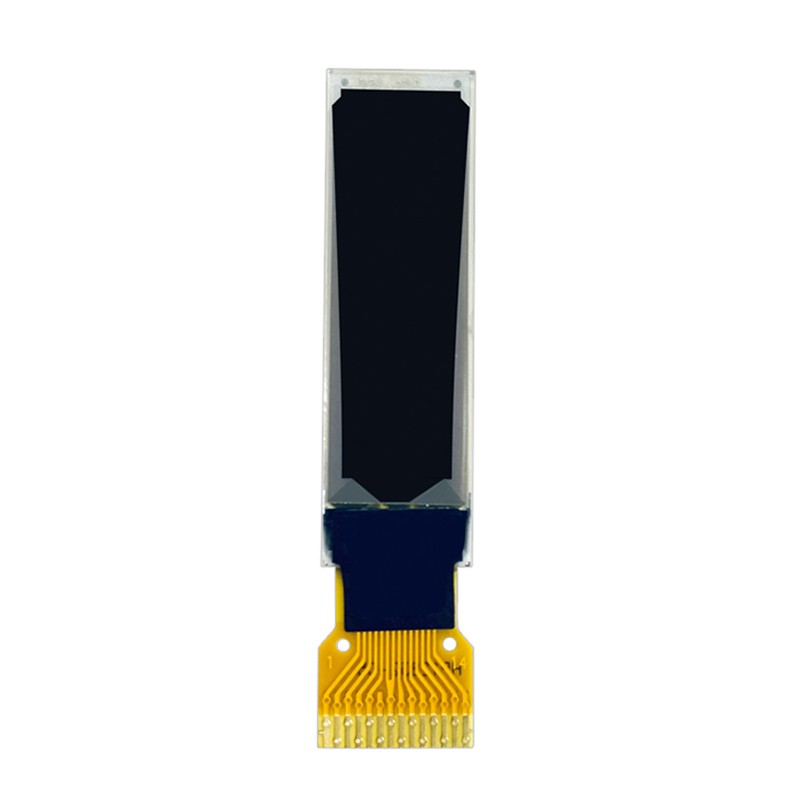

0.86 inch 96x32 Graphic OLED Micro Display

Description

This 0.86" OLED is a Mini graphic OLED display module which is made of 96x32 pixels white OLED,it is with outline dimension of 39.6× 9.20 mm and AA size 21.10 × 6.06 mm, it builts in SSD1306 controller ic,communicates via I2C serial interface.this mini COG OLED display is very thin,lightweight and low power consumption since no backlight is needed;so it has such high contrast,extremely operating temperature,applied for any embedded systems,wearable device,industrial devices,medical and hand-held devices,personal care appliance, voice recorder pen and securit,mp3,etc.

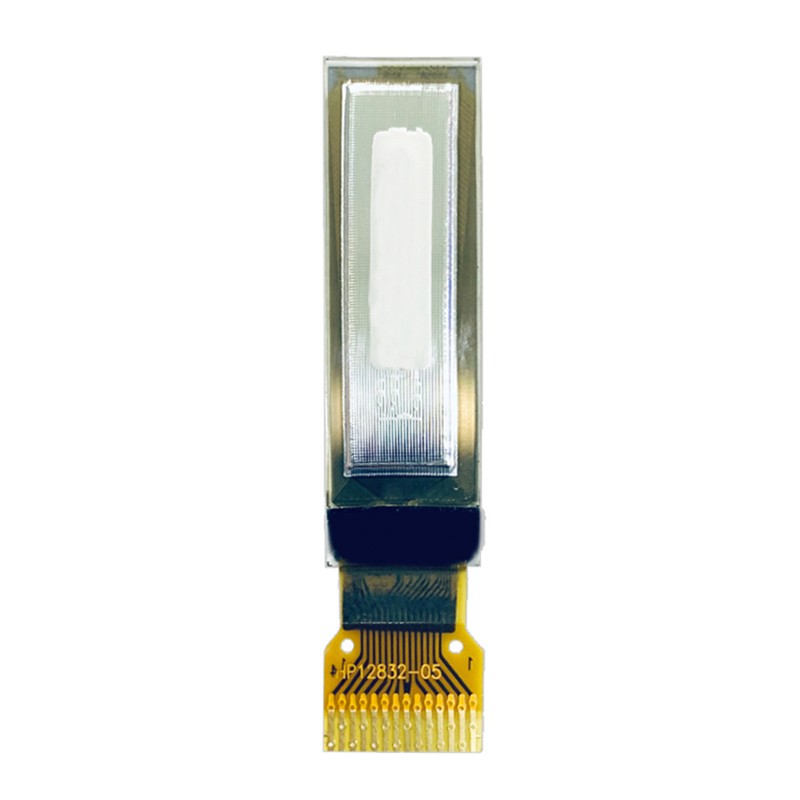

The FFC is the soldering types,no need connectors.Just soldering the FPC on your own PCB directly.

Specifications

• Resolution : 96x32 Dot Matrix OLED
• Display Mode : Passive Matrix
• Viewing Angles: IPS
• Display Color : Monochrome (White)
• Module Dimension : 39.60 x 9.20 x 1.227 mm
• Viewing Area : 21.10 X 6.06 mm
• Power Supply :1.65-3.3 V
• Interface :I2C
• Controller IC :SSD1306
• Pin No: 14P Sodering
• Operation Temperature : -40℃~70℃
• Storage Temperature : -40℃~85℃

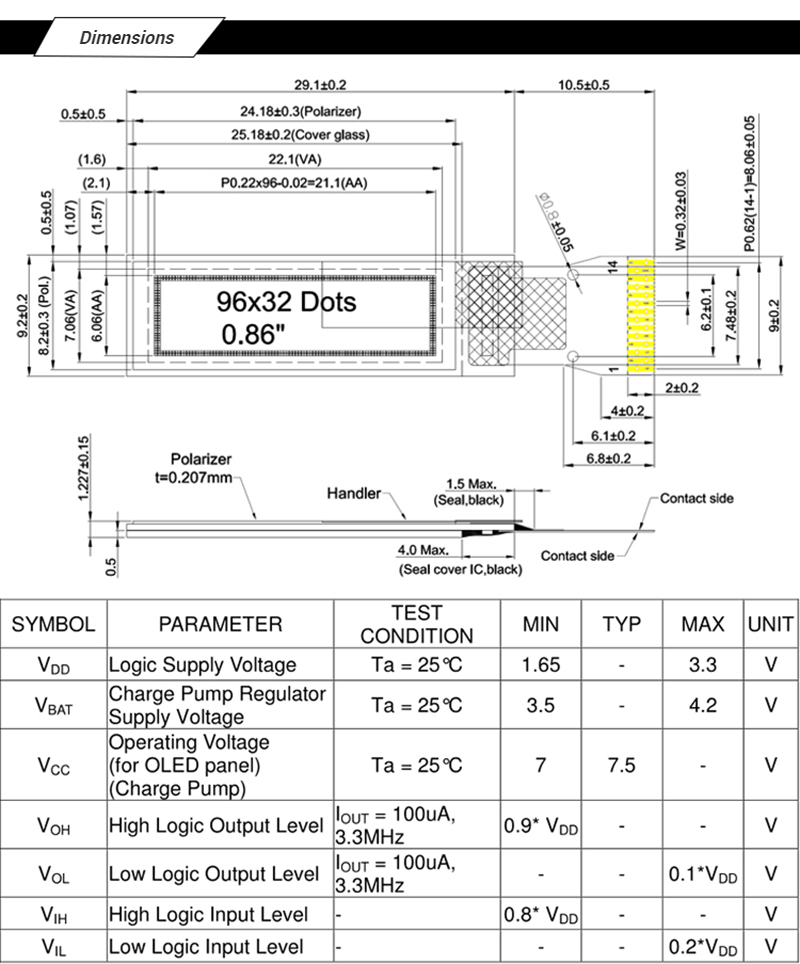

Dimensions

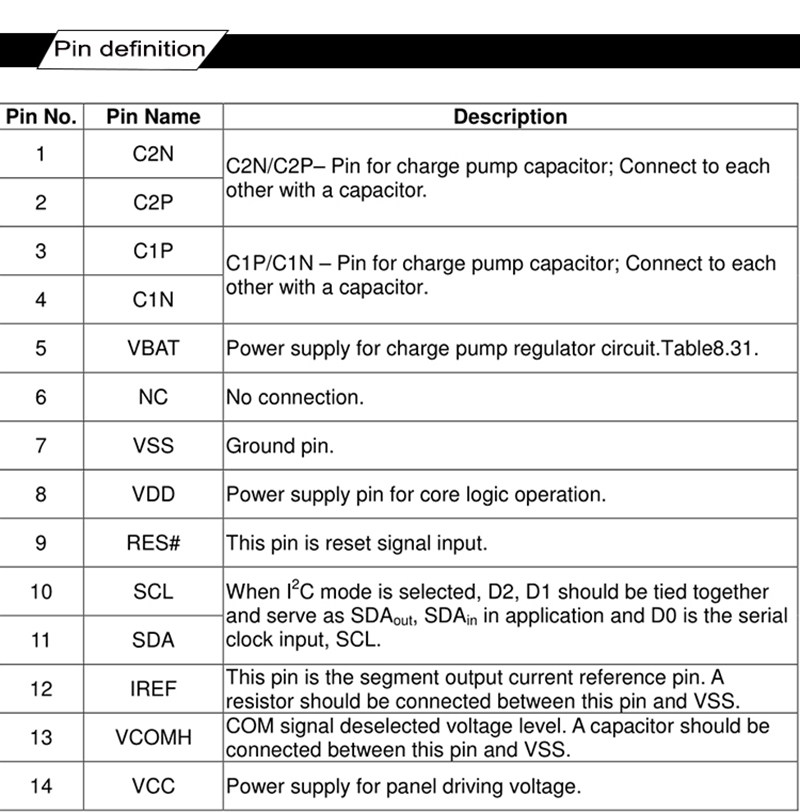

Pin Definitions
