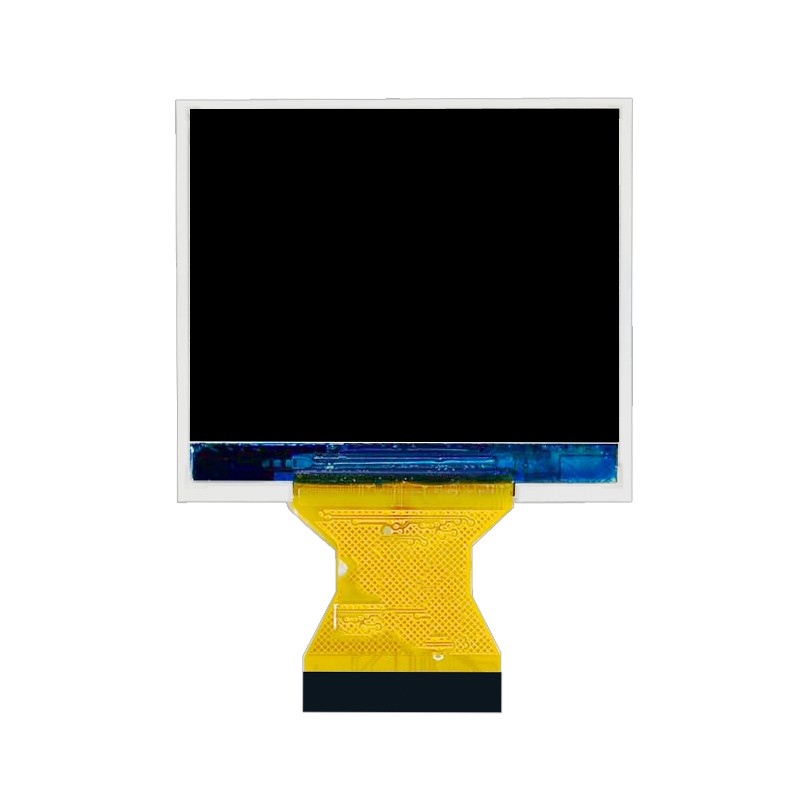

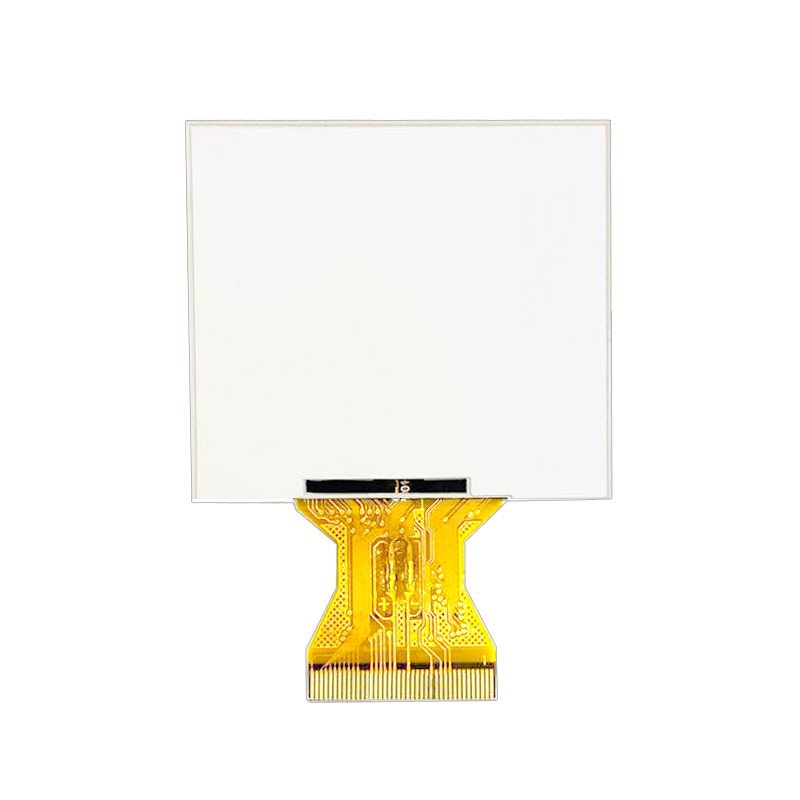

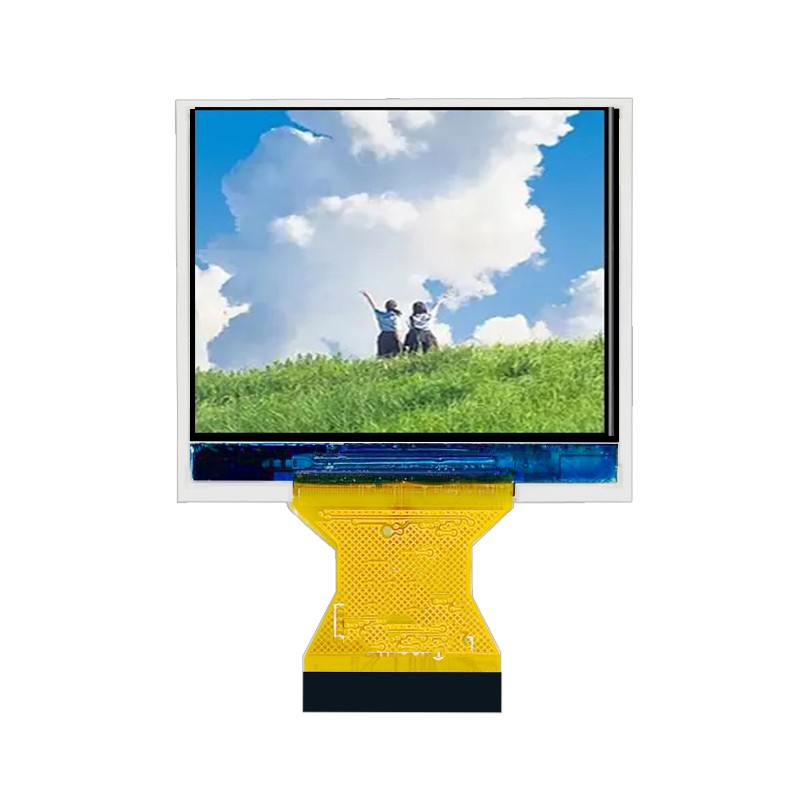

2.0 inch 960x240 Color IPS TFT Display Module

Description

This 2.0"TFT is a IPS Mini color TFT LCD display module is made of resolution 960 x RGBx240 pixels,with outline dimension of 46.1(W)×40.96(H)×2.53(D) mm and AA size 40.8(W)×30.6(H) mm.this 2.0" TFT display builts in ILI9342 Driver IC and supports RGB interface,with full viewing angle and wide range of operating Temperature,it is ideal to be used in industrial device,any embedded systems,medical equipment,wearable devices,security and hand-held devices which requests TFT display with high quality and colorful images.

• Resolution:240x(RGB)x320
• View Direction:12 O'clock
• Display Color : RGB 262K
• Power Supply :3-3.6 V
• Interface : RGB
• Controller IC :ILI9342
• Pin No: 40P Connector
• Dot pitch:0.1275 (W)×0.1275(H) mm

• Backlight: White LED

• LCD Type: TFT,Normally Black,Transmissive
• Panel Dimension: 46.1(W)×40.96(H)×2.53(D) mm
• Viewing Area :40.8(W)×30.6(H)mm
• Touch Screen:without or with
• Operation Temperature : -20℃~70℃
• Storage Temperature : -30℃~80℃

Dimensions

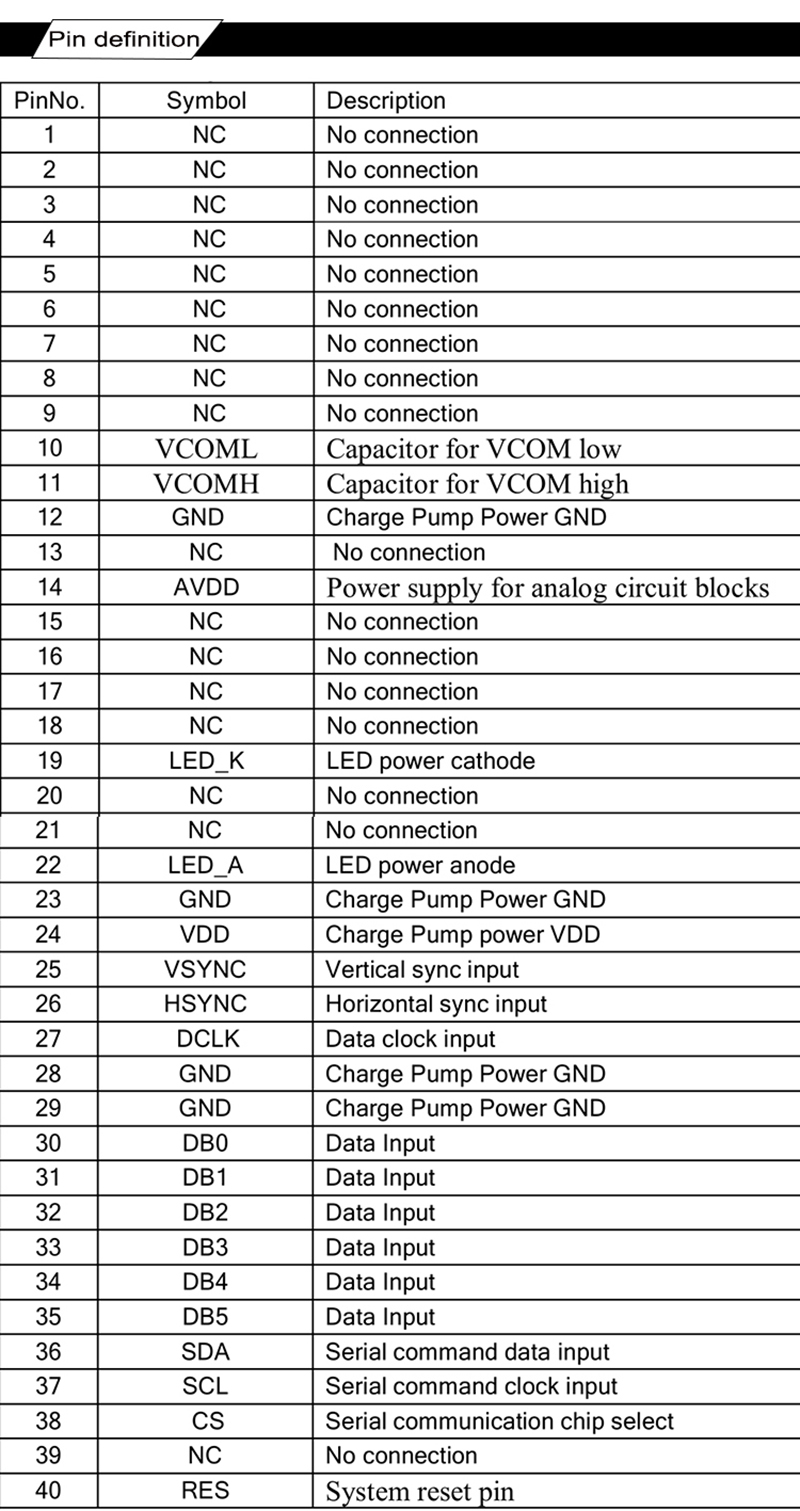

Pin Definitions
