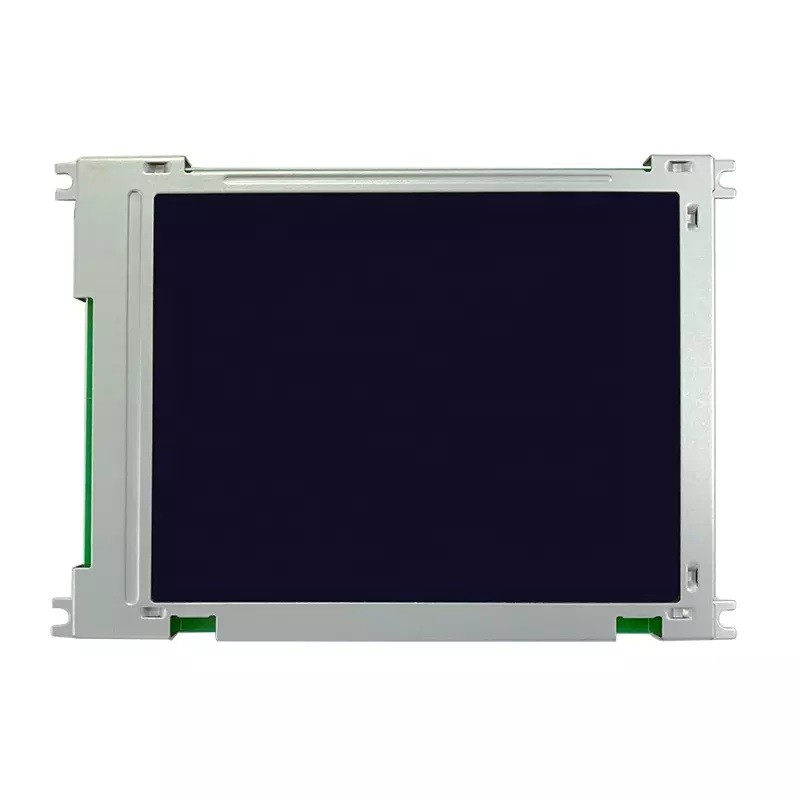

Monochrome Graphic Display 240x160

Description

This 240x160 LCD Display is the graphic LCD display module which is made of 240x160 resolution,with the outline size 135 x 96.5 x 9.8 mm and active area size of 103.50 x 80.00 mm.This 240x160 graphic LCD display builts in with RA8835 controller IC or compatible controller. It supports 8 bit Parallel and 5V power supply,it also Negative
Voltage Generator 3V optional,wide operating temperature range,rohs compliant.

• Resolution : 240x128  dots
• Display Mode : STN /Nositive /Transmissive/Blue
• Viewing Angles:6 O'clock
• Display Color : Blue
• Module Dimension :135 x 96.5 x 9.8 mm
• Viewing Area :103.50 x 80.00 mm
• Power Supply :5 V
• Interface : 8 bit Parallel
• Controller IC :RA8835
• Pin No: 18P
• Operation Temperature : -20℃~70℃
• Storage Temperature : -30℃~80℃

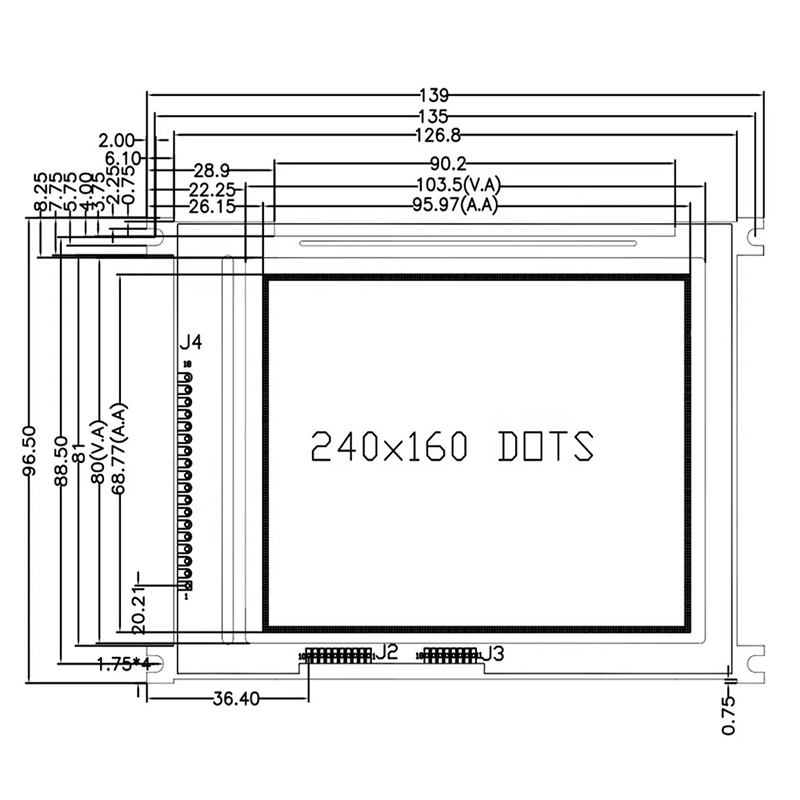

Dimensions
