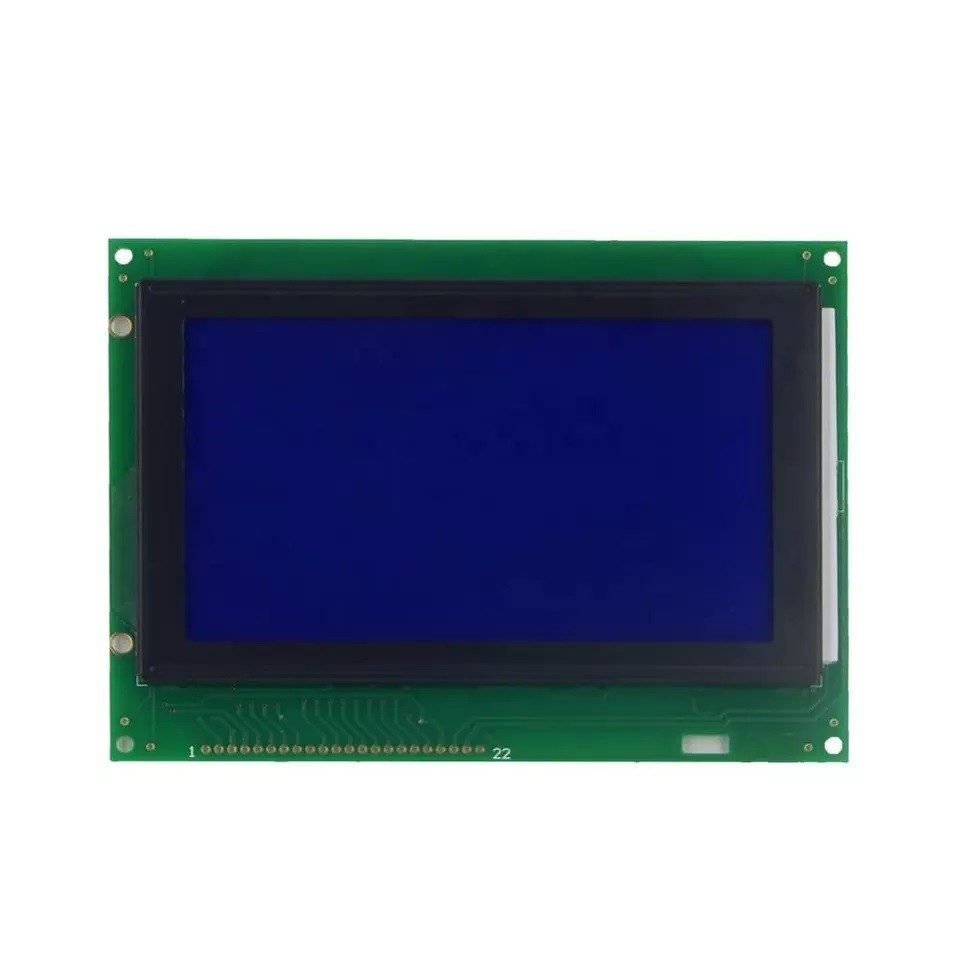

240x128 LCD Display Module

Description

This 240x128 LCD Display is the graphic LCD display module which is made of 240x128 resolution,with the outline size 144 x 104 x 12.5 mm and active area size of 107.95 x 57.55 mm.This 240x128 graphic LCD display builts in with T6963 /RA8822 controller IC or compatible controller. It supports 8 bit Parallel and 5V power supply,it also Negative
Voltage Generator 3V optional,wide operating temperature range,rohs compliant.

• Resolution : 240x128  dots
• Display Mode : STN /Nositive /Y-G /Transmissive/FSTN
• Viewing Angles:6 O'clock
• Display Color : Yellow-Green
• Module Dimension :144 x 104 x 12.5 mm
• Viewing Area :107.95 x 57.55 mm
• Power Supply :5 V
• Interface : 8 bit Parallel
• Controller IC :T6963 /RA8822
• Pin No: 22P
• Operation Temperature : -20℃~70℃
• Storage Temperature : -30℃~80℃

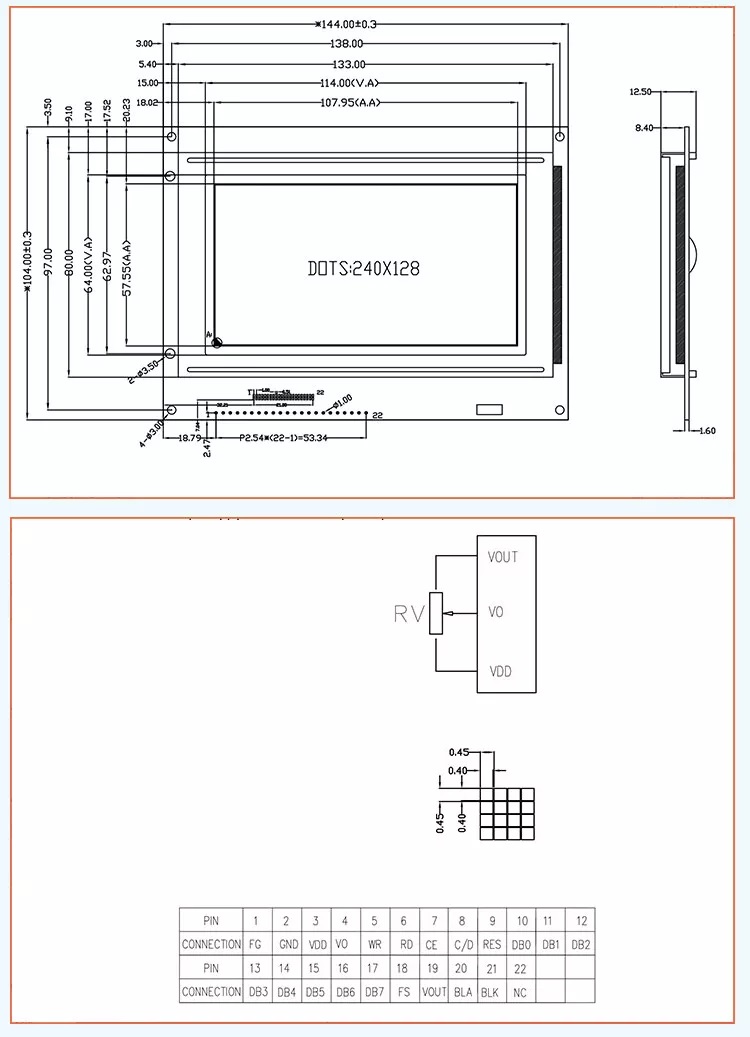

Dimensions
