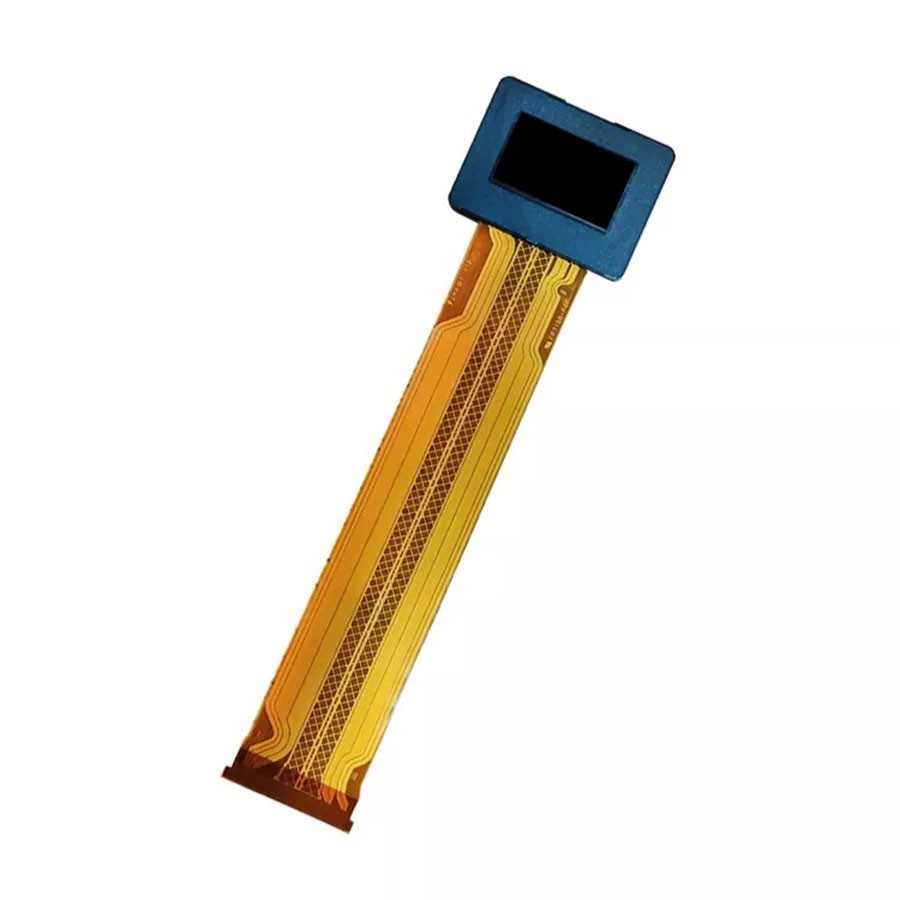

0.71 inch Micro OLED Display Full HD 1920X1080

0.71 inch 1080P AMOLED micro display high resolution 1920X1080 OLED module with transparent optic lens

Overview

The 0.71" micro oled display is a 1.8 cm (type 0.71) diagonal Si-OLED display panel , with a high resolution of FHD 1080P 1920(RGB) × 1080 and high brightness of 500 nits, this micro oled display  is self-emiting and without without touch function, using single crystal silicon transistors. This micro display incorporates panel driver and logic driver, so this micro display screen goes with features: small size, light weight ,high definition, wide operating temperature range of 0 ~70℃ and storage temperature range of -30~80°℃. It's general features are summarized in the following:U/DL/R ReverseVideo 1/F:Mini-LVDS, YCbCr.Based on its features,  this microoled model be applied to HMD VR AR etc.

0.71"1080P Micro oled display Parameter

Application fields of 0.71 micro display module

◆ AR / VR display, helmet display, digital camera / video camera, electronic viewfinder

◆ Portable civilian equipment, such as micro projector, video glasses, head mounted entertainment equipment, 3D display, game helmet, etc

◆Security monitoring and military use: individual helmet display, electronic sight, infrared night vision, thermal imager display, electronic telescope, riding helmet, gun aiming and life detection video devices

◆ Medical and industrial applications: human and computer video engineering research, endoscope, portable B-ultrasound machine, vision correction equipment, magnifying glass, various portable inspection and testing equipment

◆ Aircraft model: aerial photography, remote control aircraft parameter display system, remote control automobile video display terminal, etc

0.71" Micro display 1920x1080 Features:

-Small size display with high definition
-High contrast
-Wide range of color reproduction
-High response speed
-Thin and light
-Power saving function
-Up / down / left / right inverse display function
-Orbit supported

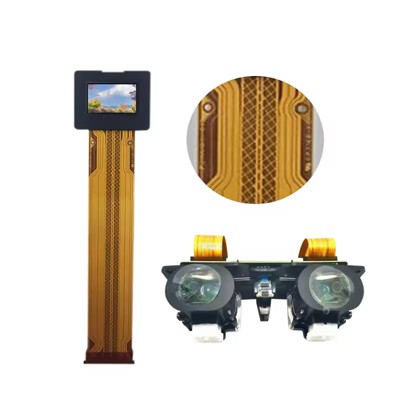

-Binocular & Monocular options

-Lens Cone height: 42mm
Optical picture market angle: 41.8 degrees
The distance of the pupil: 29mm
The diameter of the pupil: 6mm

-Easy Use: Plug power supply and input signals, then it will work

Dimensions

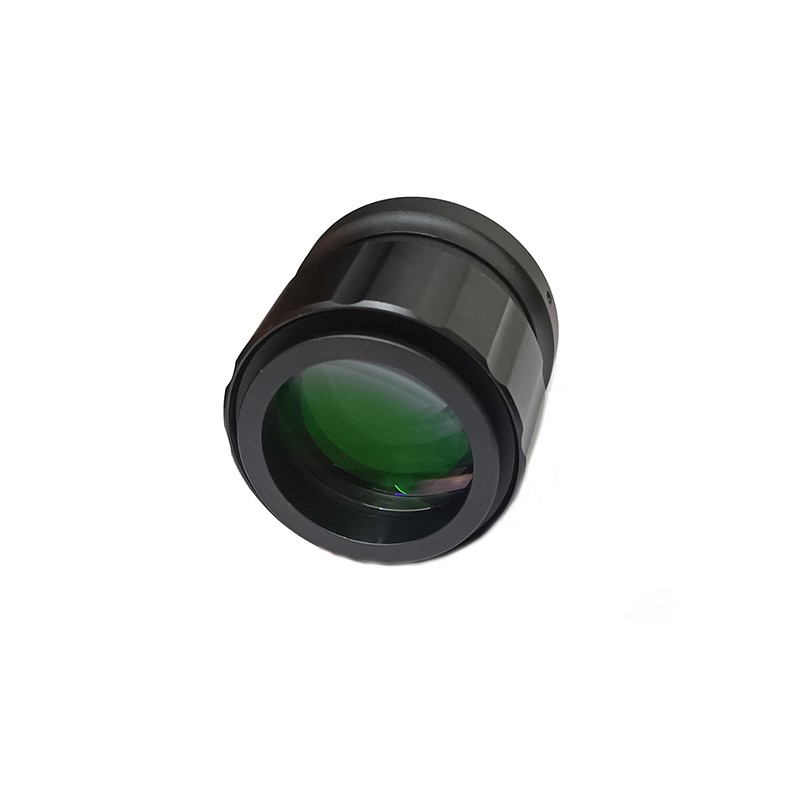

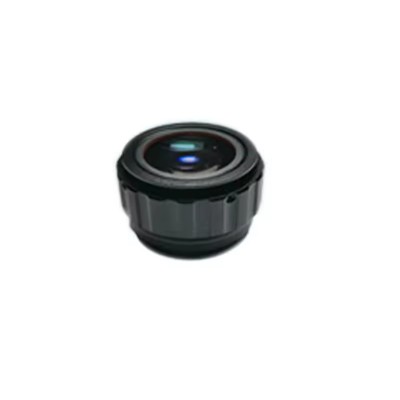

Magnifying optical lens

0.71" Micro AMOLED display Screen
