1080P AMOLED 0.49

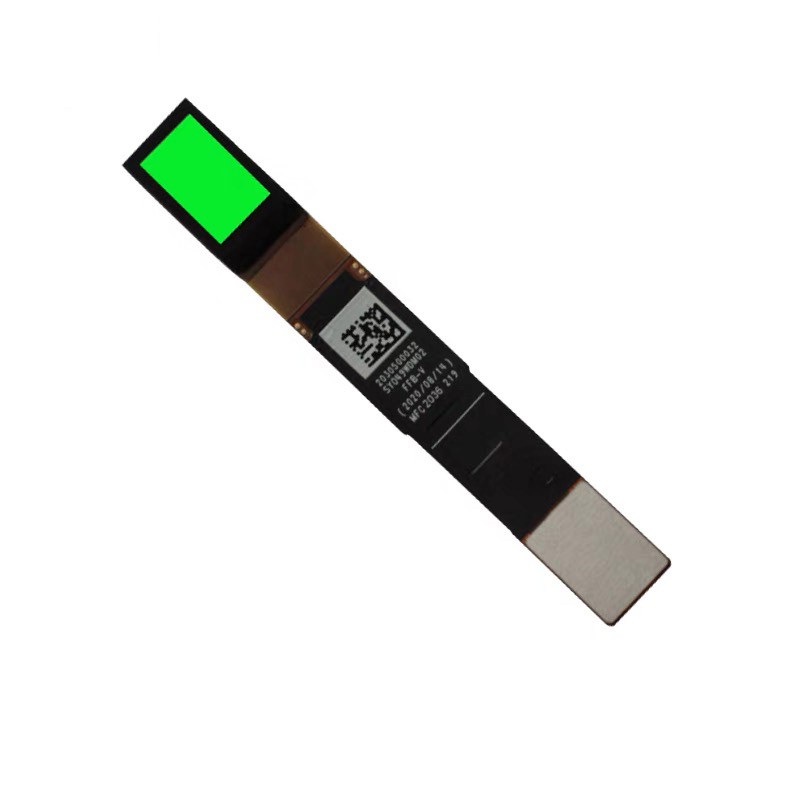

0.49 inch Micro-oled FHD 1080P 1920 x 1080 Micro display Screen 20000nits for Micro AR augmented reality glasses

Description

The 0.49 inch VR micro OLED is a cutting-edge Monochrome green micro display, with the Si OLED (Silicon Organic Light Emitting Diode) technology, this micro-oled display has impressive features and specifications, such as high resolution of 1920x1080 pixels and a pixel density of 3692PPI, high luminance of 20000cd/m2, which makes this microoled delivered stunning visual clarity and sharpness and ensuring crystal-clear image quality that can enhance the virtual reality experience;The micro Si OLED technology used in this display provides high contrast, deep blacks, and vibrant colors, making it an ideal choice for HMD VR AR and military field.

its high brightness of 20000nits, high Contrast Ratio of 50000:1and high Resolution 1080P, provides exceptional visibility even in bright outdoor environments; based on single-crystal silicon transistors, this microdisplay integrates panel driver and logic driver to realizes smaller size, lighter weight, lower power consumption, which make this oled microdisplay widely used in fields of aviation industry, medical, education military and virtual reality, such as virtual reality headsets, AR glasses,Aviation Head-Up Displays (HUD) and Head-Mounted Displays (HMD),etc.

There are display adapter driver board of HDMI/TYPE-C  for better demo.

0.49 inch Si-OLED micro display parameter:

Display Type:Micro OLED;SI-OLED
Resolution:1920 x 1080;FHD 3692PPI
Screen Size:15.68mm x 9.09mm x 1.5mm
Active Area:10.783mm x 6.065mm/ 0.49" diagonal
Luminance(Brightness):20000nits(Typ.)
Color:Mono Green
Color Depth:Grayscale (G)
Contrast Ratio:50,000:1
Interface:MIPI+I2C
Frame Rate:90Hz
Operating Temperature:-20℃ to +70℃
Storage Temperature:-40℃ to +80℃
Application: AR VR devices, HUD, HMD,EVF, Night vision, Hunting, Scope...


Dimension:

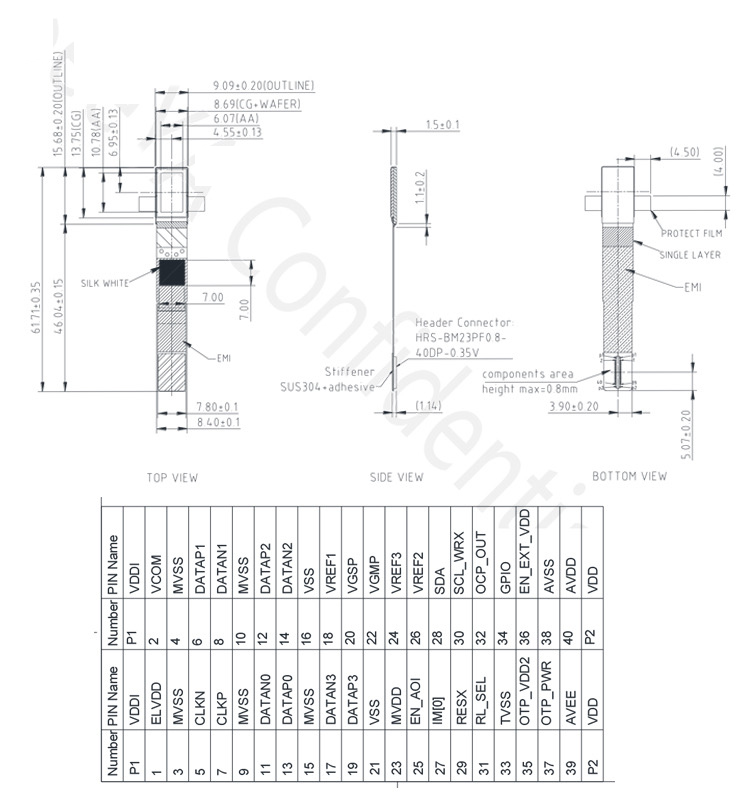

0.49" micro oled screen

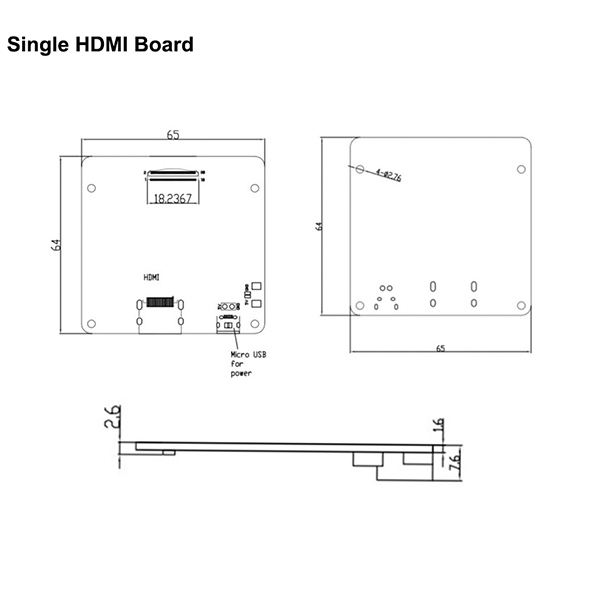

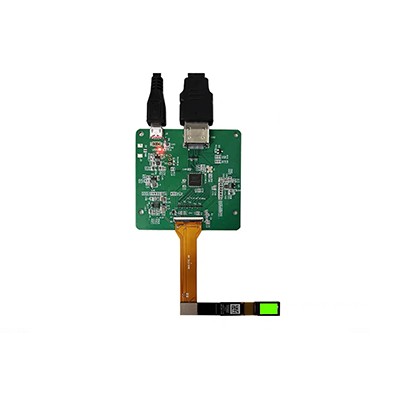

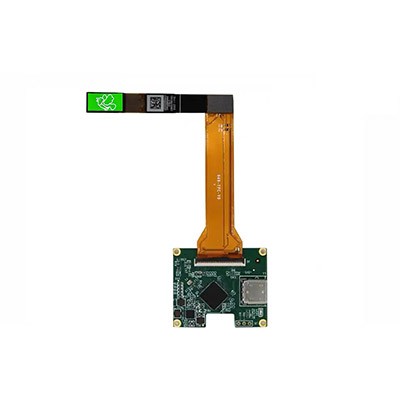

single HDMI controller board

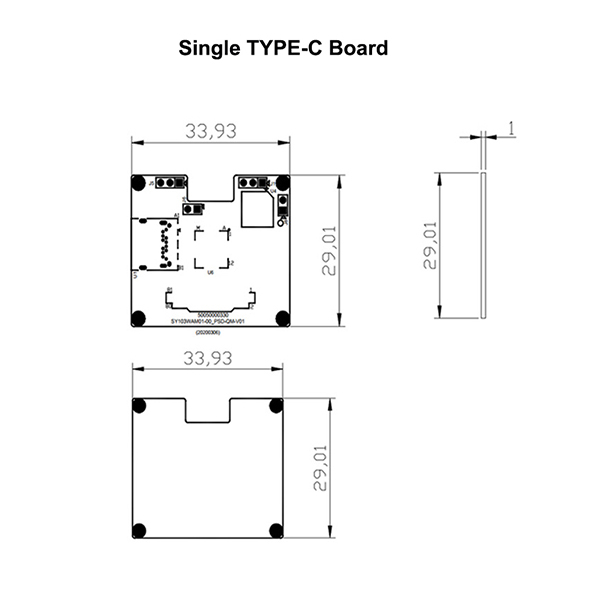

single TYPE-C controller board

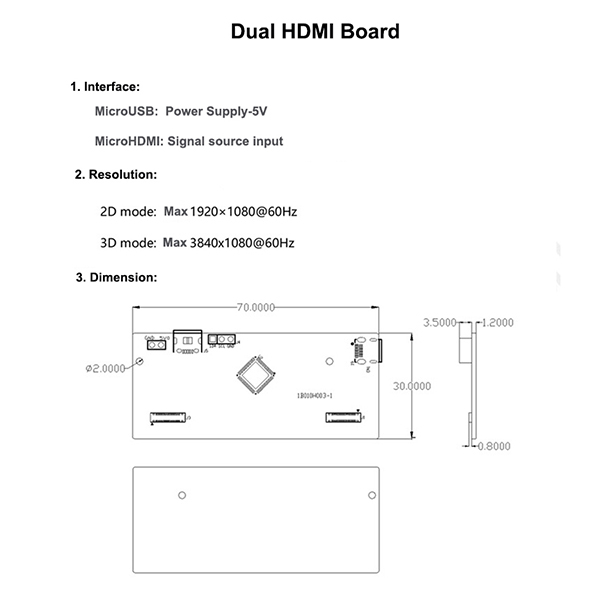

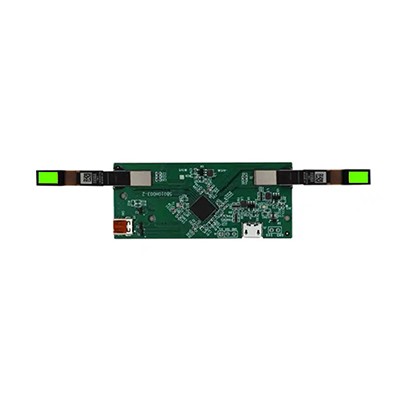

dual HDMI controller board

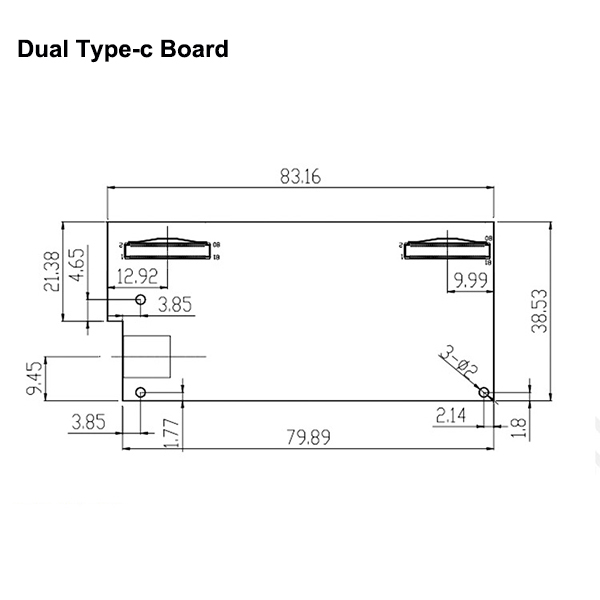

dual TYPE-C controller board
