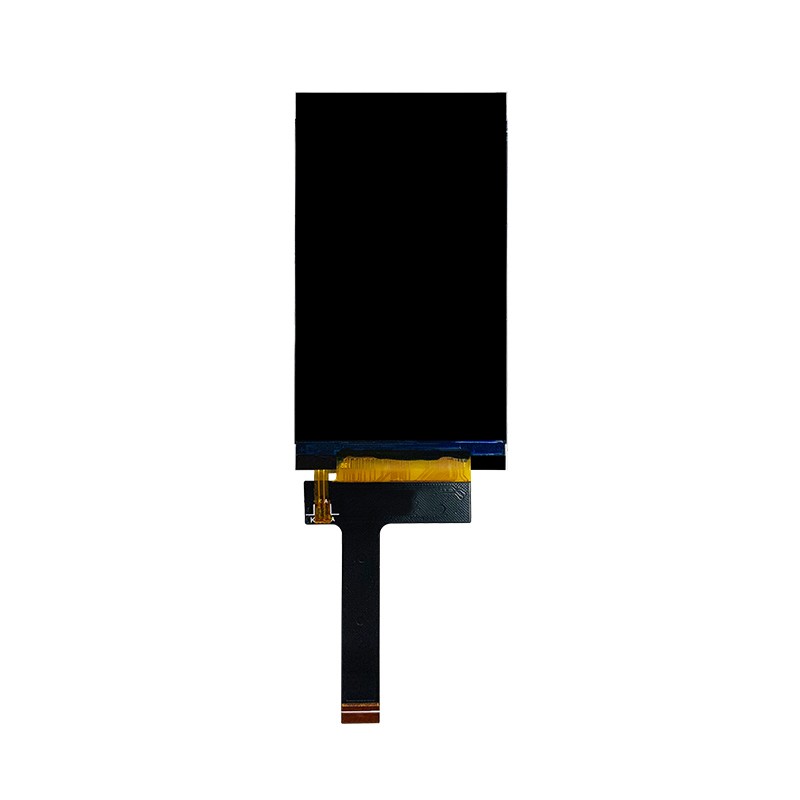

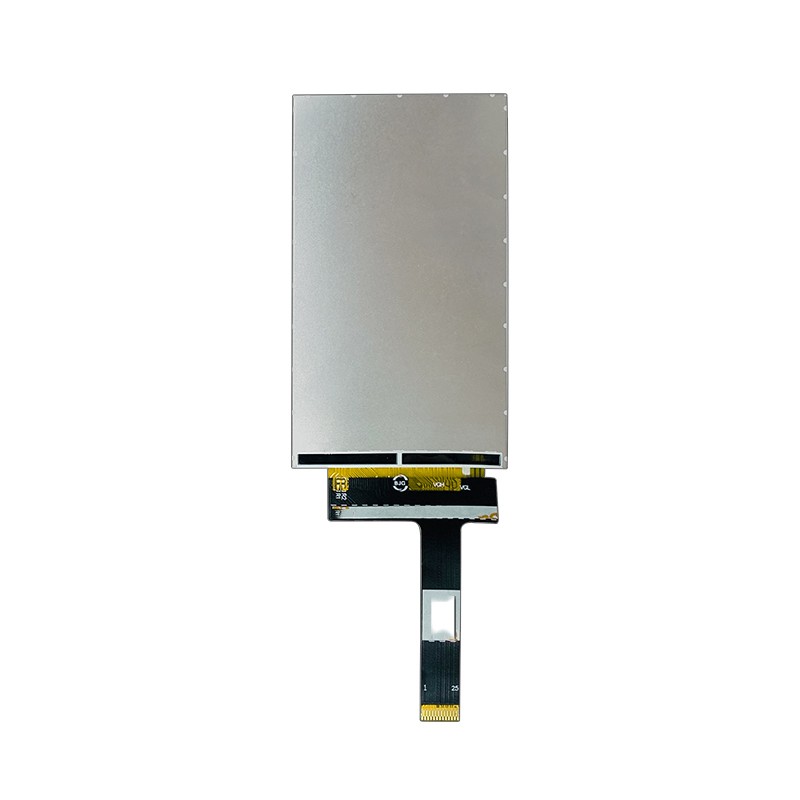

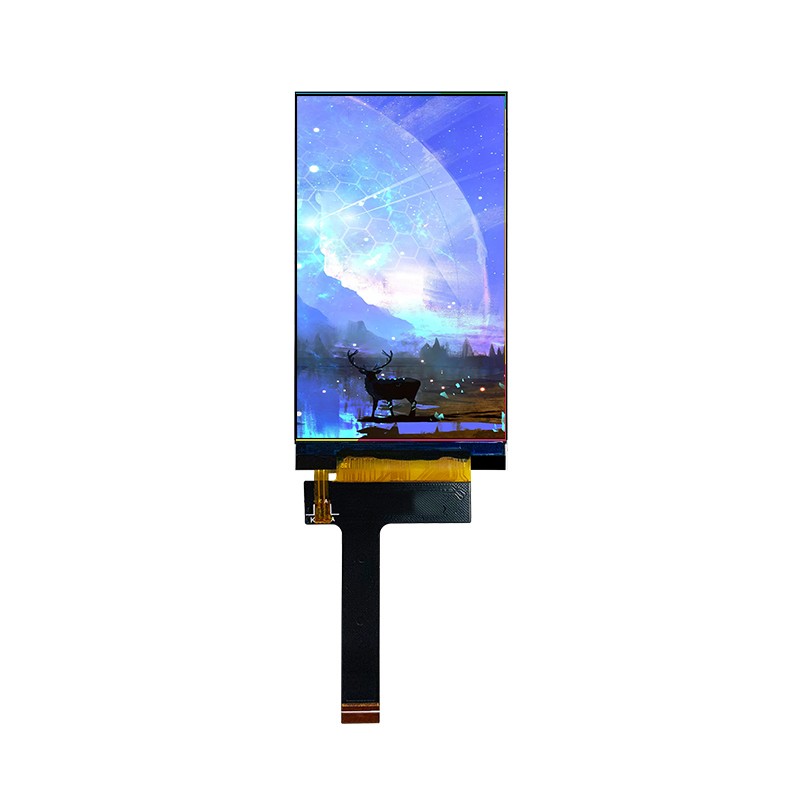

3.1 inch Colour TFT LCD Display 480x800

Description

This 3.1"TFT is a IPS Mini color TFT LCD display module is made of resolution 480x RGBx800 pixels,with outline dimension of 43.68(H)x77.02(V)x1.55 mm and AA size 40.32(H)x67.20(V) mm.this 3.1" TFT display builts in ST7701 Driver IC and supports MIPI interface,with full viewing angle and wide range of operating Temperature,it is ideal to be used in industrial device,any embedded systems,medical equipment,wearable devices,security and hand-held devices which requests TFT display with high quality and colorful images.

• Resolution:480x(RGB)x800
• View Direction:ALL O'clock
• Display Color : RGB
• Power Supply :2.5-3.3 V
• Interface :MIPI
• Controller IC :ST7701
• Pin No: 25P Connector
• Backlight:  White LEDs

• LCD Type: TFT,Normally Black,Transmissive
• Panel Dimension:43.68(H)x77.02(V)x1.55 mm
• Viewing Area :40.32(H)x67.20(V) mm
• Touch Screen:without or with
• Operation Temperature : -20℃~70℃
• Storage Temperature : -30℃~80℃

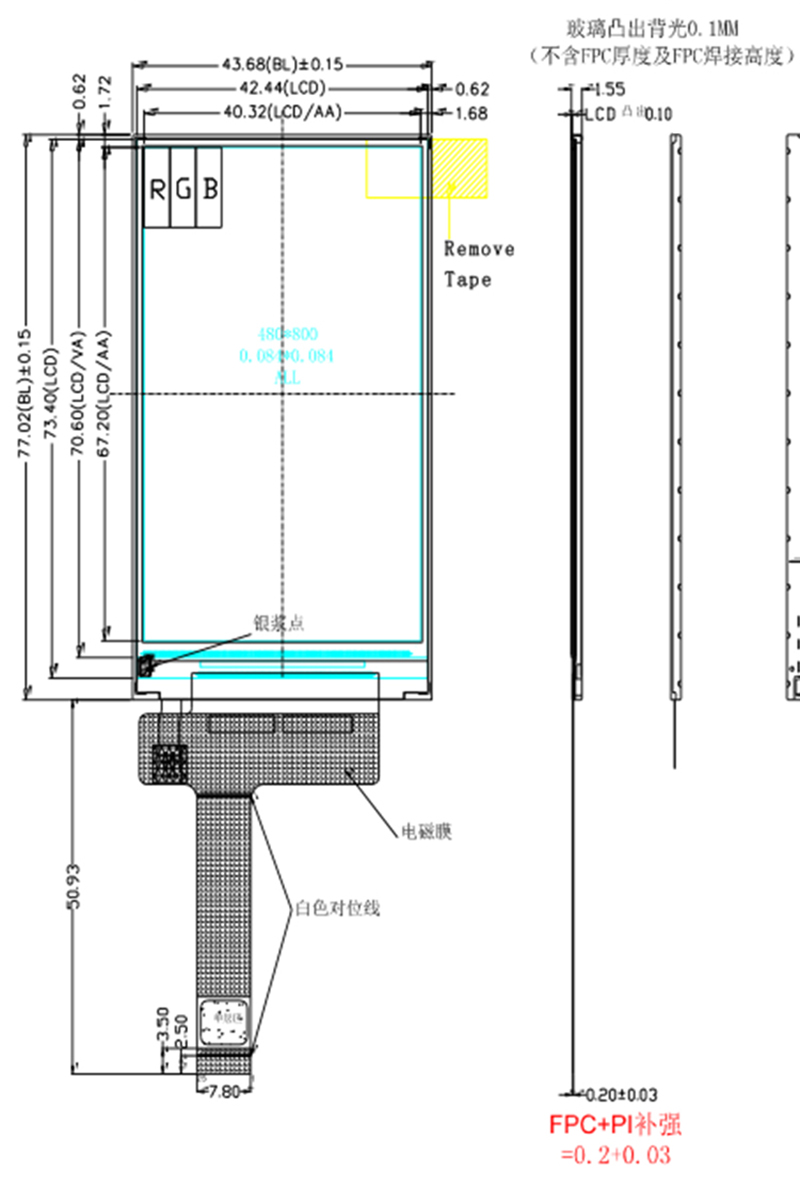

Dimensions

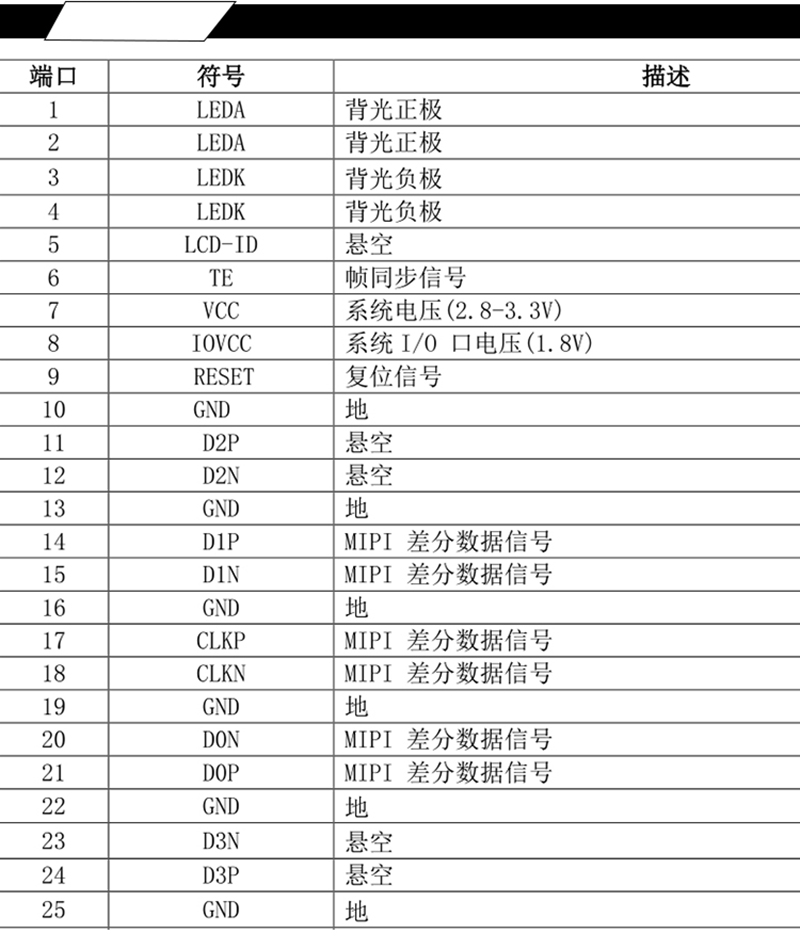

Pin Definitions
