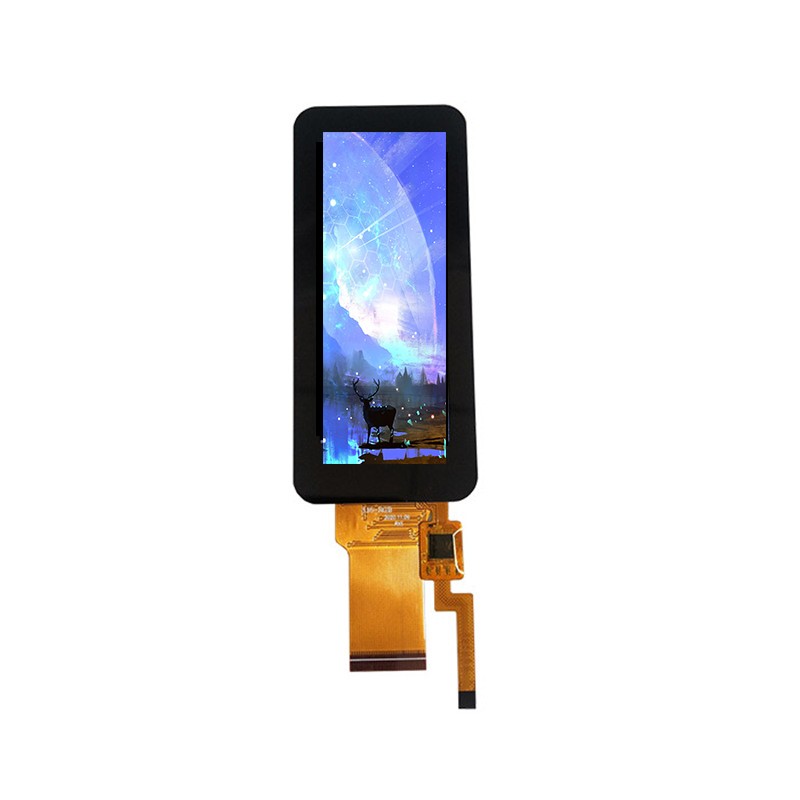

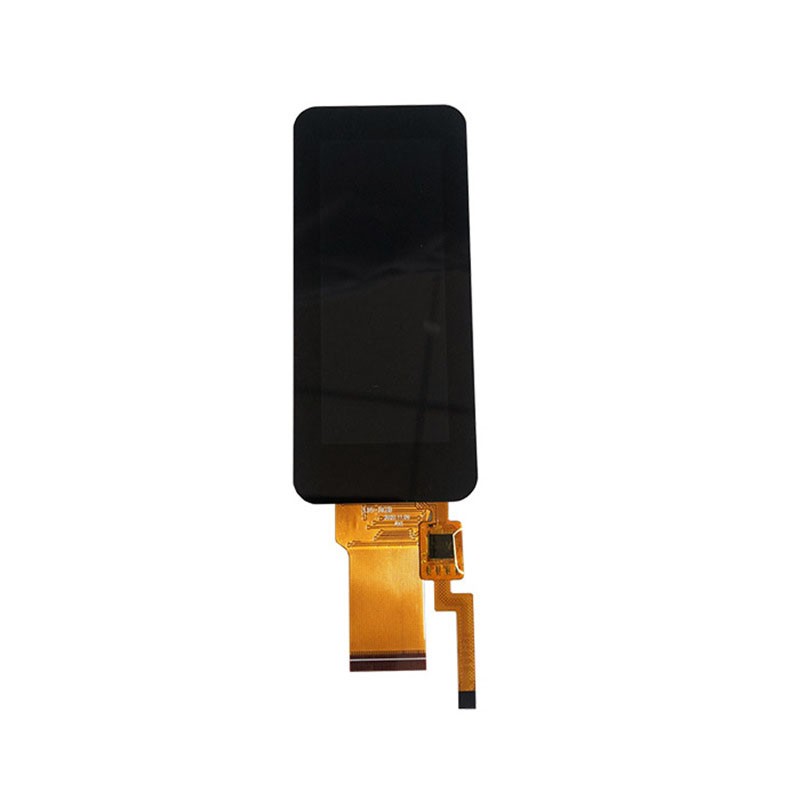

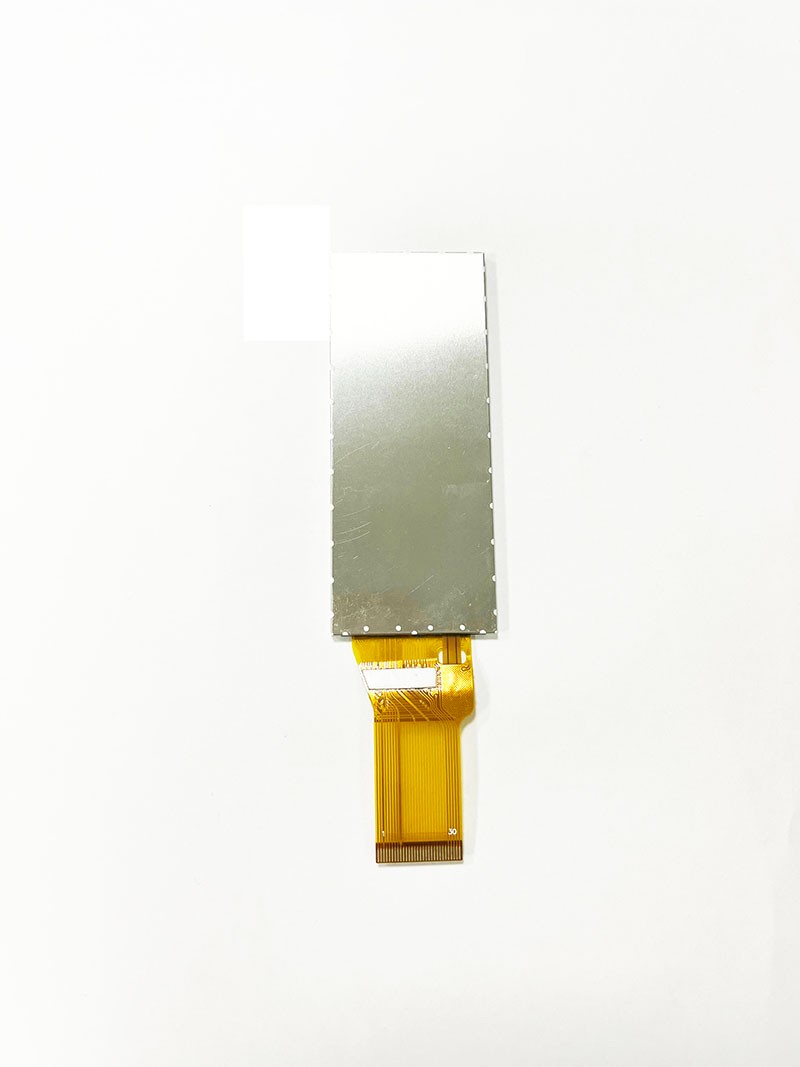

3.2 inch 320x820 TFT LCD Module touchscreen

Description

This 3.2"TFT is a IPS Mini color TFT LCD display module is made of resolution 320x RGBx820 pixels,with outline dimension of 38.72(H)x88.72(V)x3.53 mm and AA size 26.40(H)x67.65(V) mm.this 3.2" TFT display builts in ST7701 Driver IC and supports RGB interface,with full viewing angle and wide range of operating Temperature,it is ideal to be used in industrial device,any embedded systems,medical equipment,wearable devices,security and hand-held devices which requests TFT display with high quality and colorful images.

• Resolution:320x(RGB)x820
• View Direction:ALL O'clock
• Display Color : RGB
• Power Supply :2.5-3.3 V
• Interface :RGB
• Controller IC :ST7701
• Pin No: 30P
• Backlight:  White LEDs

• LCD Type: TFT,Normally Black,Transmissive
• Panel Dimension:38.72(H)x88.72(V)x3.53 mm
• Viewing Area :26.40(H)x67.65(V)  mm
• Touch Screen:with
• Operation Temperature : -20℃~70℃
• Storage Temperature : -30℃~80℃

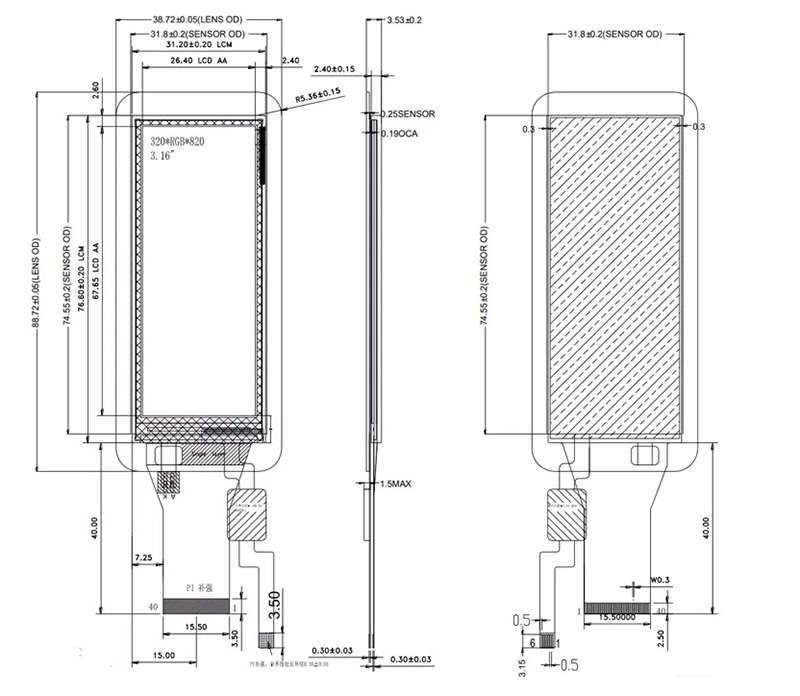

Dimensions

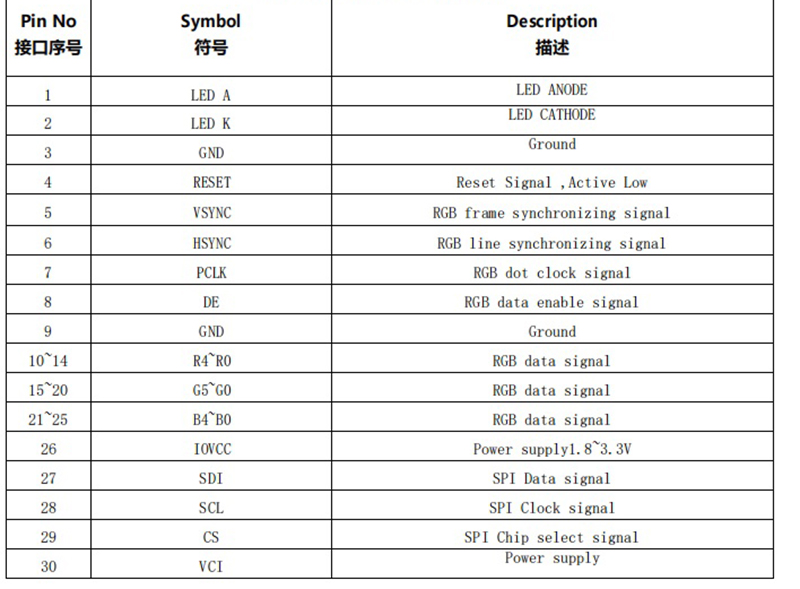

Pin Definitions
