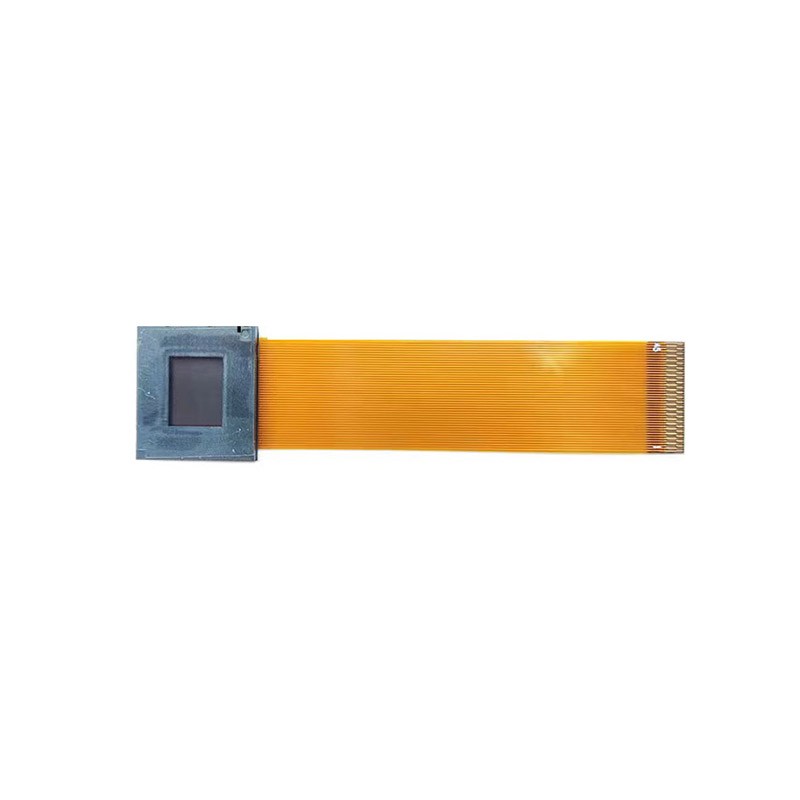

0.39" Micro AR OLED Microdisplay 1024x768 high resolution 1024x768 XGA Microdisplay for Military application

Overview

This MICROOLED 1024x768 Microdisplay is a 0.39 inch high-resolution emissive OLED microdisplay, this Micro display is based on a CMOS backplane accessible through standard video interface.due to its MICROOLED's proprietary OLED-on-CMOS technology, this Micro-oled screen is given divers features of very high resolution at an extremely small footprint, low power consumption, high-resolution, high contrast, which makes this micro display offer excellent video picture quality, meanwhile, since this micro amoled display module embeds low-latency video processing capabilities and manages look-up tables, it is a key to guarantee high quality images, support wide temperatures in operation and storage range, it is very perfect used in Military filed.

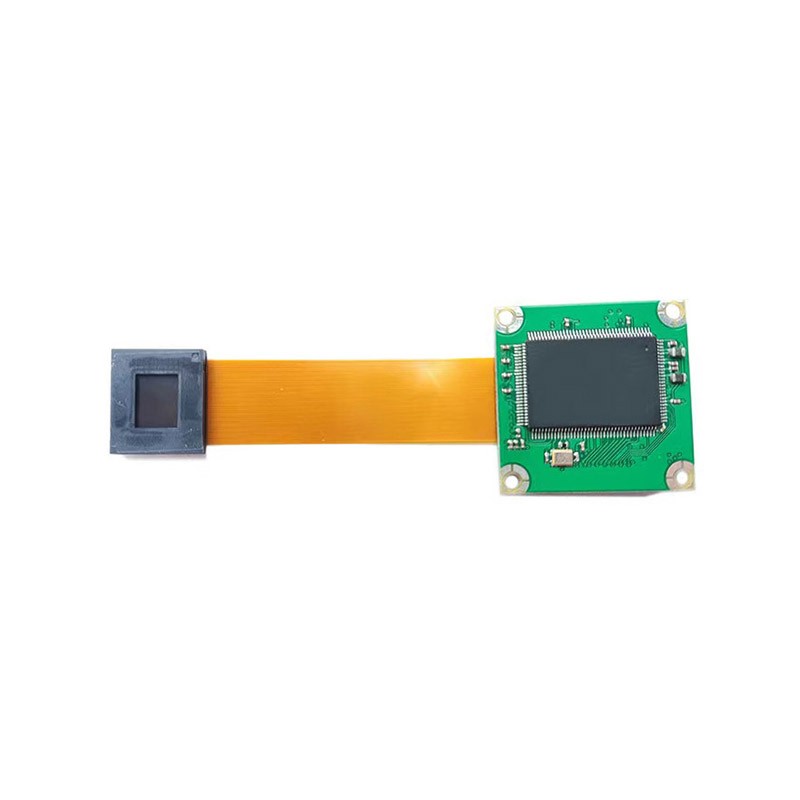

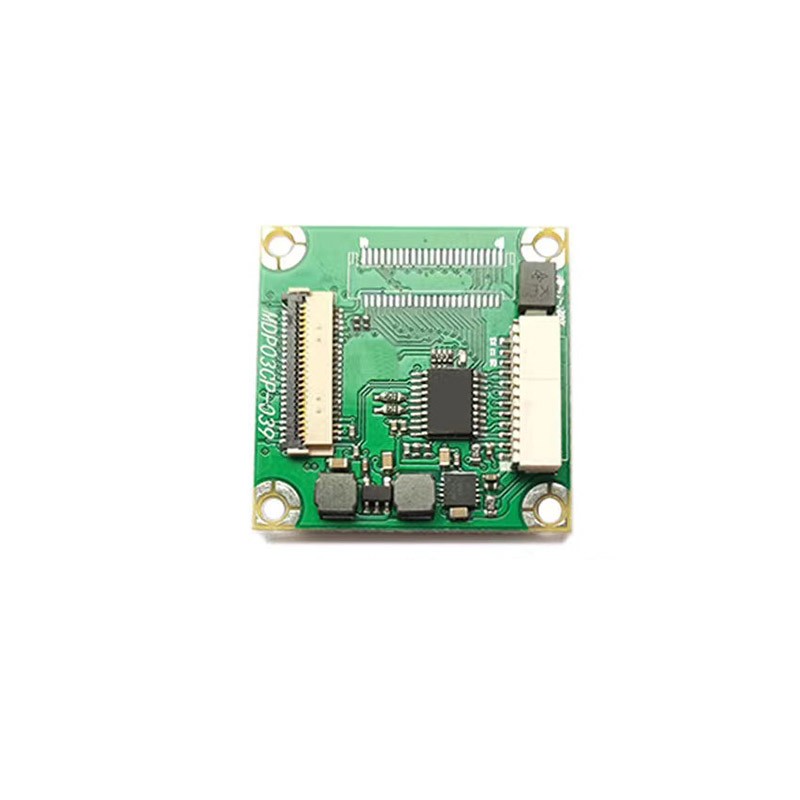

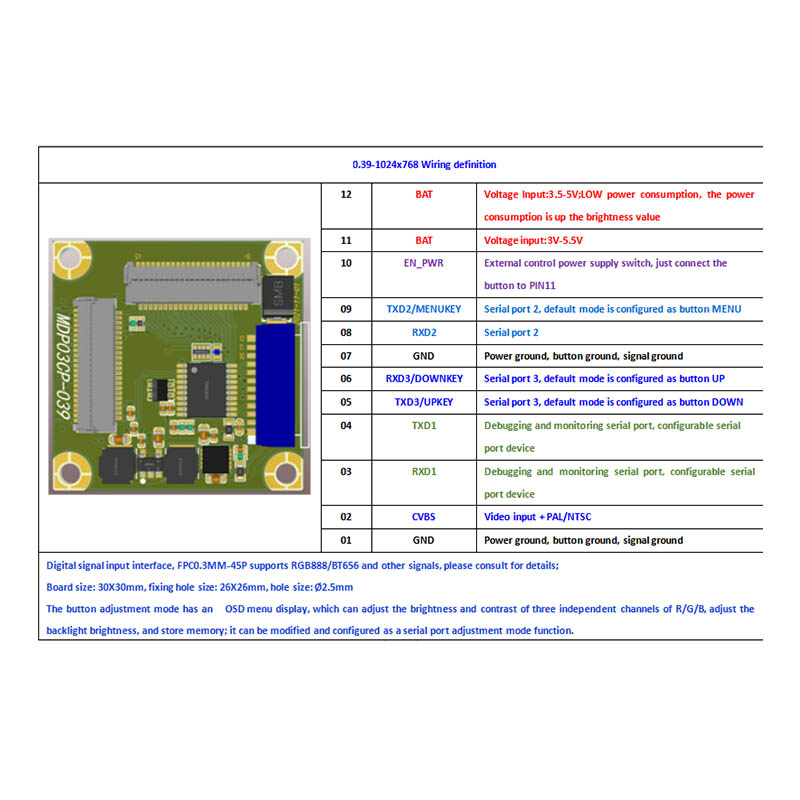

dispaly HDMI adapter controller board For better demo this microoled display

0.39 inch Micro Display 1024x768 parameter:

Part No:MDP03CP
Display Size: 0.39"
Display Type: Micro SI-OLED Display module
Resolution:Standard XGA resolution: 1024(H)x 768(V)20 extra lines and 20 extra columns for image position adjustment
Number of pixels:1024 x 768 x4 sub-pixels active matrix = 3.2M dots
Pixel arrangement:Square pixelarrangement
Pixel pitch:7.6um x7.6um(sub-pixels 3.8umx3.8um)

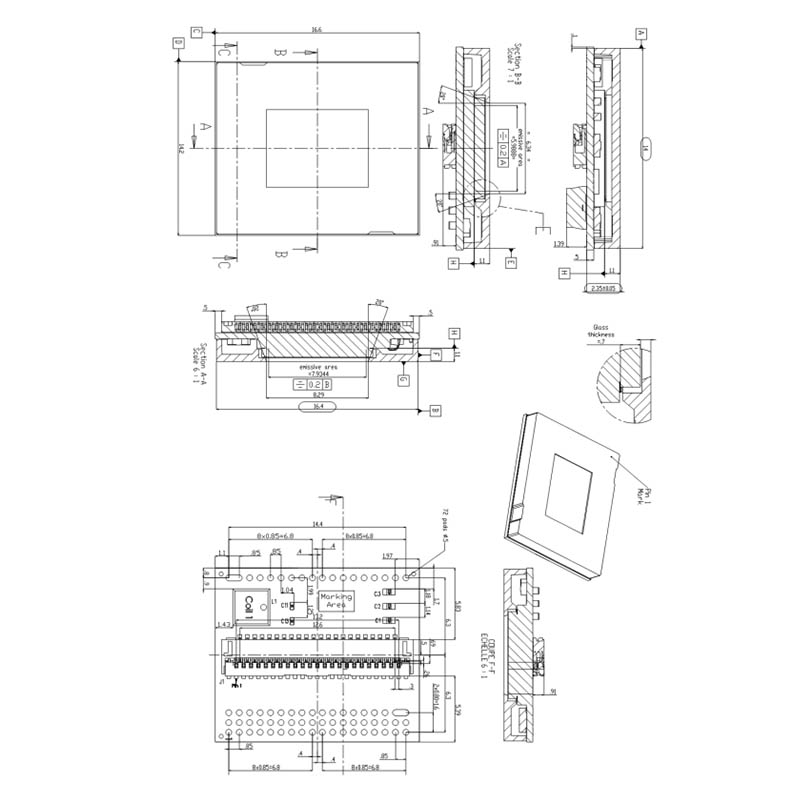

Active area:7.93mm x 5.99mm(0.39"diagonal)
Luminance:MDP03CPFC: up to 250cd/m2, 73fL; MDP03CPWF: up to 400cd/m2: 117fL
White color balance:ClExy(0.305,0.315)standard white @ 200 Cd/m2 (Other coordinates available on request)
Video interface:Standard digital video interface (RGB 4:4:4, YCbCr 4:2:2);Compatible with Gray-encoded RGB 4:4:4 video data
Latency:Minimal, constant latency guaranteed by design (less than 80uS @ 60Hz frame rate/63.5Mhz pixel clock)
Frame rate:Typically 60 frames per second
Control interface:I²c
Non volatile memory：Embedded color correction and product traceability data
Video processing：Embedded video processing for a perfect image quality and straightforward system integration
Temperature sensor：Embedded dipitaltemperature sensor
Operating voltage：Two modes available:Single supply mode= 3.3V-Li-lon battery compatible (lowest cost);Dual supply mode = 3.3V- Li-lon battery compatible and 1.8V (lowest power consumption)
Voltage regulator:Embedded voltage regulators
Cathode voltage:Embedded programmable negative cathode voltage generator
Power consumption:~200mw in typical video mode
Operating temperature range:MDP03CP:-40°C to 70°C
Storage temperature:MDP03CP:-40°C to 70°C
