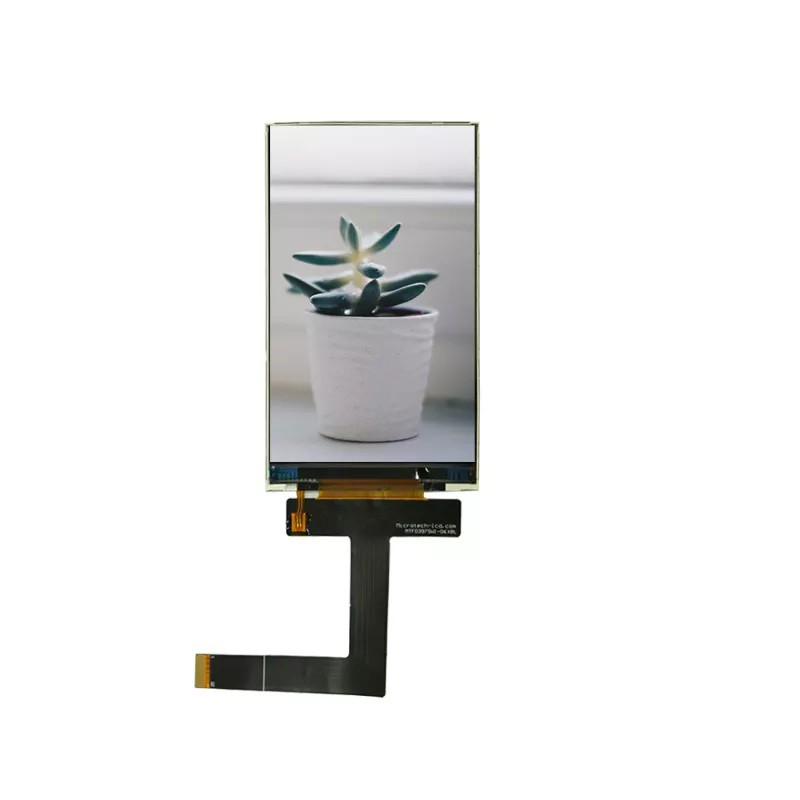

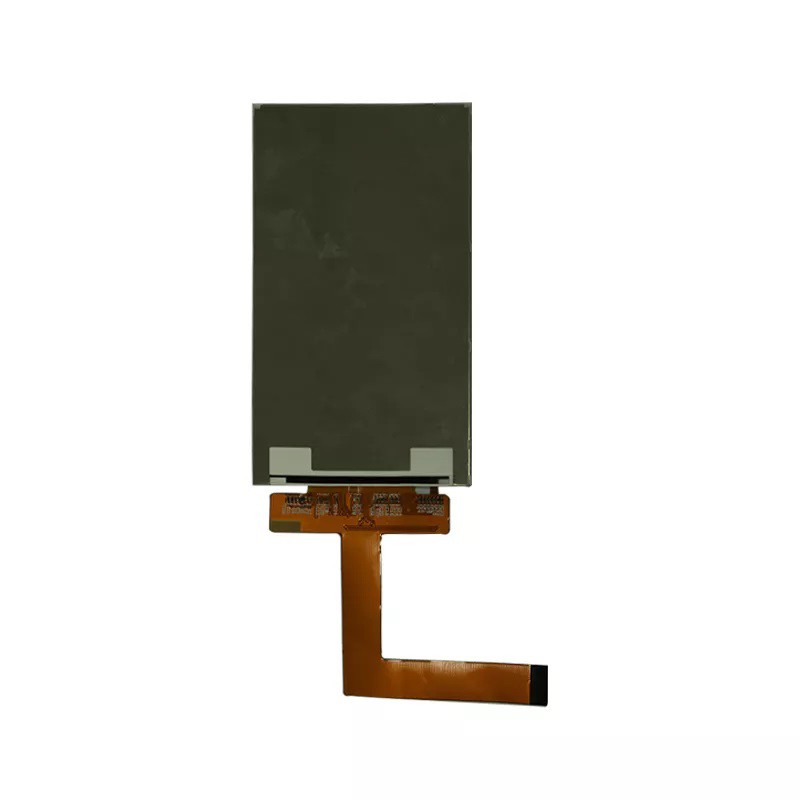

4 inch 3.97 TFT LCD Display Module 480X800

Description

This 3.97"TFT is a IPS Mini color TFT LCD display module is made of resolution 480x RGBx800 pixels,with outline dimension of 57.14 x 96.85 x 2.3 mm and AA size 51.84 X86.40 mm.this 3.97" TFT display builts in OTM8019A Driver IC,with full viewing angle and wide range of operating Temperature,it is ideal to be used in industrial device,any embedded systems,medical equipment,wearable devices,security and hand-held devices which requests TFT display with high quality and colorful images.

• Resolution:480x(RGB)x800
• View Direction:12 O'clock
• Display Color : RGB
• Power Supply :2.5-3.3 V
• Controller IC :OTM8019A

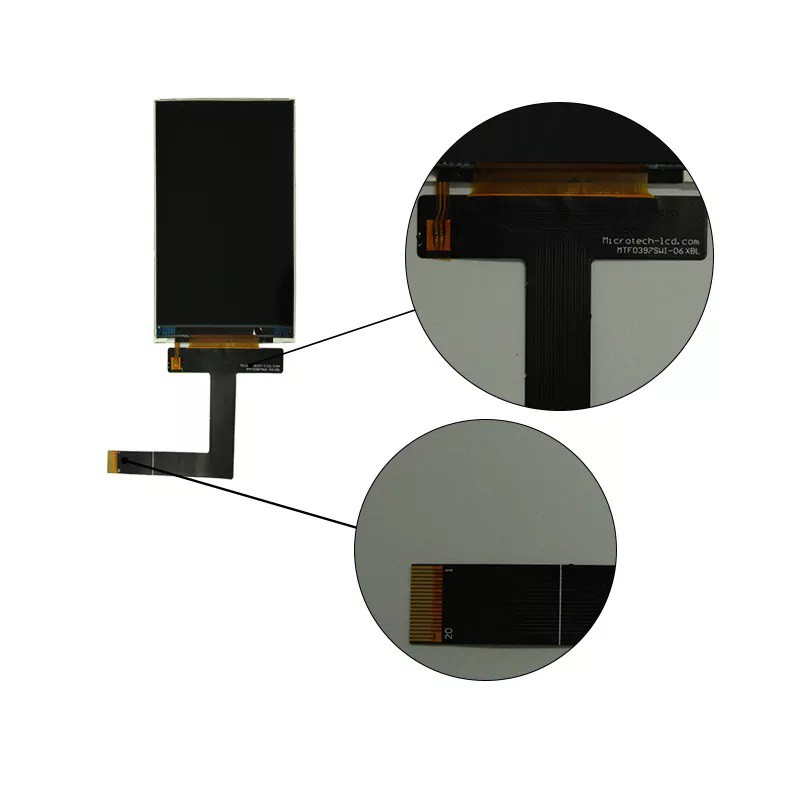

• Pin No: 20P
• Backlight:8 chip White LEDs

• LCD Type: TFT,Normally Black,Transmissive
• Panel Dimension:57.14 x 96.85 x 2.3 mm
• Viewing Area : 51.84 X86.40 mm
• Touch Screen:with or without
• Operation Temperature : -20℃~70℃
• Storage Temperature : -30℃~80℃

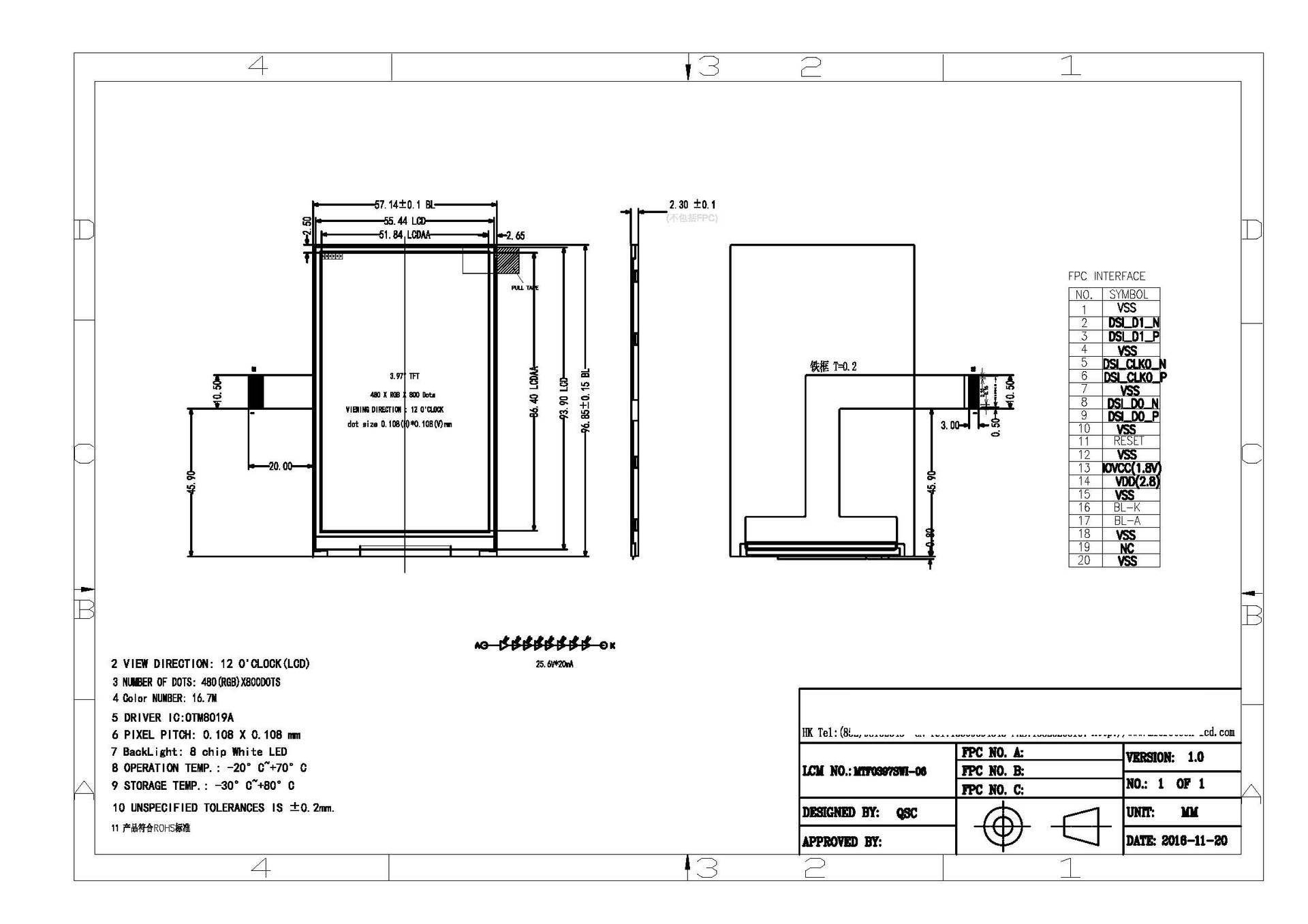

Dimensions
