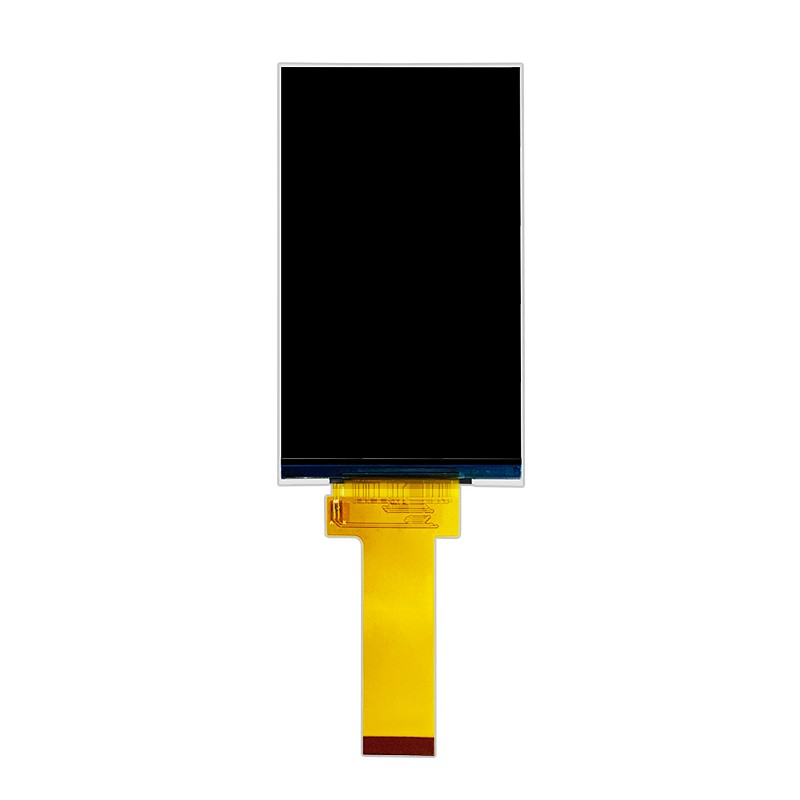

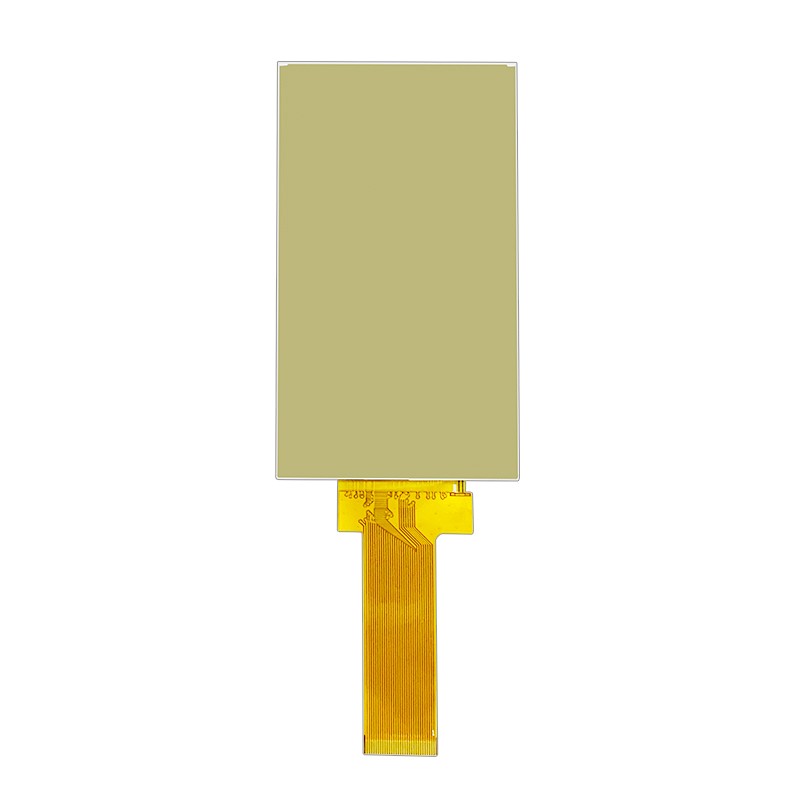

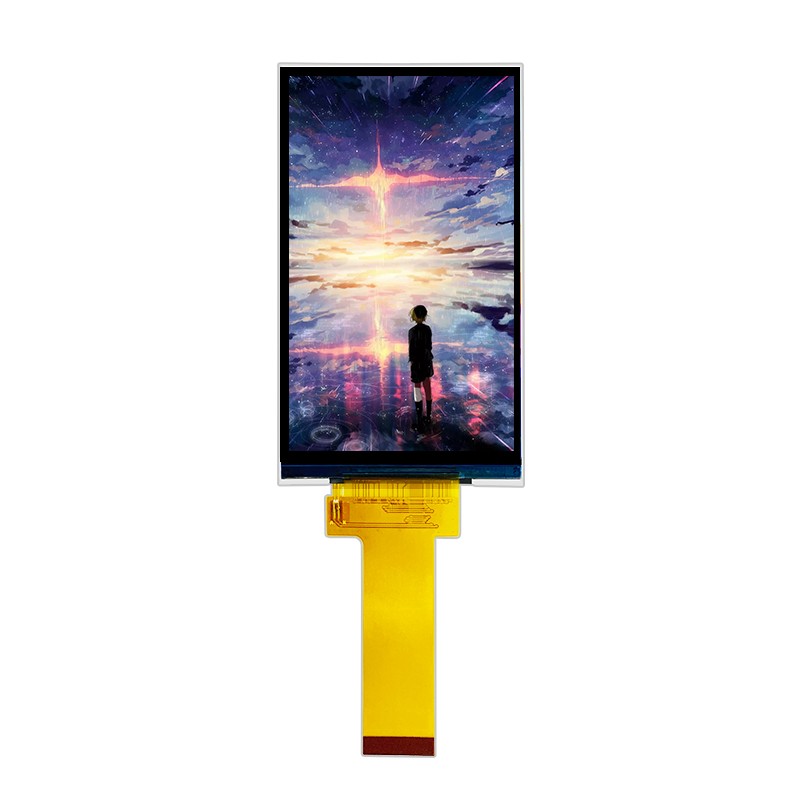

3.97 inch IPS TFT LCD Module 480x800 SPI RGB Interface

Description

This 3.97"TFT is a IPS Mini color TFT LCD display module is made of resolution 480x RGBx800 pixels,with outline dimension of 55.44 x 96.17 x 2.3 mm and AA size 51.84 X86.40 mm.this 3.97" TFT display builts in ST7701 Driver IC and supports SPI/RGB interface,with full viewing angle and wide range of operating Temperature,it is ideal to be used in industrial device,any embedded systems,medical equipment,wearable devices,security and hand-held devices which requests TFT display with high quality and colorful images.

• Resolution:480x(RGB)x800
• View Direction:12 O'clock
• Display Color : RGB
• Power Supply :2.5-3.3 V
• Interface :SPI/RGB
• Controller IC :ST7701
• Pin No: 32P
• Backlight:  White LEDs

• LCD Type: TFT,Normally Black,Transmissive
• Panel Dimension:55.44 x 96.17 x 2.3  mm
• Viewing Area : 51.84 X86.40 mm
• Touch Screen:with or without
• Operation Temperature : -20℃~70℃
• Storage Temperature : -30℃~80℃

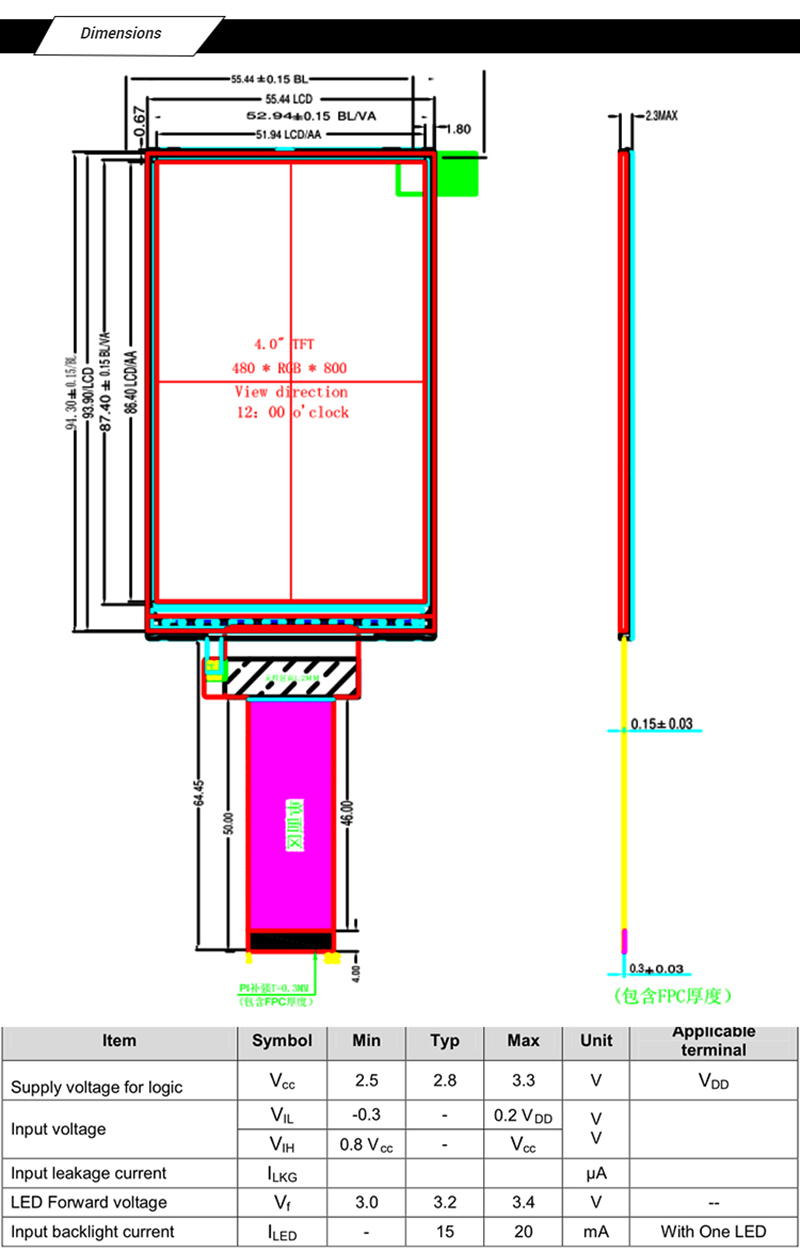

Dimensions

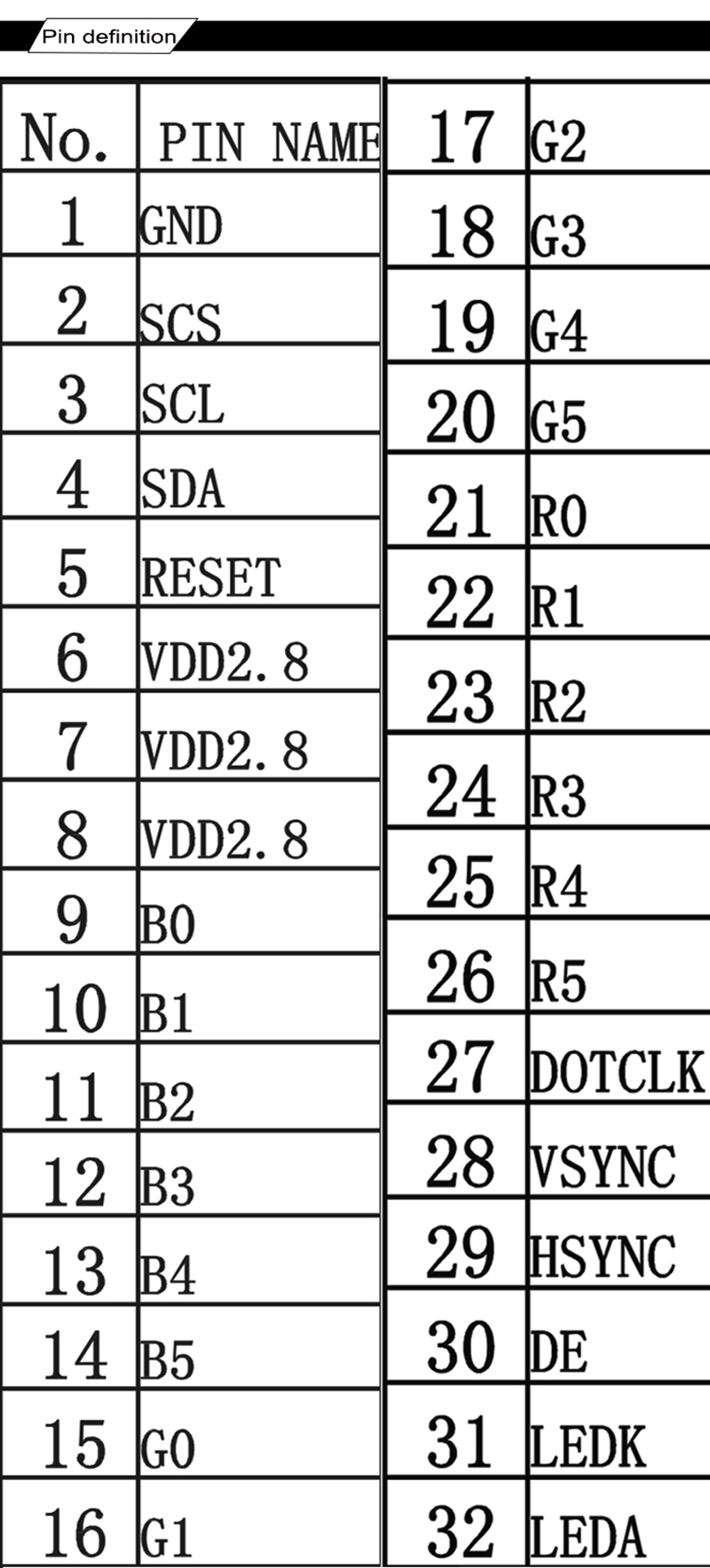

Pin Definitions
