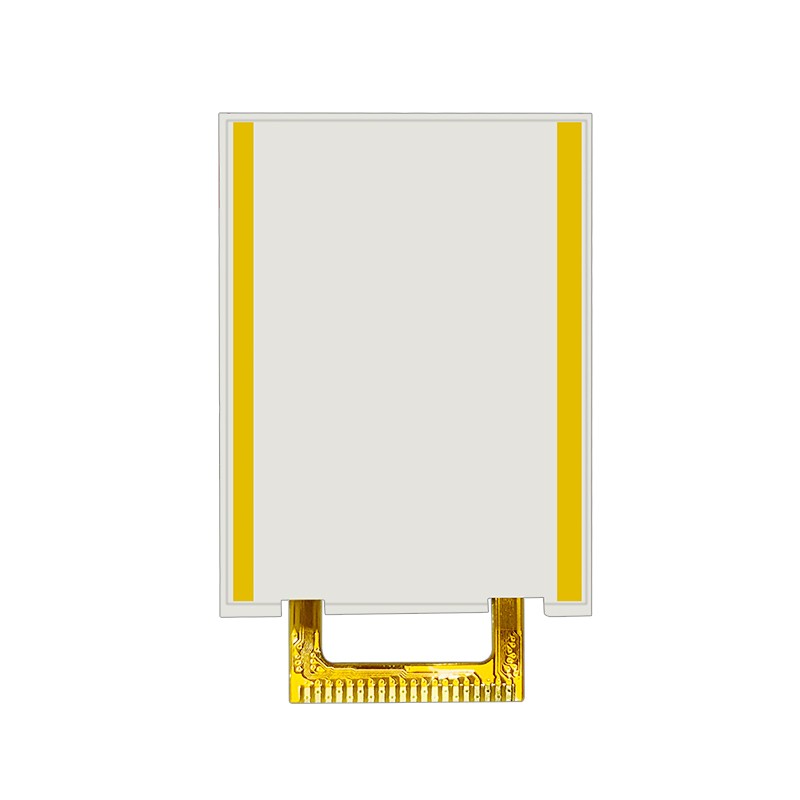

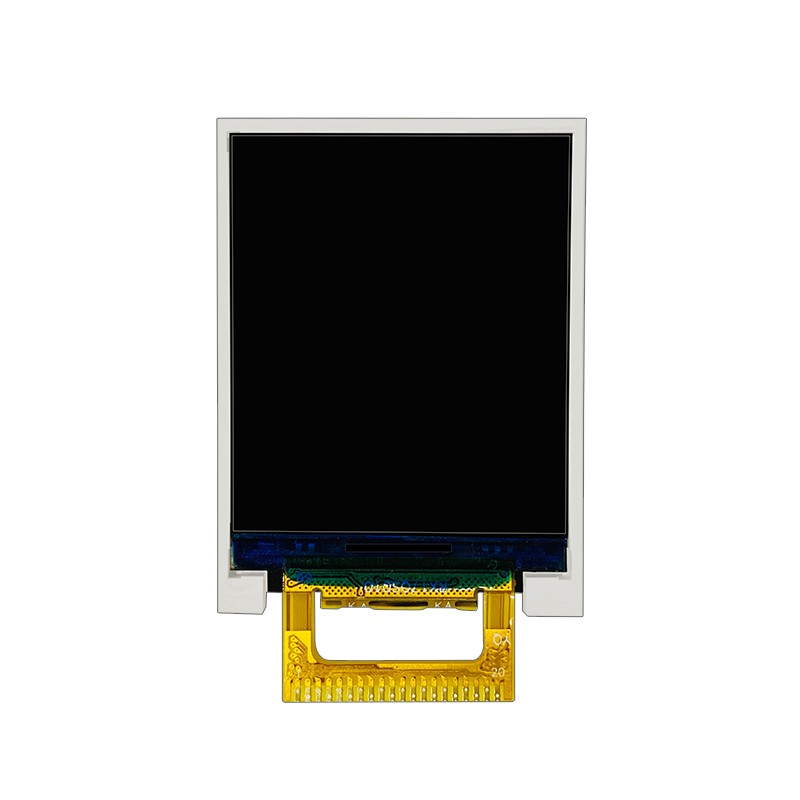

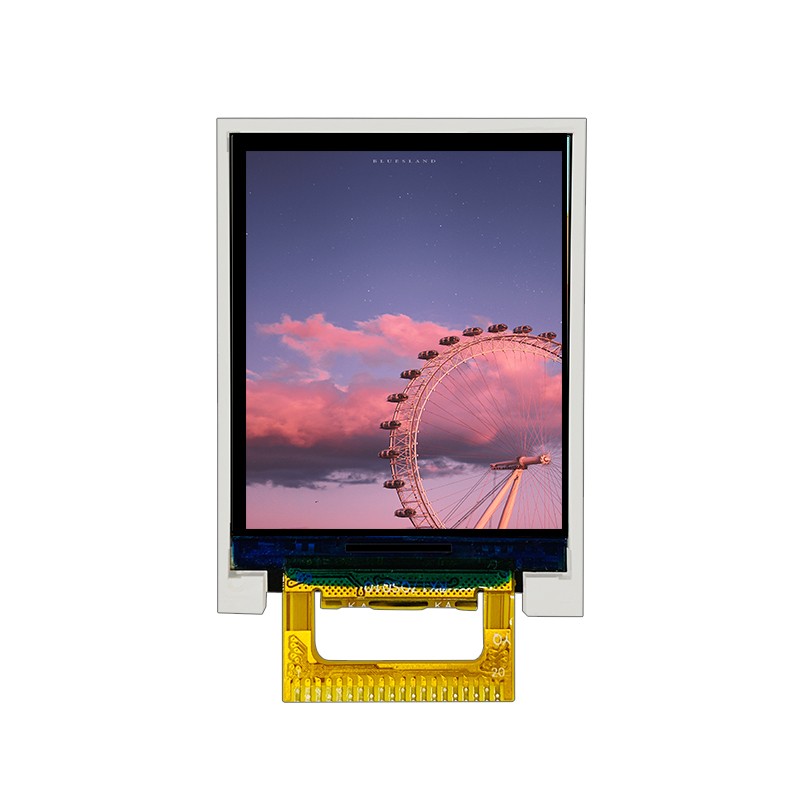

1.77 Inch 128x160 color TFT LCD Display SPI Interface

Description

This 1.77"TFT is a IPS Mini color TFT LCD display module is made of resolution 128x RGBx160 pixels,with outline dimension of  34.7(H)x46.7(V)x2.5(D) mm and AA size 28.63x35.64 mm.this 1.77" TFT display builts in ST7735 Driver IC and supports SPI interface,with full viewing angle and wide range of operating Temperature,it is ideal to be used in industrial device,any embedded systems,medical equipment,wearable devices,security and hand-held devices which requests TFT display with high quality and colorful images.

This TFT Display is with FPC-Soldering is easily to assemble or remove!

• Resolution: 128x(RGB)x160
• View Direction:12 O'clock
• Display Color : RGB 262K
• Power Supply :2.7-2.9 V
• Interface : Serial Interface
• Controller IC :GC9106
• Pin No: 20P Soldering
• Backlight: White LED

• LCD Type: TFT,Normally Black,Transmissive
• Panel Dimension :34.7(H)x46.7(V)x2.5(D) mm
• Viewing Area :28.63 x 35.64 mm
• Touch Screen:without or with
• Operation Temperature : -20℃~70℃
• Storage Temperature : -30℃~80℃

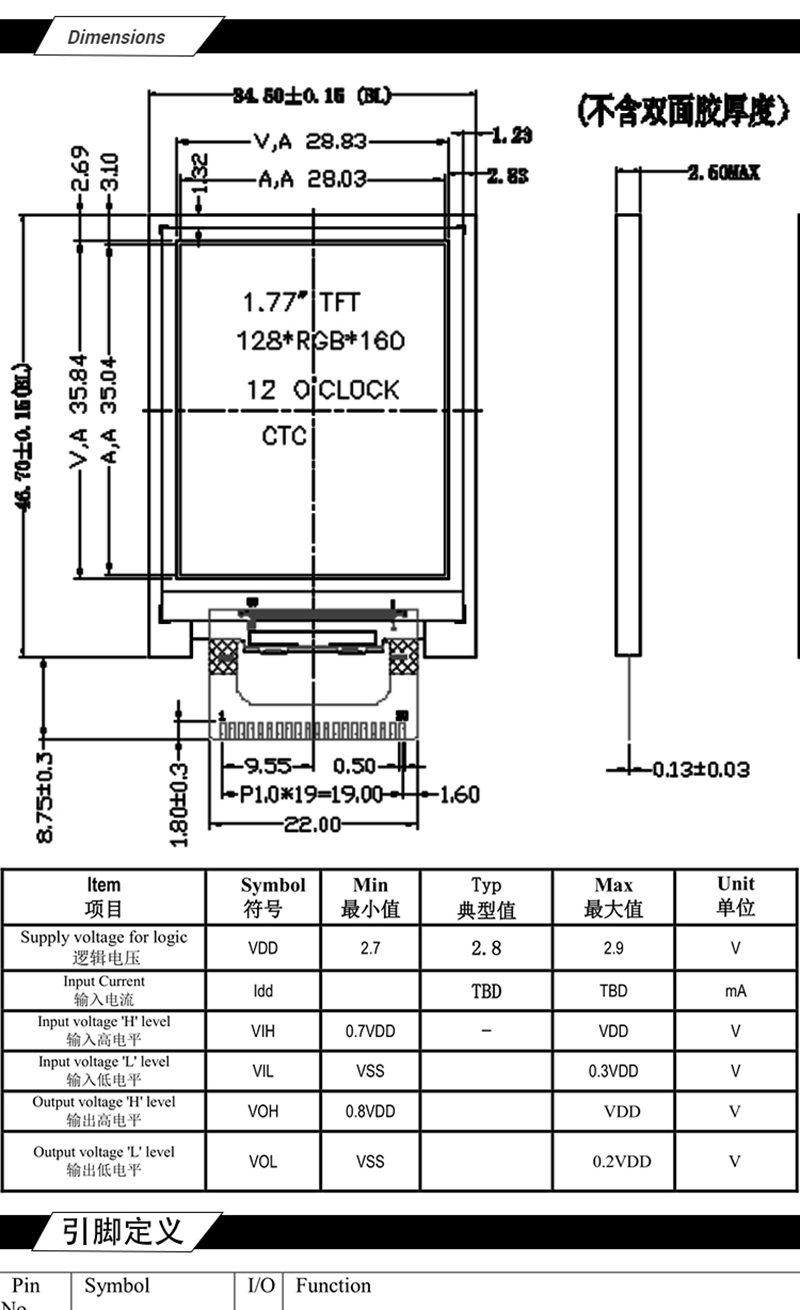

Dimensions

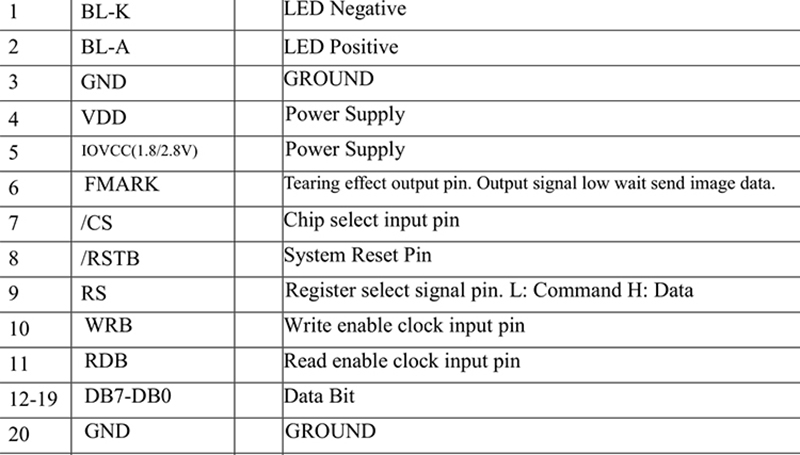

Pin Definitions
