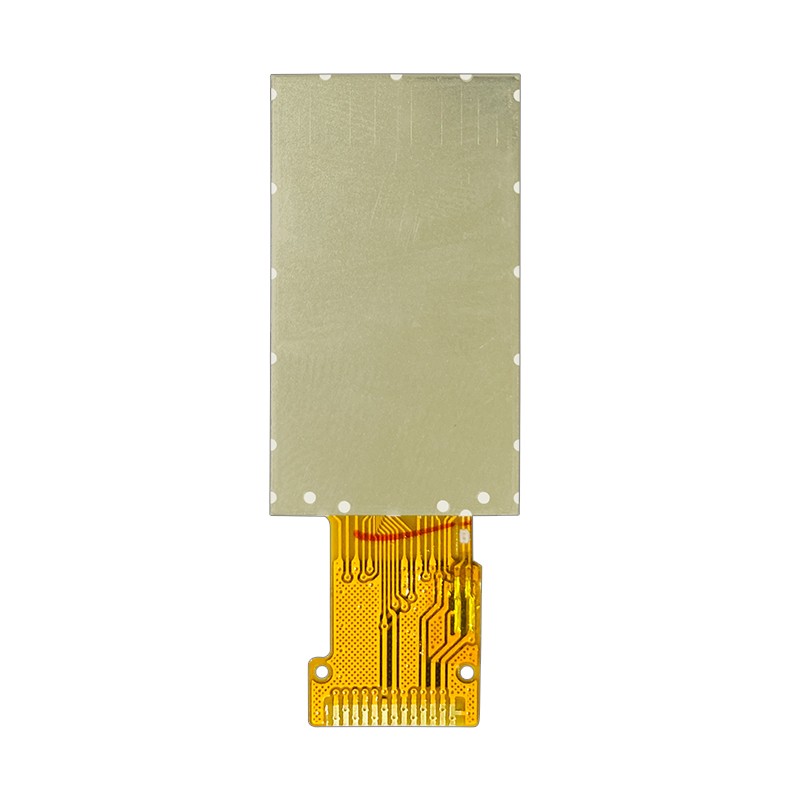

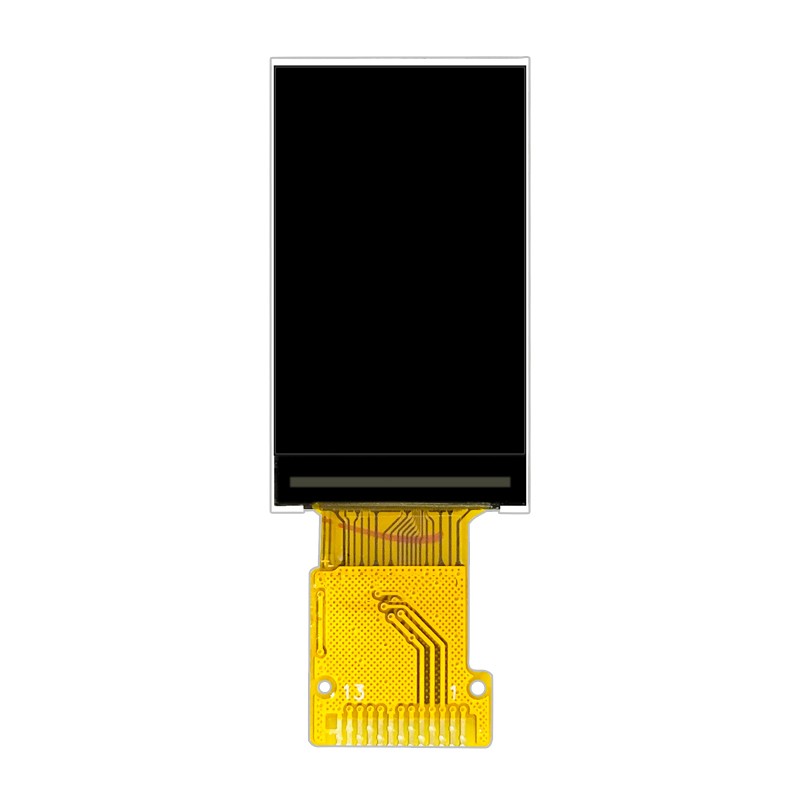

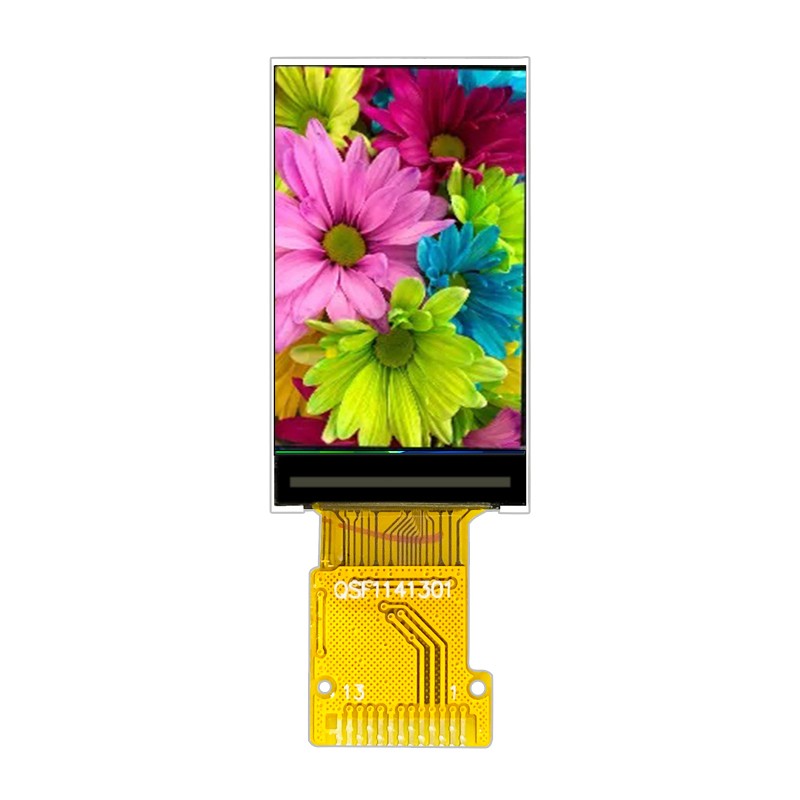

1.14 inch 135x240 LCD Display Module

Description

This 1.14"TFT is a IPS Mini color TFT LCD display module is made of resolution 135(H)RGB x 240(V) pixels,with outline dimension of 17.6(H) x 31.0(V) x1.6 (D) mm and AA size 14.864(H) x 24.912(V)  mm.this 1.14" TFT display builts in ST7789V Driver IC and supports 4-wires SPI interface,with full viewing angle and wide range of operating Temperature,it is ideal to be used in industrial device,any embedded systems,medical equipment,wearable devices,security and hand-held devices which requests TFT display with high quality and colorful images.

This TFT Display is with FPC-Soldering is easily to assemble or remove!

• Resolution: 135(H)RGB x 240(V)
• View Direction:ALL o`clock
• Display Color : RGB 262K
• Power Supply :3.0-3.3 V
• Interface :4-wires SPI
• Controller IC :ST7789V
• Pin No: 13P Soldering
• Dot pitch:0.1101(H) x 0.1038(V)  mm
• Luminance(cd/m2):400 (TYP)

• Backlight:1 White LED

• LCD Type: TFT,Normally Black,Transmissive
• Panel Dimension :17.6(H) x 31.0(V) x1.6 (D) mm
• Viewing Area :14.864(H) x 24.912(V) mm
• Touch Screen:without
• Operation Temperature : -20℃~70℃
• Storage Temperature : -30℃~80℃

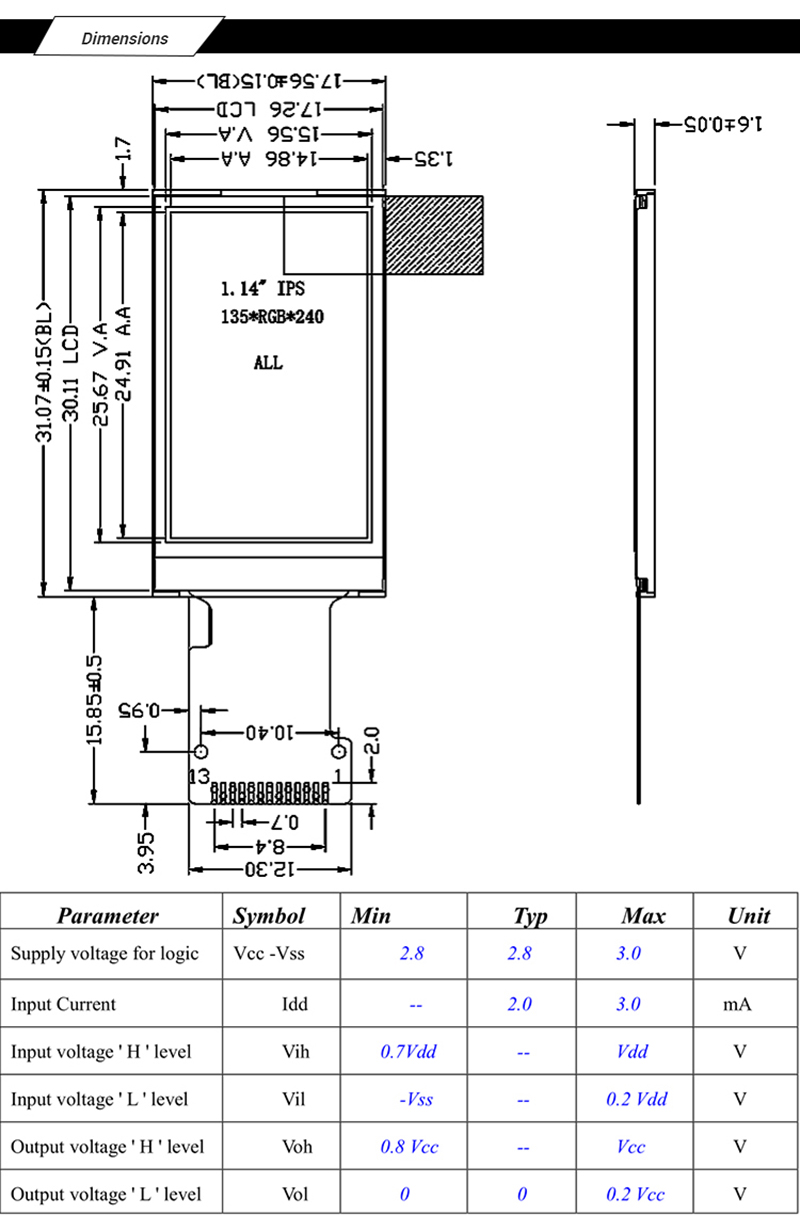

Dimensions

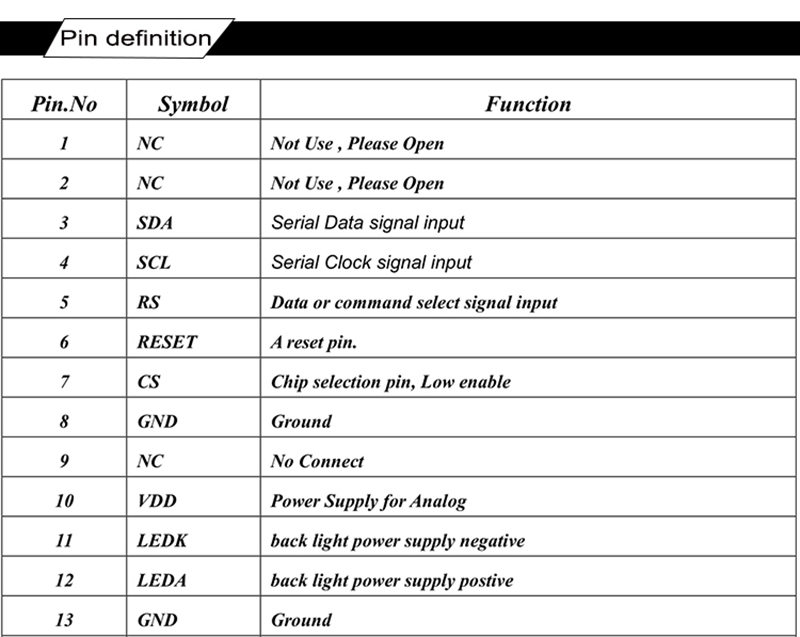

Pin Definitions
