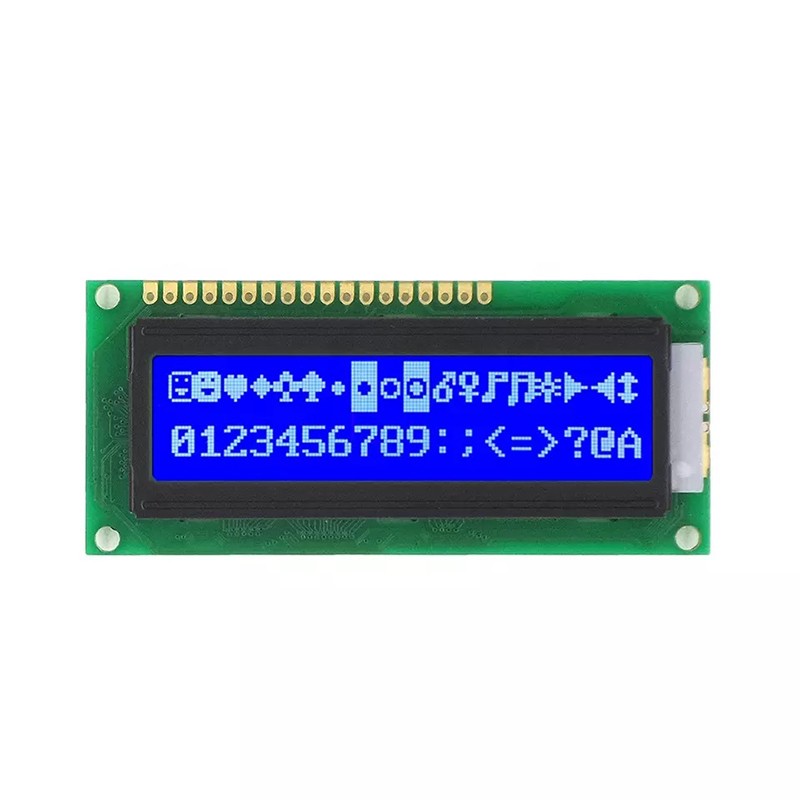

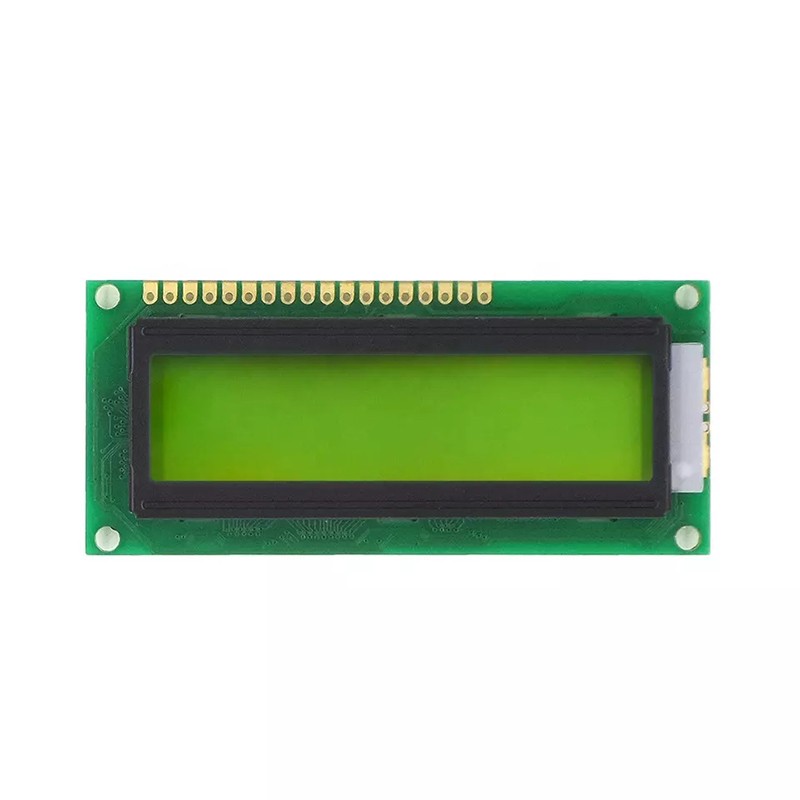

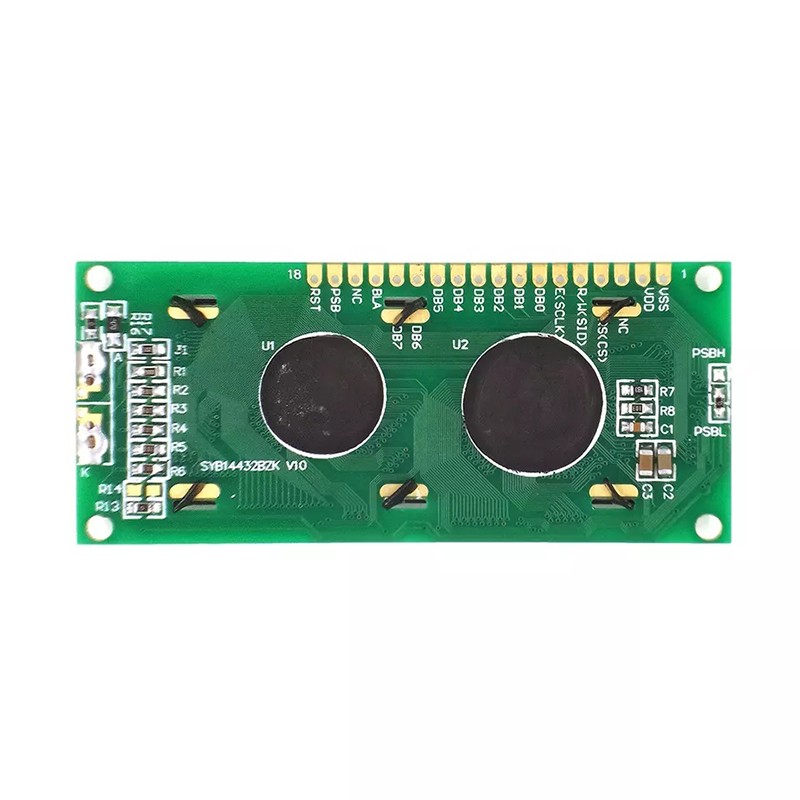

144X32 Monochrome Graphic LCD Module

Description

This 144x32 LCD Display is the graphic LCD display module which is made of 144x32 resolution,with the outline size 138.98 x 115.73 x 13.0 mm and active area size of 103.00 x 79.00 mm.This 144x32 graphic LCD display builts in the ST7920/AIP31020 Controller IC and supports 8 bit Parallel and 5V power supply,it also Negative Voltage Generator 3V optional,wide operating temperature range,rohs compliant.

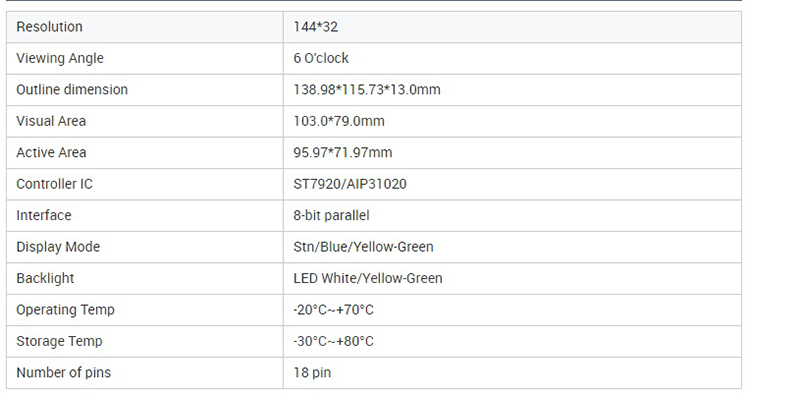

• Resolution :144x32 dots
• Display Mode : STN /Yellow-Green/Blue
• Viewing Angles:6 O'clock
• Display Color : Blue/Yellow-Green
• Module Dimension :138.98 x 115.73 x 13.0 mm
• Viewing Area :103.00 x 79.00 mm
• Power Supply :5 V
• Interface : 8 bit Parallel
• Driver IC:ST7920/AIP31020
• Pin No: 18P
• Operation Temperature : -20℃~70℃
• Storage Temperature : -30℃~80℃

Dimensions
