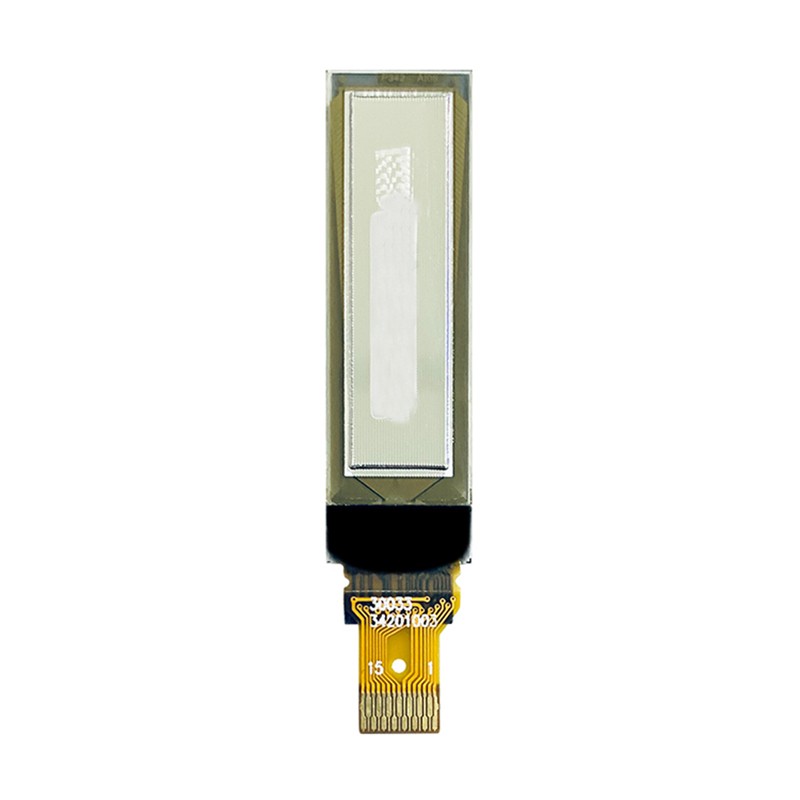

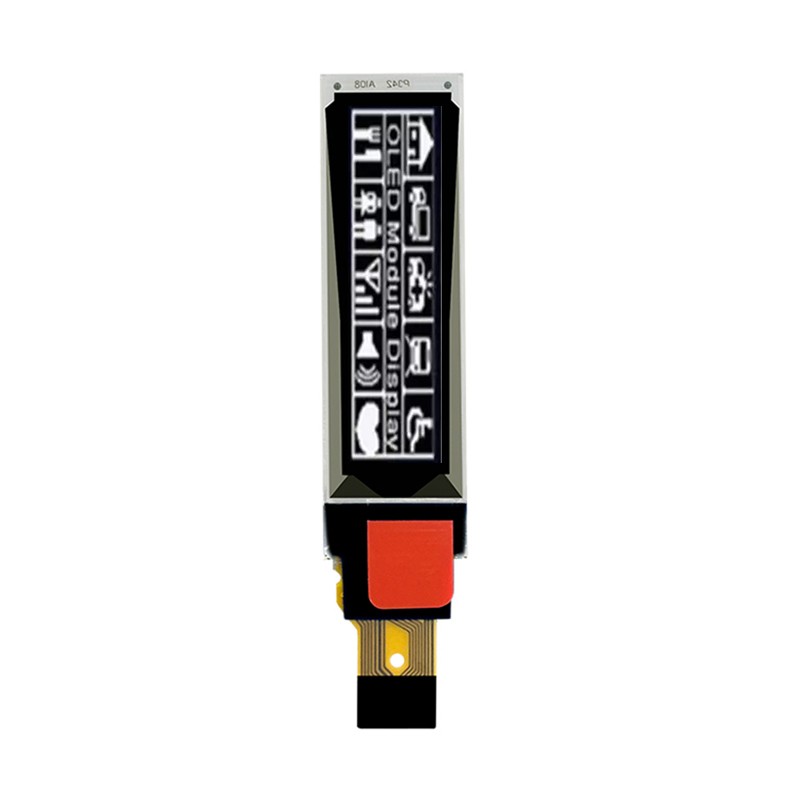

0.87 inch White OLED Display Panel 128X32

Description

This 0.87" OLED is a Mini graphic OLED display module which is made of 128x32 pixels white OLED,it is with outline dimension of 29.0× 8.7 mm and AA size 21.356 × 5.324 mm, it builts in SSD1316 controller ic,communicates via 4-wire serial interface.this mini COG OLED display is very thin,lightweight and low power consumption since no backlight is needed;so it has such high contrast,extremely operating temperature,applied for any embedded systems,wearable device,industrial devices,medical and hand-held devices,personal care appliance, voice recorder pen and securit,mp3,etc.

Specifications

• Resolution : 128x32 Dot Matrix OLED
• Display Mode : Passive Matrix
• Viewing Angles: IPS
• Display Color : Monochrome (White)
• Module Dimension : 29.0 x 8.7 x 1.22 mm
• Viewing Area : 21.356 X 5.324 mm
• Power Supply :1.65-3.3 V
• Interface :4-Wires Serial
• Controller IC : SSD1316
• Pin No: 15P Connector
• Operation Temperature : -40℃~70℃
• Storage Temperature : -40℃~85℃

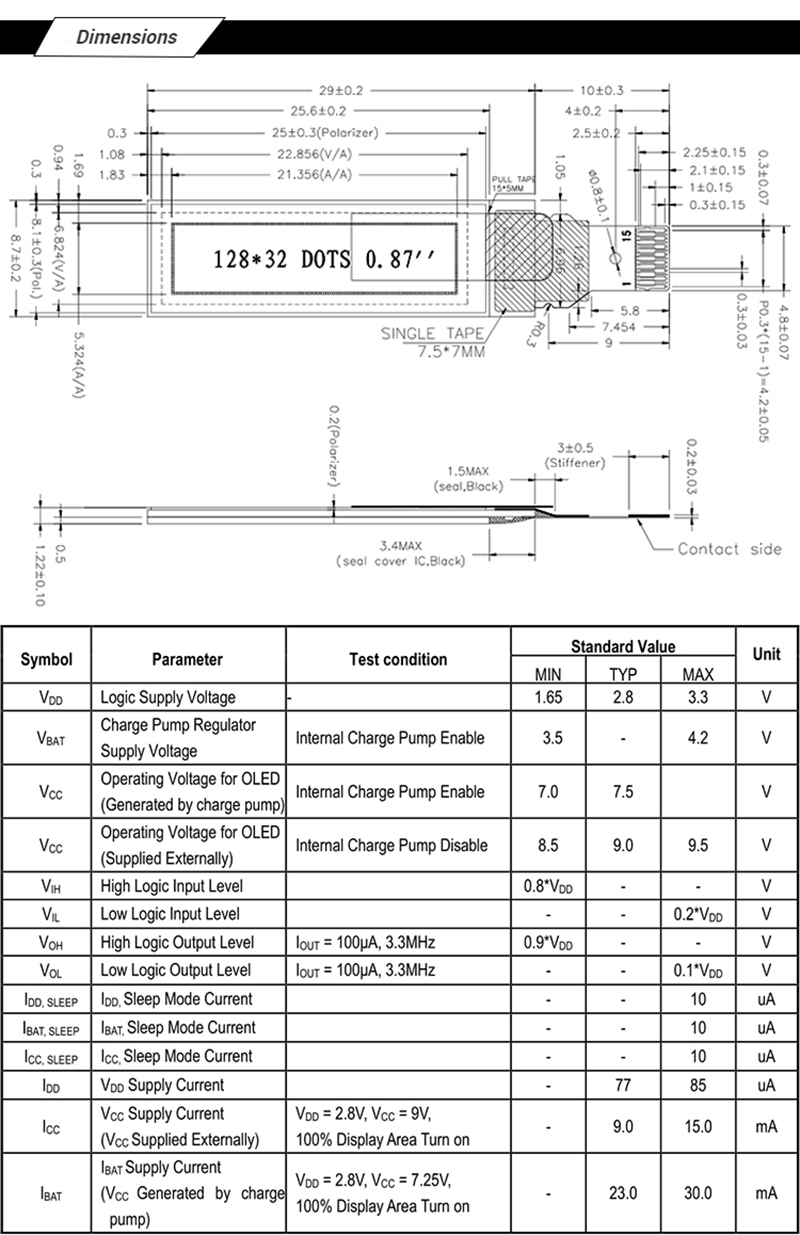

Dimensions

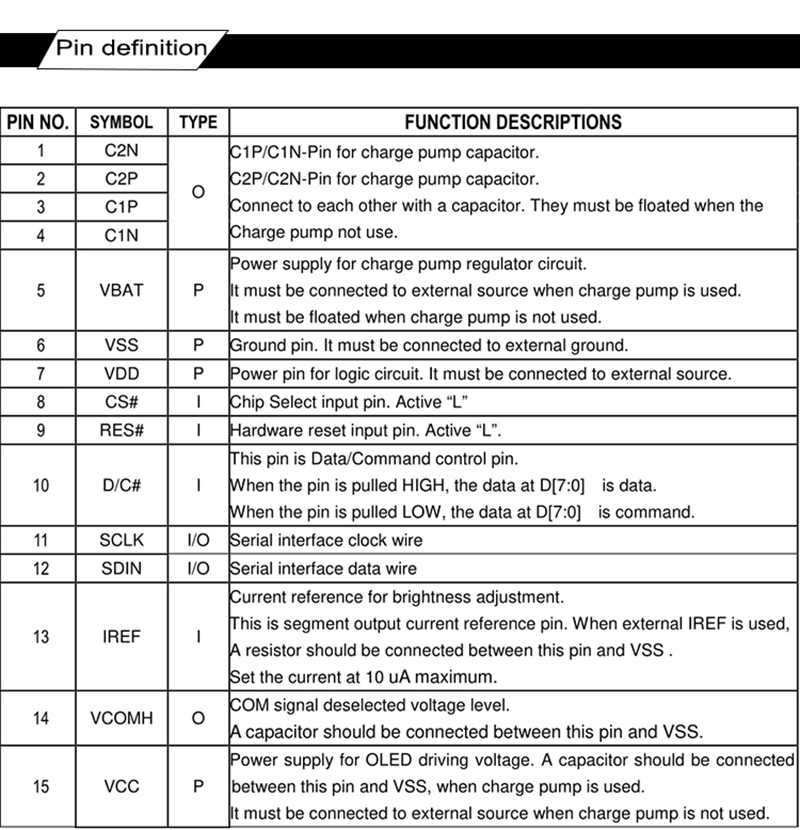

Pin Definitions
