Graphic LCD Module 160x80

Description

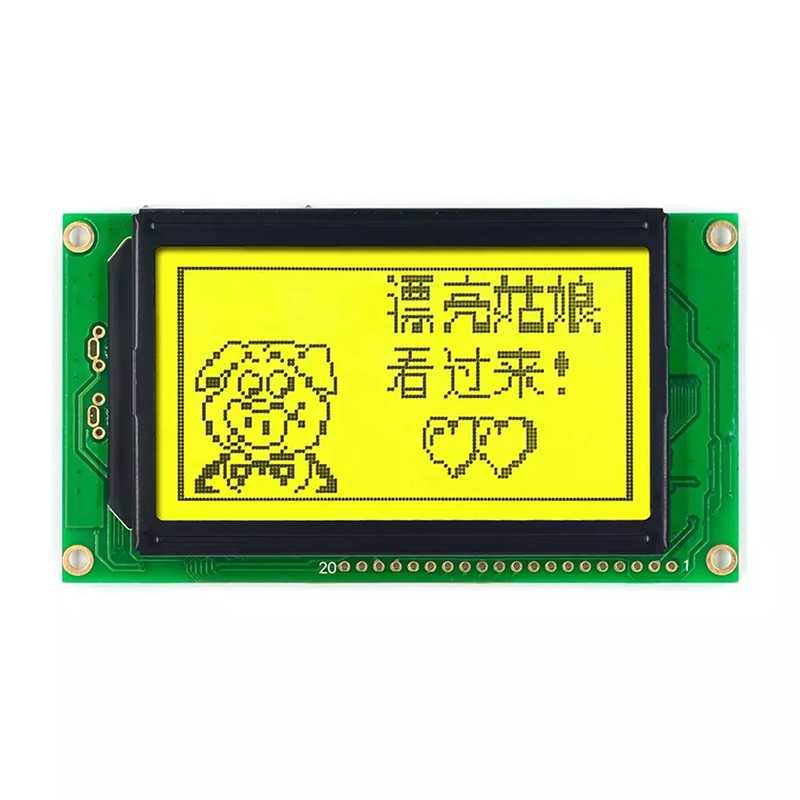

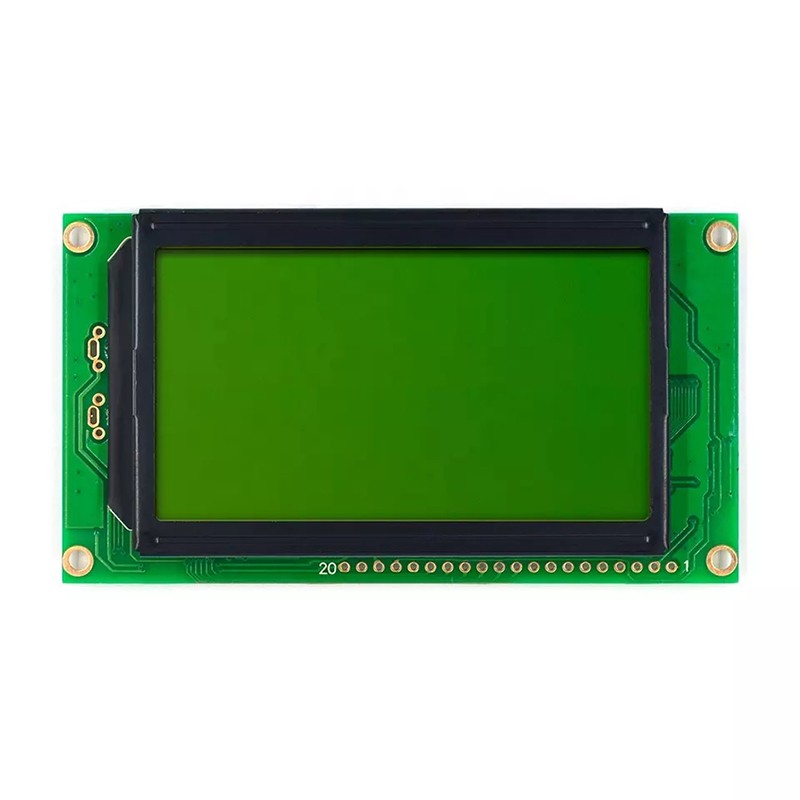

This 160X80 LCD Display is the graphic LCD display module which is made of 160X80 resolution,with the outline size 100.00 x 55.00 x 14.0 mm and active area size of 67.17 x 33.59 mm.This 160X80 graphic LCD display builts in the LC7981 Controller IC and supports 8 bit Parallel and 5V power supply,it also Negative Voltage Generator 3V optional,wide operating temperature range,rohs compliant.

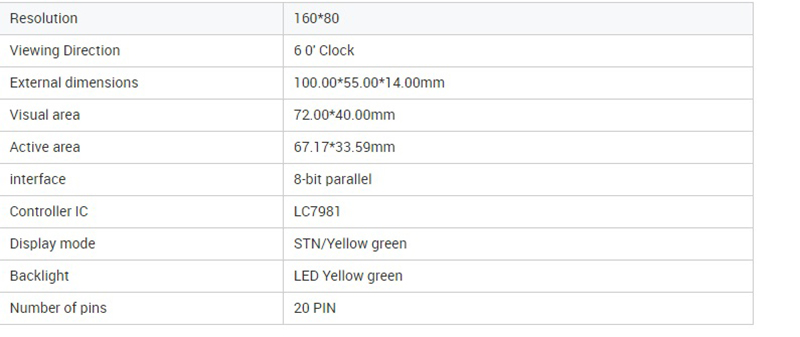

• Resolution :160X80 dots
• Display Mode : STN /Yellow-Green/Blue
• Viewing Angles:6 O'clock
• Display Color : Blue/Yellow-Green
• Module Dimension :100.00 x 55.00 x 14.0  mm
• Viewing Area : 67.17 x 33.59 mm
• Power Supply :5 V
• Interface : 8 bit Parallel
• Driver IC:LC7981
• Pin No: 20P
• Operation Temperature : -20℃~70℃
• Storage Temperature : -30℃~80℃

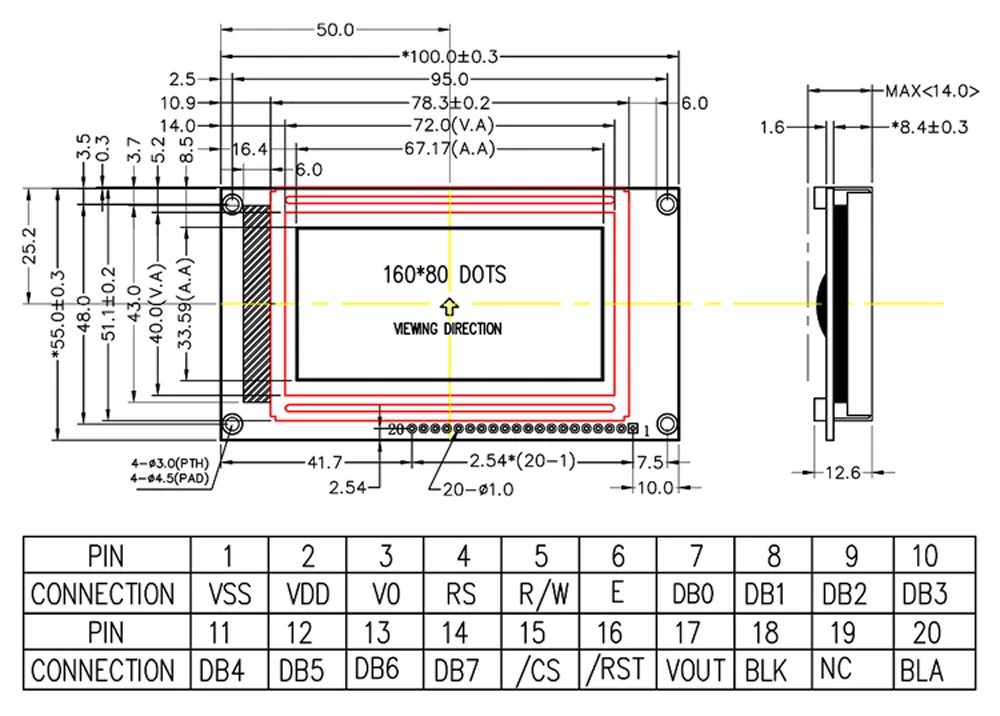

Dimensions
