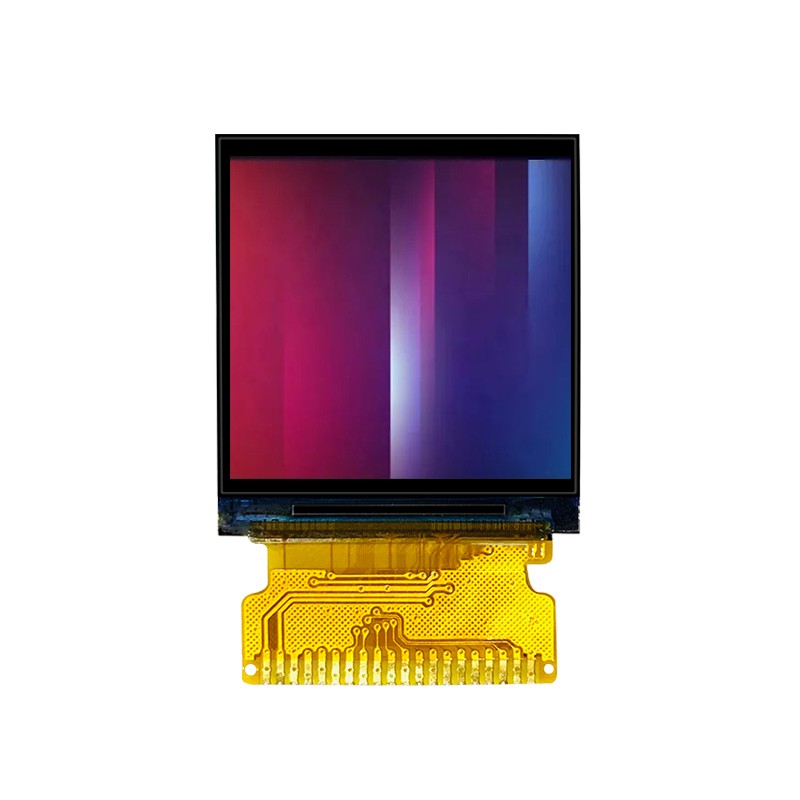

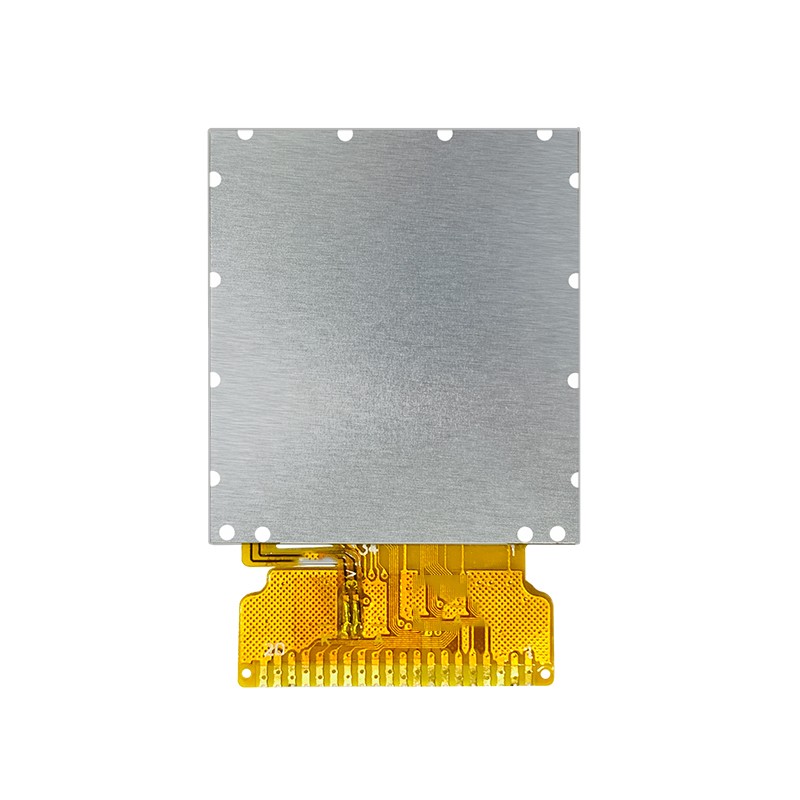

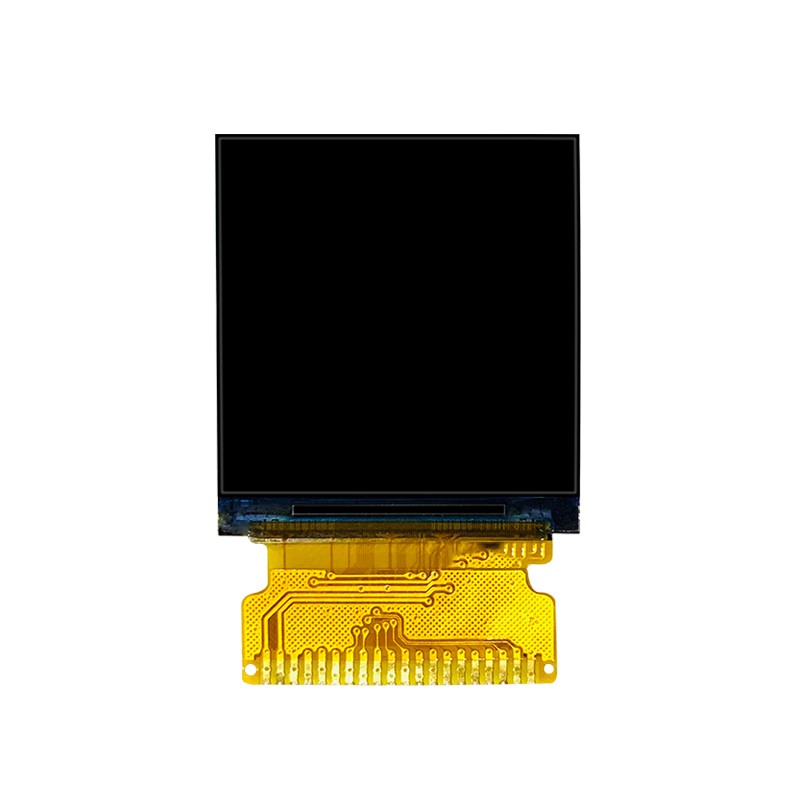

1.3 inch Square TFT LCD Display 240x240

Description

This 1.3"TFT is a IPS Mini color TFT LCD display module is made of resolution 240X240 pixels,with outline dimension of 26.1(W ) ×29.15 (H)×2.0(T)mm and AA size 23.4(W) x23.4(H) mm.this 1.3" TFT display builts in ST7789 Driver IC and supports MCU interface,with full viewing angle and wide range of operating Temperature,it is ideal to be used in industrial device,any embedded systems,medical equipment,wearable devices,security and hand-held devices which requests TFT display with high quality and colorful images.

This TFT Display is with FPC-Soldering is easily to assemble or remove!

• Resolution: 240 RGB X240
• View Direction:ALL o`clock
• Display Color : RGB 262K
• Power Supply :2.7-2.9 V
• Interface :MCU
• Controller IC :ST7789
• Pin No: 20P Soldering
• Dot pitch:0.159 X 0.159 mm
• Backlight:1 White LED

• LCD Type: TFT,Normally Black,Transmissive
• Panel Dimension :26.1(W ) ×29.15 (H)×2.0(T) mm
• Viewing Area :23.4(W) x23.4(H) mm
• Touch Screen:without
• Operation Temperature : -20℃~70℃
• Storage Temperature : -30℃~80℃

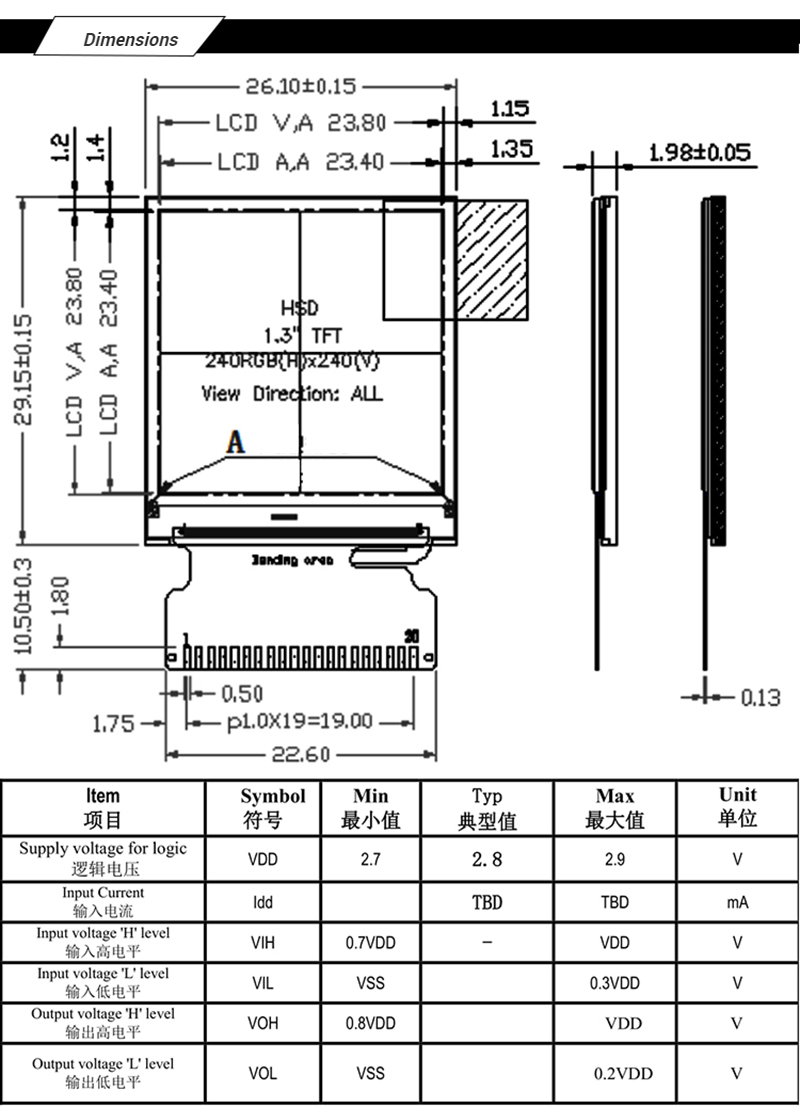

Dimensions

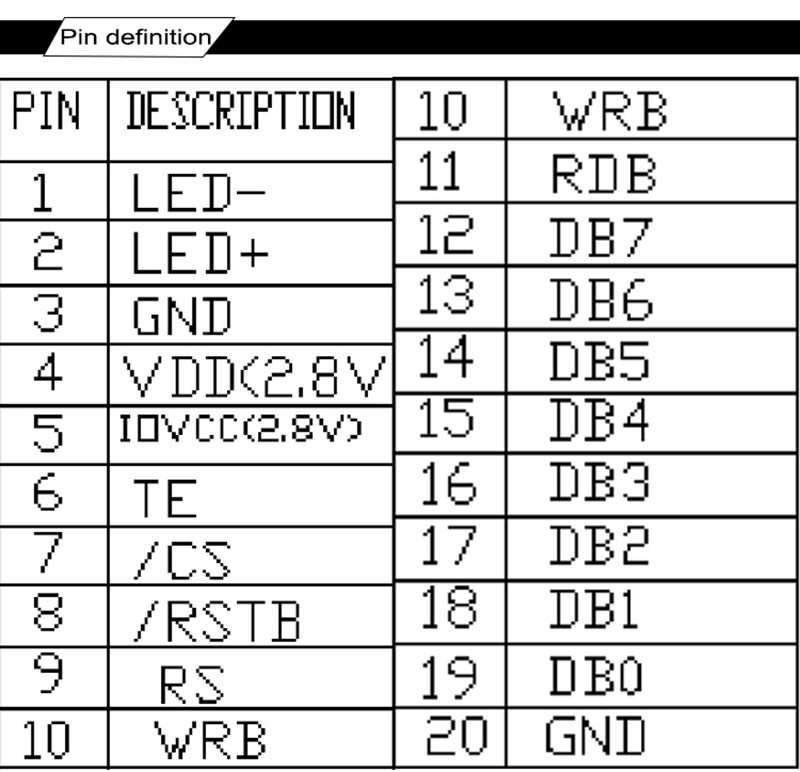

Pin Definitions
