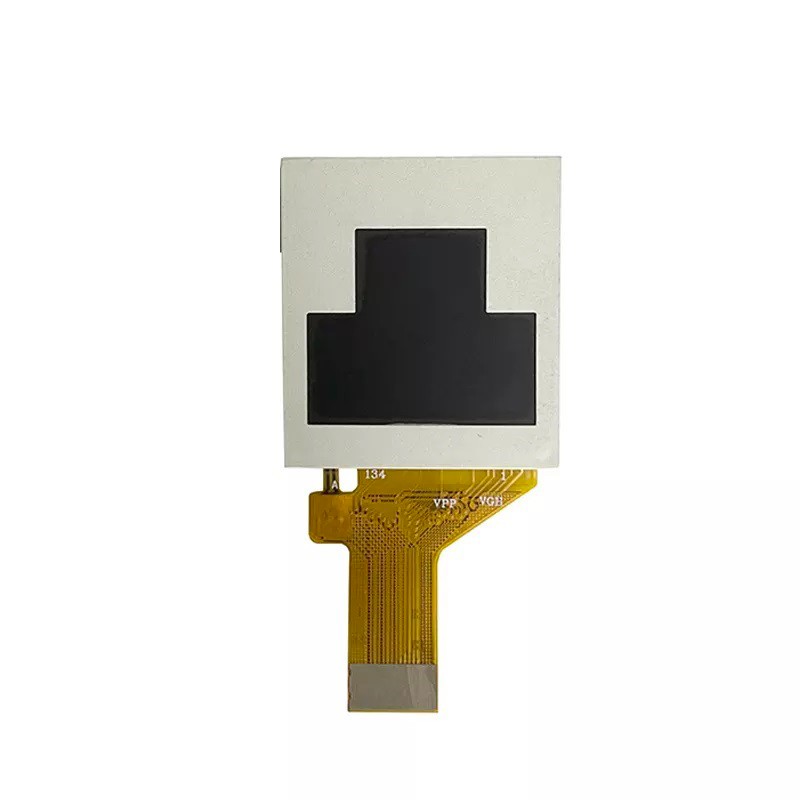

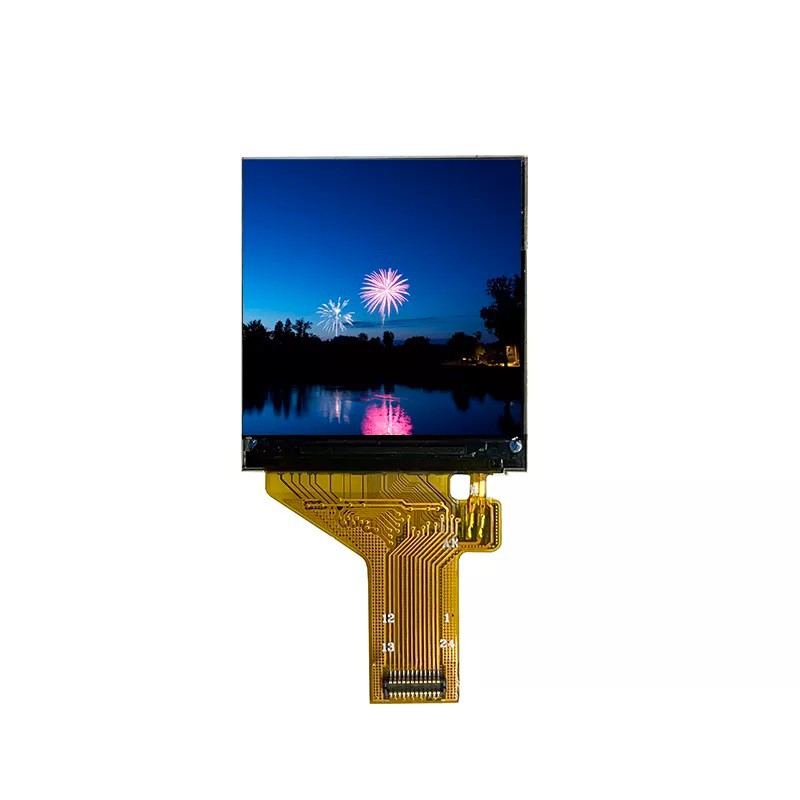

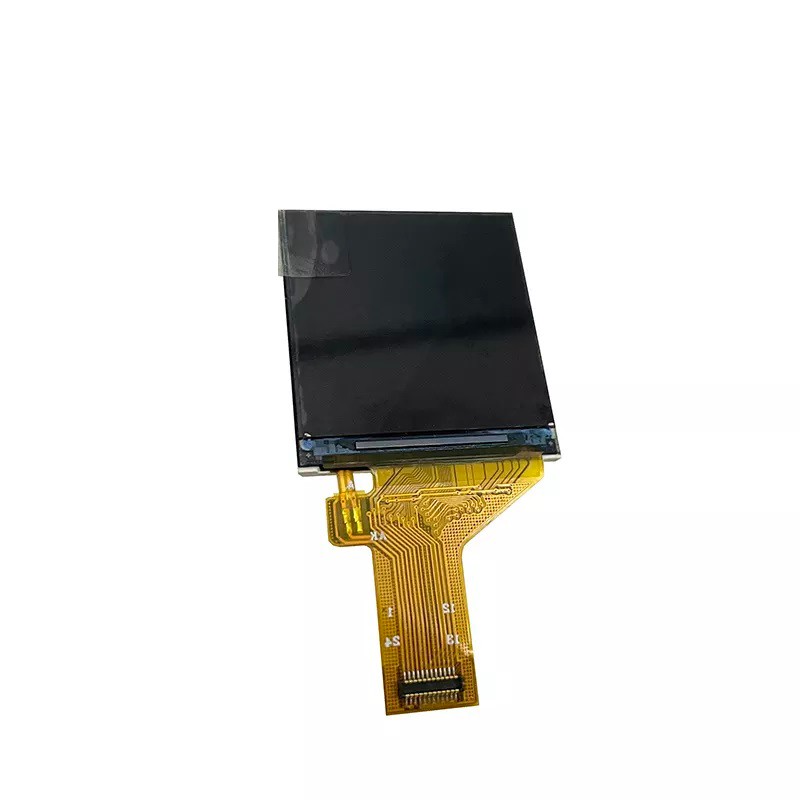

1.3 inch IPS TFT LCD ST7789 Screen Module 240X240

Description

This 1.3"TFT is a IPS Mini color TFT LCD display module is made of resolution 240X240 pixels,with outline dimension of 26.16 x 29.22 x 1.90 mm and AA size 23.4(W) x23.4(H) mm.this 1.3" TFT display builts in ST7789V Driver IC and supports MCU/SPI interface,with full viewing angle and wide range of operating Temperature,it is ideal to be used in industrial device,any embedded systems,medical equipment,wearable devices,security and hand-held devices which requests TFT display with high quality and colorful images.

• Resolution: 240 RGB X240
• View Direction:ALL o`clock
• Display Color : RGB 262K
• Power Supply :2.7-2.9 V
• Interface :MCU/SPI
• Controller IC :ST7789V
• Pin No: 24P
• Dot pitch:0.0975 X 0.0975 mm
• Backlight:1 White LED

• LCD Type: TFT,Normally Black,Transmissive
• Panel Dimension :26.16 x 29.22 x 1.90 mm
• Viewing Area :23.4(W) x23.4(H) mm
• Touch Screen:without
• Operation Temperature : -20℃~70℃
• Storage Temperature : -30℃~80℃

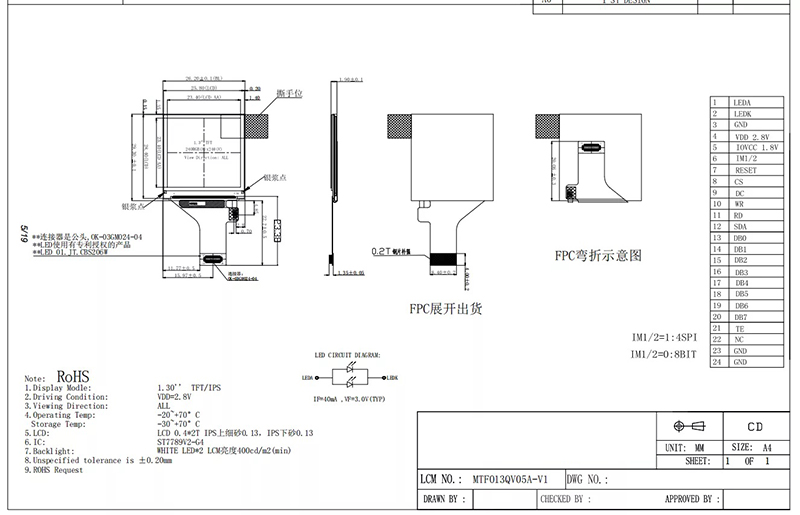

Dimensions
