1.44 inch color TFT LCD screen 128x128 SPI

Description

This 1.44"TFT is a IPS Mini color TFT LCD display module is made of resolution 128X128 pixels,with outline dimension of 34.41(H)x29.9(V)x2.2(D) mm and AA size 25.5 x 26.5 mm.this 1.44" TFT display builts in ST7735S Driver IC and supports MCU/SPI interface,with full viewing angle and wide range of operating Temperature,it is ideal to be used in industrial device,any embedded systems,medical equipment,wearable devices,security and hand-held devices which requests TFT display with high quality and colorful images.

• Resolution: 128RGB X128
• View Direction:12 O'clock
• Display Color : RGB 262K
• Power Supply :2.7-2.9 V
• Interface :Serial Interface
• Controller IC :ST7735S
• Pin No: 14P Soldering
• Dot pitch:0.1992x0.207 mm
• Luminance(cd/m2):200 (TYP)

• Backlight:1 White LED

• LCD Type: TFT,Normally Black,Transmissive
• Panel Dimension :34.41(H)x29.9(V)x2.2(D) mm
• Viewing Area :25.5 x 26.5 mm
• Touch Screen:without
• Operation Temperature : -20℃~70℃
• Storage Temperature : -30℃~80℃

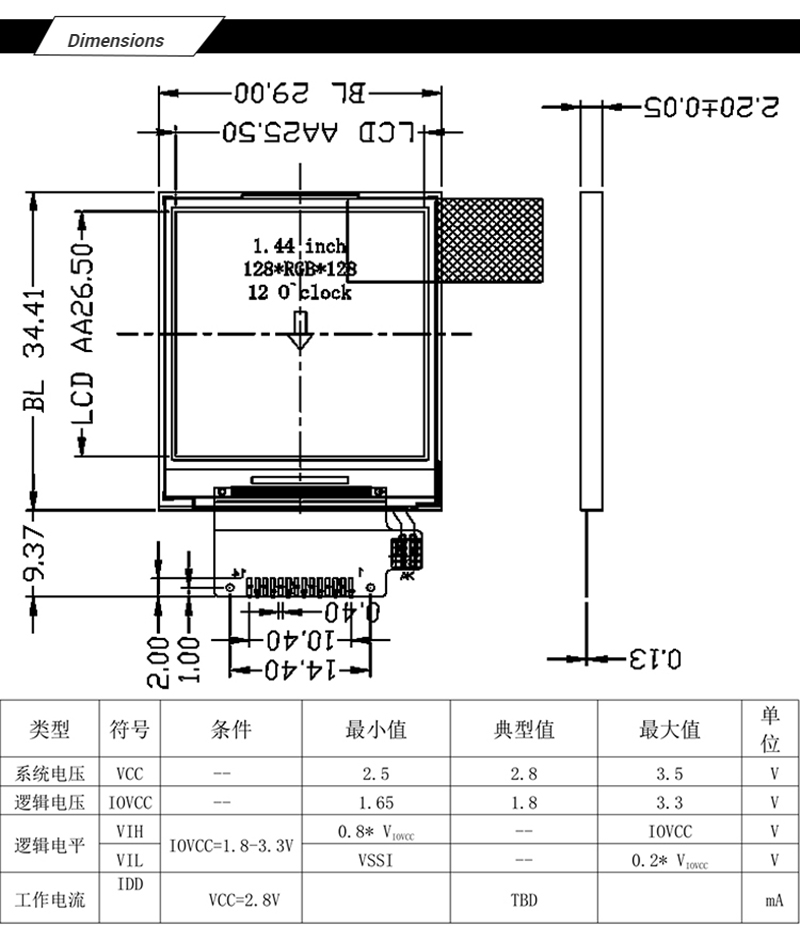

Dimensions

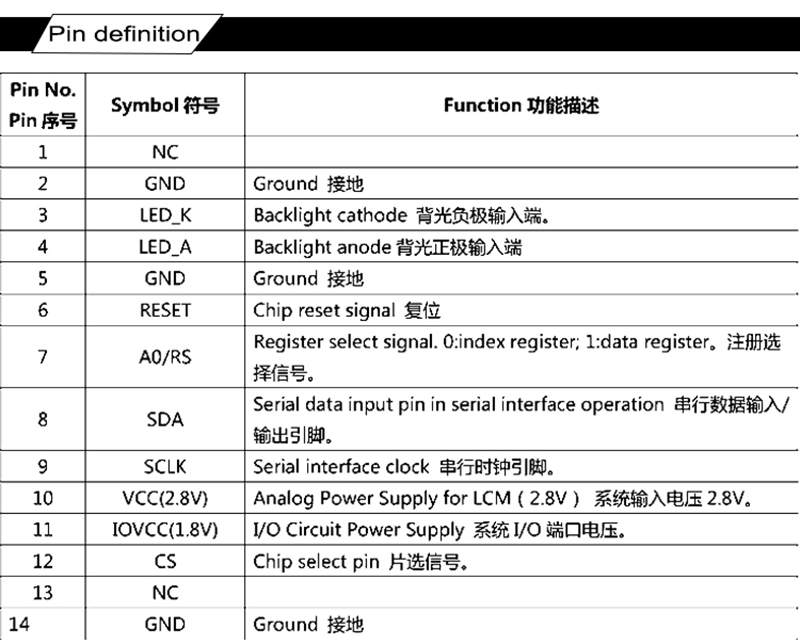

Pin Definitions
