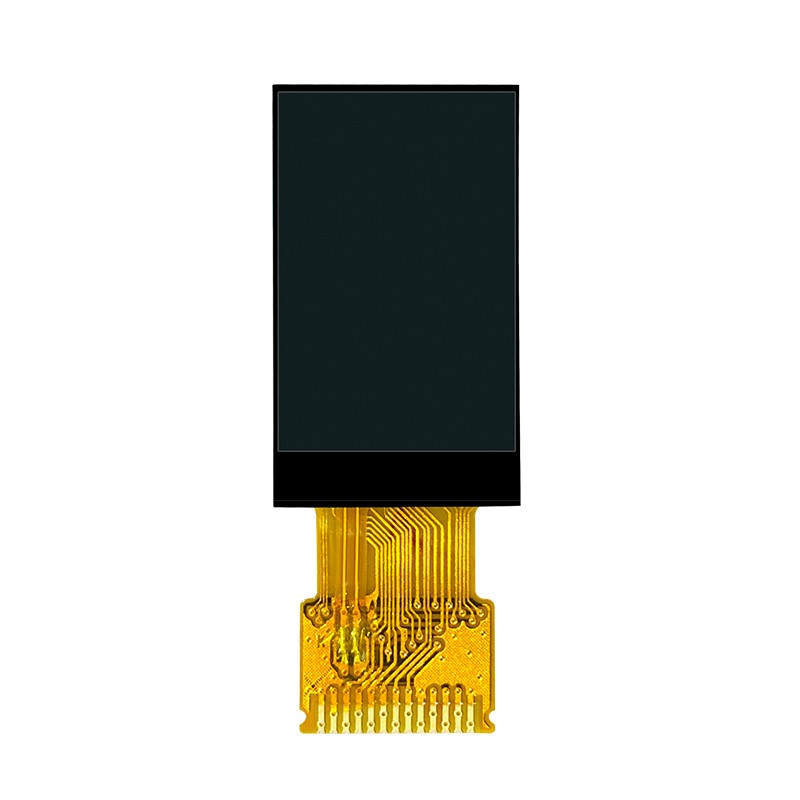

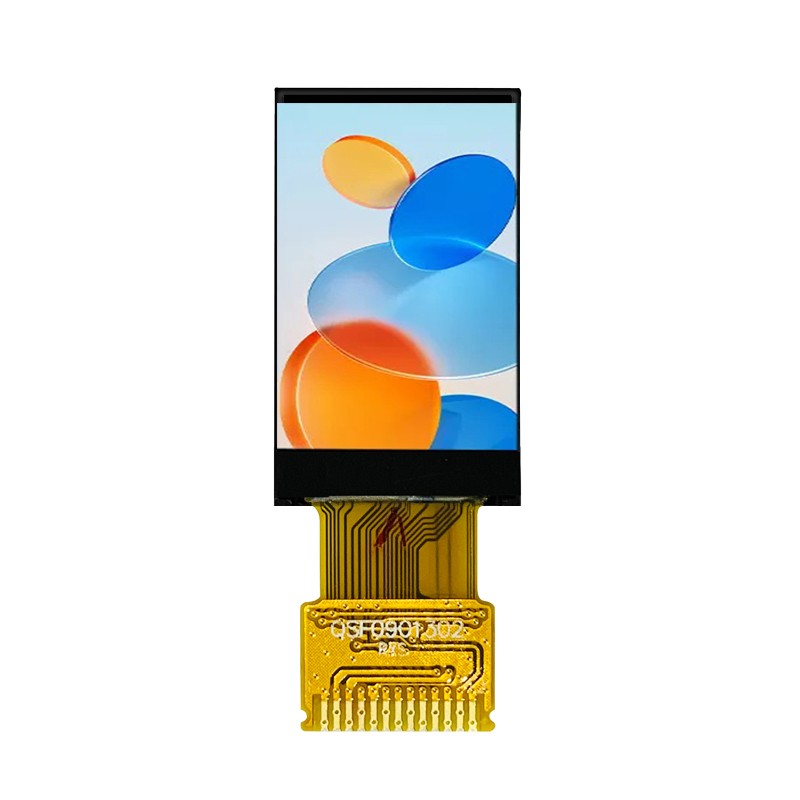

0.96 inch 80x160 Mini IPS TFT LCD Display

Description

This 0.96"TFT is a IPS Mini color TFT LCD display module is made of resolution 80 x 160 pixels,with outline dimension of 15.80 × 31.70 x1.65 mm and AA size 11.25 × 20.16 mm.this 0.96" TFT display builts in ST7735S Driver IC and supports 4-wire SPI interface,with full viewing angle and wide range of operating Temperature,it is ideal to be used in industrial device,any embedded systems,medical equipment,wearable devices,security and hand-held devices which requests TFT display with high quality and coloful images.

This TFT Display is with FPC-Soldering is easily to assemble or remove!




Specifications

• Resolution: 80x160 dots
• View Direction:6 O'Clock
• Display Color : RGB
• Power Supply :2.8-3.0 V
• Interface :  4-Wire SPI
• Controller IC :ST7735S
• Pin No: 13P Soldering
• LCD Type: TFT,Normally Black,Transmissive
• Panel Dimension :15.80 × 31.70 x1.65 mm
• Viewing Area :11.25 × 20.16 mm

• Touch Screen:without
• Operation Temperature : -20℃~70℃
• Storage Temperature : -30℃~80℃

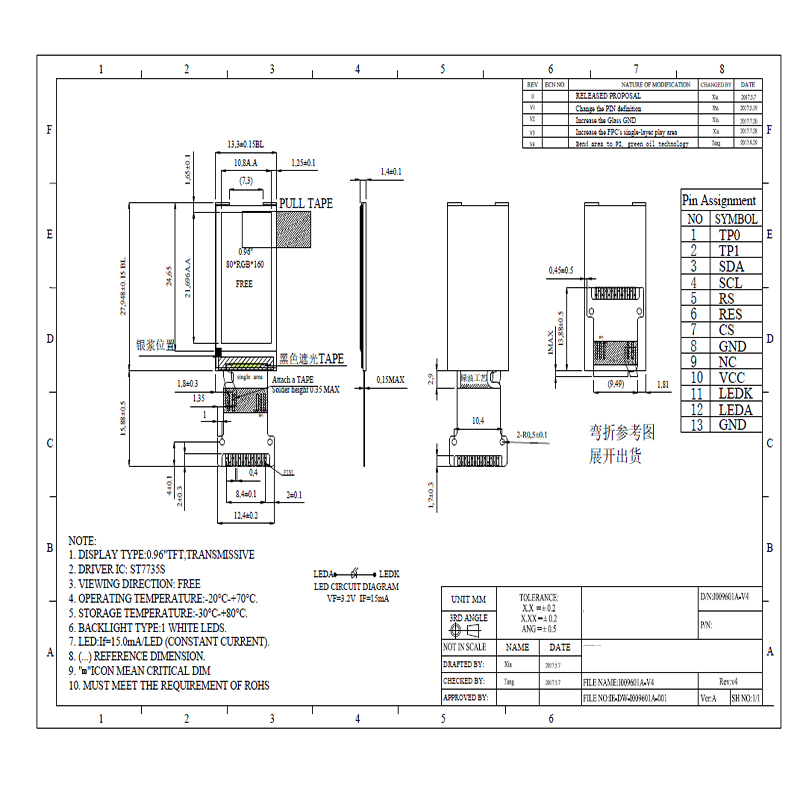

Dimensions

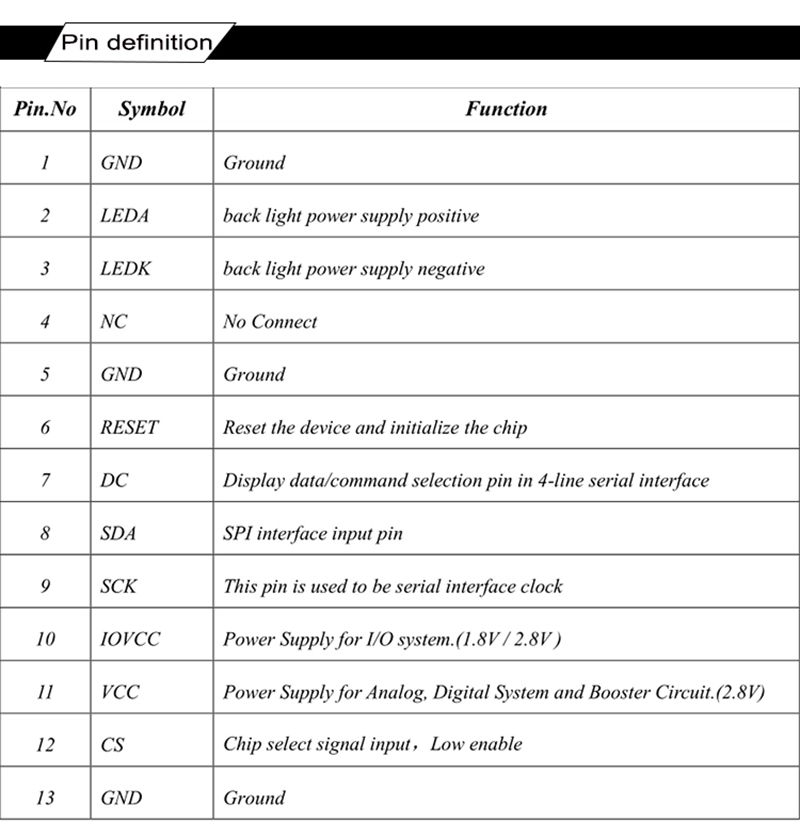

Pin Definitions
