OLED 0.5 inch Microdisplay 1024x768 with VGA driver Board for night vision

Category： 0.5
Size:0.5 inch OLED Display
Resolution:1024(RGB)X768
Brightness:500 cd/m2
Interface: parallel RGB 24-bit/YCbCr 16-bit input
INQUIRY EMAIL

Description

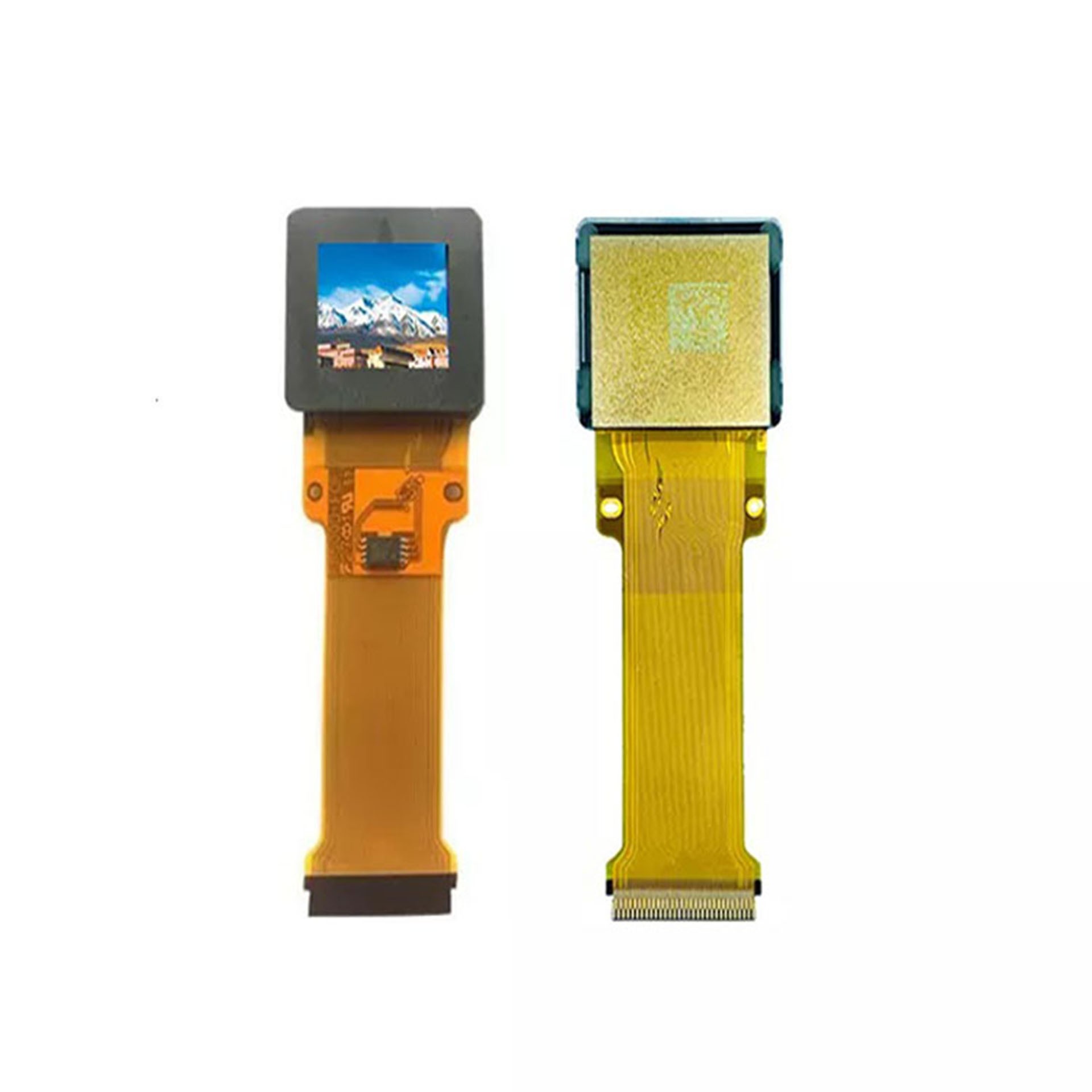

The 0.5" micro OLED Display is a 1.3 cm (type 0.5) diagonal, 1024 × 768 dots active matrix color OLED panel module using single crystal silicon transistors. This panel incorporates panel driver and logic driver, and realizes small size, light weight and highdefinition. It enables full color display in NTSC/PAL progressive system.

Specifications

◆Display Type:OLED Display
◆Display Size:0.5"
◆Display Color:Full color
◆Resolution:1024 (RGB) × 768
◆Luminance:500 cd/m2

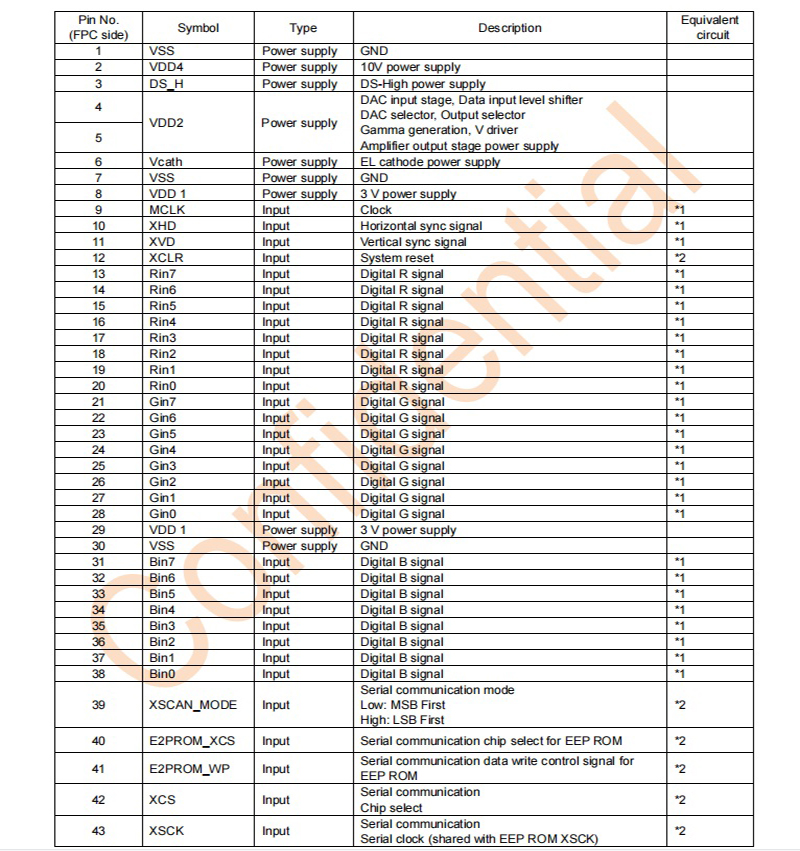

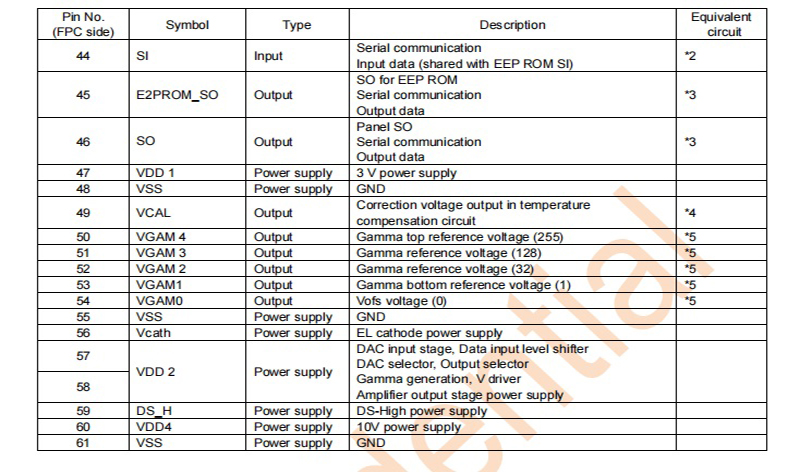

◆Pin No:61P
◆Interface Type:parallel RGB 24-bit/YCbCr 16-bit input

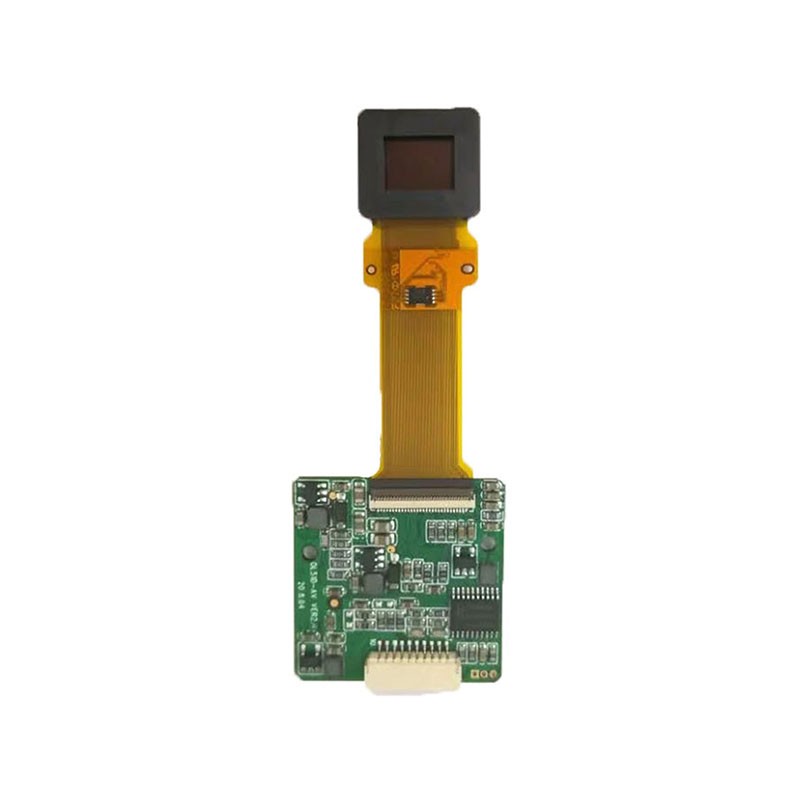

◆Driver Board: VGA Port

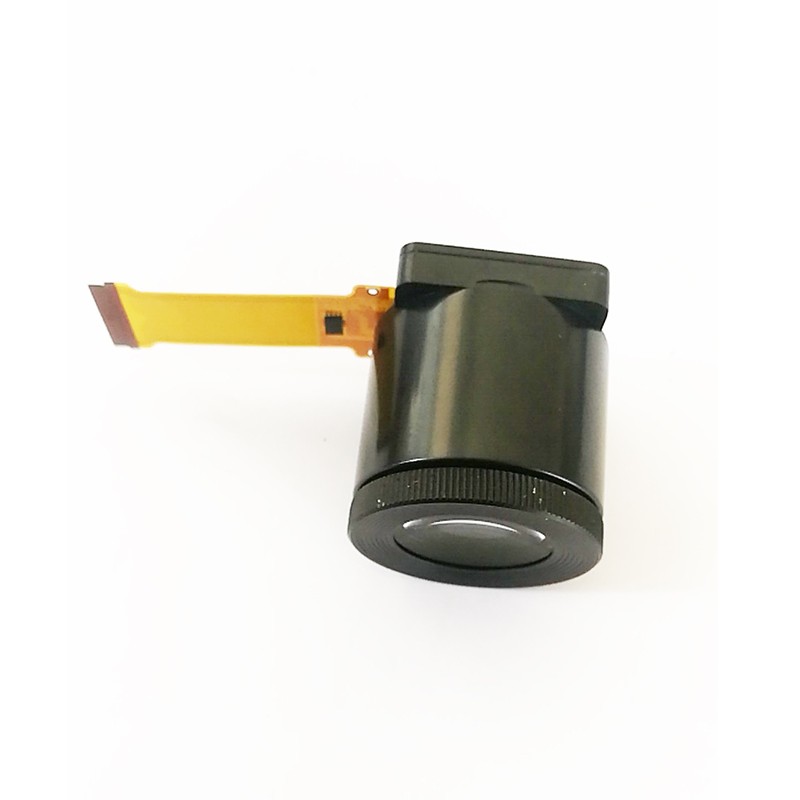

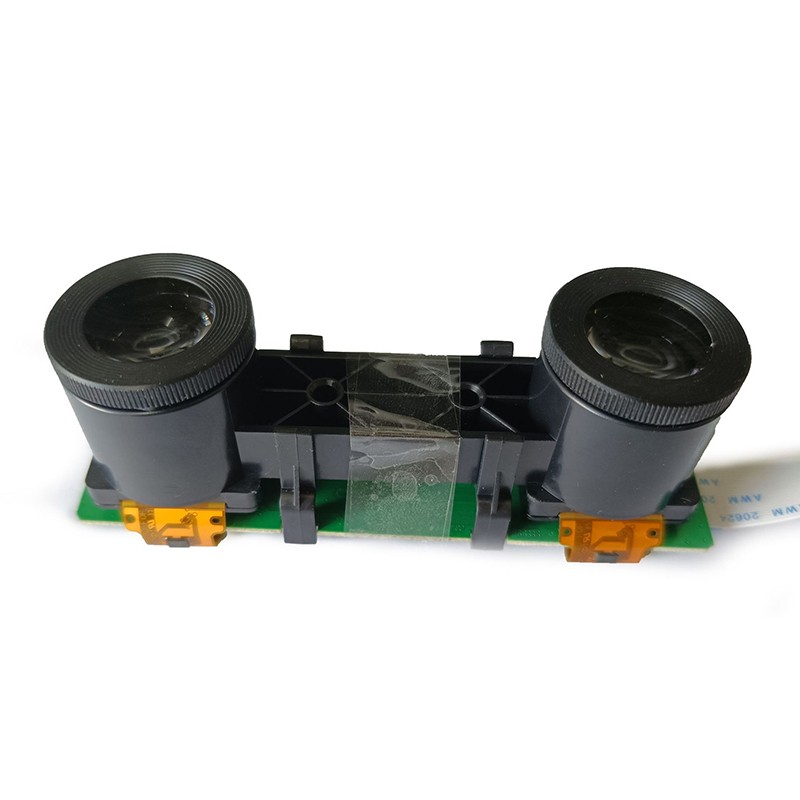

◆Optics: Available

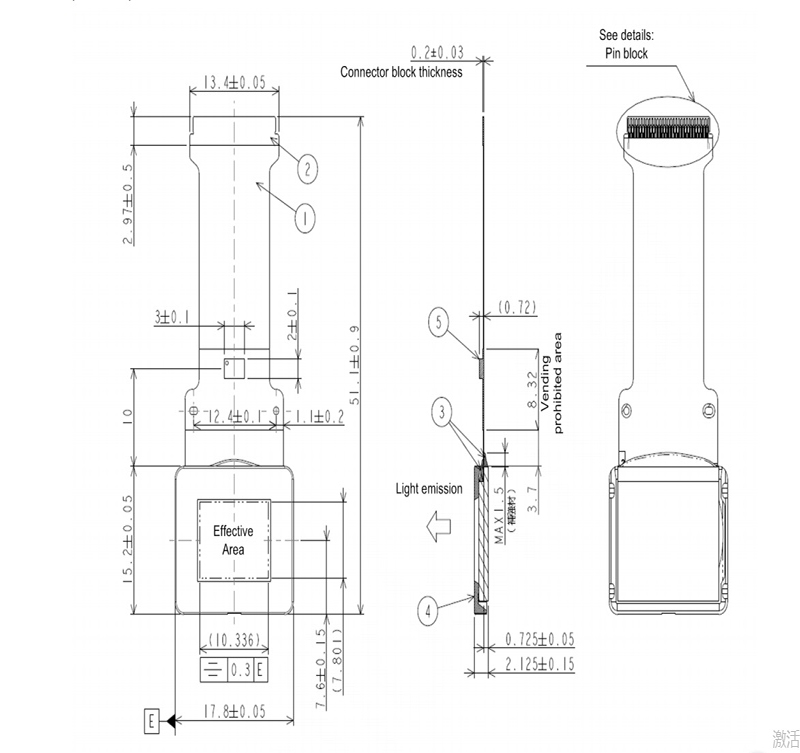

◆Module Dimension:10.14(H) × 7.644(V) (mm)
◆Active Area:8.143x 6.146 (mm)
◆Operatingn Temperature : -10℃~70℃
◆Storage Temperature : -10℃~70℃

Applications:

◆ EVF (electronic viewfinders) for consumer cameras;
◆ AR and VR glasses/goggles,entertainment, industrial applications, and sports,headsets for consumer AR glasses and the metaverse
◆ Drones and FPV
◆ All types of scopes
◆ Medical care (medical headset displays for surgery support and as displays for assistive auxiliary glasses for the vision-impaired)
◆ Other EVFs (for industrial microscopes and other professional devices that require high-quality image display.)
◆ head mounted displays
◆ very small monitors,etc

Features:

◆ Small size high definition type 0.5 display dots: 1024 (RGB)×768 = 2.36 M dots
◆ High contrast
◆ Wide color reproduction range
◆ High-speed response
◆ Thin type and light weight
◆ Power saving function
◆ Up/down and/or right/left inverse display function
◆ Orbit supporte
