0.32 inch Microoled 800x600 Micro display Screen 2000nits MIPI RGB I2C for Micro AR augmented reality glasses
Description
This Micro Display is a 0.32 inch diagonal si-oled micro OLED Display, with 800× 600 dots high resolution and high luminance up to 2000cd/m2, this micro-oled offers exceptional performance and versatility for AR/VR Devices;
in order to realizes small size, light weight, low power consumption, this microoled integrates panel driver and logic driver, now it is widely used in the fields of medical, industrial and education such as View finders, Head mounted displays, EVF, etc.

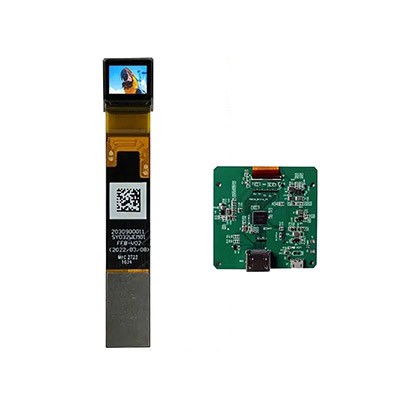

There are designed controller driver board in HDMI/TYPE-C for better demo.
0.32 inch Micro OLED display parameter
Product type: Si OLED/Micro-oled
Resolution: 800(H) x 600(V)
Display outline: 9.55*9.14*1.475mm
Useable Display Area: 6.48x4.86mm/0.32"(Diagonal)
Display Ratio:4:3
Brightness :2000nits
Refresh rate:15~120Hz
Contrast ratio:100000:1
Interface I2C+RGB and MIPI
Number of dots:1.44M (800x600x3)
Pixel Size:8.1µm x 8.1µm
Power Consumption :220mW
Gray Levels:256
Operating Temperature:-20℃~70℃
Storage Temperature：-40℃~80℃
0.32 inch Micro oledos display features
High Resolution:800×600;4:3 Aspect Ratio
Brightness and Contrast:2000 nits/contrast ratio of 100000:1
Fast Refresh Rate:120HZ
Wide Color Gamut:covering 92% of the DCI-P3 color space
Versatile Interface Options:MIPI and RGB+I2C
Dimension

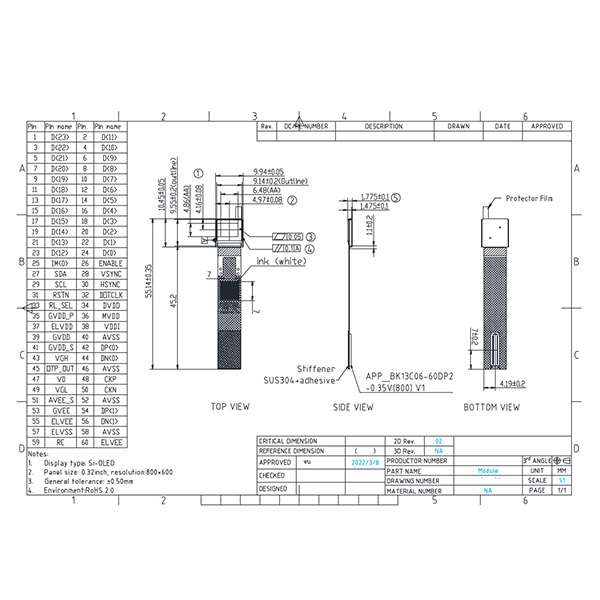

0.32" Micro screen:

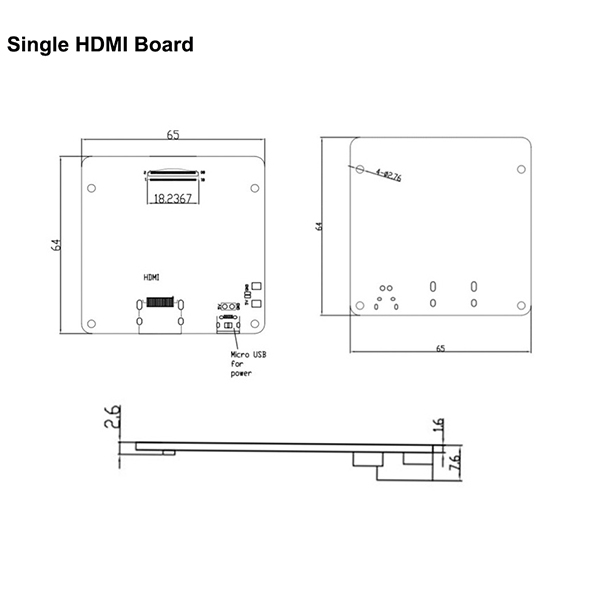

Single HDMI driver Board:

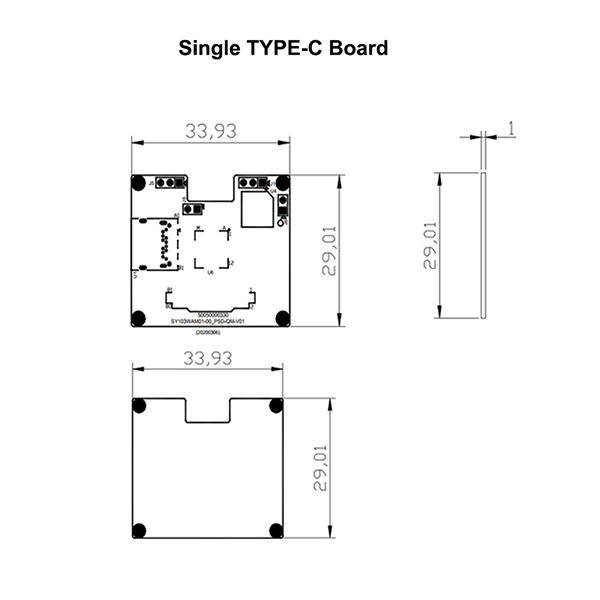

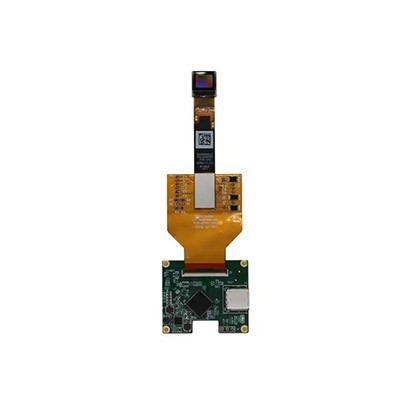

Single type-c driver board:

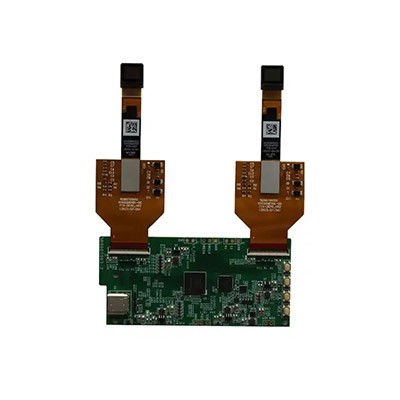

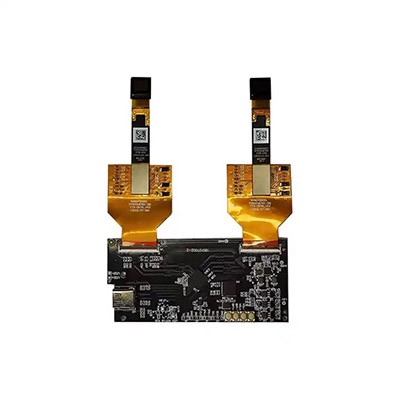

Dual type-c driver board:
