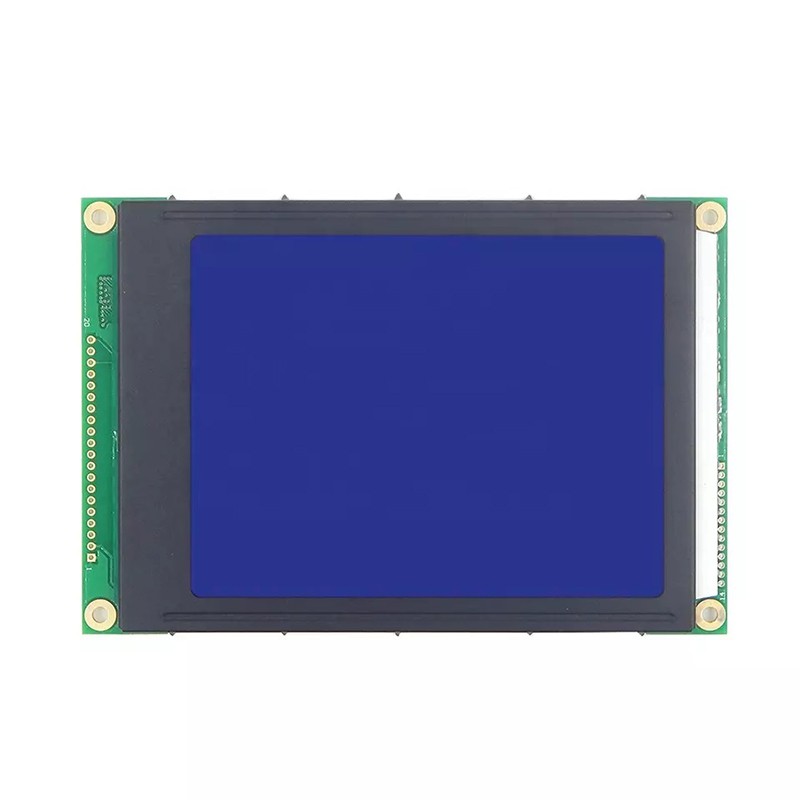

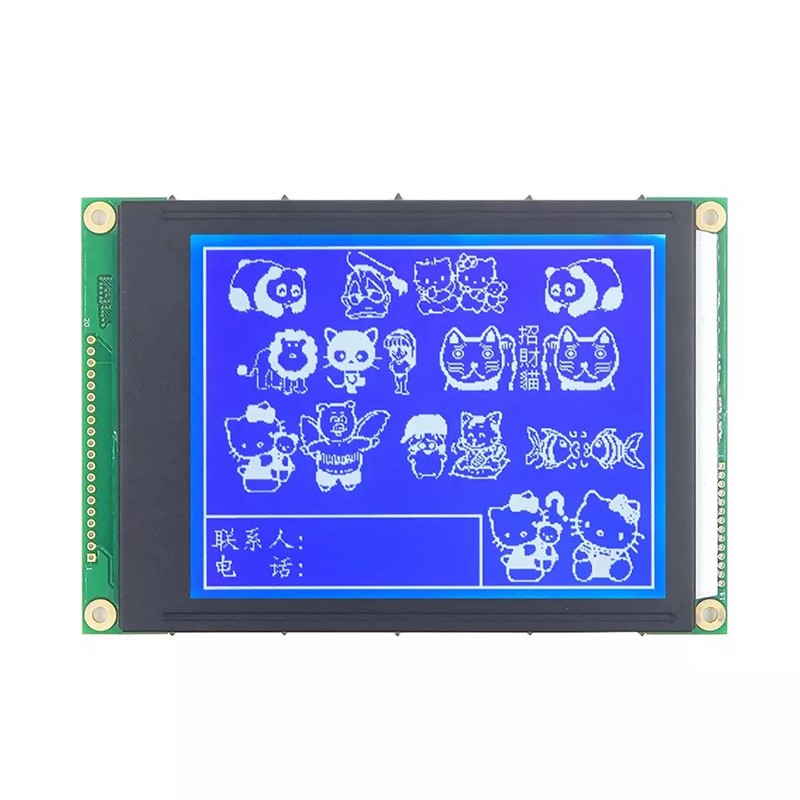

320x240 Dot Matrix Graphic LCD Display

Description

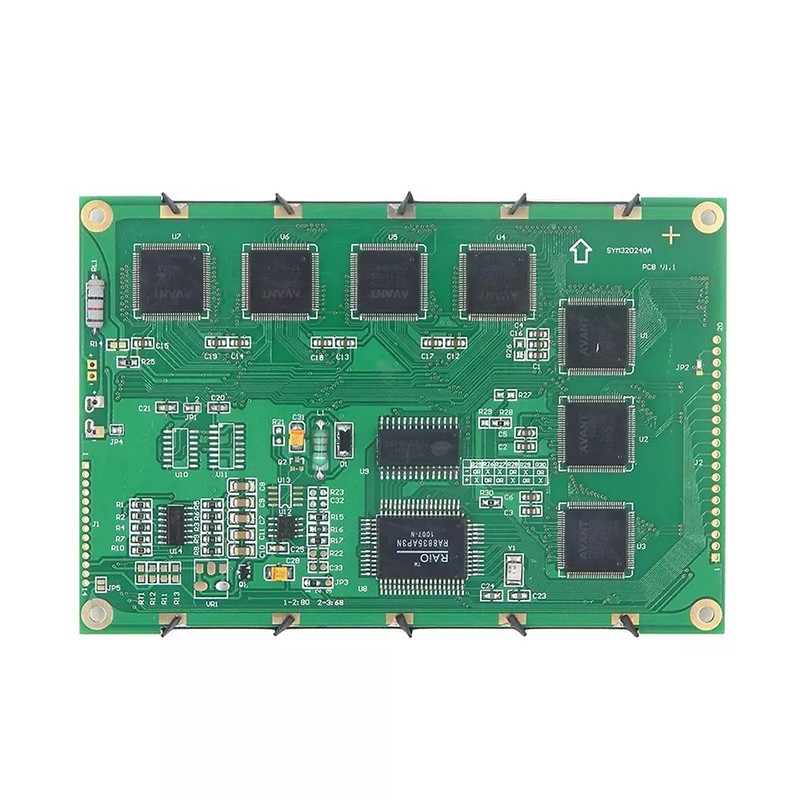

This 320x240 LCD Display is the graphic LCD display module which is made of 320x240 resolution,with the outline size 140 x 96.7 x 10.0 mm and active area size of 95.97 x 71.97 mm.This 320x240 graphic LCD display builts in with RA8835 controller IC or compatible controller. It supports 4 / 8 bit Parallel and 5V power supply,it also Negative
Voltage Generator 3V optional,wide operating temperature range,rohs compliant.

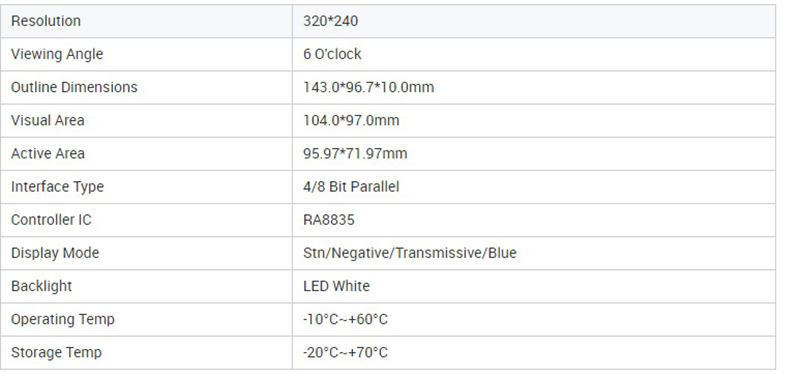

• Resolution :320x240  dots
• Display Mode : STN /Nositive /Transmissive/Blue
• Viewing Angles:6 O'clock
• Display Color : Blue
• Module Dimension :140 x 96.7 x 10.0 mm
• Viewing Area :95.97 x 71.97 mm
• Power Supply :5 V
• Interface : 4 / 8 bit Parallel
• Controller IC :RA8835
• Pin No: 20P
• Operation Temperature : -20℃~70℃
• Storage Temperature : -30℃~80℃

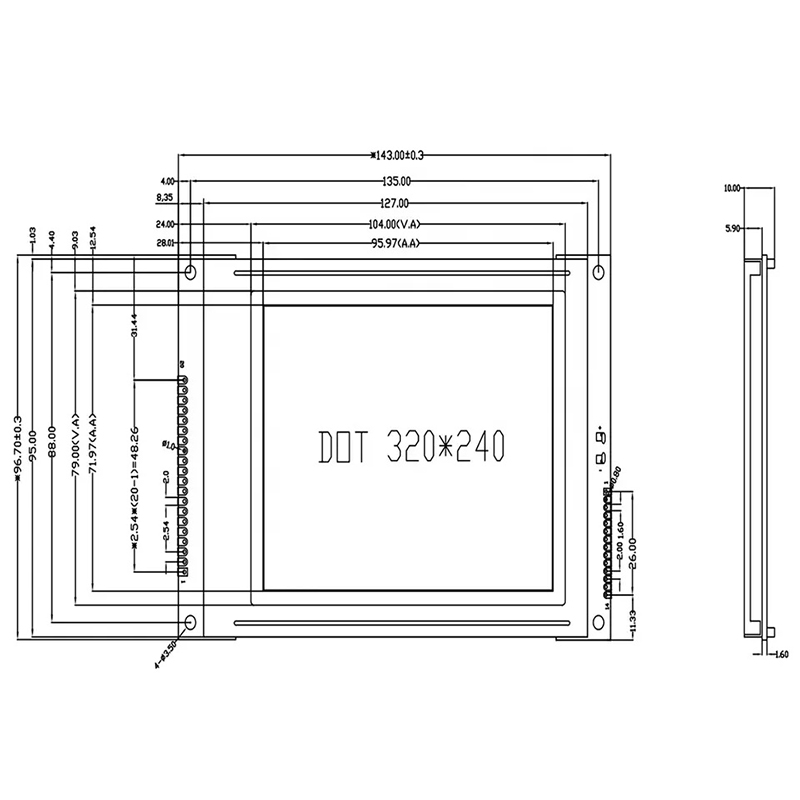

Dimensions
