Micro Display 0.35 inch 640x480 Micro LCD Display Screen
Overview
This Module products help OEMs to introduce consumer products quickly at a lower cost by offering a complete solution.These products incorporate CyberDisplay LCDs, drive electronics and optics in a compact package(If necessary, we can also offer original graphic board). Our binocular display modules (BDM) allow mobile video eyewear manufacturers to focus on the creative process of designing stylish products that consumers want by freeing them from the technical complexity of the display system.

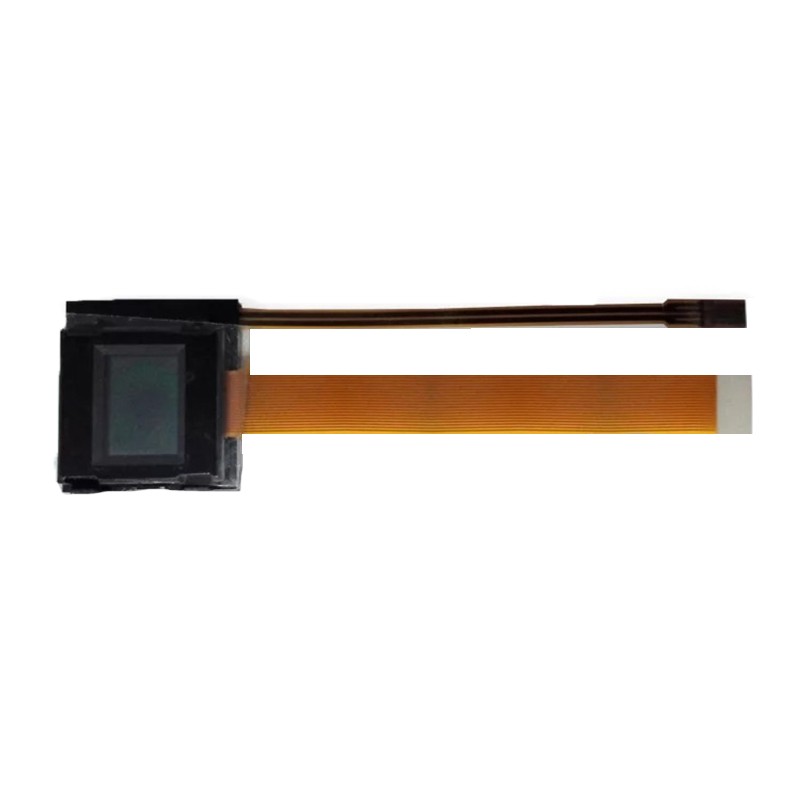

0.35 inch 640x480 Micro LCD Display parameter:
◆Resolution: (640x480)RGB
◆Screen size: 0.35" LCD
◆High quality optic: 32 degree field of view, 20 mm eye relief, 10 mm exit pupil
◆Signal input: CVBS/PAL (automatic selection)
◆Angle of View: Diagonal 32 degrees

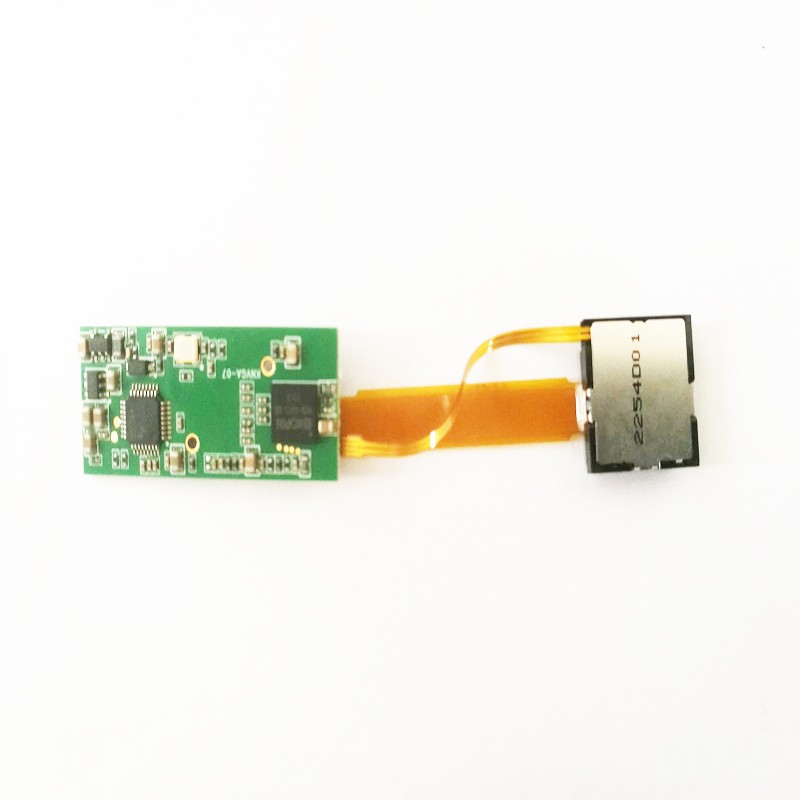

◆Driver Board:CVBS/AB
◆Supply input: 3.5-5V
◆Operating Temperature:0℃ ~ 60℃
◆Storage Temperature:-20℃ ~ 70℃
Various Applications:
◆The electronic viewfinder of the digital camera / camera
◆Portable civilian equipment such as micro projector, video glasses, head entertainment equipment, 3D display, game helmet and so on.
◆Security monitoring, military use: single soldier helmet display, electronic sight, infrared night vision instrument, thermal imaging display, electronic telescope, aircraft helmet, gun sight, life detection visual device.
◆Medical and industrial applications: man-machine visual engineering research, endoscopy, portable B-ultrasound, vision correction equipment, spectacles, various portable testing equipment
◆Aero model: aerial, remote control aircraft parameter display system, remote control car video display terminal, etc.
◆Minerals: coal exploration, metal mineral exploration
0.35" Micro LCD Screen Features:
◆The display module can reduce customer development time and cost. It has small volume and can be easily applied to customer product development and design.
◆Fill factor: < 50%
◆Pixel Drive voltage: 3-5 V
◆Easy Use: Plug power supply and input signals, then it will work
