Micro Lcos display module 0.4 inch 1280(RGB)X960

Category： AR/VR Display
Size:0.4 inch LCOS Display
Resolution:1280(RGB)X960
Brightness:210 cd/m2 Min
Interface: YCbCr(4:2:2)-parallel (16 data, Hd, Vd, Clock)
INQUIRY EMAIL

Lcos Screen 0.4 inch high-resolution 1280x960 Micro Display

Overview

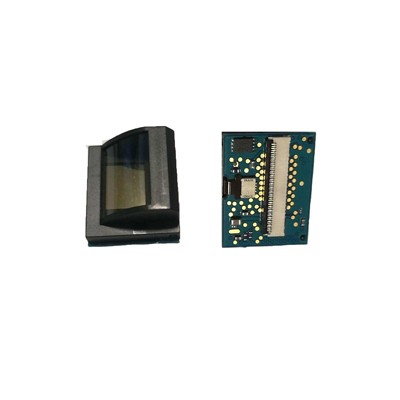

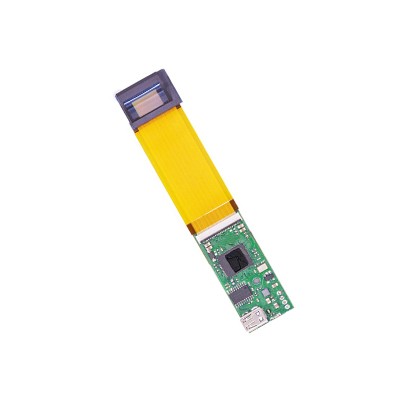

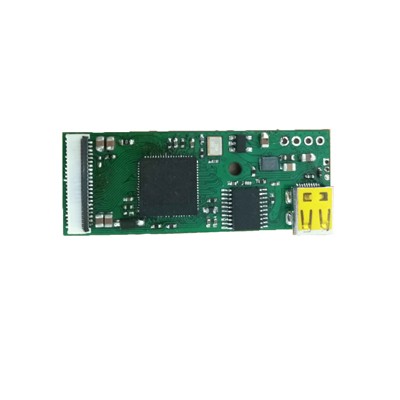

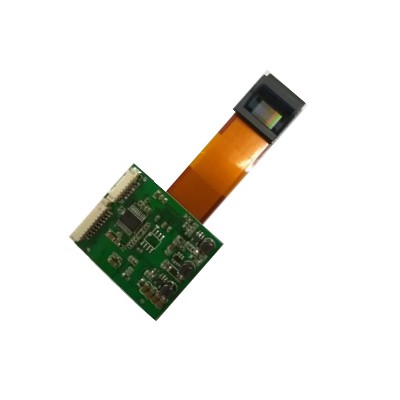

This Micro display screen module is consist of a LCOS display screen and a display controller board. It has a diagonal of 0.4 inch size and a 1280 X960 high resolution resolution.this lcos display can be powered directly by display HDMI-A driver board if current from HDMI-A is not enough, also this 0.4" lcos display screen can be powered by external supply additionally .

0.4 inch Lcos display screen parameter

◆Display Technology: Ferroelectric Liquid Crystal (FLC) on reflective CMOS
◆Display Mode:Field sequential color
◆Display Format:Quad VGA : 1,280(H) x 960(V)

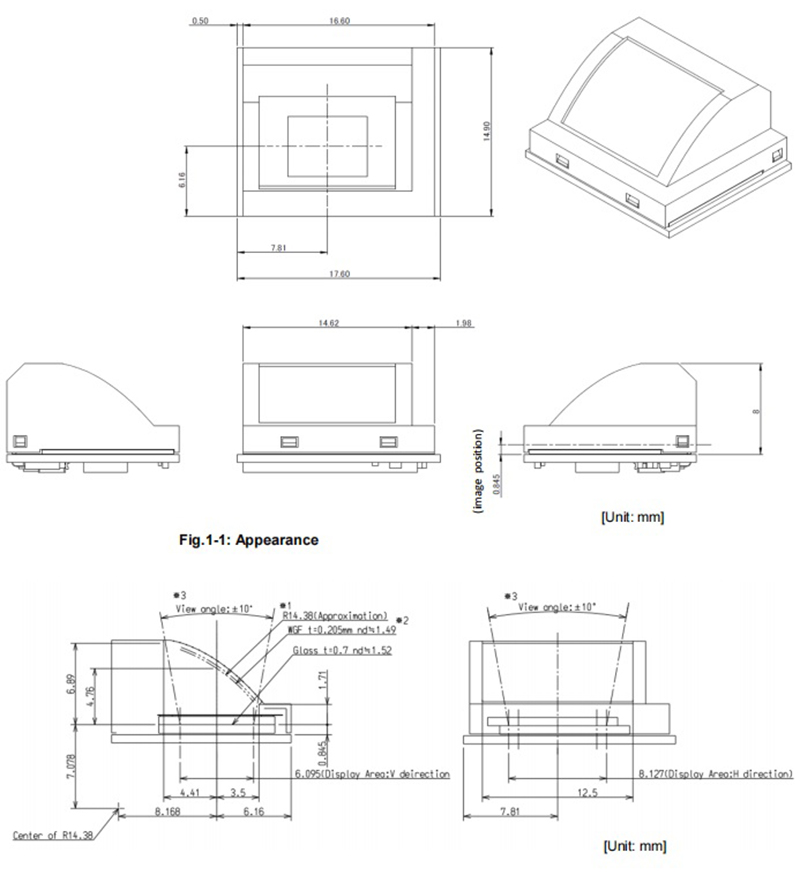

◆Display Panel Active Area:8.127 x 6.095mm
◆Display Area diagonal:10.16mm (0.40'')
◆Input Grayscale:256 levels per color (8bits)
◆Color Depth:16.78Million unique colors (RGB888 input)
◆Display Pixel Pitch:6.35um
◆Display Frame Rate:60Hz/540Hz (NTSC), 50Hz/450 Hz (PAL) Typical
◆Brightness:220 cd/m2 (Typical).
◆Contrast Ratio:150:1 (Typical)

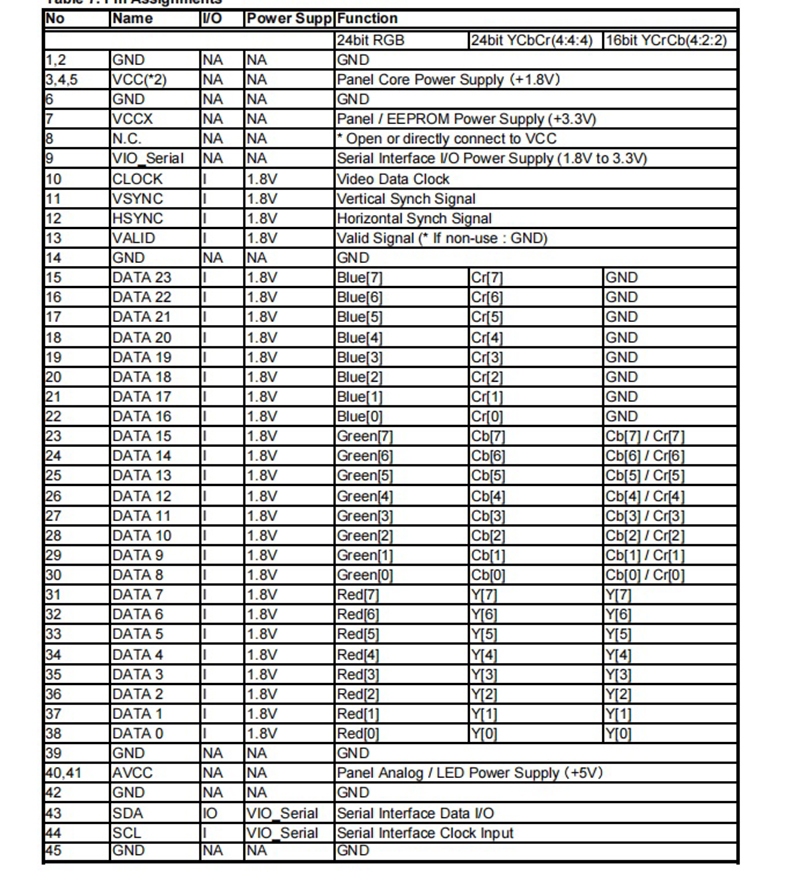

◆Digital Display Interface:RGB888 - parallel 24bit/RGB666 - parallel 18bit/RGB565 - parallel 16bit/YCbCr(4:4:4)-parallel/YCbCr(4:2:2)-parallel
◆Operating Temperature:-10℃ ~ 70℃
◆Storage Temperature:-30℃ ~ 83℃

Application fields of 0.4"Lcos display micro screen module

◆ AR / VR display, helmet display, digital camera / video camera, electronic viewfinder

◆ Portable civilian equipment, such as micro projector, video glasses, head mounted entertainment equipment, 3D display, game helmet, etc

◆ Security monitoring and military use: individual helmet display, electronic sight, infrared night vision, thermal imager display, electronic telescope, riding helmet, gun aiming and life detection video devices

◆ Medical and industrial applications: human and computer video engineering research, endoscope, portable B-ultrasound machine, vision correction equipment, magnifying glass, various portable inspection and testing equipment

◆ Aircraft model: aerial photography, remote control aircraft parameter display system, remote control automobile video display terminal, etc

0.4" lcos screen"s technical features

◆The display module can reduce the customer development cycle and reduce the customer development cost. It has a small volume and can be easily applied to the customer's product development and design.

◆Flcos ferroelectric liquid crystal display is adopted.

◆Resolution: 1280 × 960, good display color, high contrast, low power consumption, low cost, clearer and exquisite picture, very realistic.

◆Working mode: Digital

◆Power consumption: small

◆Operating temperature: - 10 ℃ ~ 70 ℃

◆Storage temperature: - 30 ℃ ~ 83 ℃

◆Brightness can be controlled.
