2.08 inch OLED Display Module 256x64 pixels

Description

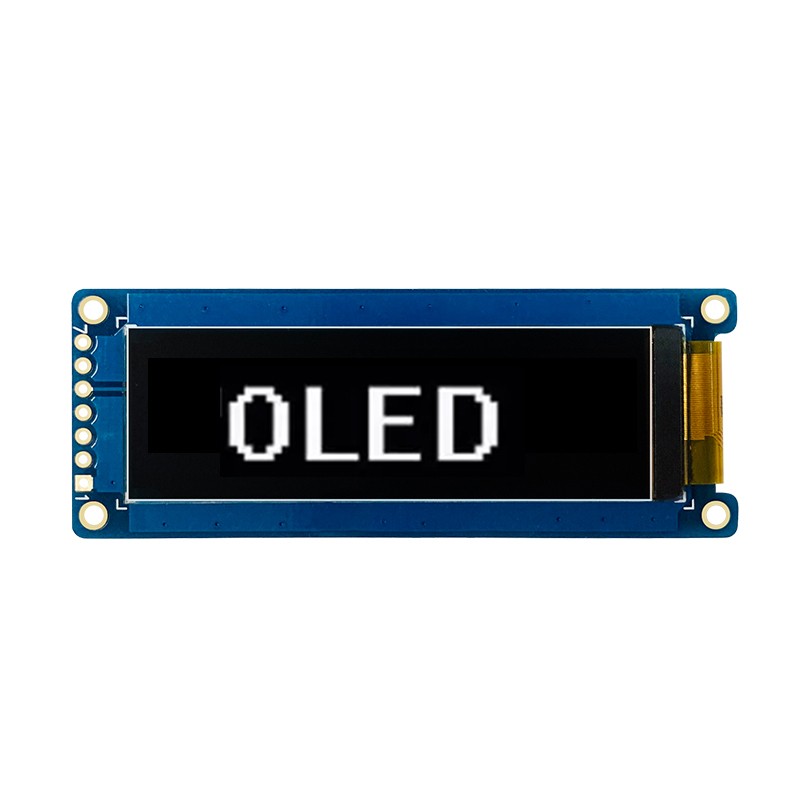

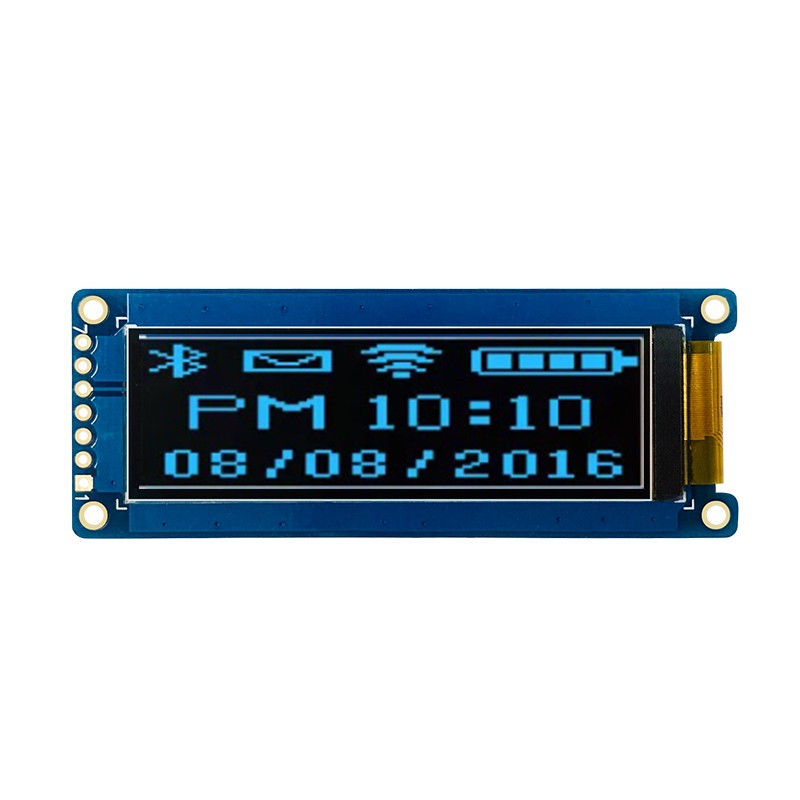

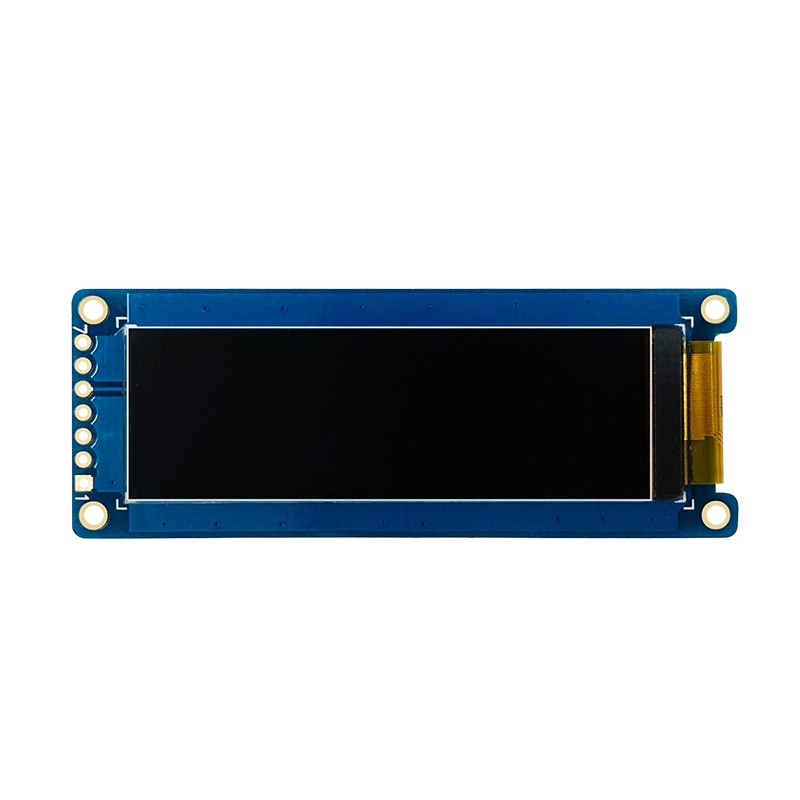

The monochrome 2.08" OLED Module is the graphic COB OLED display and made of 256x64 white OLED pixels, it is with it is with Module Dimension of 72.5(W) x 27.24(H) mm,AA size 51.18 (W) x 12.78 (H) mm.it builts in SH1122 controller ic,communicates via SPI serial interface. this OLED Module is Small,lightweight, low power consumption since it only powers the pixels that is  necessary,suitable for industrial equipments,any embedded systems,medical and hand-held devices,securities.

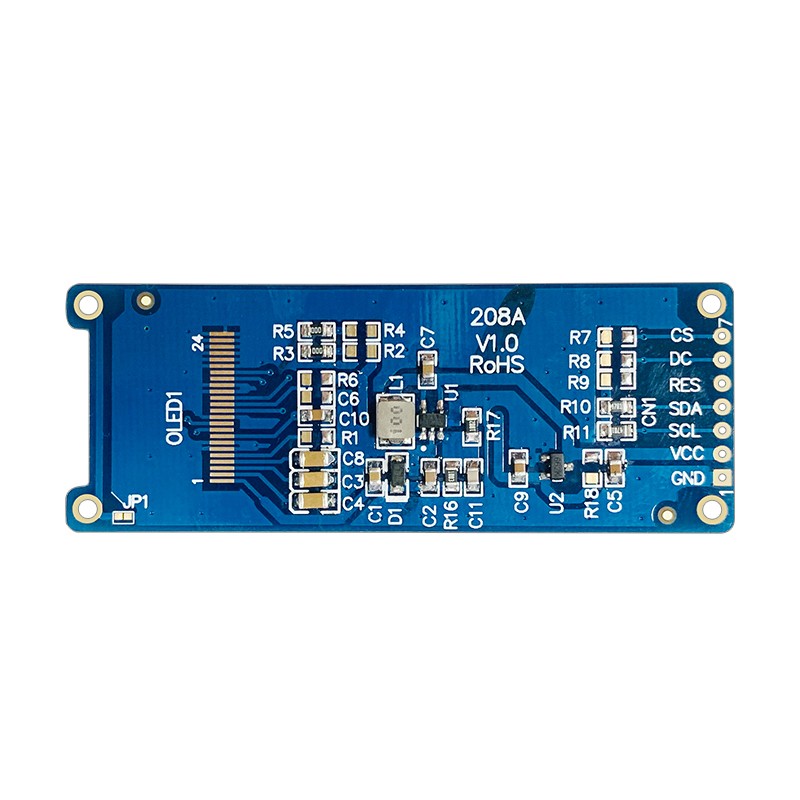

It's pin headers connected by defaults,so it is easy to fix the modules on your applications since it is with PCB Board on it!




Specifications

• Resolution :256x64 Dot Matrix COB OLED
• Display Mode : Passive Matrix
• Viewing Angles: IPS
• Display Color : Monochrome (White /Blue)
• Module Dimension :72.5(W) x 27.24(H)  mm
• Viewing Area :51.18 (W) x 12.78 (H) mm
• Power Supply :3.3 V
• Interface :  SPI
• Controller IC :SH1122
• Dot (Pixel) Size:0.274 x 0.274

• Dot (Pixel) Pitch:0.258 x0.258 mm
• Pin No: 7P
• Operation Temperature : -30℃~80℃
• Storage Temperature : -40℃~85℃

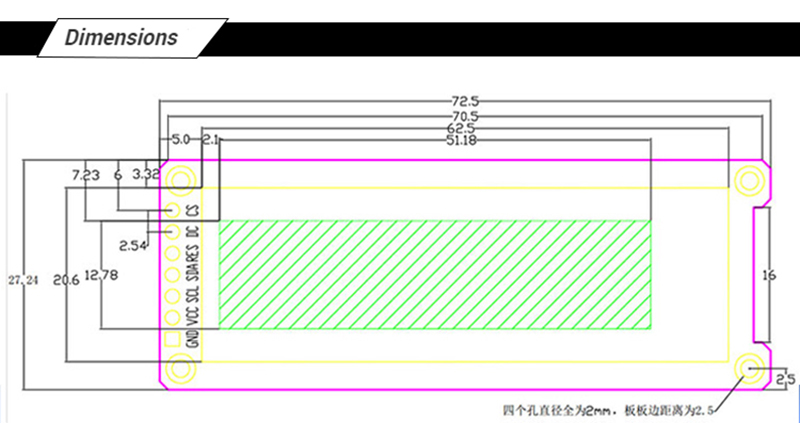

Dimensions

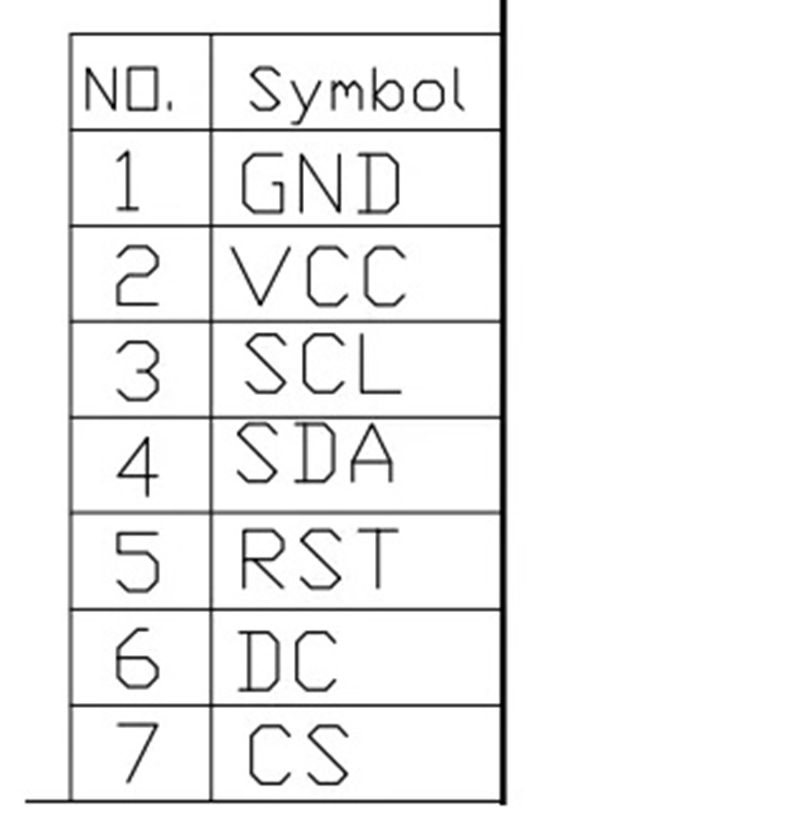

Pin Definitions
