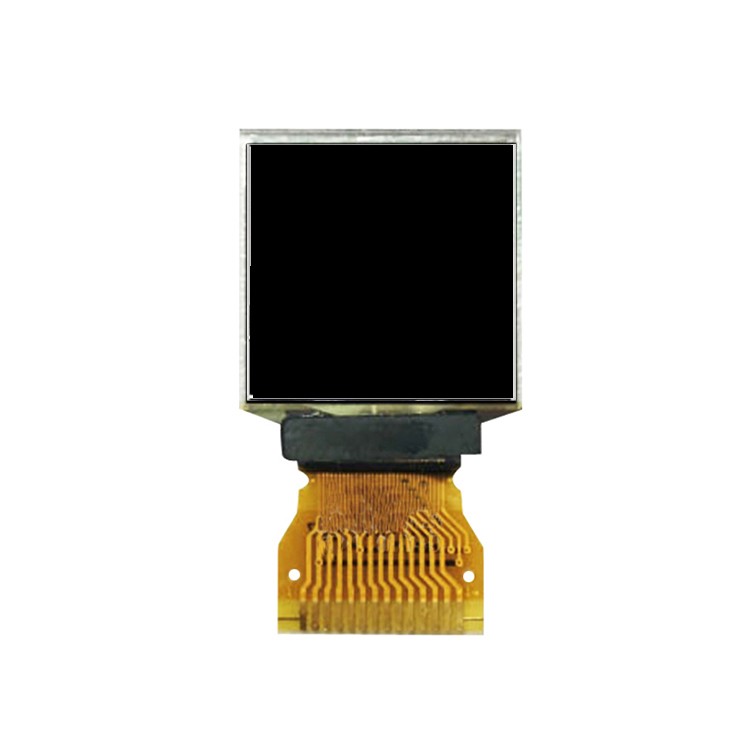

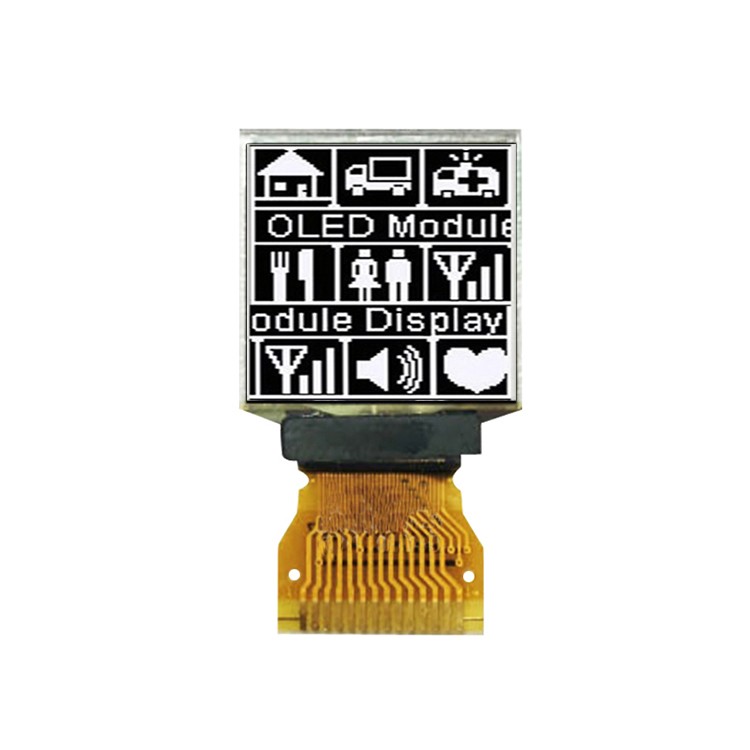

0.75 inch 96x64 Square OLED Display module

Description

This 0.75" OLED is a Mini graphic OLED display module which is made of 96x96 pixels white OLED,it is with outline dimension of 17.0× 30.0 mm and AA size 13.516 × 13.516 mm, it builts in SH1108 controller ic,communicates via 4-Wire SPI/I2C serial interface.this mini COG OLED display is very thin,lightweight and low power consumption since no backlight is needed;so it has such high contrast,extremely operating temperature,applied for any embedded systems,wearable device,industrial devices,medical and hand-held devices,personal care appliance, voice recorder pen and securit,mp3,etc.

The FFC is the soldering types,no need connectors.Just soldering the FPC on your own PCB directly.

Specifications

• Resolution : 96X96 Dot Matrix OLED
• Display Mode : Passive Matrix
• Viewing Angles: IPS
• Display Color : Monochrome (White)
• Module Dimension : 17.0 x 30.0 x 1.2 mm
• Viewing Area : 13.516 X 13.516 mm
• Power Supply :1.65-3.5 V
• Interface :4-Wire SPI/I2C
• Controller IC : SH1108
• Pin No: 14P Sodering
• Operation Temperature : -40℃~70℃
• Storage Temperature : -40℃~85℃

Dimensions

Pin Definitions
