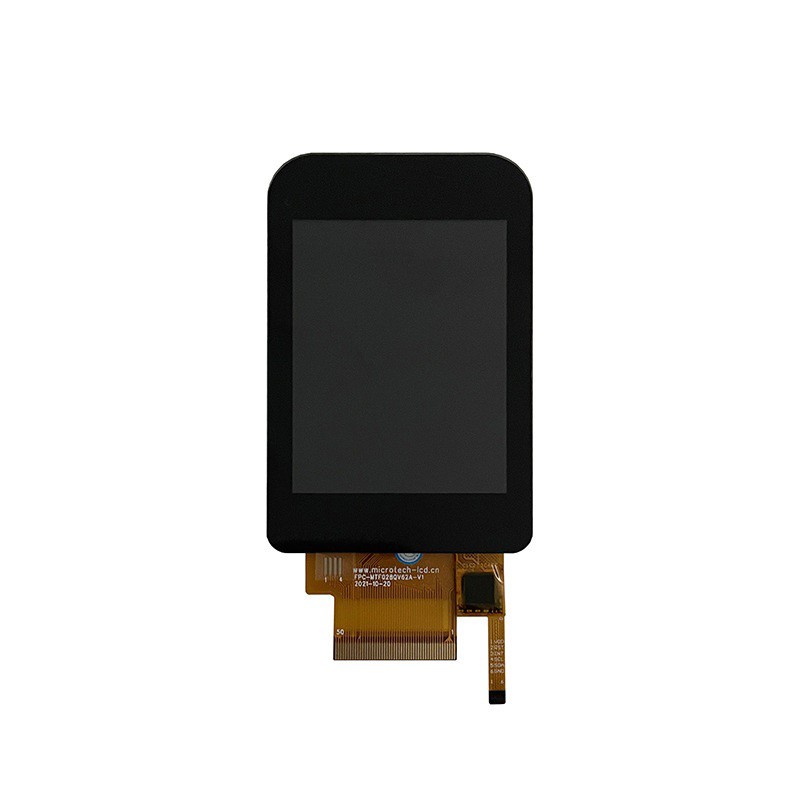

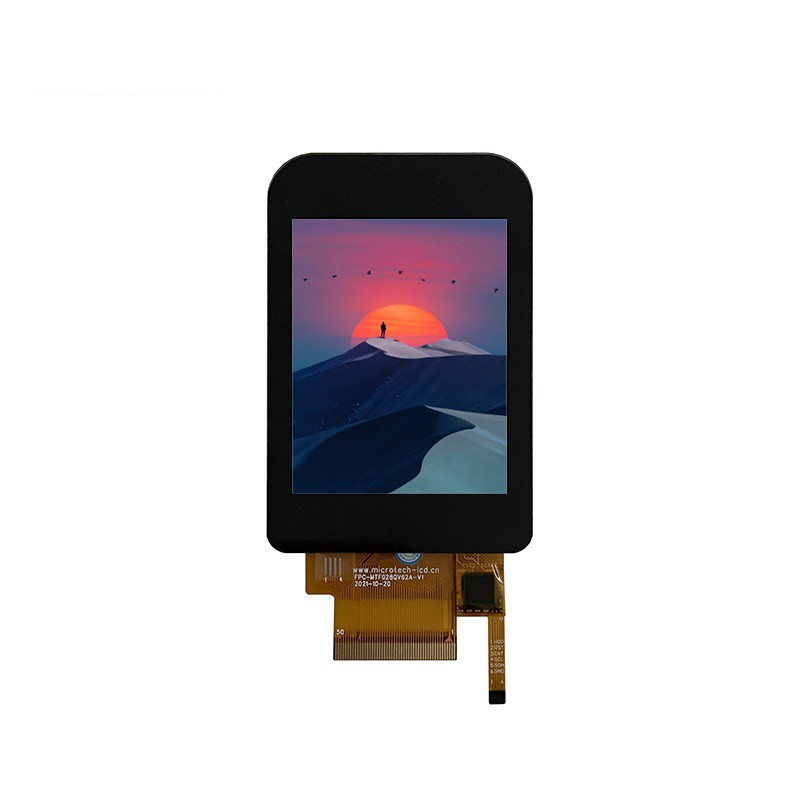

2.8 Inch Touch Screen 320x240 TFT LCD Display

Description

This 2.8"TFT is a IPS Mini color TFT LCD display module is made of resolution 240x RGBx320 pixels,with outline dimension of 50.0 x 69.2 x 2.35 mm and AA size 43.2x57.6 mm.this 2.8" TFT display builts in ST7789  Driver IC and supports 4-Wires Serial  interface,with full viewing angle and wide range of operating Temperature,it is ideal to be used in industrial device,any embedded systems,medical equipment,wearable devices,security and hand-held devices which requests TFT display with high quality and colorful images.

• Resolution:240x(RGB)x320
• View Direction:ALL O'clock
• Display Color : RGB 17.6M
• Power Supply :1.65-3.3 V
• Interface :  4-Wires Serial
• Controller IC :ST7789
• Pin No: 50P Connector
• Dot pitch:0.180(H)×0.180(V)

• Luminance(cd/m2):350(TYP)

• Backlight: 4 White LEDs

• LCD Type: TFT,Normally Black,Transmissive
• Panel Dimension:50.0 x 69.2 x 2.45 mm
• Viewing Area :43.2x57.6 mm
• Touch Screen: YES
• Operation Temperature : -20℃~70℃
• Storage Temperature : -30℃~80℃

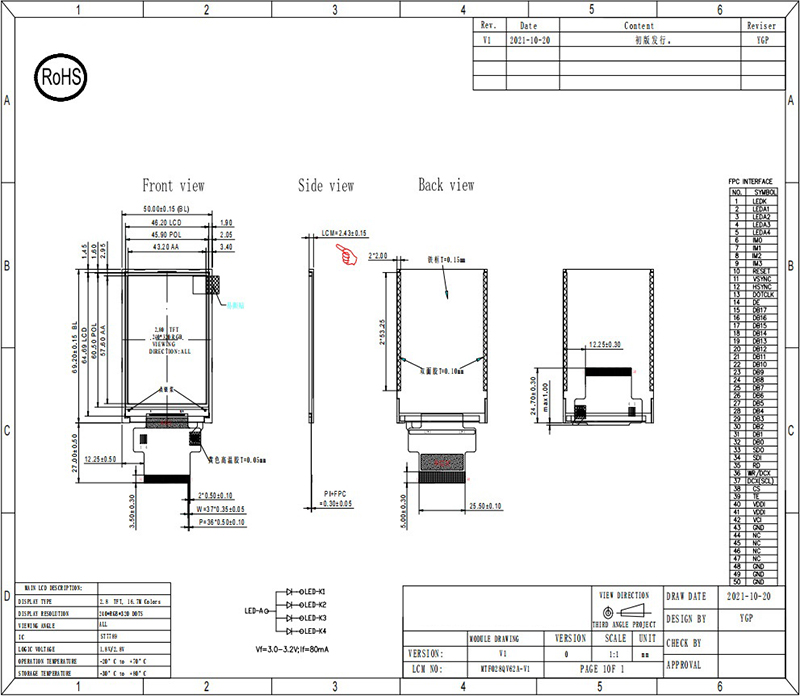

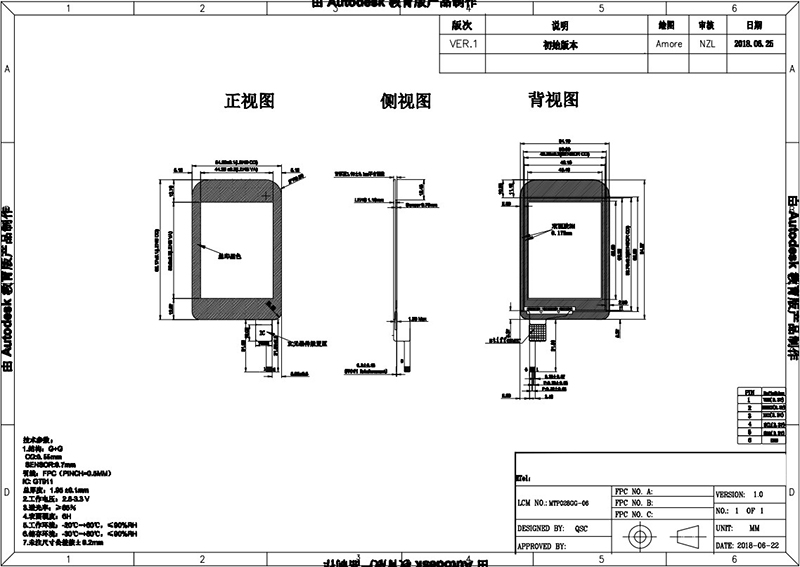

Dimensions
